grad::Matrix< T, N_rows, N_cols > Class Template Reference

#include <matvec.h>

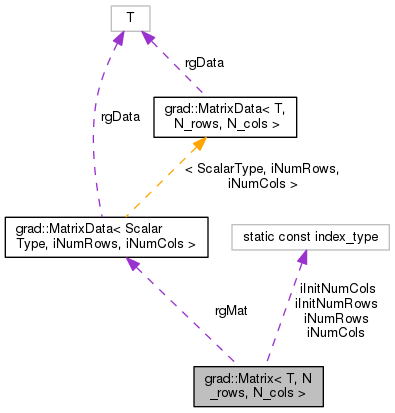

Collaboration diagram for grad::Matrix< T, N_rows, N_cols >:

Public Types
typedef ScalarTypeTraits< T > ::ScalarType	ScalarType
typedef ScalarTypeTraits< T > ::DirectExpressionType	ExpressionType
typedef VectorExpression < SliceVector< T, N_cols, 1 > , N_cols >	RowVectorType
typedef VectorExpression < SliceVector< T, N_rows, N_cols >, N_rows >	ColumnVectorType

Public Member Functions
	Matrix ()
	Matrix (index_type iRows, index_type iCols)
	Matrix (const T &A11, const T &A21, const T &A12, const T &A22)
	Matrix (const Matrix &A)
	Matrix (const Mat3x3 &A)
template<typename InitClass >
	Matrix (const MatrixInit< InitClass, T, N_rows, N_cols > &func)
template<typename Expression >
	Matrix (const MatrixExpression< Expression, N_rows, N_cols > &A)
template<typename T2 >
	Matrix (const Matrix< T2, N_rows, N_cols > &A, LocalDofMap *pDofMap)
template<typename T2 >
void	Copy (const Matrix< T2, N_rows, N_cols > &A, LocalDofMap *pDofMap)
void	Reset ()
void	Resize (index_type iRows, index_type iCols)
template<typename Expression >
Matrix &	operator= (const MatrixExpression< Expression, N_rows, N_cols > &A)
template<typename T_Rhs >
Matrix &	operator+= (const Matrix< T_Rhs, N_rows, N_cols > &A)
template<typename T_Rhs >
Matrix &	operator-= (const Matrix< T_Rhs, N_rows, N_cols > &A)
template<typename Expression >
Matrix &	operator+= (const MatrixExpression< Expression, N_rows, N_cols > &A)
template<typename Expression >
Matrix &	operator-= (const MatrixExpression< Expression, N_rows, N_cols > &A)
template<typename T_Rhs >
Matrix &	operator*= (const T_Rhs &a)
template<typename T_Rhs >
Matrix &	operator/= (const T_Rhs &a)
template<typename ScalarExpression >
Matrix &	operator*= (const GradientExpression< ScalarExpression > &a)
template<typename ScalarExpression >
Matrix &	operator/= (const GradientExpression< ScalarExpression > &a)
Matrix &	operator= (const Mat3x3 &A)
const ScalarType &	operator() (index_type iRow, index_type iCol) const
ScalarType &	operator() (index_type iRow, index_type iCol)
RowVectorType	GetRow (index_type iRow) const
ColumnVectorType	GetCol (index_type iCol) const
index_type	iGetNumRows () const
index_type	iGetNumCols () const
const ScalarType *	pGetMat () const
template<typename ScalarType2 >
bool	bHaveReferenceTo (const ScalarType2 *pFirst, const ScalarType2 *pLast) const

Static Public Attributes
static const index_type	iNumRows = N_rows
static const index_type	iNumCols = N_cols
static const index_type	iInitNumRows = iNumRows == DYNAMIC_SIZE ? 0 : iNumRows
static const index_type	iInitNumCols = iNumCols == DYNAMIC_SIZE ? 0 : iNumCols

Private Member Functions
const ScalarType *	pGetFirstElem () const
const ScalarType *	pGetLastElem () const
template<typename Func , typename U >
void	ApplyScalarFunc (const U &a)
template<typename Func , typename Expression >
void	ApplyMatrixFunc (const MatrixExpression< Expression, N_rows, N_cols > &A)
template<typename Func , typename Expression >
void	ApplyMatrixFuncNoAlias (const MatrixExpression< Expression, N_rows, N_cols > &A, const Func &)
template<typename Func , typename Expression >
void	ApplyMatrixFuncAlias (const MatrixExpression< Expression, N_rows, N_cols > &A, const Func &f)

Private Attributes
MatrixData< ScalarType, iNumRows, iNumCols >	rgMat

Friends
struct	MatVecHelp::ApplyAliasHelperMatrix< false >
struct	MatVecHelp::ApplyAliasHelperMatrix< true >

Detailed Description

template<typename T, index_type N_rows, index_type N_cols>
class grad::Matrix< T, N_rows, N_cols >

Definition at line 92 of file matvec.h.

Member Typedef Documentation

template<typename T, index_type N_rows, index_type N_cols>

typedef VectorExpression<SliceVector<T, N_rows, N_cols>, N_rows> grad::Matrix< T, N_rows, N_cols >::ColumnVectorType

Definition at line 1920 of file matvec.h.

template<typename T, index_type N_rows, index_type N_cols>

typedef ScalarTypeTraits<T>::DirectExpressionType grad::Matrix< T, N_rows, N_cols >::ExpressionType

Definition at line 1917 of file matvec.h.

template<typename T, index_type N_rows, index_type N_cols>

typedef VectorExpression<SliceVector<T, N_cols, 1>, N_cols> grad::Matrix< T, N_rows, N_cols >::RowVectorType

Definition at line 1919 of file matvec.h.

template<typename T, index_type N_rows, index_type N_cols>

typedef ScalarTypeTraits<T>::ScalarType grad::Matrix< T, N_rows, N_cols >::ScalarType

Definition at line 1916 of file matvec.h.

Constructor & Destructor Documentation

template<typename T, index_type N_rows, index_type N_cols>

grad::Matrix< T, N_rows, N_cols >::Matrix ( )

inline

Definition at line 1922 of file matvec.h.

Referenced by grad::Matrix< T, N_rows, N_cols >::ApplyMatrixFuncAlias().

            :rgMat(iInitNumRows, iInitNumCols, true) {
        }

template<typename T, index_type N_rows, index_type N_cols>

grad::Matrix< T, N_rows, N_cols >::Matrix ( index_type  iRows, index_type  iCols  )

inline

Definition at line 1926 of file matvec.h.

            :rgMat(iRows, iCols, true) {
        }

template<typename T, index_type N_rows, index_type N_cols>

grad::Matrix< T, N_rows, N_cols >::Matrix ( const T &  A11, const T &  A21, const T &  A12, const T &  A22  )

inline

Definition at line 1930 of file matvec.h.

References grad::Matrix< T, N_rows, N_cols >::iNumCols, and grad::Matrix< T, N_rows, N_cols >::iNumRows.

            :rgMat(iNumRows, iNumCols, false) {
            typedef typename IndexCheck<iNumRows - 2>::CheckType check_iNumRows;
            typedef typename IndexCheck<iNumCols - 2>::CheckType check_iNumCols;

            (*this)(1, 1) = A11;
            (*this)(2, 1) = A21;
            (*this)(1, 2) = A12;
            (*this)(2, 2) = A22;
        }

template<typename T, index_type N_rows, index_type N_cols>

grad::Matrix< T, N_rows, N_cols >::Matrix ( const Matrix< T, N_rows, N_cols > &  A )

inline

Definition at line 1941 of file matvec.h.

            :rgMat(A.rgMat) {
        }

template<typename T , index_type N_rows, index_type N_cols>

grad::Matrix< T, N_rows, N_cols >::Matrix ( const Mat3x3 &  A )

inlineexplicit

Definition at line 2233 of file matvec.h.

References grad::Direct().

        :rgMat(N_rows, N_cols, false) {
        using namespace MatVecHelp;

        ApplyMatrixFunc<Assign>(Direct(A));
}

Here is the call graph for this function:

template<typename T, index_type N_rows, index_type N_cols>

template<typename InitClass >

grad::Matrix< T, N_rows, N_cols >::Matrix ( const MatrixInit< InitClass, T, N_rows, N_cols > &  func )

inlineexplicit

Definition at line 1948 of file matvec.h.

            :rgMat(func.iGetNumRows(), func.iGetNumCols(), false) {
            func.Initialize(*this);
        }

template<typename T, index_type N_rows, index_type N_cols>

template<typename Expression >

grad::Matrix< T, N_rows, N_cols >::Matrix ( const MatrixExpression< Expression, N_rows, N_cols > &  A )

inline

Definition at line 1954 of file matvec.h.

References grad::Matrix< T, N_rows, N_cols >::ApplyMatrixFuncNoAlias().

            :rgMat(A.iGetNumRows(), A.iGetNumCols(), false) {
            // No aliases are possible because the object did not exist before
            using namespace MatVecHelp;
            ApplyMatrixFuncNoAlias(A, Assign());
        }

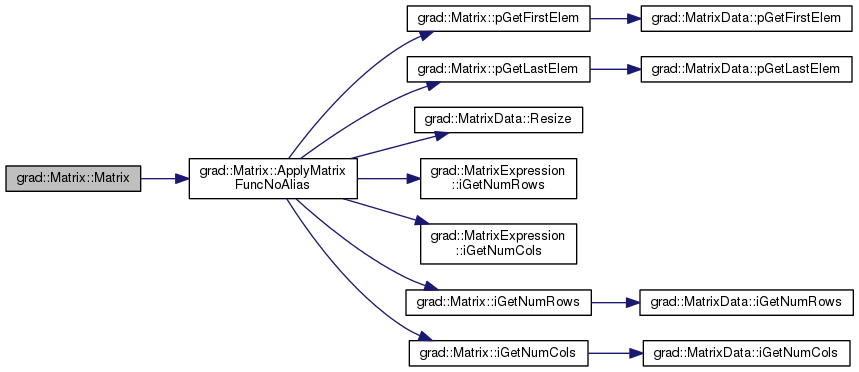

Here is the call graph for this function:

template<typename T, index_type N_rows, index_type N_cols>

template<typename T2 >

grad::Matrix< T, N_rows, N_cols >::Matrix ( const Matrix< T2, N_rows, N_cols > &  A, LocalDofMap *  pDofMap  )

inline

Definition at line 1962 of file matvec.h.

References grad::Matrix< T, N_rows, N_cols >::Copy().

            :rgMat(A.iGetNumRows(), A.iGetNumCols(), false) {
            Copy(A, pDofMap);
        }

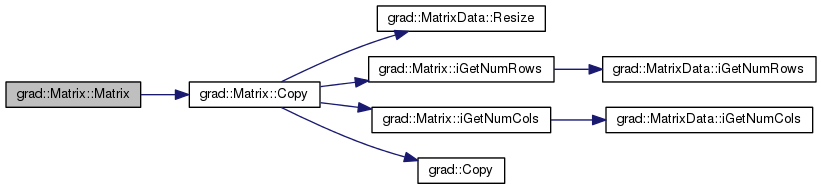

Here is the call graph for this function:

Member Function Documentation

template<typename T, index_type N_rows, index_type N_cols>

template<typename Func , typename Expression >

void grad::Matrix< T, N_rows, N_cols >::ApplyMatrixFunc ( const MatrixExpression< Expression, N_rows, N_cols > &  A )

inlineprivate

Definition at line 2152 of file matvec.h.

Referenced by grad::Vector< T, N_rows >::ApplyMatrixFunc().

                                                                                {
        using namespace MatVecHelp;

        ApplyAliasHelperMatrix<MatrixExpression<Expression, N_rows, N_cols>::bAlias>::ApplyMatrixFunc(*this, A, Func());
    }

template<typename T, index_type N_rows, index_type N_cols>

template<typename Func , typename Expression >

void grad::Matrix< T, N_rows, N_cols >::ApplyMatrixFuncAlias ( const MatrixExpression< Expression, N_rows, N_cols > &  A, const Func &  f  )

inlineprivate

Definition at line 2175 of file matvec.h.

References grad::Matrix< T, N_rows, N_cols >::ApplyMatrixFuncNoAlias(), and grad::Matrix< T, N_rows, N_cols >::Matrix().

                                                                                                    {
        ApplyMatrixFuncNoAlias(MatrixExpression<MatrixDirectExpr<Matrix>, N_rows, N_cols>(Matrix(A)), f);
    }

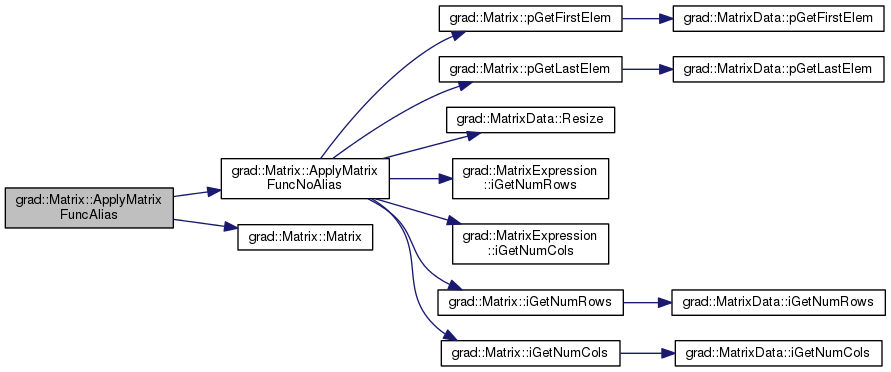

Here is the call graph for this function:

template<typename T, index_type N_rows, index_type N_cols>

template<typename Func , typename Expression >

void grad::Matrix< T, N_rows, N_cols >::ApplyMatrixFuncNoAlias ( const MatrixExpression< Expression, N_rows, N_cols > &  A, const Func &    )

inlineprivate

Definition at line 2159 of file matvec.h.

References grad::MatrixExpression< Expression, N_rows, N_cols, CLEAR_ALIAS >::iGetNumCols(), grad::Matrix< T, N_rows, N_cols >::iGetNumCols(), grad::MatrixExpression< Expression, N_rows, N_cols, CLEAR_ALIAS >::iGetNumRows(), grad::Matrix< T, N_rows, N_cols >::iGetNumRows(), MATVEC_ASSERT, grad::Matrix< T, N_rows, N_cols >::pGetFirstElem(), grad::Matrix< T, N_rows, N_cols >::pGetLastElem(), grad::MatrixData< T, N_rows, N_cols >::Resize(), and grad::Matrix< T, N_rows, N_cols >::rgMat.

Referenced by grad::Matrix< T, N_rows, N_cols >::ApplyMatrixFuncAlias(), grad::Vector< T, N_rows >::ApplyMatrixFuncAlias(), grad::Matrix< T, N_rows, N_cols >::Matrix(), and grad::Vector< T, N_rows >::Vector().

                                                                                                    {
            MATVEC_ASSERT(!A.bHaveReferenceTo(pGetFirstElem(), pGetLastElem()));

            rgMat.Resize(A.iGetNumRows(), A.iGetNumCols());

                MATVEC_ASSERT(A.iGetNumRows() == iGetNumRows());
                MATVEC_ASSERT(A.iGetNumCols() == iGetNumCols());

                for (index_type i = 1; i <= iGetNumRows(); ++i) {
                        for (index_type j = 1; j <= iGetNumCols(); ++j) {
                                Func::Eval((*this)(i, j), A(i, j));
                        }
        }
    }

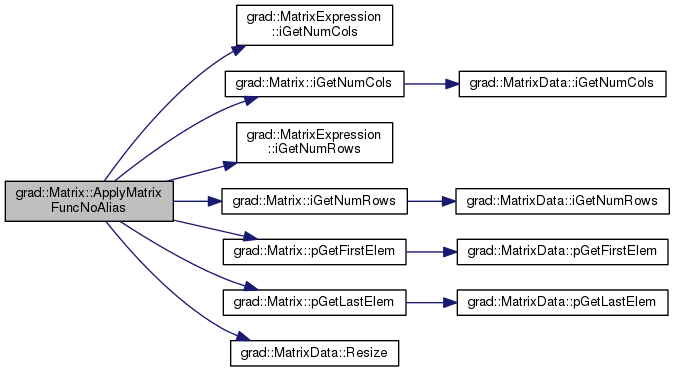

Here is the call graph for this function:

template<typename T, index_type N_rows, index_type N_cols>

template<typename Func , typename U >

void grad::Matrix< T, N_rows, N_cols >::ApplyScalarFunc ( const U &  a )

inlineprivate

Definition at line 2143 of file matvec.h.

References grad::Matrix< T, N_rows, N_cols >::iGetNumCols(), and grad::Matrix< T, N_rows, N_cols >::iGetNumRows().

                                     {
                for (index_type i = 1; i <= iGetNumRows(); ++i) {
                        for (index_type j = 1; j <= iGetNumCols(); ++j) {
                                Func::Eval((*this)(i, j), a);
                        }
                }
    }

Here is the call graph for this function:

template<typename T, index_type N_rows, index_type N_cols>

template<typename ScalarType2 >

bool grad::Matrix< T, N_rows, N_cols >::bHaveReferenceTo ( const ScalarType2 *  pFirst, const ScalarType2 *  pLast  ) const

inline

Definition at line 2123 of file matvec.h.

References grad::bArrayOverlap(), grad::Matrix< T, N_rows, N_cols >::pGetFirstElem(), and grad::Matrix< T, N_rows, N_cols >::pGetLastElem().

                                                                                     {
            return bArrayOverlap(pGetFirstElem(),
                                 pGetLastElem(),
                                                 pFirst,
                                                 pLast);
    }

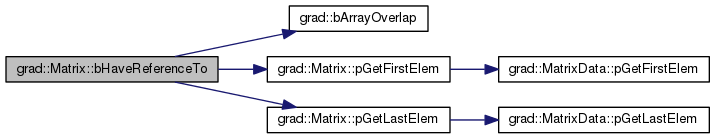

Here is the call graph for this function:

template<typename T, index_type N_rows, index_type N_cols>

template<typename T2 >

void grad::Matrix< T, N_rows, N_cols >::Copy ( const Matrix< T2, N_rows, N_cols > &  A, LocalDofMap *  pDofMap  )

inline

Definition at line 1968 of file matvec.h.

References grad::Copy(), grad::Matrix< T, N_rows, N_cols >::iGetNumCols(), grad::Matrix< T, N_rows, N_cols >::iGetNumRows(), MATVEC_ASSERT, grad::MatrixData< T, N_rows, N_cols >::Resize(), and grad::Matrix< T, N_rows, N_cols >::rgMat.

Referenced by grad::Matrix< T, N_rows, N_cols >::Matrix(), and grad::Vector< T, N_rows >::Vector().

                                                                             {
            rgMat.Resize(A.iGetNumRows(), A.iGetNumCols());

            MATVEC_ASSERT(A.iGetNumRows() == iGetNumRows());
            MATVEC_ASSERT(A.iGetNumCols() == iGetNumCols());

            for (index_type i = 1; i <= A.iGetNumRows(); ++i) {
                for (index_type j = 1; j <= A.iGetNumCols(); ++j) {
                    grad::Copy((*this)(i, j), A(i, j), pDofMap);
                }
            }
        }

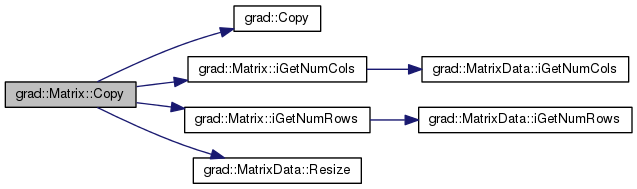

Here is the call graph for this function:

template<typename T, index_type N_rows, index_type N_cols>

ColumnVectorType grad::Matrix< T, N_rows, N_cols >::GetCol ( index_type  iCol ) const

inline

Definition at line 2112 of file matvec.h.

References grad::Matrix< T, N_rows, N_cols >::iGetNumCols(), grad::Matrix< T, N_rows, N_cols >::iGetNumRows(), MATVEC_ASSERT, and grad::Matrix< T, N_rows, N_cols >::rgMat.

Referenced by grad::VecRotInit< T, MatrixExpr >::Initialize(), MatDynamicT_test_grad(), testMatVecProduct(), and testMatVecProductGradient().

                                  {
        MATVEC_ASSERT(iCol >= 1);
            MATVEC_ASSERT(iCol <= iGetNumCols());
            return ColumnVectorType(&rgMat(1, iCol), iGetNumRows(), iGetNumCols());
    }

Here is the call graph for this function:

template<typename T, index_type N_rows, index_type N_cols>

RowVectorType grad::Matrix< T, N_rows, N_cols >::GetRow ( index_type  iRow ) const

inline

Definition at line 2105 of file matvec.h.

References grad::Matrix< T, N_rows, N_cols >::iGetNumCols(), grad::Matrix< T, N_rows, N_cols >::iGetNumRows(), MATVEC_ASSERT, and grad::Matrix< T, N_rows, N_cols >::rgMat.

Referenced by MatDynamicT_test_grad(), testMatVecProduct(), and testMatVecProductGradient().

                                  {
        MATVEC_ASSERT(iRow >= 1);
            MATVEC_ASSERT(iRow <= iGetNumRows());
            return RowVectorType(&rgMat(iRow, 1), iGetNumCols(), 1);
    }

Here is the call graph for this function:

template<typename T, index_type N_rows, index_type N_cols>

index_type grad::Matrix< T, N_rows, N_cols >::iGetNumCols ( void  ) const

inline

Definition at line 2119 of file matvec.h.

References grad::MatrixData< T, N_rows, N_cols >::iGetNumCols(), and grad::Matrix< T, N_rows, N_cols >::rgMat.

Referenced by grad::Matrix< T, N_rows, N_cols >::ApplyMatrixFuncNoAlias(), grad::Matrix< T, N_rows, N_cols >::ApplyScalarFunc(), grad::Matrix< T, N_rows, N_cols >::Copy(), grad::Matrix< T, N_rows, N_cols >::GetCol(), grad::Matrix< T, N_rows, N_cols >::GetRow(), MatDynamic_test(), MatDynamic_test_grad(), MatDynamicT_test(), MatDynamicT_test_grad(), grad::Matrix< T, N_rows, N_cols >::operator()(), grad::Matrix< T, N_rows, N_cols >::operator+=(), grad::Matrix< T, N_rows, N_cols >::operator-=(), grad::Matrix< T, N_rows, N_cols >::Reset(), testMatVecProduct(), testMatVecProductGradient(), and testMatVecProductGradient2().

{ return rgMat.iGetNumCols(); }

Here is the call graph for this function:

template<typename T, index_type N_rows, index_type N_cols>

index_type grad::Matrix< T, N_rows, N_cols >::iGetNumRows ( void  ) const

inline

Definition at line 2118 of file matvec.h.

References grad::MatrixData< T, N_rows, N_cols >::iGetNumRows(), and grad::Matrix< T, N_rows, N_cols >::rgMat.

Referenced by grad::Matrix< T, N_rows, N_cols >::ApplyMatrixFuncNoAlias(), grad::Vector< T, N_rows >::ApplyMatrixFuncNoAlias(), grad::Matrix< T, N_rows, N_cols >::ApplyScalarFunc(), grad::Vector< T, N_rows >::ApplyScalarFunc(), grad::Matrix< T, N_rows, N_cols >::Copy(), grad::Vector< T, N_rows >::Copy(), grad::Matrix< T, N_rows, N_cols >::GetCol(), grad::Matrix< T, N_rows, N_cols >::GetRow(), MatDynamic_test(), MatDynamic_test_grad(), MatDynamicT_test(), MatDynamicT_test_grad(), grad::Matrix< T, N_rows, N_cols >::operator()(), grad::Vector< T, N_rows >::operator()(), grad::Matrix< T, N_rows, N_cols >::operator+=(), grad::Vector< T, N_rows >::operator+=(), grad::Matrix< T, N_rows, N_cols >::operator-=(), grad::Vector< T, N_rows >::operator-=(), grad::Matrix< T, N_rows, N_cols >::Reset(), grad::Vector< T, N_rows >::Reset(), testMatVecProduct(), testMatVecProductGradient(), testMatVecProductGradient2(), and grad::Vector< T, N_rows >::Vector().

{ return rgMat.iGetNumRows(); }

Here is the call graph for this function:

template<typename T, index_type N_rows, index_type N_cols>

const ScalarType& grad::Matrix< T, N_rows, N_cols >::operator() ( index_type  iRow, index_type  iCol  ) const

inline

Definition at line 2088 of file matvec.h.

References grad::Matrix< T, N_rows, N_cols >::iGetNumCols(), grad::Matrix< T, N_rows, N_cols >::iGetNumRows(), MATVEC_ASSERT, and grad::Matrix< T, N_rows, N_cols >::rgMat.

                                                                         {
            MATVEC_ASSERT(iRow >= 1);
            MATVEC_ASSERT(iRow <= iGetNumRows());
            MATVEC_ASSERT(iCol >= 1);
            MATVEC_ASSERT(iCol <= iGetNumCols());
            return rgMat(iRow, iCol);
    }

Here is the call graph for this function:

template<typename T, index_type N_rows, index_type N_cols>

ScalarType& grad::Matrix< T, N_rows, N_cols >::operator() ( index_type  iRow, index_type  iCol  )

inline

Definition at line 2096 of file matvec.h.

References grad::Matrix< T, N_rows, N_cols >::iGetNumCols(), grad::Matrix< T, N_rows, N_cols >::iGetNumRows(), MATVEC_ASSERT, and grad::Matrix< T, N_rows, N_cols >::rgMat.

                                                             {
            MATVEC_ASSERT(iRow >= 1);
            MATVEC_ASSERT(iRow <= iGetNumRows());
            MATVEC_ASSERT(iCol >= 1);
            MATVEC_ASSERT(iCol <= iGetNumCols());
            return rgMat(iRow, iCol);
    }

Here is the call graph for this function:

template<typename T, index_type N_rows, index_type N_cols>

template<typename T_Rhs >

Matrix& grad::Matrix< T, N_rows, N_cols >::operator*= ( const T_Rhs &  a )

inline

Definition at line 2051 of file matvec.h.

References a.

                                       {
        using namespace MatVecHelp;

        ApplyScalarFunc<Mul>(a);

        return *this;
    }

template<typename T, index_type N_rows, index_type N_cols>

template<typename ScalarExpression >

Matrix& grad::Matrix< T, N_rows, N_cols >::operator*= ( const GradientExpression< ScalarExpression > &  a )

inline

Definition at line 2069 of file matvec.h.

                                                                      {
        using namespace MatVecHelp;

        ApplyScalarFunc<Mul>(ScalarType(a));

        return *this;
    }

template<typename T, index_type N_rows, index_type N_cols>

template<typename T_Rhs >

Matrix& grad::Matrix< T, N_rows, N_cols >::operator+= ( const Matrix< T_Rhs, N_rows, N_cols > &  A )

inline

Definition at line 2006 of file matvec.h.

References grad::Matrix< T, N_rows, N_cols >::iGetNumCols(), grad::Matrix< T, N_rows, N_cols >::iGetNumRows(), and MATVEC_ASSERT.

                                                                   {
            MATVEC_ASSERT(A.iGetNumRows() == iGetNumRows());
            MATVEC_ASSERT(A.iGetNumCols() == iGetNumCols());
            using namespace MatVecHelp;

            ApplyMatrixFunc<Add>(MatrixExpression<MatrixDirectExpr<Matrix<T_Rhs, N_rows, N_cols> >, N_rows, N_cols>(A));

            return *this;
        }

Here is the call graph for this function:

template<typename T, index_type N_rows, index_type N_cols>

template<typename Expression >

Matrix& grad::Matrix< T, N_rows, N_cols >::operator+= ( const MatrixExpression< Expression, N_rows, N_cols > &  A )

inline

Definition at line 2029 of file matvec.h.

References grad::MatrixExpression< Expression, N_rows, N_cols, CLEAR_ALIAS >::iGetNumCols(), grad::Matrix< T, N_rows, N_cols >::iGetNumCols(), grad::MatrixExpression< Expression, N_rows, N_cols, CLEAR_ALIAS >::iGetNumRows(), grad::Matrix< T, N_rows, N_cols >::iGetNumRows(), and MATVEC_ASSERT.

                                                                              {
            MATVEC_ASSERT(A.iGetNumRows() == iGetNumRows());
            MATVEC_ASSERT(A.iGetNumCols() == iGetNumCols());
                using namespace MatVecHelp;

                ApplyMatrixFunc<Add>(A);

        return *this;
    }

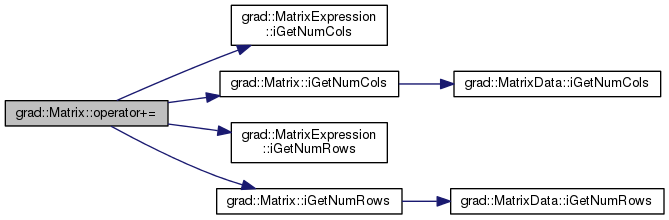

Here is the call graph for this function:

template<typename T, index_type N_rows, index_type N_cols>

template<typename T_Rhs >

Matrix& grad::Matrix< T, N_rows, N_cols >::operator-= ( const Matrix< T_Rhs, N_rows, N_cols > &  A )

inline

Definition at line 2017 of file matvec.h.

References grad::Matrix< T, N_rows, N_cols >::iGetNumCols(), grad::Matrix< T, N_rows, N_cols >::iGetNumRows(), and MATVEC_ASSERT.

                                                                   {
            MATVEC_ASSERT(A.iGetNumRows() == iGetNumRows());
            MATVEC_ASSERT(A.iGetNumCols() == iGetNumCols());

                using namespace MatVecHelp;

                ApplyMatrixFunc<Sub>(MatrixExpression<MatrixDirectExpr<Matrix<T_Rhs, N_rows, N_cols> >, N_rows, N_cols>(A));

        return *this;
    }

Here is the call graph for this function:

template<typename T, index_type N_rows, index_type N_cols>

template<typename Expression >

Matrix& grad::Matrix< T, N_rows, N_cols >::operator-= ( const MatrixExpression< Expression, N_rows, N_cols > &  A )

inline

Definition at line 2040 of file matvec.h.

References grad::MatrixExpression< Expression, N_rows, N_cols, CLEAR_ALIAS >::iGetNumCols(), grad::Matrix< T, N_rows, N_cols >::iGetNumCols(), grad::MatrixExpression< Expression, N_rows, N_cols, CLEAR_ALIAS >::iGetNumRows(), grad::Matrix< T, N_rows, N_cols >::iGetNumRows(), and MATVEC_ASSERT.

                                                                              {
            MATVEC_ASSERT(A.iGetNumRows() == iGetNumRows());
            MATVEC_ASSERT(A.iGetNumCols() == iGetNumCols());
                using namespace MatVecHelp;

                ApplyMatrixFunc<Sub>(A);

        return *this;
    }

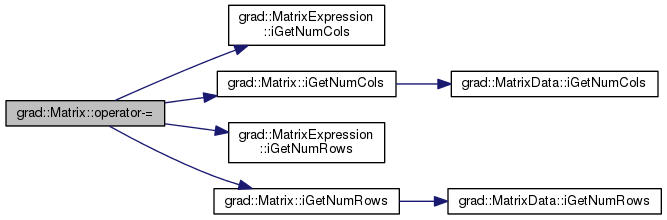

Here is the call graph for this function:

template<typename T, index_type N_rows, index_type N_cols>

template<typename T_Rhs >

Matrix& grad::Matrix< T, N_rows, N_cols >::operator/= ( const T_Rhs &  a )

inline

Definition at line 2060 of file matvec.h.

References a.

                                       {
        using namespace MatVecHelp;

        ApplyScalarFunc<Div>(a);

        return *this;
    }

template<typename T, index_type N_rows, index_type N_cols>

template<typename ScalarExpression >

Matrix& grad::Matrix< T, N_rows, N_cols >::operator/= ( const GradientExpression< ScalarExpression > &  a )

inline

Definition at line 2078 of file matvec.h.

                                                                      {
        using namespace MatVecHelp;

        ApplyScalarFunc<Div>(ScalarType(a));

        return *this;
    }

template<typename T, index_type N_rows, index_type N_cols>

template<typename Expression >

Matrix& grad::Matrix< T, N_rows, N_cols >::operator= ( const MatrixExpression< Expression, N_rows, N_cols > &  A )

inline

Definition at line 1994 of file matvec.h.

References grad::MatrixExpression< Expression, N_rows, N_cols, CLEAR_ALIAS >::iGetNumCols(), grad::MatrixExpression< Expression, N_rows, N_cols, CLEAR_ALIAS >::iGetNumRows(), grad::MatrixData< T, N_rows, N_cols >::Resize(), and grad::Matrix< T, N_rows, N_cols >::rgMat.

                                                                                 {

            rgMat.Resize(A.iGetNumRows(), A.iGetNumCols());

            using namespace MatVecHelp;

            ApplyMatrixFunc<Assign>(A);

            return *this;
        }

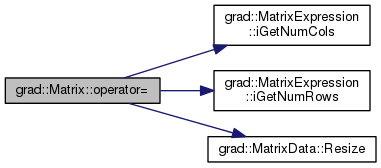

Here is the call graph for this function:

template<typename T , index_type N_rows, index_type N_cols>

Matrix< T, N_rows, N_cols > & grad::Matrix< T, N_rows, N_cols >::operator= ( const Mat3x3 &  A )

inline

Definition at line 2242 of file matvec.h.

References grad::Direct(), grad::MatrixData< T, N_rows, N_cols >::Resize(), and grad::Matrix< T, N_rows, N_cols >::rgMat.

                                                    {
        typedef typename MaxSizeCheck<N_rows == 3 || N_rows == DYNAMIC_SIZE>::CheckType check_iNumRows;
        typedef typename MaxSizeCheck<N_cols == 3 || N_cols == DYNAMIC_SIZE>::CheckType check_iNumCols;

        rgMat.Resize(3, 3);

        using namespace MatVecHelp;

        ApplyMatrixFunc<Assign>(Direct(A));

        return *this;
}

Here is the call graph for this function:

template<typename T, index_type N_rows, index_type N_cols>

const ScalarType* grad::Matrix< T, N_rows, N_cols >::pGetFirstElem ( ) const

inlineprivate

Definition at line 2131 of file matvec.h.

References grad::MatrixData< T, N_rows, N_cols >::pGetFirstElem(), and grad::Matrix< T, N_rows, N_cols >::rgMat.

Referenced by grad::Matrix< T, N_rows, N_cols >::ApplyMatrixFuncNoAlias(), grad::Vector< T, N_rows >::ApplyMatrixFuncNoAlias(), grad::Matrix< T, N_rows, N_cols >::bHaveReferenceTo(), grad::Vector< T, N_rows >::bHaveReferenceTo(), grad::Matrix< T, N_rows, N_cols >::pGetMat(), and grad::Vector< T, N_rows >::pGetVec().

                                            {
            return rgMat.pGetFirstElem();
    }

Here is the call graph for this function:

template<typename T, index_type N_rows, index_type N_cols>

const ScalarType* grad::Matrix< T, N_rows, N_cols >::pGetLastElem ( ) const

inlineprivate

Definition at line 2135 of file matvec.h.

References grad::MatrixData< T, N_rows, N_cols >::pGetLastElem(), and grad::Matrix< T, N_rows, N_cols >::rgMat.

Referenced by grad::Matrix< T, N_rows, N_cols >::ApplyMatrixFuncNoAlias(), grad::Vector< T, N_rows >::ApplyMatrixFuncNoAlias(), grad::Matrix< T, N_rows, N_cols >::bHaveReferenceTo(), and grad::Vector< T, N_rows >::bHaveReferenceTo().

                                           {
            return rgMat.pGetLastElem();
    }

Here is the call graph for this function:

template<typename T, index_type N_rows, index_type N_cols>

const ScalarType* grad::Matrix< T, N_rows, N_cols >::pGetMat ( ) const

inline

Definition at line 2120 of file matvec.h.

References grad::Matrix< T, N_rows, N_cols >::pGetFirstElem().

Referenced by callFunc2().

{ return pGetFirstElem(); }

Here is the call graph for this function:

template<typename T, index_type N_rows, index_type N_cols>

void grad::Matrix< T, N_rows, N_cols >::Reset ( void  )

inline

Definition at line 1981 of file matvec.h.

References grad::Matrix< T, N_rows, N_cols >::iGetNumCols(), grad::Matrix< T, N_rows, N_cols >::iGetNumRows(), and grad::Reset().

Referenced by testMatVecProductGradient().

                     {
            for (index_type i = 1; i <= iGetNumRows(); ++i) {
                for (index_type j = 1; j <= iGetNumCols(); ++j) {
                    grad::Reset((*this)(i, j));
                }
            }
        }

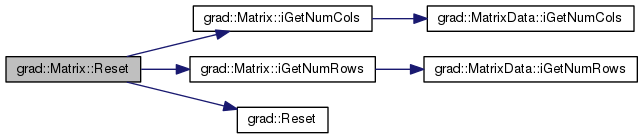

Here is the call graph for this function:

template<typename T, index_type N_rows, index_type N_cols>

void grad::Matrix< T, N_rows, N_cols >::Resize ( index_type  iRows, index_type  iCols  )

inline

Definition at line 1989 of file matvec.h.

References grad::MatrixData< T, N_rows, N_cols >::Resize(), and grad::Matrix< T, N_rows, N_cols >::rgMat.

                                                        {
            rgMat.Resize(iRows, iCols);
        }

Here is the call graph for this function:

Friends And Related Function Documentation

template<typename T, index_type N_rows, index_type N_cols>

friend struct MatVecHelp::ApplyAliasHelperMatrix< false >

friend

Definition at line 2139 of file matvec.h.

template<typename T, index_type N_rows, index_type N_cols>

friend struct MatVecHelp::ApplyAliasHelperMatrix< true >

friend

Definition at line 2140 of file matvec.h.

Member Data Documentation

template<typename T, index_type N_rows, index_type N_cols>

const index_type grad::Matrix< T, N_rows, N_cols >::iInitNumCols = iNumCols == DYNAMIC_SIZE ? 0 : iNumCols

static

Definition at line 1915 of file matvec.h.

template<typename T, index_type N_rows, index_type N_cols>

const index_type grad::Matrix< T, N_rows, N_cols >::iInitNumRows = iNumRows == DYNAMIC_SIZE ? 0 : iNumRows

static

Definition at line 1914 of file matvec.h.

template<typename T, index_type N_rows, index_type N_cols>

const index_type grad::Matrix< T, N_rows, N_cols >::iNumCols = N_cols

static

Definition at line 1913 of file matvec.h.

Referenced by grad::Matrix< T, N_rows, N_cols >::Matrix().

template<typename T, index_type N_rows, index_type N_cols>

const index_type grad::Matrix< T, N_rows, N_cols >::iNumRows = N_rows

static

Definition at line 1912 of file matvec.h.

Referenced by grad::Matrix< T, N_rows, N_cols >::Matrix(), and grad::Vector< T, N_rows >::Vector().

template<typename T, index_type N_rows, index_type N_cols>

MatrixData<ScalarType, iNumRows, iNumCols> grad::Matrix< T, N_rows, N_cols >::rgMat

private

Definition at line 2180 of file matvec.h.

Referenced by grad::Matrix< T, N_rows, N_cols >::ApplyMatrixFuncNoAlias(), grad::Matrix< T, N_rows, N_cols >::Copy(), grad::Matrix< T, N_rows, N_cols >::GetCol(), grad::Matrix< T, N_rows, N_cols >::GetRow(), grad::Matrix< T, N_rows, N_cols >::iGetNumCols(), grad::Matrix< T, N_rows, N_cols >::iGetNumRows(), grad::Matrix< T, N_rows, N_cols >::operator()(), grad::Matrix< T, N_rows, N_cols >::operator=(), grad::Matrix< T, N_rows, N_cols >::pGetFirstElem(), grad::Matrix< T, N_rows, N_cols >::pGetLastElem(), and grad::Matrix< T, N_rows, N_cols >::Resize().

---

The documentation for this class was generated from the following file:

• matvec.h
