FileDrive Class Reference

#include <filedrv.h>

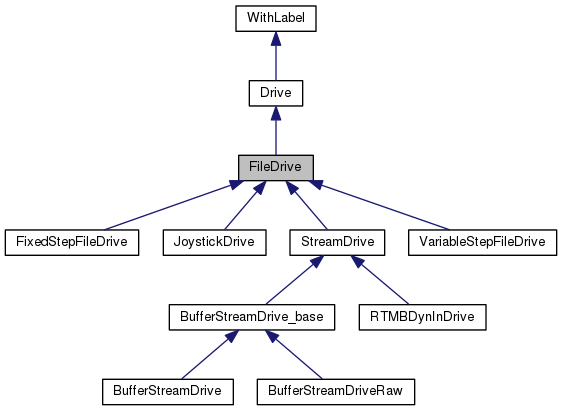

Inheritance diagram for FileDrive:

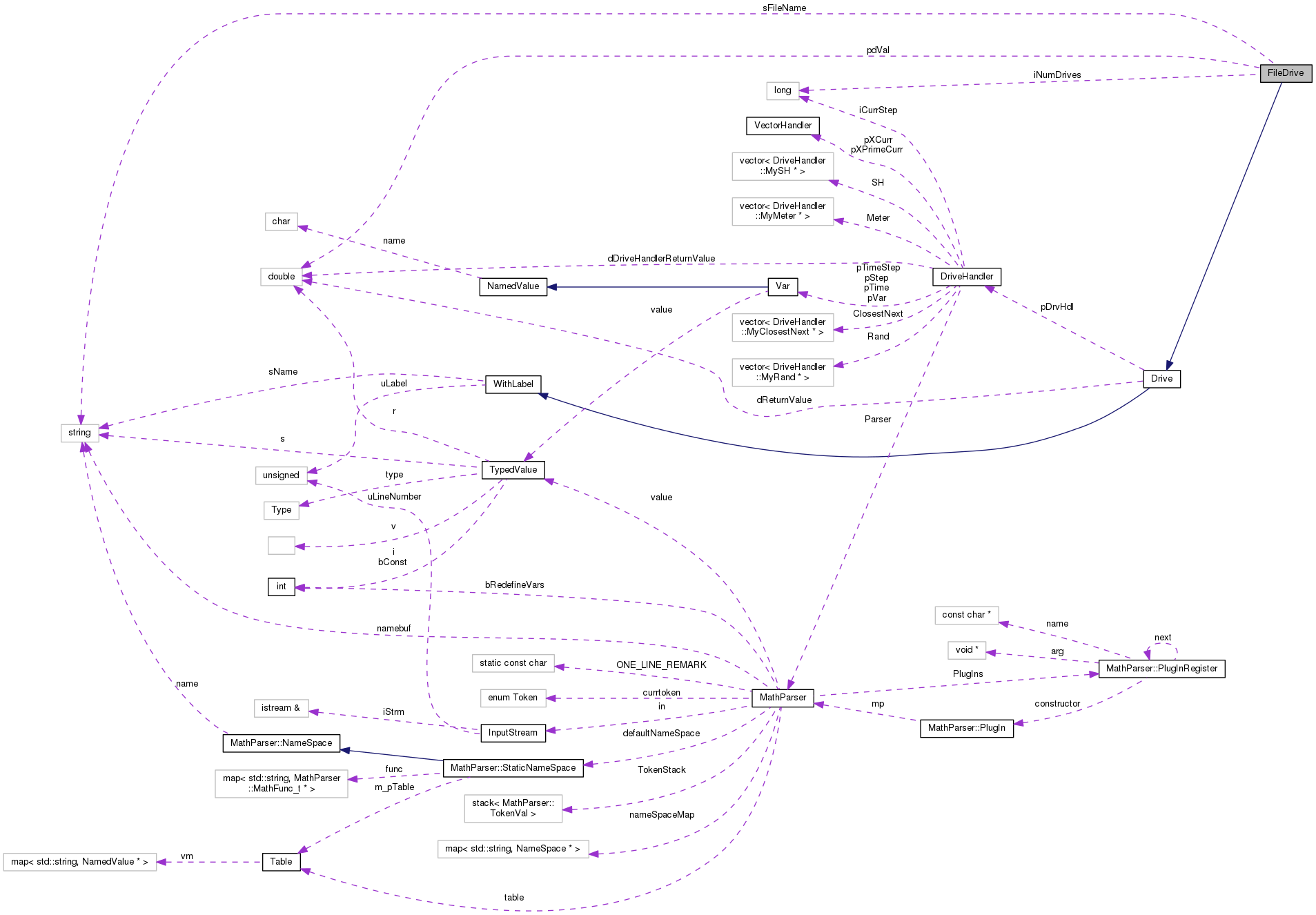

Collaboration diagram for FileDrive:

Public Member Functions
	FileDrive (unsigned int uL, const DriveHandler *pDH, const std::string &s, integer nd, const std::vector< doublereal > &v0)
virtual	~FileDrive (void)
virtual Drive::Type	GetDriveType (void) const
virtual std::ostream &	Restart (std::ostream &out) const =0
virtual integer	iGetNumDrives (void) const
virtual doublereal	dGet (const doublereal &t, int i=1) const
Public Member Functions inherited from Drive
	Drive (unsigned int uL, const DriveHandler *pDH)
virtual	~Drive (void)
virtual void	ServePending (const doublereal &t)=0
Public Member Functions inherited from WithLabel
	WithLabel (unsigned int uL=0, const std::string &sN="")
virtual	~WithLabel (void)
void	PutLabel (unsigned int uL)
void	PutName (const std::string &sN)
unsigned int	GetLabel (void) const
const std::string &	GetName (void) const

Protected Attributes
std::string	sFileName
integer	iNumDrives
doublereal *	pdVal
Protected Attributes inherited from Drive
const DriveHandler *	pDrvHdl
Protected Attributes inherited from WithLabel
unsigned int	uLabel
std::string	sName

Additional Inherited Members
Public Types inherited from Drive
enum	Type { UNKNOWN = -1, FILEDRIVE = 0, LASTDRIVETYPE }
enum	Bailout { BO_NONE = 0x0, BO_UPPER = 0x1, BO_LOWER = 0x2, BO_ANY = (BO_UPPER | BO_LOWER) }
Static Protected Attributes inherited from Drive
static doublereal	dReturnValue = 0.

Detailed Description

Definition at line 44 of file filedrv.h.

Constructor & Destructor Documentation

FileDrive::FileDrive	(	unsigned int	uL,
		const DriveHandler *	pDH,
		const std::string &	s,
		integer	nd,
		const std::vector< doublereal > &	v0
	)

Definition at line 52 of file filedrv.cc.

References ASSERT, MBDYN_FILE_DRIVE_CHECK, pdVal, and SAFENEWARR.

: Drive(uL, pDH), sFileName(s), iNumDrives(nd), pdVal(0)
{
        SAFENEWARR(pdVal, doublereal, nd + 1);
        pdVal[0] = MBDYN_FILE_DRIVE_CHECK;
        if (v0.empty()) {
                for (int iCntm1 = 1; iCntm1 <= nd; iCntm1++) {
                        pdVal[iCntm1] = 0.;
                }

        } else {
                ASSERT(v0.size() == unsigned(nd));
                for (int iCnt = 0; iCnt < nd; iCnt++) {
                        pdVal[iCnt + 1] = v0[iCnt];
                }
        }
}

FileDrive::~FileDrive ( void  )

virtual

Definition at line 73 of file filedrv.cc.

References pdVal, and SAFEDELETEARR.

{
        if (pdVal != NULL) {
                SAFEDELETEARR(pdVal);
        }
}

Member Function Documentation

doublereal FileDrive::dGet ( const doublereal &  t, int  i = 1  ) const

virtual

Definition at line 88 of file filedrv.cc.

References ASSERT, iNumDrives, and pdVal.

Referenced by FileDriveCaller::dGet().

{
        ASSERT(i > 0 && i <= iNumDrives);
        return pdVal[i];
}

Drive::Type FileDrive::GetDriveType ( void  ) const

virtual

Implements Drive.

Definition at line 82 of file filedrv.cc.

References Drive::FILEDRIVE.

{
        return Drive::FILEDRIVE;
}

integer FileDrive::iGetNumDrives ( void  ) const

inlinevirtual

Definition at line 72 of file filedrv.h.

References iNumDrives.

Referenced by FileDCR::Read().

{
        return iNumDrives;
}

virtual std::ostream& FileDrive::Restart ( std::ostream &  out ) const

pure virtual

Implements Drive.

Implemented in BufferStreamDriveRaw, BufferStreamDrive, JoystickDrive, RTMBDynInDrive, FixedStepFileDrive, and VariableStepFileDrive.

Member Data Documentation

integer FileDrive::iNumDrives

protected

Definition at line 47 of file filedrv.h.

Referenced by dGet(), FixedStepFileDrive::FixedStepFileDrive(), BufferStreamDrive::GetBuf(), BufferStreamDrive::GetBufRaw(), BufferStreamDrive_base::GetBufSize(), iGetNumDrives(), BufferStreamDrive::Restart(), BufferStreamDriveRaw::Restart(), BufferStreamDrive_base::ServePending(), VariableStepFileDrive::ServePending(), FixedStepFileDrive::ServePending(), RTMBDynInDrive::ServePending(), BufferStreamDriveRaw::SetBufRaw(), and VariableStepFileDrive::VariableStepFileDrive().

doublereal* FileDrive::pdVal

protected

Definition at line 48 of file filedrv.h.

Referenced by dGet(), FileDrive(), VariableStepFileDrive::ServePending(), BufferStreamDrive_base::ServePending(), FixedStepFileDrive::ServePending(), RTMBDynInDrive::ServePending(), JoystickDrive::ServePending(), and ~FileDrive().

std::string FileDrive::sFileName

protected

Definition at line 46 of file filedrv.h.

Referenced by JoystickDrive::get_one(), JoystickDrive::init(), and JoystickDrive::ServePending().

---

The documentation for this class was generated from the following files:

• filedrv.h
• filedrv.cc
