ScalarFunctionIsotropicCLR< T, Tder > Struct Template Reference

Inheritance diagram for ScalarFunctionIsotropicCLR< T, Tder >:

Collaboration diagram for ScalarFunctionIsotropicCLR< T, Tder >:

Public Member Functions
virtual ConstitutiveLaw< T, Tder > *	Read (const DataManager *pDM, MBDynParser &HP, ConstLawType::Type &CLType)
Public Member Functions inherited from ConstitutiveLawRead< T, Tder >
virtual	~ConstitutiveLawRead (void)

Detailed Description

template<class T, class Tder>
struct ScalarFunctionIsotropicCLR< T, Tder >

Definition at line 1232 of file ScalarFunctionsImpl.cc.

Member Function Documentation

template<class T , class Tder >

ConstitutiveLaw< T, Tder > * ScalarFunctionIsotropicCLR< T, Tder >::Read ( const DataManager *  pDM, MBDynParser &  HP, ConstLawType::Type &  CLType  )

virtual

Implements ConstitutiveLawRead< T, Tder >.

Definition at line 1239 of file ScalarFunctionsImpl.cc.

References ConstLawType::ELASTIC, IncludeParser::GetLineData(), MBDYN_EXCEPT_ARGS, ParseScalarFunction(), and SAFENEWWITHCONSTRUCTOR.

{
        ConstitutiveLaw<T, Tder>* pCL = 0;

        CLType = ConstLawType::ELASTIC;

        int n = 0;
        if (typeid(T) == typeid(doublereal)) {
                n = 1;

        } else if (typeid(T) == typeid(Vec3)) {
                n = 3;

        } else if (typeid(T) == typeid(Vec6)) {
                n = 6;

        } else {
                silent_cerr("ScalarFunctionIsotropicCL"
                        "<" << typeid(T).name() << ", " << typeid(Tder).name() << "> "
                        "not implemented" << std::endl);
                throw DataManager::ErrGeneric(MBDYN_EXCEPT_ARGS);
        }

        const BasicScalarFunction *pSF = ParseScalarFunction(HP, (DataManager *const)pDM);
        const DifferentiableScalarFunction *psf = dynamic_cast<const DifferentiableScalarFunction *>(pSF);
        if (psf == 0) {
                silent_cerr("ScalarFunction must be differentiable "
                        "at line " << HP.GetLineData() << std::endl);
                throw DataManager::ErrGeneric(MBDYN_EXCEPT_ARGS);
        }

        typedef ScalarFunctionIsotropicCL<T, Tder> L;
        SAFENEWWITHCONSTRUCTOR(pCL, L, L(psf));

        return pCL;
}

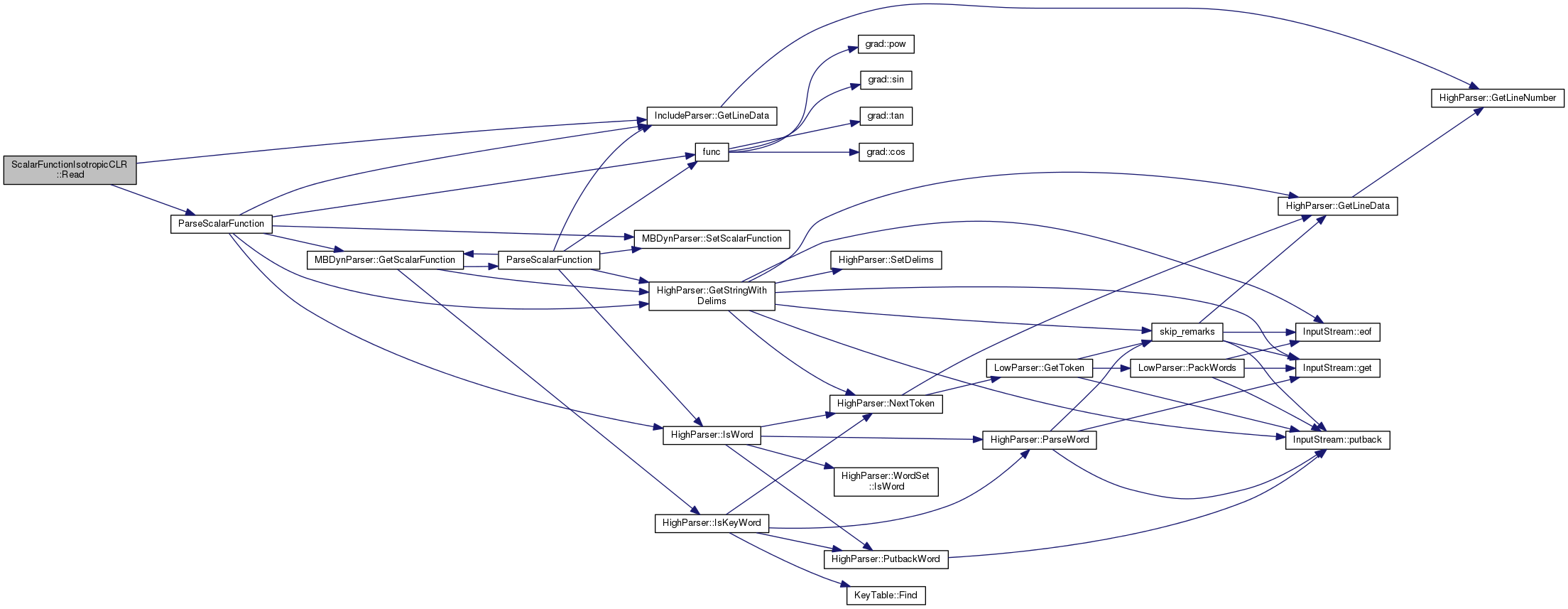

Here is the call graph for this function:

---

The documentation for this struct was generated from the following file:

• ScalarFunctionsImpl.cc
