preselem.cc File Reference
#include "mbconfig.h"
#include <cfloat>
#include <limits>
#include "dataman.h"
#include "preselem.h"
#include "actuator.h"
#include "hfluid.h"
#include "hminor.h"
#include "hutils.h"
#include "pipe.h"
#include "valve.h"

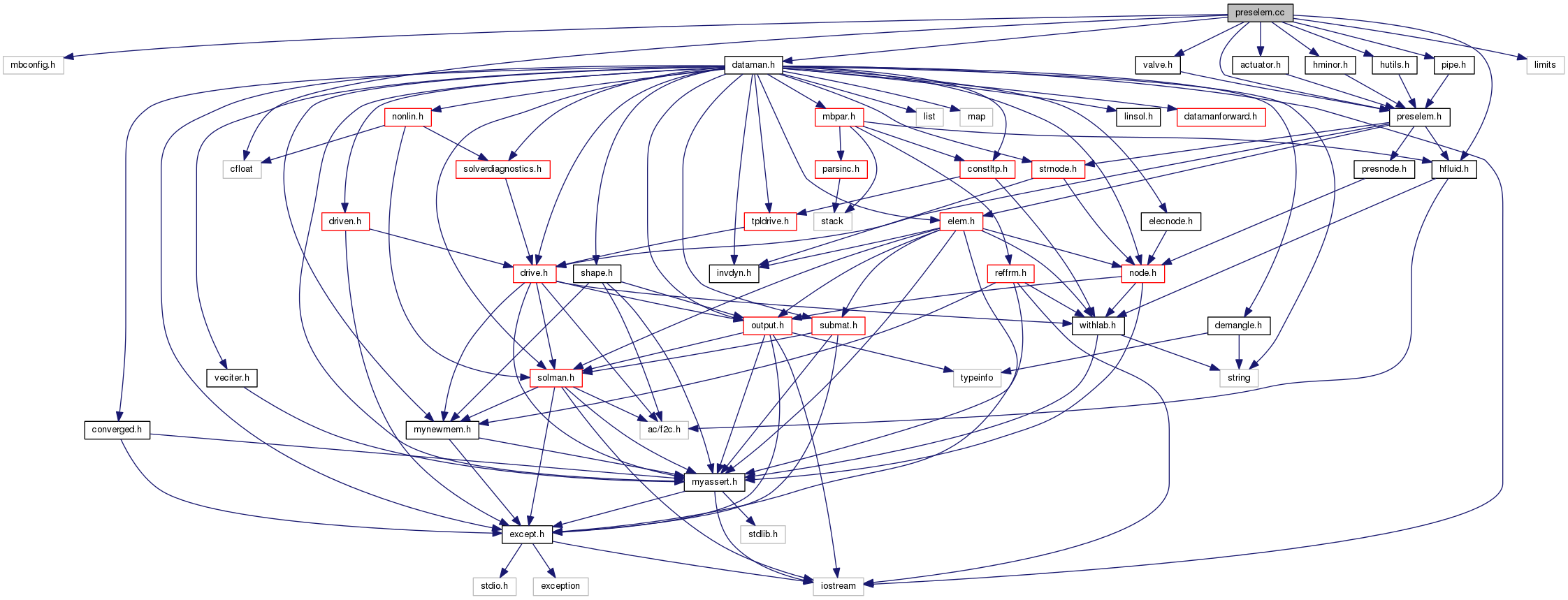

Include dependency graph for preselem.cc:

Go to the source code of this file.

Functions

ElemReadHydraulicElem (DataManager *pDM, MBDynParser &HP, const DofOwner *pDO, unsigned int uLabel)


Function Documentation

Elem* ReadHydraulicElem ( DataManager pDM,
MBDynParser HP,
const DofOwner pDO,
unsigned int  uLabel
)

Definition at line 93 of file preselem.cc.

References ASSERT, DEBUGCOUT, DataManager::fReadOutput(), MBDynParser::GetDriveCaller(), MBDynParser::GetHydraulicFluid(), IncludeParser::GetLineData(), MBDynParser::GetPosRel(), HighParser::GetReal(), MBDynParser::GetUnitVecRel(), HighParser::GetWord(), Node::HYDRAULIC, Elem::HYDRAULIC, HighParser::IsArg(), HighParser::IsKeyWord(), LASTKEYWORD, MBDYN_EXCEPT_ARGS, HydraulicFluid::pCopy(), DataManager::ReadNode(), SAFENEWWITHCONSTRUCTOR, and Node::STRUCTURAL.

Referenced by DataManager::ReadOneElem().

97 {
98  DEBUGCOUT("ReadHydraulicElem()");
99
100  const char* sKeyWords[] = {
101  "minor" "loss",
102  "three" "way" "minor" "loss",
103  "control" "valve",
104  "control" "valve" "2",
105  "dynamic" "control" "valve",
106  "pressure" "flow" "control",
107  "pressure" "valve",
108  "flow" "valve",
109  "orifice",
110  "accumulator",
111  "tank",
112  "pipe",
113  "dynamic" "pipe",
114  "actuator",
115  NULL
116  };
117
118  /* enum delle parole chiave */
119  enum KeyWords {
120  UNKNOWN = -1,
121  MINOR_LOSS = 0,
122  THREEWAYMINORLOSS,
123  CONTROL_VALVE,
124  CONTROL_VALVE2,
125  DYNAMIC_CONTROL_VALVE,
126  PRESSURE_FLOW_CONTROL_VALVE,
127  PRESSURE_VALVE,
128  FLOW_VALVE,
129  ORIFICE,
130  ACCUMULATOR,
131  TANK,
132  PIPE,
133  DYNAMIC_PIPE,
134  ACTUATOR,
135
137  };
138
139  /* tabella delle parole chiave */
140  KeyTable K(HP, sKeyWords);
141
142  /* lettura del tipo di elemento elettrico */
143  KeyWords CurrKeyWord = KeyWords(HP.GetWord());
144
145 #ifdef DEBUG
146  if (CurrKeyWord >= 0) {
147  std::cout << "hydraulic element type: "
148  << sKeyWords[CurrKeyWord] << std::endl;
149  }
150 #endif
151
152  Elem* pEl = NULL;
153
154  switch (CurrKeyWord) {
155
156  case ACTUATOR: {
157  /* lettura dei dati specifici */
158  /* due nodi idraulici e due nodi strutturali */
159
160  /* nodo idraulico 1 */
161  const PressureNode* pNodeHyd1 = pDM->ReadNode<const PressureNode, Node::HYDRAULIC>(HP);
162
163  /* nodo idraulico 2 */
164  const PressureNode* pNodeHyd2 = pDM->ReadNode<const PressureNode, Node::HYDRAULIC>(HP);
165
166  /* nodo strutturale 1 */
167  const StructNode* pNodeStr1 = pDM->ReadNode<const StructNode, Node::STRUCTURAL>(HP);
168
169  Vec3 f1(HP.GetPosRel(ReferenceFrame(pNodeStr1)));
170  DEBUGCOUT("Offset 1: " << f1 << std::endl);
171
172  /* nodo strutturale 2 */
173  const StructNode* pNodeStr2 = pDM->ReadNode<const StructNode, Node::STRUCTURAL>(HP);
174
175  Vec3 f2(HP.GetPosRel(ReferenceFrame(pNodeStr2)));
176  DEBUGCOUT("Offset 2: " << f2 << std::endl);
177
178  ReferenceFrame RF(pNodeStr1);
179  Vec3 axis(0., 0., 1.);
180  if (HP.IsKeyWord("direction")) {
181  try {
182  axis = HP.GetUnitVecRel(RF);
183  } catch (ErrNullNorm) {
184  silent_cerr("Actuator(" << uLabel << "): "
185  "need a definite direction, not "
186  << axis << "!" << std::endl);
188  }
189  }
190
191  /* Area nodo1 */
192  doublereal area1 = HP.GetReal();
193  if (area1 <= std::numeric_limits<doublereal>::epsilon()) {
194  silent_cerr("Actuator(" << uLabel << "): "
195  "null or negative area1 "
196  "at line " << HP.GetLineData() << std::endl);
198  }
199  DEBUGCOUT("Area1: " << area1 << std::endl);
200
201  /* Area nodo2 */
202  doublereal area2 = HP.GetReal();
203  if (area2 <= std::numeric_limits<doublereal>::epsilon()) {
204  silent_cerr("Actuator(" << uLabel << "): "
205  "null or negative area2 "
206  "at line " << HP.GetLineData() << std::endl);
208  }
209  DEBUGCOUT("Area2: " << area2 << std::endl);
210
211  /* lunghezza cilindro (a meno dello spessore */
212  doublereal dl = HP.GetReal();
213  if (dl <= std::numeric_limits<doublereal>::epsilon()) {
214  silent_cerr("Actuator(" << uLabel << "): "
215  "null or negative dl "
216  "at line " << HP.GetLineData() << std::endl);
218  }
219  DEBUGCOUT("dl: " << dl << std::endl);
220
221
222  HydraulicFluid* hf1 = HP.GetHydraulicFluid();
223  ASSERT(hf1 != NULL);
224
225  HydraulicFluid* hf2 = NULL;
226  if (HP.IsKeyWord("same")) {
227  hf2 = hf1->pCopy();
228  } else {
229  hf2 = HP.GetHydraulicFluid();
230  }
231  ASSERT(hf2 != NULL);
232
233  flag fOut = pDM->fReadOutput(HP, Elem::HYDRAULIC);
234
236  Actuator,
237  Actuator(uLabel, pDO,
238  pNodeHyd1, pNodeHyd2,
239  pNodeStr1, pNodeStr2,
240  f1, f2, axis, hf1, hf2,
241  area1, area2, dl,
242  fOut));
243
244  break;
245  }
246
247  case MINOR_LOSS: {
248
249  /* nodo 1 */
250  const PressureNode* pNode1 = pDM->ReadNode<const PressureNode, Node::HYDRAULIC>(HP);
251
252  /* nodo 2 */
253  const PressureNode* pNode2 = pDM->ReadNode<const PressureNode, Node::HYDRAULIC>(HP);
254
255  /* Kappa1 diretto */
256  doublereal dKappa1 = HP.GetReal();
257  if (dKappa1 < 0.) {
258  silent_cerr("MinorLoss(" << uLabel << "): "
259  "negative Kappa1 at line " << HP.GetLineData() << std::endl);
261  }
262  DEBUGCOUT("Kappa1: " << dKappa1 << std::endl);
263
264  /* Kappa2 inverso */
265  doublereal dKappa2 = HP.GetReal();
266  if (dKappa2 < 0.) {
267  silent_cerr("MinorLoss(" << uLabel << "): "
268  "negative Kappa2 at line " << HP.GetLineData() << std::endl);
270  }
271  DEBUGCOUT("Kappa2: " << dKappa2 << std::endl);
272
273  /* Area */
274  doublereal area = HP.GetReal();
275  if (area <= std::numeric_limits<doublereal>::epsilon()) {
276  silent_cerr("MinorLoss(" << uLabel << "): "
277  "null or negative area "
278  "at line " << HP.GetLineData() << std::endl);
280  }
281  DEBUGCOUT("Area: " << area << std::endl);
282
284  ASSERT(hf != NULL);
285
286  flag fOut = pDM->fReadOutput(HP, Elem::HYDRAULIC);
287
289  MinorLoss,
290  MinorLoss(uLabel, pDO, hf, pNode1, pNode2,
291  dKappa1, dKappa2, area, fOut));
292
293  break;
294  }
295
296  case THREEWAYMINORLOSS: {
297
298  /* nodo 0 */
299  const PressureNode* pNode0 = pDM->ReadNode<const PressureNode, Node::HYDRAULIC>(HP);
300
301  /* nodo 1 */
302  const PressureNode* pNode1 = pDM->ReadNode<const PressureNode, Node::HYDRAULIC>(HP);
303
304  /* nodo 2 */
305  const PressureNode* pNode2 = pDM->ReadNode<const PressureNode, Node::HYDRAULIC>(HP);
306
307  /* Kappa1 diretto */
308  doublereal dKappa1 = HP.GetReal();
309  if (dKappa1 < 0.) {
310  silent_cerr("ThreeWayMinorLoss(" << uLabel << "): "
311  "negative Kappa1 at line " << HP.GetLineData() << std::endl);
313  }
314  DEBUGCOUT("Kappa1: " << dKappa1 << std::endl);
315
316  /* Kappa2 inverso */
317  doublereal dKappa2 = HP.GetReal();
318  if (dKappa2 < 0.) {
319  silent_cerr("ThreeWayMinorLoss(" << uLabel << "): "
320  "negative Kappa2 at line " << HP.GetLineData() << std::endl);
322  }
323  DEBUGCOUT("Kappa2: " << dKappa2 << std::endl);
324
325  /* Area 1 */
326  doublereal area1 = HP.GetReal();
327  if (area1 <= std::numeric_limits<doublereal>::epsilon()) {
328  silent_cerr("ThreeWayMinorLoss(" << uLabel << "): "
329  "null or negative area1 "
330  "at line " << HP.GetLineData() << std::endl);
332  }
333  DEBUGCOUT("Area: " << area1 << std::endl);
334
335  /* Area 2 */
336  doublereal area2 = HP.GetReal();
337  if (area1 <= std::numeric_limits<doublereal>::epsilon()) {
338  silent_cerr("ThreeWayMinorLoss(" << uLabel << "): "
339  "null or negative area2 "
340  "at line " << HP.GetLineData() << std::endl);
342  }
343  DEBUGCOUT("Area: " << area2 << std::endl);
344
346  ASSERT(hf != NULL);
347
348  flag fOut = pDM->fReadOutput(HP, Elem::HYDRAULIC);
349
352  ThreeWayMinorLoss(uLabel, pDO, hf,
353  pNode0, pNode1, pNode2,
354  dKappa1, dKappa2, area1, area2, fOut));
355
356  break;
357  }
358
359  case CONTROL_VALVE:
360  case CONTROL_VALVE2: {
361
362  /* nodo 1 */
363  const PressureNode* pNode1 = pDM->ReadNode<const PressureNode, Node::HYDRAULIC>(HP);
364
365  /* nodo 2 */
366  const PressureNode* pNode2 = pDM->ReadNode<const PressureNode, Node::HYDRAULIC>(HP);
367
368  /* nodo 3 */
369  const PressureNode* pNode3 = pDM->ReadNode<const PressureNode, Node::HYDRAULIC>(HP);
370
371  /* nodo 4 */
372  const PressureNode* pNode4 = pDM->ReadNode<const PressureNode, Node::HYDRAULIC>(HP);
373
374  /* Area massima della valvola */
375  doublereal area_max = HP.GetReal();
376  if (area_max <= 0.) {
377  silent_cerr("ControlValve(" << uLabel << "): "
378  "null or negative area_max "
379  "at line " << HP.GetLineData() << std::endl);
381  }
382  DEBUGCOUT("Area_max: " << area_max << std::endl);
383
384  /* Area di trafilamento in % sull'area massima:valore di default = 1.e-6 */
385  doublereal loss_area = 0.; /* 1.e-6; */
386  if (HP.IsKeyWord("loss")) {
387  loss_area = HP.GetReal();
388  if (loss_area < 0.) {
389  silent_cerr("ControlValve(" << uLabel << "): "
390  "negative loss_area "
391  "at line " << HP.GetLineData() << std::endl);
393  }
394  DEBUGCOUT("Loss_area in %= " << loss_area << std::endl);
395  }
396
397  /* Stato */
398  DriveCaller* pDC = HP.GetDriveCaller();
399
401  ASSERT(hf != NULL);
402
403  flag fOut = pDM->fReadOutput(HP, Elem::HYDRAULIC);
404
405  switch (CurrKeyWord) {
406  case CONTROL_VALVE:
409  Control_valve(uLabel, pDO, hf,
410  pNode1, pNode2, pNode3, pNode4,
411  area_max, loss_area, pDC, fOut));
412  break;
413
414  case CONTROL_VALVE2:
417  Control_valve2(uLabel, pDO, hf,
418  pNode1, pNode2, pNode3, pNode4,
419  area_max, loss_area, pDC, fOut));
420  break;
421
422  default:
424  }
425
426  break;
427  }
428
429  case DYNAMIC_CONTROL_VALVE: {
430
431  /* nodo 1 */
432  const PressureNode* pNode1 = pDM->ReadNode<const PressureNode, Node::HYDRAULIC>(HP);
433
434  /* nodo 2 */
435  const PressureNode* pNode2 = pDM->ReadNode<const PressureNode, Node::HYDRAULIC>(HP);
436
437  /* nodo 3 */
438  const PressureNode* pNode3 = pDM->ReadNode<const PressureNode, Node::HYDRAULIC>(HP);
439
440  /* nodo 4 */
441  const PressureNode* pNode4 = pDM->ReadNode<const PressureNode, Node::HYDRAULIC>(HP);
442
443  /* Forza */
444  DriveCaller* pDC = HP.GetDriveCaller();
445
446  /* spostamento iniziale */
447  doublereal start = HP.GetReal();
448  DEBUGCOUT("Start: " << start << std::endl);
449
450  /* Spostamento massimo della valvola */
451  doublereal s_max = HP.GetReal();
452  if (s_max < 0.) {
453  silent_cerr("DynamicControlValve(" << uLabel << "): "
454  "negative s_max at line " << HP.GetLineData() << std::endl);
456  }
457  DEBUGCOUT("S_max: " << s_max << std::endl);
458
459  /* Larghezza del condotto */
460  doublereal width = HP.GetReal();
461  if (width <= 0.) {
462  silent_cerr("DynamicControlValve(" << uLabel << "): "
463  "null or negative width "
464  "at line " << HP.GetLineData() << std::endl);
466  }
467  DEBUGCOUT("Width: " << width << std::endl);
468
469  /* Area di trafilamento in % sull'area massima(==width*s_max):valore di default = 1.e-6 */
470  doublereal loss_area = 0.; /* 1.e-6; */
471  if (HP.IsKeyWord("loss")) {
472  loss_area = HP.GetReal();
473  if (loss_area < 0.) {
474  silent_cerr("DynamicControlValve(" << uLabel << "): "
475  "negative loss_area "
476  "at line " << HP.GetLineData() << std::endl);
478  }
479  DEBUGCOUT("Loss_area in %= " << loss_area << std::endl);
480  }
481
482  /* Diametro della valvola */
483  doublereal valve_diameter = HP.GetReal();
484  if (valve_diameter <= 0.) {
485  silent_cerr("DynamicControlValve(" << uLabel << "): "
486  "null or negative valve diameter "
487  "at line " << HP.GetLineData() << std::endl);
489  }
490  DEBUGCOUT("Valve diameter: " << valve_diameter << std::endl);
491
492  /* Densita' del corpo della valvola */
493  doublereal valve_density = HP.GetReal();
494  if (valve_density <= 0.) {
495  silent_cerr("DynamicControlValve(" << uLabel << "): "
496  "null or negative valve density "
497  "at line " << HP.GetLineData() << std::endl);
499  }
500  DEBUGCOUT("Valve density: " << valve_density << std::endl);
501
502  /* c dello spostamento */
503  doublereal c_spost = HP.GetReal();
504  DEBUGCOUT("c_spost: " << c_spost << std::endl);
505
506  /* c della velocita' */
507  doublereal c_vel = HP.GetReal();
508  DEBUGCOUT("c_vel: " << c_vel << std::endl);
509
510  /* c della accelerazione */
511  doublereal c_acc = HP.GetReal();
512  DEBUGCOUT("c_acc: " << c_acc << std::endl);
513
515  ASSERT(hf != NULL);
516
517  flag fOut = pDM->fReadOutput(HP, Elem::HYDRAULIC);
518
521  Dynamic_control_valve(uLabel, pDO, hf,
522  pNode1, pNode2,
523  pNode3, pNode4,
524  pDC, start,
525  s_max, width,
526  loss_area,
527  valve_diameter,
528  valve_density,
529  c_spost, c_vel, c_acc,
530  fOut));
531  break;
532  }
533
534  case PRESSURE_FLOW_CONTROL_VALVE: {
535
536  /* nodo 1 */
537  const PressureNode* pNode1 = pDM->ReadNode<const PressureNode, Node::HYDRAULIC>(HP);
538
539  /* nodo 2 */
540  const PressureNode* pNode2 = pDM->ReadNode<const PressureNode, Node::HYDRAULIC>(HP);
541
542  /* nodo 3 */
543  const PressureNode* pNode3 = pDM->ReadNode<const PressureNode, Node::HYDRAULIC>(HP);
544
545  /* nodo 4 */
546  const PressureNode* pNode4 = pDM->ReadNode<const PressureNode, Node::HYDRAULIC>(HP);
547
548  /* nodo 5 */
549  const PressureNode* pNode5 = pDM->ReadNode<const PressureNode, Node::HYDRAULIC>(HP);
550
551  /* nodo 6 */
552  const PressureNode* pNode6 = pDM->ReadNode<const PressureNode, Node::HYDRAULIC>(HP);
553
554  /* Forza */
555  DriveCaller* pDC = HP.GetDriveCaller();
556
557  /* spostamento iniziale */
558  doublereal start = HP.GetReal();
559  if (start < 0.) {
560  silent_cerr("PressureFlowControlValve(" << uLabel << "): "
561  "negative start "
562  "at line " << HP.GetLineData() << std::endl);
564  }
565  DEBUGCOUT("Start: " << start << std::endl);
566
567  /* Spostamento massimo della valvola */
568  doublereal s_max = HP.GetReal();
569  if (s_max < 0.) {
570  silent_cerr("PressureFlowControlValve(" << uLabel << "): "
571  "negative s_max "
572  "at line " << HP.GetLineData() << std::endl);
574  }
575  DEBUGCOUT("S_max: " << s_max << std::endl);
576
577  /* Larghezza del condotto */
578  doublereal width = HP.GetReal();
579  if (width <= 0.) {
580  silent_cerr("PressureFlowControlValve(" << uLabel << "): "
581  "null or negative width "
582  "at line " << HP.GetLineData() << std::endl);
584  }
585  DEBUGCOUT("Width: " << width << std::endl);
586
587  /* Area di trafilamento in % sull'area massima(==width*s_max):valore di default = 1.e-6 */
588  doublereal loss_area = 0.; /* 1.e-6; */
589  if (HP.IsKeyWord("loss")) {
590  loss_area = HP.GetReal();
591  if (loss_area < 0.) {
592  silent_cerr("PressureFlowControlValve(" << uLabel << "): "
593  "negative loss_area "
594  "at line " << HP.GetLineData() << std::endl);
596  }
597  DEBUGCOUT("Loss_area in %= " << loss_area << std::endl);
598  }
599
600  /* Diametro della valvola */
601  doublereal valve_diameter = HP.GetReal();
602  if (valve_diameter <= 0.) {
603  silent_cerr("PressureFlowControlValve(" << uLabel << "): "
604  "null or negative valve diameter "
605  "at line " << HP.GetLineData() << std::endl);
607  }
608  DEBUGCOUT("Valve diameter: " << valve_diameter << std::endl);
609
610  /* Densita' del corpo della valvola */
611  doublereal valve_density = HP.GetReal();
612  if (valve_density <= 0.) {
613  silent_cerr("PressureFlowControlValve(" << uLabel << "): "
614  "null or negative valve density "
615  "at line " << HP.GetLineData() << std::endl);
617  }
618  DEBUGCOUT("Valve density: " << valve_density << std::endl);
619
620  /* c dello spostamento */
621  doublereal c_spost = HP.GetReal();
622  DEBUGCOUT("c_spost: " << c_spost << std::endl);
623
624  /* c della velocita' */
625  doublereal c_vel = HP.GetReal();
626  DEBUGCOUT("c_vel: " << c_vel << std::endl);
627
628  /* c della accelerazione */
629  doublereal c_acc = HP.GetReal();
630  DEBUGCOUT("c_acc: " << c_acc << std::endl);
631
633  ASSERT(hf != NULL);
634
635  flag fOut = pDM->fReadOutput(HP, Elem::HYDRAULIC);
636
639  Pressure_flow_control_valve(uLabel, pDO, hf,
640  pNode1, pNode2,
641  pNode3, pNode4,
642  pNode5, pNode6,
643  pDC, start,
644  s_max, width,
645  loss_area,
646  valve_diameter,
647  valve_density,
648  c_spost, c_vel, c_acc,
649  fOut));
650  break;
651  }
652
653
654  case PRESSURE_VALVE: {
655
656  /* nodo 1 */
657  const PressureNode* pNode1 = pDM->ReadNode<const PressureNode, Node::HYDRAULIC>(HP);
658
659  /* nodo 2 */
660  const PressureNode* pNode2 = pDM->ReadNode<const PressureNode, Node::HYDRAULIC>(HP);
661
662  /* Area diaframma */
663  doublereal area_diaf = HP.GetReal();
664  if (area_diaf <= 0.) {
665  silent_cerr("PressureValve(" << uLabel << "): "
666  "null or negative area_diaf "
667  "at line " << HP.GetLineData() << std::endl);
669  }
670  DEBUGCOUT("Area_diaf: " << area_diaf << std::endl);
671
672  /* Massa valvola */
673  doublereal mass = HP.GetReal();
674  if (mass <= 0.) {
675  silent_cerr("PressureValve(" << uLabel << "): "
676  "null or negative valve mass "
677  "at line " << HP.GetLineData() << std::endl);
679  }
680  DEBUGCOUT("Valve mass: " << mass << std::endl);
681
682  /* Area massima della valvola */
683  doublereal area_max = HP.GetReal();
684  if (area_max <= 0.) {
685  silent_cerr("PressureValve(" << uLabel << "): "
686  "null or negative area_max "
687  "at line " << HP.GetLineData() << std::endl);
689  }
690  DEBUGCOUT("Area_max: " << area_max << std::endl);
691
692  /* Spostamento massimo della valvola */
693  doublereal s_max = HP.GetReal();
694  if (s_max < 0.) {
695  silent_cerr("PressureValve(" << uLabel << "): "
696  "negative s_max "
697  "at line " << HP.GetLineData() << std::endl);
699  }
700  DEBUGCOUT("S_max: " << s_max << std::endl);
701
702  /* Kappa : costante della molla */
703  doublereal Kappa = HP.GetReal();
704  if (Kappa < 0.) {
705  silent_cerr("PressureValve(" << uLabel << "): "
706  "negative Kappa "
707  "at line " << HP.GetLineData() << std::endl);
709  }
710  DEBUGCOUT("Kappa: " << Kappa << std::endl);
711
712  /* Forza0: precarico della molla */
713  doublereal force0 = HP.GetReal();
714  if (force0 < 0.) {
715  silent_cerr("PressureValve(" << uLabel << "): "
716  "negative force0 "
717  "at line " << HP.GetLineData() << std::endl);
719  }
720  DEBUGCOUT("Force0: " << force0 << std::endl);
721
722  /* Larghezza luce di passaggio */
723  doublereal width = HP.GetReal();
724  if (width <= 0.) {
725  silent_cerr("PressureValve(" << uLabel << "): "
726  "null or negative width "
727  "at line " << HP.GetLineData() << std::endl);
729  }
730  DEBUGCOUT("Width: " << width << std::endl);
731
732  /* c dello spostamento */
733  doublereal c_spost = HP.GetReal();
734  DEBUGCOUT("c_spost: " << c_spost << std::endl);
735
736  /* c della velocita' */
737  doublereal c_vel = HP.GetReal();
738  DEBUGCOUT("c_vel: " << c_vel << std::endl);
739
740  /* c della accelerazione */
741  doublereal c_acc = HP.GetReal();
742  DEBUGCOUT("c_acc: " << c_acc << std::endl);
743
745  ASSERT(hf != NULL);
746
747  flag fOut = pDM->fReadOutput(HP, Elem::HYDRAULIC);
748
751  Pressure_valve(uLabel, pDO, hf, pNode1, pNode2,
752  area_diaf, mass, area_max,
753  s_max, Kappa, force0, width,
754  c_spost, c_vel, c_acc,
755  fOut));
756
757  break;
758  }
759
760  case FLOW_VALVE: {
761
762  /* nodo 1 */
763  const PressureNode* pNode1 = pDM->ReadNode<const PressureNode, Node::HYDRAULIC>(HP);
764
765  /* nodo 2 */
766  const PressureNode* pNode2 = pDM->ReadNode<const PressureNode, Node::HYDRAULIC>(HP);
767
768  /* nodo 3 */
769  const PressureNode* pNode3 = pDM->ReadNode<const PressureNode, Node::HYDRAULIC>(HP);
770
771  /* Area diaframma */
772  doublereal area_diaf = HP.GetReal();
773  if (area_diaf <= 0.) {
774  silent_cerr("FlowValve(" << uLabel << "): "
775  "null or negative area_diaf "
776  "at line " << HP.GetLineData() << std::endl);
778  }
779  DEBUGCOUT("Area_diaf: " << area_diaf << std::endl);
780
781  /* Massa valvola */
782  doublereal mass = HP.GetReal();
783  if (mass <= 0.) {
784  silent_cerr("FlowValve(" << uLabel << "): "
785  "null or negative valve mass "
786  "at line " << HP.GetLineData() << std::endl);
788  }
789  DEBUGCOUT("Valve mass: " << mass << std::endl);
790
791  /* Area tubo */
792  doublereal area_pipe = HP.GetReal();
793  if (area_pipe <= 0.) {
794  silent_cerr("FlowValve(" << uLabel << "): "
795  "null or negative area_pipe "
796  "at line " << HP.GetLineData() << std::endl);
798  }
799  DEBUGCOUT("Area_pipe: " << area_pipe << std::endl);
800
801  /* Area massima della valvola */
802  doublereal area_max = HP.GetReal();
803  if (area_max <= 0.) {
804  silent_cerr("FlowValve(" << uLabel << "): "
805  "null or negative area_max "
806  "at line " << HP.GetLineData() << std::endl);
808  }
809  DEBUGCOUT("Area_max: " << area_max << std::endl);
810
811  /* Kappa : costante della molla */
812  doublereal Kappa = HP.GetReal();
813  if (Kappa <= 0.) {
814  silent_cerr("FlowValve(" << uLabel << "): "
815  "null or negative Kappa "
816  "at line " << HP.GetLineData() << std::endl);
818  }
819  DEBUGCOUT("Kappa: " << Kappa << std::endl);
820
821  /* Forza0: precarico della molla */
822  doublereal force0 = HP.GetReal();
823  if (force0 < 0.) {
824  silent_cerr("FlowValve(" << uLabel << "): "
825  "negative force0 "
826  "at line " << HP.GetLineData() << std::endl);
828  }
829  DEBUGCOUT("Force0: " << force0 << std::endl);
830
831  /* Larghezza luce di passaggio */
832  doublereal width = HP.GetReal();
833  if (width <= 0.) {
834  silent_cerr("FlowValve(" << uLabel << "): "
835  "null or negative width "
836  "at line " << HP.GetLineData() << std::endl);
838  }
839  DEBUGCOUT("Width: " << width << std::endl);
840
841  /* Corsa massima della valvola */
842  doublereal s_max = HP.GetReal();
843  if (s_max < 0.) {
844  silent_cerr("FlowValve(" << uLabel << "): "
845  "negative s_max "
846  "at line " << HP.GetLineData() << std::endl);
848  }
849  DEBUGCOUT("s_max: " << s_max << std::endl);
850
851  /* c dello spostamento */
852  doublereal c_spost = HP.GetReal();
853  DEBUGCOUT("c_spost: " << c_spost << std::endl);
854
855  /* c della velocita' */
856  doublereal c_vel = HP.GetReal();
857  DEBUGCOUT("c_vel: " << c_vel << std::endl);
858
859  /* c della accelerazione */
860  doublereal c_acc = HP.GetReal();
861  DEBUGCOUT("c_acc: " << c_acc << std::endl);
862
864  ASSERT(hf != NULL);
865
866  flag fOut = pDM->fReadOutput(HP, Elem::HYDRAULIC);
867
869  Flow_valve,
870  Flow_valve(uLabel, pDO, hf,
871  pNode1, pNode2, pNode3,
872  area_diaf, mass,area_pipe, area_max,
873  Kappa, force0, width, s_max,
874  c_spost, c_vel, c_acc,
875  fOut));
876
877  break;
878  }
879
880  case ORIFICE: {
881
882  /* nodo 1 */
883  const PressureNode* pNode1 = pDM->ReadNode<const PressureNode, Node::HYDRAULIC>(HP);
884
885  /* nodo 2 */
886  const PressureNode* pNode2 = pDM->ReadNode<const PressureNode, Node::HYDRAULIC>(HP);
887
888  /* Diametro */
889  doublereal diameter = HP.GetReal();
890  if (diameter <= 0.) {
891  silent_cerr("Orifice(" << uLabel << "): "
892  "null or negative diameter "
893  "at line " << HP.GetLineData() << std::endl);
895  }
896  DEBUGCOUT("Diameter: " << diameter << std::endl);
897
898  /* Area diaframma */
899  doublereal area_diaf = HP.GetReal();
900  if (area_diaf <= 0.) {
901  silent_cerr("Orifice(" << uLabel << "): "
902  "null or negative area_diaf "
903  "at line " << HP.GetLineData() << std::endl);
905  }
906  DEBUGCOUT("Area_diaf: " << area_diaf << std::endl);
907
908  /* Area del tubo */
909  doublereal area_pipe = diameter*diameter*0.785;
910  if (HP.IsKeyWord("area"))
911  {
912  area_pipe = HP.GetReal();
913  if (area_pipe <= 0.)
914  {
915  silent_cerr("Orifice(" << uLabel << "): "
916  "null or negative area_pipe "
917  "at line " << HP.GetLineData() << std::endl);
919  }
920  }
921  DEBUGCOUT("Area_pipe: " << area_pipe << std::endl);
922
923  doublereal ReCr = 10;
924  if (HP.IsKeyWord("reynolds"))
925  {
926  ReCr = HP.GetReal();
927  if (ReCr <= 0.)
928  {
929  silent_cerr("Orifice(" << uLabel << "): "
930  "null or negative Reynold's number "
931  "at line " << HP.GetLineData() << std::endl);
933  }
934  }
935  DEBUGCOUT("Reynold critico: " << ReCr << std::endl);
936
938  ASSERT(hf != NULL);
939
940  flag fOut = pDM->fReadOutput(HP, Elem::HYDRAULIC);
941
943  Orifice,
944  Orifice(uLabel, pDO, hf,
945  pNode1, pNode2,
946  diameter,
947  area_diaf, area_pipe, ReCr, fOut));
948  break;
949  }
950
951  case ACCUMULATOR: {
952
953  /* nodo */
954  const PressureNode* pNode = pDM->ReadNode<const PressureNode, Node::HYDRAULIC>(HP);
955
956  /* Corsa pistone */
957  doublereal stroke = HP.GetReal();
958  if (stroke <= 0.) {
959  silent_cerr("Accumulator(" << uLabel << "): "
960  "null or negative stroke "
961  "at line " << HP.GetLineData() << std::endl);
963  }
964  DEBUGCOUT("Stroke: " << stroke << std::endl);
965
966  doublereal start = 0.;
967  if (HP.IsKeyWord("start")) {
968  // Corsa iniziale del setto
969  start = HP.GetReal();
970  if (start > stroke)
971  {
972  silent_cerr("Accumulator(" << uLabel << "): "
973  "stroke less then initial position "
974  "at line " << HP.GetLineData() << std::endl);
976  }
977  }
978  DEBUGCOUT("start: " << start << std::endl);
979
980  /* Area stantuffo */
981  doublereal area = HP.GetReal();
982  if (area <= 0.) {
983  silent_cerr("Accumulator(" << uLabel << "): "
984  "null or negative area "
985  "at line " << HP.GetLineData() << std::endl);
987  }
988  DEBUGCOUT("Area: " << area << std::endl);
989
990  /* Area pipe */
991  doublereal area_pipe = HP.GetReal();
992  if (area_pipe <= 0.) {
993  silent_cerr("Accumulator(" << uLabel << "): "
994  "null or negative area_pipe "
995  "at line " << HP.GetLineData() << std::endl);
997  }
998  DEBUGCOUT("area_pipe: " << area_pipe << std::endl);
999
1000  /* Massa stantuffo */
1001  doublereal mass = HP.GetReal();
1002  if (mass <= 0.) {
1003  silent_cerr("Accumulator(" << uLabel << "): "
1004  "null or negative mass "
1005  "at line " << HP.GetLineData() << std::endl);
1007  }
1008  DEBUGCOUT("Mass: " << mass << std::endl);
1009
1010  doublereal h_in = 1;
1011  if (HP.IsKeyWord("lossin")) {
1012  // Perdita di carico entrata
1013  h_in = HP.GetReal();
1014  if (h_in < 0.)
1015  {
1016  silent_cerr("Accumulator(" << uLabel << "): "
1017  "negative loss_in "
1018  "at line " << HP.GetLineData() << std::endl);
1020  }
1021  }
1022  DEBUGCOUT("Loss_in: " << h_in << std::endl);
1023
1024  doublereal h_out = 0.5;
1025  if (HP.IsKeyWord("lossout")) {
1026  // Perdita di carico uscita
1027  h_out = HP.GetReal();
1028  if (h_out < 0.)
1029  {
1030  silent_cerr("Accumulator(" << uLabel << "): "
1031  "negative loss_out "
1032  "at line " << HP.GetLineData() << std::endl);
1034  }
1035  }
1036  DEBUGCOUT("loss_out: " << h_out << std::endl);
1037
1038  doublereal press0 = 0.;
1039  doublereal press_max= 0.;
1040  doublereal Kappa = 0.;
1041
1042  if (HP.IsKeyWord("gas")) {
1043
1044  /* Pressione gas accumulatore scarico */
1045  press0 = HP.GetReal();
1046  if (press0 <= 0.) {
1047  silent_cerr("Accumulator(" << uLabel << "): "
1048  "null or negative pressure0 "
1049  "at line " << HP.GetLineData() << std::endl);
1051  }
1052  DEBUGCOUT("press0: " << press0 << std::endl);
1053
1054  /* Pressione massima del gas */
1055  press_max = HP.GetReal();
1056  if (press_max <= 0.) {
1057  silent_cerr("Accumulator(" << uLabel << "): "
1058  "null or negative pressure max "
1059  "at line " << HP.GetLineData() << std::endl);
1061  }
1062  DEBUGCOUT("Pressure max: " << press_max << std::endl);
1063
1064  Kappa = HP.GetReal();
1065  if (Kappa < 0.) {
1066  silent_cerr("Accumulator(" << uLabel << "): "
1067  "negative Kappa "
1068  "at line " << HP.GetLineData() << std::endl);
1070  }
1071  DEBUGCOUT("Kappa: " << Kappa << std::endl);
1072  }
1073
1074  doublereal weight = 0.;
1075  if (HP.IsKeyWord("weight")) {
1076  weight = HP.GetReal();
1077  if (weight <= 0.) {
1078  silent_cerr("Accumulator(" << uLabel << "): "
1079  "null or negative weight "
1080  "at line " << HP.GetLineData() << std::endl);
1082  }
1083  DEBUGCOUT("weight: " << weight << std::endl);
1084  }
1085
1086  doublereal spring = 0.;
1087  doublereal force0 = 0.;
1088  if (HP.IsKeyWord("spring")) {
1089  spring = HP.GetReal();
1090  if (spring < 0.) {
1091  silent_cerr("Accumulator(" << uLabel << "): "
1092  "negative spring "
1093  "at line " << HP.GetLineData() << std::endl);
1095  }
1096
1097  force0 = HP.GetReal();
1098  if (force0 < 0.) {
1099  silent_cerr("Accumulator(" << uLabel << "): "
1100  "negative force0 "
1101  "at line " << HP.GetLineData() << std::endl);
1103  }
1104  DEBUGCOUT("spring: " << spring << std::endl);
1105  DEBUGCOUT("force0: " << force0 << std::endl);
1106  }
1107
1108  /* c dello spostamento */
1109  doublereal c_spost = HP.GetReal();
1110  DEBUGCOUT("c_spost: " << c_spost << std::endl);
1111
1112  /* c della velocita' */
1113  doublereal c_vel = HP.GetReal();
1114  DEBUGCOUT("c_vel: " << c_vel << std::endl);
1115
1116  /* c della accelerazione */
1117  doublereal c_acc = HP.GetReal();
1118  DEBUGCOUT("c_acc: " << c_acc << std::endl);
1119
1120  HydraulicFluid* hf = HP.GetHydraulicFluid();
1121  ASSERT(hf != NULL);
1122
1123  flag fOut = pDM->fReadOutput(HP, Elem::HYDRAULIC);
1124
1126  Accumulator,
1127  Accumulator(uLabel, pDO, hf, pNode,
1128  stroke, start, area, area_pipe,
1129  mass,h_in, h_out,
1130  press0, press_max,
1131  Kappa, weight, spring, force0,
1132  c_spost, c_vel, c_acc, fOut));
1133  break;
1134  }
1135
1136  case TANK: {
1137
1138  /* nodo 1 */
1139  const PressureNode* pNode1 = pDM->ReadNode<const PressureNode, Node::HYDRAULIC>(HP);
1140
1141  /* nodo 2 */
1142  const PressureNode* pNode2 = pDM->ReadNode<const PressureNode, Node::HYDRAULIC>(HP);
1143
1144  /* Pressione serbatoio */
1145  doublereal press = HP.GetReal();
1146  if (press <= 0.) {
1147  silent_cerr("Tank(" << uLabel << "): "
1148  "null or negative pressure "
1149  "at line " << HP.GetLineData() << std::endl);
1151  }
1152  DEBUGCOUT("Pressure: " << press << std::endl);
1153
1154  /* Area pipe */
1155  doublereal area_pipe = HP.GetReal();
1156  if (area_pipe <= 0.) {
1157  silent_cerr("Tank(" << uLabel << "): "
1158  "null or negative area_pipe "
1159  "at line " << HP.GetLineData() << std::endl);
1161  }
1162  DEBUGCOUT("Area_pipe: " << area_pipe << std::endl);
1163
1164  /* Area serbatoio */
1165  doublereal area_serb = HP.GetReal();
1166  if (area_serb <= 0.) {
1167  silent_cerr("Tank(" << uLabel << "): "
1168  "null or negative area_serb "
1169  "at line " << HP.GetLineData() << std::endl);
1171  }
1172  DEBUGCOUT("Area serbatoio: " << area_serb << std::endl);
1173
1174  /* Livello massimo dell'olio */
1175  doublereal s_max = HP.GetReal();
1176  if (s_max < 0.) {
1177  silent_cerr("Tank(" << uLabel << "): "
1178  "negative s_max "
1179  "at line " << HP.GetLineData() << std::endl);
1181  }
1182  DEBUGCOUT("Livello massimo dell'olio: " << s_max << std::endl);
1183
1184  /* Livello iniziale */
1185  doublereal level= .5*s_max; /* valore di default 50% del massimo */
1186
1187  if (HP.IsKeyWord("startlevel")) {
1188  level = HP.GetReal();
1189  if (level < 0.) {
1190  silent_cerr("Tank(" << uLabel << "): "
1191  "negative level "
1192  "at line " << HP.GetLineData() << std::endl);
1194  }
1195  DEBUGCOUT("Livello iniziale: " << level << std::endl);
1196  }
1197
1198  /* Soglia di allarme */
1199  doublereal s_min = .1*s_max; /* valore di default 10% del massimo */
1200  if (HP.IsKeyWord("alarmlevel")) {
1201  doublereal s_min = HP.GetReal();
1202  if (s_min < 0.) {
1203  silent_cerr("Tank(" << uLabel << "): "
1204  "negative s_min "
1205  "at line " << HP.GetLineData() << std::endl);
1207  }
1208  DEBUGCOUT("Soglia di allarme: " << s_min << std::endl);
1209  }
1210
1211  /* c dello spostamento */
1212  doublereal c_spost = HP.GetReal();
1213  DEBUGCOUT("c_spost: " << c_spost << std::endl);
1214
1215  HydraulicFluid* hf = HP.GetHydraulicFluid();
1216  ASSERT(hf != NULL);
1217
1218  flag fOut = pDM->fReadOutput(HP, Elem::HYDRAULIC);
1219
1221  Tank,
1222  Tank (uLabel, pDO, hf, pNode1,pNode2, press,
1223  area_pipe, area_serb,
1224  level, s_max, s_min, c_spost, fOut));
1225  break;
1226  }
1227
1228  case PIPE: {
1229
1230  /* nodo 1 */
1231  const PressureNode* pNode1 = pDM->ReadNode<const PressureNode, Node::HYDRAULIC>(HP);
1232
1233  /* nodo 2 */
1234  const PressureNode* pNode2 = pDM->ReadNode<const PressureNode, Node::HYDRAULIC>(HP);
1235
1236  /* Diametro */
1237  doublereal diameter = HP.GetReal();
1238  if (diameter <= 0.) {
1239  silent_cerr("Pipe(" << uLabel << "): "
1240  "null or negative diameter "
1241  "at line " << HP.GetLineData() << std::endl);
1243  }
1244  DEBUGCOUT("Diameter: " << diameter << std::endl);
1245
1246  // Area
1247  doublereal area = diameter*diameter*M_PI_4;
1248  if (HP.IsKeyWord("area"))
1249  {
1250  area = HP.GetReal();
1251  if (area <= 0.)
1252  {
1253  silent_cerr("Pipe(" << uLabel << "): "
1254  "null or negative area "
1255  "at line " << HP.GetLineData() << std::endl);
1257  }
1258  }
1259  DEBUGCOUT("Area: " << area << std::endl);
1260
1261  /* Lunghezza */
1262  doublereal lenght = HP.GetReal();
1263  if (lenght <= 0.) {
1264  silent_cerr("Pipe(" << uLabel << "): "
1265  "null or negative lenght "
1266  "at line " << HP.GetLineData() << std::endl);
1268  }
1269  DEBUGCOUT("Lenght: " << lenght << std::endl);
1270
1271  /* Transizione se e' 0 parto da laminare se e' 1 parto da turbolento */
1272  flag turbulent = 0;
1273  if (HP.IsKeyWord("turbulent")) {
1274  turbulent = 1;
1275  DEBUGCOUT("Turbulent" << std::endl);
1276  }
1277  doublereal q0 = 0.;
1278  if (HP.IsKeyWord("initial" "value")) {
1279  q0 = HP.GetReal();
1280  DEBUGCOUT("Initial q = " << q0 << std::endl);
1281  }
1282
1283  HydraulicFluid* hf = HP.GetHydraulicFluid();
1284  ASSERT(hf != NULL);
1285
1286  flag fOut = pDM->fReadOutput(HP, Elem::HYDRAULIC);
1287
1289  Pipe,
1290  Pipe(uLabel, pDO, hf, pNode1, pNode2,
1291  diameter,
1292  area, lenght, turbulent, q0, fOut));
1293  break;
1294  }
1295
1296  case DYNAMIC_PIPE: {
1297
1298  /* nodo 1 */
1299  const PressureNode* pNode1 = dynamic_cast<PressureNode *>(pDM->ReadNode(HP, Node::HYDRAULIC));
1300
1301  /* nodo 2 */
1302  const PressureNode* pNode2 = dynamic_cast<PressureNode *>(pDM->ReadNode(HP, Node::HYDRAULIC));
1303
1304  doublereal diameter = HP.GetReal();
1305  if (diameter <= 0.) {
1306  silent_cerr("DynamicPipe(" << uLabel << "): "
1307  "null or negative diameter "
1308  "at line " << HP.GetLineData() << std::endl);
1310  }
1311  DEBUGCOUT("Diameter: " << diameter << std::endl);
1312
1313  // Area
1314  doublereal area = diameter*diameter*M_PI_4;
1315  if (HP.IsKeyWord("area"))
1316  {
1317  area = HP.GetReal();
1318  if (area <= 0.) {
1319  silent_cerr("DynamicPipe(" << uLabel << "): "
1320  "null or negative area "
1321  "at line " << HP.GetLineData() << std::endl);
1323  }
1324  }
1325  DEBUGCOUT("Area: " << area << std::endl);
1326
1327  /* Lunghezza */
1328  doublereal lenght = HP.GetReal();
1329  if (lenght <= 0.) {
1330  silent_cerr("DynamicPipe(" << uLabel << "): "
1331  "null or negative lenght "
1332  "at line " << HP.GetLineData() << std::endl);
1334  }
1335  DEBUGCOUT("Lenght: " << lenght << std::endl);
1336
1337  /* Transizione se e' 0 parto da laminare se e' 1 parto da turbolento */
1338  flag turbulent = 0;
1339  if (HP.IsKeyWord("turbulent")) {
1340  turbulent = 1;
1341  DEBUGCOUT("Turbulent" << std::endl);
1342  }
1343  doublereal q0 = 0.;
1344  if (HP.IsKeyWord("initial" "value")) {
1345  q0 = HP.GetReal();
1346  DEBUGCOUT("Initial q = " << q0 << std::endl);
1347  }
1348
1349  HydraulicFluid* hf = HP.GetHydraulicFluid();
1350  ASSERT(hf != NULL);
1351
1352  flag fOut = pDM->fReadOutput(HP, Elem::HYDRAULIC);
1353
1355  DynamicPipe,
1356  DynamicPipe(uLabel, pDO, hf,
1357  pNode1, pNode2, diameter,
1358  area, lenght, turbulent, q0, fOut));
1359  break;
1360  }
1361
1362  /* Aggiungere altri elementi idraulici */
1363
1364  default: {
1365  silent_cerr("unknown hydraulic element type "
1366  "for hydraulic element " << uLabel
1367  << " at line " << HP.GetLineData() << std::endl);
1369  }
1370  }
1371
1372  /* Se non c'e' il punto e virgola finale */
1373  if (HP.IsArg()) {
1374  silent_cerr("semicolon expected "
1375  "at line " << HP.GetLineData() << std::endl);
1377  }
1378
1379  return pEl;
1380 }
flag fReadOutput(MBDynParser &HP, const T &t) const
Definition: dataman.h:1064
long int flag
Definition: mbdyn.h:43
#define MBDYN_EXCEPT_ARGS
Definition: except.h:63
Definition: matvec3.h:98
Definition: hutils.h:139
virtual HydraulicFluid * pCopy(void) const =0
Vec3 GetPosRel(const ReferenceFrame &rf)
Definition: mbpar.cc:1331
virtual bool IsKeyWord(const char *sKeyWord)
Definition: parser.cc:910
#define DEBUGCOUT(msg)
Definition: myassert.h:232
#define ASSERT(expression)
Definition: colamd.c:977
KeyWords
Definition: dataman4.cc:94
#define SAFENEWWITHCONSTRUCTOR(pnt, item, constructor)
Definition: mynewmem.h:698
virtual bool IsArg(void)
Definition: parser.cc:807
Definition: elem.h:75
virtual int GetWord(void)
Definition: parser.cc:1083
HydraulicFluid * GetHydraulicFluid(void)
Definition: mbpar.cc:1893
DriveCaller * GetDriveCaller(bool bDeferred=false)
Definition: mbpar.cc:2033
Vec3 GetUnitVecRel(const ReferenceFrame &rf)
Definition: mbpar.cc:1695
double doublereal
Definition: colamd.c:52
virtual HighParser::ErrOut GetLineData(void) const
Definition: parsinc.cc:697
Node * ReadNode(MBDynParser &HP, Node::Type type) const
Definition: dataman3.cc:2309
Definition: pipe.h:45
virtual doublereal GetReal(const doublereal &dDefval=0.0)
Definition: parser.cc:1056

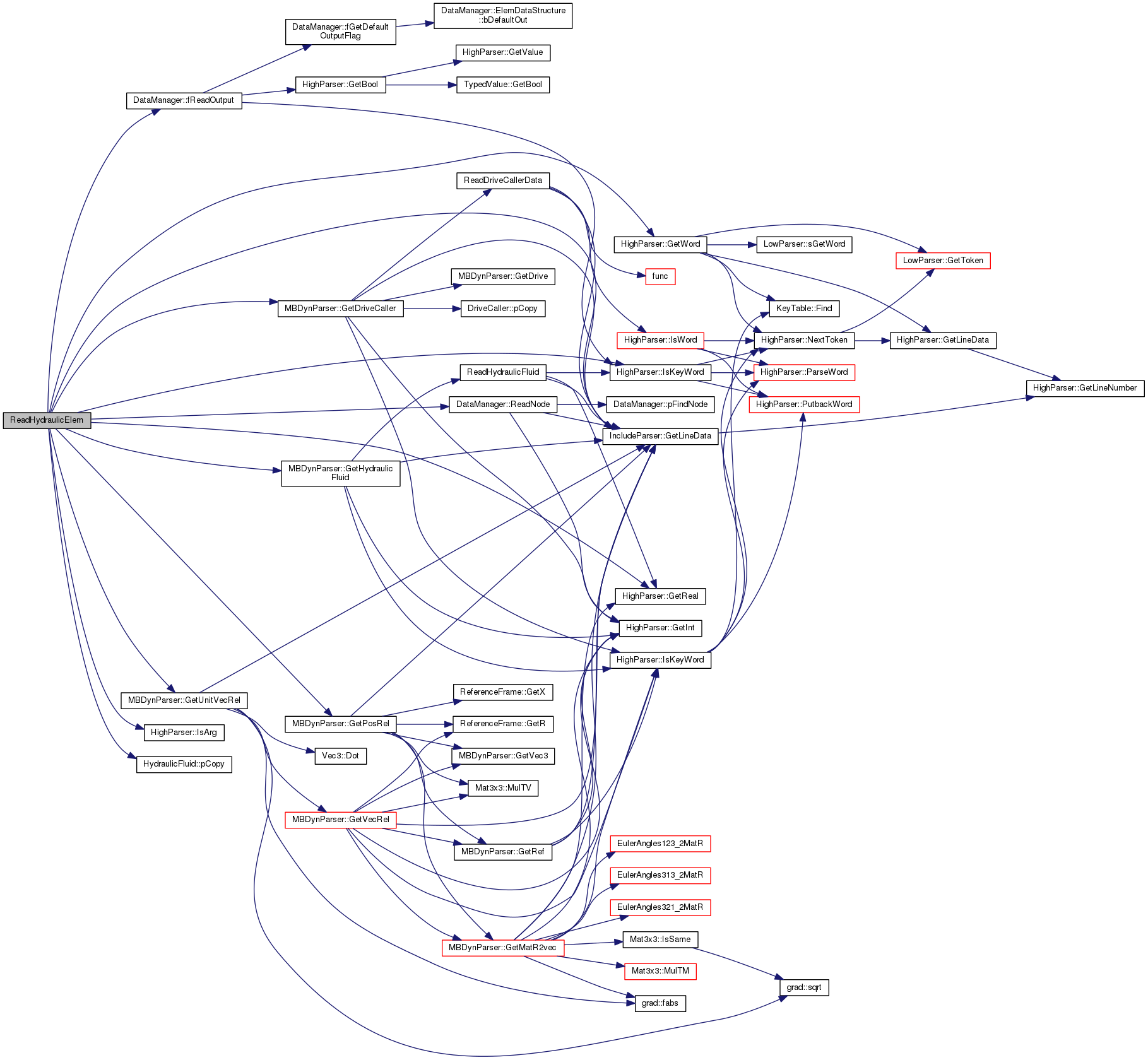

Here is the call graph for this function:
