grad::MatGInit< T, VectorExpr > Class Template Reference

#include <matvec.h>

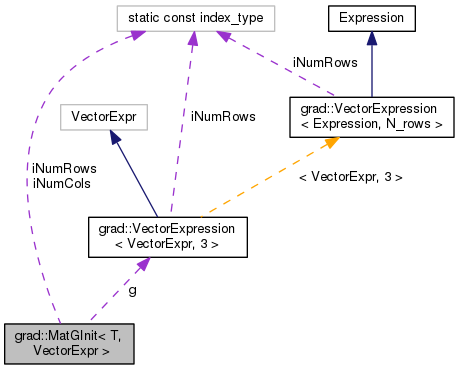

Collaboration diagram for grad::MatGInit< T, VectorExpr >:

Public Member Functions
	MatGInit (const VectorExpression< VectorExpr, 3 > &g)
void	Initialize (Matrix< T, 3, 3 > &G) const
index_type	iGetNumRows () const
index_type	iGetNumCols () const

Static Public Attributes
static const index_type	iNumRows = 3
static const index_type	iNumCols = 3

Private Attributes
const VectorExpression < VectorExpr, 3 >	g

Detailed Description

template<typename T, typename VectorExpr>
class grad::MatGInit< T, VectorExpr >

Definition at line 2722 of file matvec.h.

Constructor & Destructor Documentation

template<typename T , typename VectorExpr >

grad::MatGInit< T, VectorExpr >::MatGInit ( const VectorExpression< VectorExpr, 3 > &  g )

inline

Definition at line 2727 of file matvec.h.

                :g(g) {

        }

Member Function Documentation

template<typename T , typename VectorExpr >

index_type grad::MatGInit< T, VectorExpr >::iGetNumCols ( void  ) const

inline

Definition at line 2754 of file matvec.h.

{ return iNumCols; }

template<typename T , typename VectorExpr >

index_type grad::MatGInit< T, VectorExpr >::iGetNumRows ( void  ) const

inline

Definition at line 2753 of file matvec.h.

References grad::Vector< T, N_rows >::iNumRows.

{ return iNumRows; }

template<typename T , typename VectorExpr >

void grad::MatGInit< T, VectorExpr >::Initialize ( Matrix< T, 3, 3 > &  G ) const

inline

Definition at line 2732 of file matvec.h.

References grad::Dot().

                                                  {
/*
 * G = 4/(4 + g' * g) * (eye(3) + 1/2*skew(g))
 *
 * skew(g) = [     0, -g(3),   g(2);
 *              g(3),     0,  -g(1);
 *             -g(2),  g(1),     0]
 */
            const T d = (4./(4.+Dot(g, g)));

                G(1, 1) = d;
                G(2, 1) = g(3) * d / 2.;
                G(3, 1) = -g(2) * d / 2.;
                G(1, 2) = -g(3) * d / 2.;
                G(2, 2) = d;
                G(3, 2) = g(1) * d / 2.;
                G(1, 3) = g(2) * d / 2.;
                G(2, 3) = -g(1) * d / 2.;
                G(3, 3) = d;
        }

Here is the call graph for this function:

Member Data Documentation

template<typename T , typename VectorExpr >

const VectorExpression<VectorExpr, 3> grad::MatGInit< T, VectorExpr >::g

private

Definition at line 2756 of file matvec.h.

template<typename T , typename VectorExpr >

const index_type grad::MatGInit< T, VectorExpr >::iNumCols = 3

static

Definition at line 2725 of file matvec.h.

template<typename T , typename VectorExpr >

const index_type grad::MatGInit< T, VectorExpr >::iNumRows = 3

static

Definition at line 2724 of file matvec.h.

---

The documentation for this class was generated from the following file:

• matvec.h
