TunableThirdOrderIntegrator Class Reference

#include <thirdorderstepsol.h>

Inheritance diagram for TunableThirdOrderIntegrator:

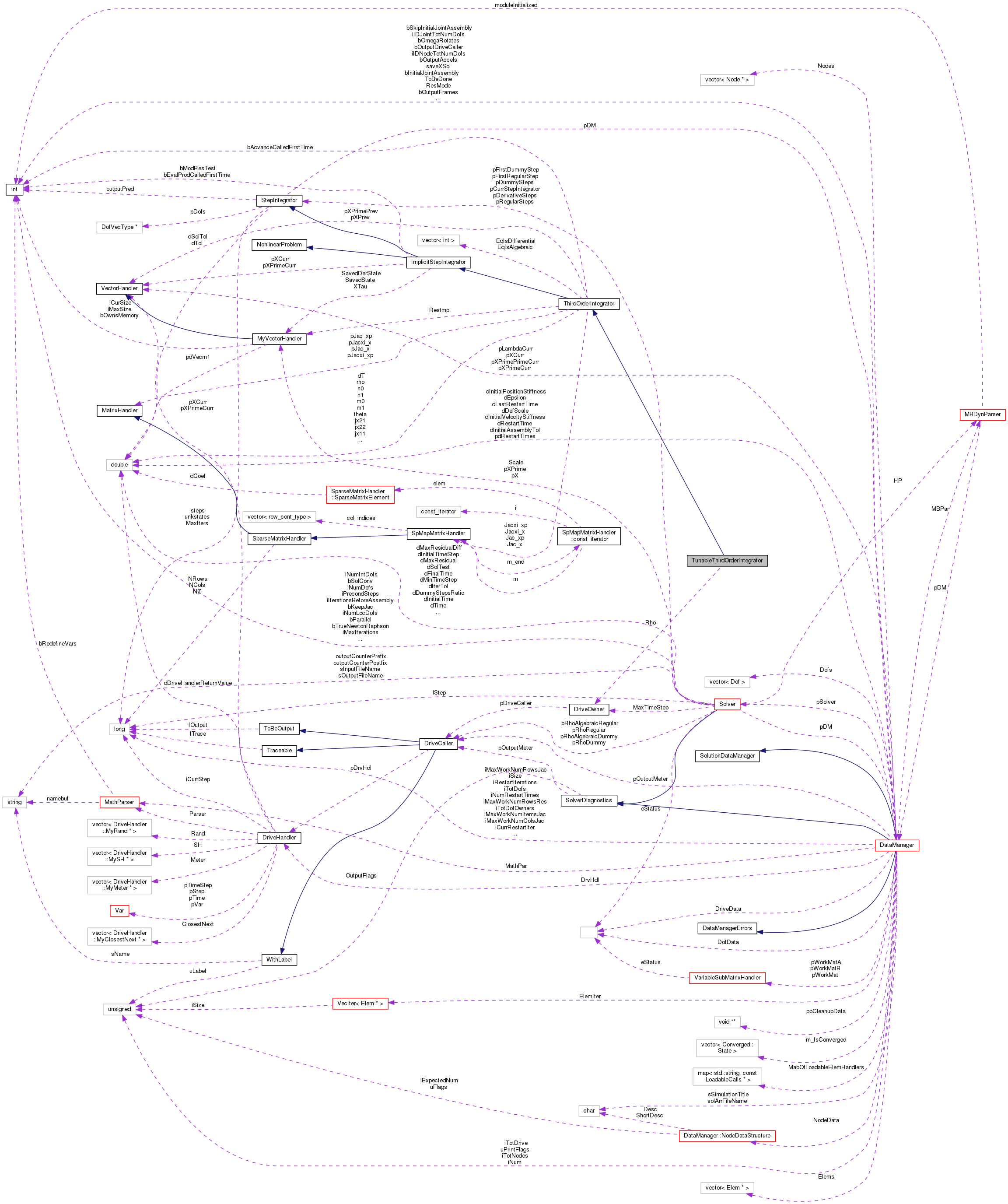

Collaboration diagram for TunableThirdOrderIntegrator:

Public Member Functions

 TunableThirdOrderIntegrator (const doublereal dT, const doublereal dSolutionTol, const integer iMaxIt, const DriveCaller *pRho, const bool bmod_res_test)

virtual ~TunableThirdOrderIntegrator (void)

void SetDriveHandler (const DriveHandler *pDH)

- Public Member Functions inherited from ThirdOrderIntegrator
 ThirdOrderIntegrator (const doublereal dT, const doublereal dSolutionTol, const integer iMaxIt, const bool bmod_res_test)

virtual ~ThirdOrderIntegrator (void)

virtual void Residual (VectorHandler *pRes) const

virtual void Jacobian (MatrixHandler *pJac) const

virtual void Update (const VectorHandler *pSol) const

virtual doublereal Advance (Solver *pS, const doublereal TStep, const doublereal dAlph, const StepChange StType, std::deque< MyVectorHandler * > &qX, std::deque< MyVectorHandler * > &qXPrime, MyVectorHandler *const pX, MyVectorHandler *const pXPrime, integer &EffIter, doublereal &Err, doublereal &SolErr)

- Public Member Functions inherited from ImplicitStepIntegrator
 ImplicitStepIntegrator (const integer MaxIt, const doublereal dT, const doublereal dSolutionTol, const integer stp, const integer sts, const bool bmod_res_test)

virtual ~ImplicitStepIntegrator (void)

virtual void EvalProd (doublereal Tau, const VectorHandler &f0, const VectorHandler &w, VectorHandler &z) const

virtual doublereal TestScale (const NonlinearSolverTest *pTest, doublereal &dCoef) const

- Public Member Functions inherited from StepIntegrator
 StepIntegrator (const integer MaxIt, const doublereal dT, const doublereal dSolutionTol, const integer stp, const integer sts)

virtual ~StepIntegrator (void)

void SetDataManager (DataManager *pDatMan)

virtual integer GetIntegratorNumPreviousStates (void) const

virtual integer GetIntegratorNumUnknownStates (void) const

virtual integer GetIntegratorMaxIters (void) const

virtual doublereal GetIntegratorDTol (void) const

virtual doublereal GetIntegratorDSolTol (void) const

virtual void OutputTypes (const bool fpred)

- Public Member Functions inherited from NonlinearProblem
virtual ~NonlinearProblem (void)


Protected Member Functions

void SetCoef (doublereal dT, doublereal dAlpha, enum StepChange NewStep)

- Protected Member Functions inherited from ThirdOrderIntegrator
void PredictDof_for_AfterPredict (const int DCount, const DofOrder::Order Order, const VectorHandler *const pSol=0) const

void RealPredictDof (const int DCount, const DofOrder::Order Order, const VectorHandler *const pSol=0) const

void UpdateDof (const int DCount, const DofOrder::Order Order, const VectorHandler *const pSol=0) const

virtual void Predict (void)

- Protected Member Functions inherited from StepIntegrator
template<class T >
void UpdateLoop (const T *const t, void(T::*pUpd)(const int DCount, const DofOrder::Order Order, const VectorHandler *const pSol) const, const VectorHandler *const pSol=0) const


Private Attributes

DriveOwner Rho


Additional Inherited Members

- Public Types inherited from StepIntegrator
enum  { DIFFERENTIAL = 0, ALGEBRAIC = 1 }

enum  StepChange { NEWSTEP, REPEATSTEP }

- Protected Attributes inherited from ThirdOrderIntegrator
VectorHandlerpXPrev

VectorHandlerpXPrimePrev

doublereal dT

doublereal rho

doublereal theta

doublereal w0

doublereal w1

doublereal w2

doublereal jx11

doublereal jx12

doublereal jx21

doublereal jx22

doublereal m0

doublereal m1

doublereal n0

doublereal n1

bool bAdvanceCalledFirstTime

MyVectorHandler Restmp

std::vector< boolEqIsAlgebraic

std::vector< boolEqIsDifferential

SpMapMatrixHandler Jacxi_xp

SpMapMatrixHandler Jacxi_x

SpMapMatrixHandler Jac_xp

SpMapMatrixHandler Jac_x

MatrixHandlerpJacxi_xp

MatrixHandlerpJacxi_x

MatrixHandlerpJac_xp

MatrixHandlerpJac_x

- Protected Attributes inherited from ImplicitStepIntegrator
VectorHandlerpXCurr

VectorHandlerpXPrimeCurr

bool bModResTest

- Protected Attributes inherited from StepIntegrator
DataManagerpDM

const DataManager::DofVecTypepDofs

bool outputPred

integer MaxIters

doublereal dTol

doublereal dSolTol

integer steps

integer unkstates


Detailed Description

Definition at line 107 of file thirdorderstepsol.h.

Constructor & Destructor Documentation

TunableThirdOrderIntegrator::TunableThirdOrderIntegrator ( const doublereal  dT,
const doublereal  dSolutionTol,
const integer  iMaxIt,
const DriveCaller pRho,
const bool  bmod_res_test
)

Definition at line 421 of file thirdorderstepsol.cc.

References NO_OP.

426 : ThirdOrderIntegrator(dT, dSolutionTol, iMaxIt, bmod_res_test),
427 Rho(pRho)
428 {
429  NO_OP;
430 }
#define NO_OP
Definition: myassert.h:74
ThirdOrderIntegrator(const doublereal dT, const doublereal dSolutionTol, const integer iMaxIt, const bool bmod_res_test)
TunableThirdOrderIntegrator::~TunableThirdOrderIntegrator ( void  )
virtual

Definition at line 432 of file thirdorderstepsol.cc.

References NO_OP.

433 {
434  NO_OP;
435 }
#define NO_OP
Definition: myassert.h:74

Member Function Documentation

void TunableThirdOrderIntegrator::SetCoef ( doublereal  dT,
doublereal  dAlpha,
enum StepChange  NewStep
)
protectedvirtual

Implements ThirdOrderIntegrator.

Definition at line 438 of file thirdorderstepsol.cc.

References DEBUGCOUT, DriveOwner::dGet(), ThirdOrderIntegrator::dT, ThirdOrderIntegrator::jx11, ThirdOrderIntegrator::jx12, ThirdOrderIntegrator::jx21, ThirdOrderIntegrator::jx22, ThirdOrderIntegrator::m0, ThirdOrderIntegrator::m1, ThirdOrderIntegrator::n0, ThirdOrderIntegrator::n1, grad::pow(), ThirdOrderIntegrator::rho, Rho, ThirdOrderIntegrator::theta, ThirdOrderIntegrator::w0, ThirdOrderIntegrator::w1, and ThirdOrderIntegrator::w2.

441 {
442  dT = dt;
443
444  /* from "Unconditionally stable multistep integration of ordinary
445  * differential and differential-algebraic equations with
446  * controlled algorithmic dissipation for multibody dynamic
447  * applications", pp 8-9
448  */
449  rho = Rho.dGet();
450  theta = -rho/(1.+rho);
451  w0 = (1.+3*theta)/(6.*theta);
452  w1 = -1./(6.*theta*(1.+theta));
453  w2 = (2.+3.*theta)/(6.*(1.+theta));
454  /* from "Unconditionally stable multistep integration of ordinary
455  * differential and differential-algebraic equations with
456  * controlled algorithmic dissipation for multibody dynamic
457  * applications", pp 3
458  */
459  m0 = 1.-theta*theta*(3.+2.*theta);
460  m1 = theta*theta*(3.+2.*theta);
461  n0 = theta*(1.+theta)*(1.+theta);
462  n1 = theta*theta*(1.+theta);
463
464  /* Attenzione: a differenza di quanto riportato a p. 16,
465  * "Unconditionally stable multistep integration of ordinary
466  * differential and differential-algebraic equations with
467  * controlled algorithmic dissipation for multibody dynamic
468  * applications"
469  * qui il tempo finale e' in cima, il tempo theta in basso
470  */
471  jx22 = (1.+3.*rho)/(6.*rho*(1.+rho))*dT;
472  jx21 = -1./(6.*rho*std::pow(1.+rho,2.))*dT;
473  jx12 = std::pow(1.+rho,2.)/(6.*rho)*dT;
474  jx11 = (2.*rho-1.)/(6.*rho)*dT;
475
476  DEBUGCOUT("Tunable Third Order Integrator coefficients:" << std::endl
477  << "\t rho: " << rho << std::endl
478  << "\ttheta: " << theta << std::endl
479  << "\t w0: " << w0 << std::endl
480  << "\t w1: " << w1 << std::endl
481  << "\t w2: " << w2 << std::endl
482  << "\t m0: " << m0 << std::endl
483  << "\t m1: " << m1 << std::endl
484  << "\t n0: " << n0 << std::endl
485  << "\t n1: " << n1 << std::endl);
486 }
GradientExpression< BinaryExpr< FuncPow, LhsExpr, RhsExpr > > pow(const GradientExpression< LhsExpr > &u, const GradientExpression< RhsExpr > &v)
Definition: gradient.h:2961
#define DEBUGCOUT(msg)
Definition: myassert.h:232
doublereal dGet(const doublereal &dVar) const
Definition: drive.cc:664

Here is the call graph for this function:

void TunableThirdOrderIntegrator::SetDriveHandler ( const DriveHandler pDH)
virtual

Reimplemented from StepIntegrator.

Definition at line 489 of file thirdorderstepsol.cc.

References DriveOwner::pGetDriveCaller(), Rho, and DriveCaller::SetDrvHdl().

490 {
491  Rho.pGetDriveCaller()->SetDrvHdl(pDH);
492 }
virtual void SetDrvHdl(const DriveHandler *pDH)
Definition: drive.cc:487
DriveCaller * pGetDriveCaller(void) const
Definition: drive.cc:658

Here is the call graph for this function:

Member Data Documentation

DriveOwner TunableThirdOrderIntegrator::Rho
private

Definition at line 111 of file thirdorderstepsol.h.

Referenced by SetCoef(), and SetDriveHandler().


The documentation for this class was generated from the following files:
