PivotRelFrameDummyStructNode Class Reference

#include <strnode.h>

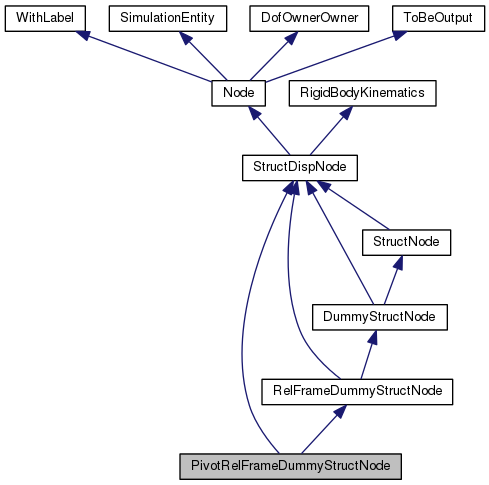

Inheritance diagram for PivotRelFrameDummyStructNode:

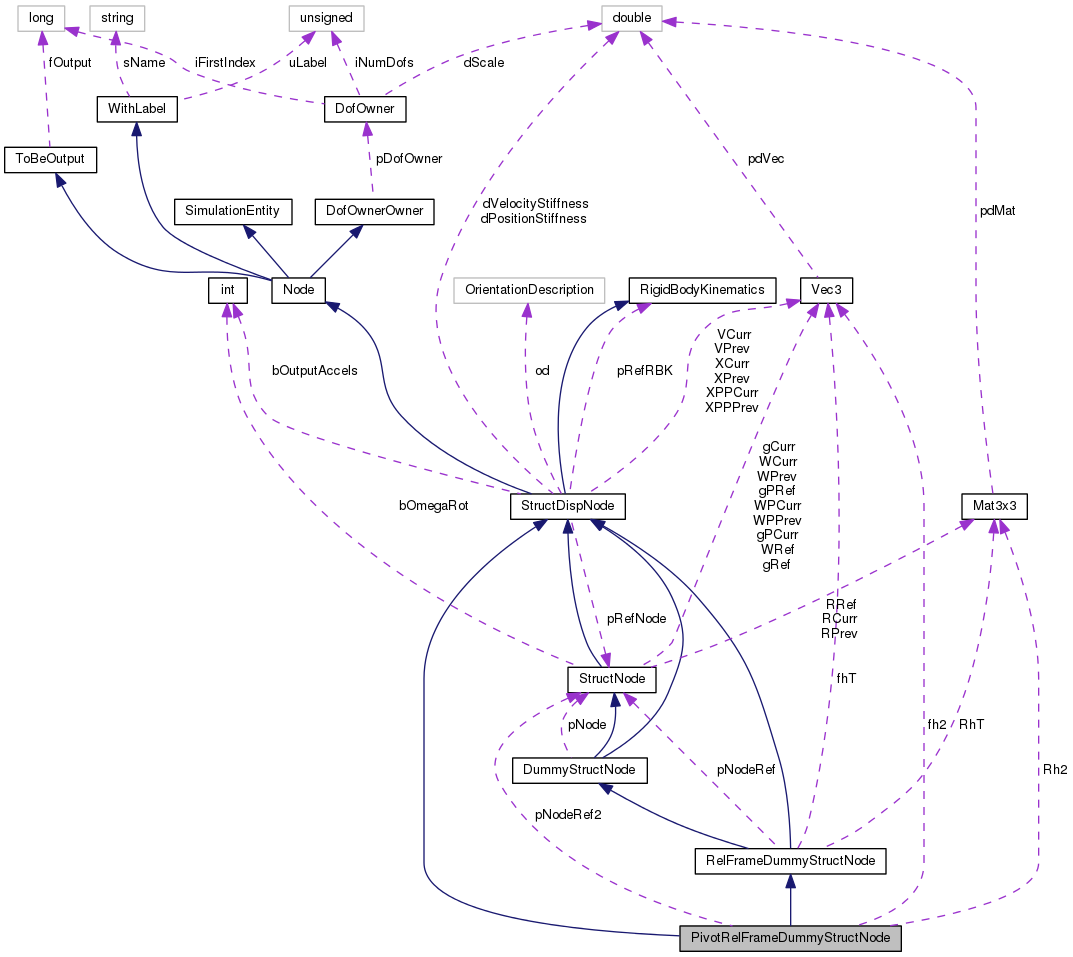

Collaboration diagram for PivotRelFrameDummyStructNode:

Public Member Functions

 PivotRelFrameDummyStructNode (unsigned int uL, const DofOwner *pDO, const StructNode *pNode, const StructNode *pNodeRef, const Vec3 &fh, const Mat3x3 &Rh, const StructNode *pNodeRef2, const Vec3 &fh2, const Mat3x3 &Rh2, OrientationDescription ood, flag fOut)

virtual ~PivotRelFrameDummyStructNode (void)

virtual DummyStructNode::Type GetDummyType (void) const

virtual void Update (const VectorHandler &X, const VectorHandler &XP)

virtual bool bComputeAccelerations (void) const

virtual bool ComputeAccelerations (bool b)

- Public Member Functions inherited from StructDispNode
 StructDispNode (unsigned int uL, const DofOwner *pDO, const Vec3 &X0, const Vec3 &V0, const StructNode *pRN, const RigidBodyKinematics *pRBK, doublereal dPosStiff, doublereal dVelStiff, OrientationDescription od, flag fOut)

virtual ~StructDispNode (void)

virtual Node::Type GetNodeType (void) const

const RigidBodyKinematicspGetRBK (void) const

const Vec3GetX (void) const

const Vec3GetV (void) const

const Vec3GetXPP (void) const

virtual DofOrder::Order GetDofType (unsigned int) const

virtual const Vec3GetXPrev (void) const

virtual const Vec3GetXCurr (void) const

virtual const Vec3GetVPrev (void) const

virtual const Vec3GetVCurr (void) const

virtual const Vec3GetXPPPrev (void) const

virtual const Vec3GetXPPCurr (void) const

virtual const doublerealdGetPositionStiffness (void) const

virtual const doublerealdGetVelocityStiffness (void) const

virtual bool bOutputAccelerations (void) const

virtual void OutputAccelerations (bool bOut)

- Public Member Functions inherited from Node
 Node (unsigned int uL, const DofOwner *pDO, flag fOut)

virtual ~Node (void)

const NodeGetNode (void) const

virtual integer iGetFirstRowIndex (void) const

virtual integer iGetFirstColIndex (void) const

- Public Member Functions inherited from WithLabel
 WithLabel (unsigned int uL=0, const std::string &sN="")

virtual ~WithLabel (void)

void PutLabel (unsigned int uL)

void PutName (const std::string &sN)

unsigned int GetLabel (void) const

const std::string & GetName (void) const

- Public Member Functions inherited from SimulationEntity
 SimulationEntity (void)

virtual ~SimulationEntity (void)

virtual bool bIsValidIndex (unsigned int i) const

virtual DofOrder::Order GetEqType (unsigned int i) const

virtual HintParseHint (DataManager *pDM, const char *s) const

virtual void AfterConvergence (const VectorHandler &X, const VectorHandler &XP)

virtual std::ostream & OutputAppend (std::ostream &out) const

virtual void ReadInitialState (MBDynParser &HP)

- Public Member Functions inherited from DofOwnerOwner
 DofOwnerOwner (const DofOwner *pDO)

virtual ~DofOwnerOwner ()

virtual const DofOwnerpGetDofOwner (void) const

virtual integer iGetFirstIndex (void) const

- Public Member Functions inherited from ToBeOutput
 ToBeOutput (flag fOut=fDefaultOut)

virtual ~ToBeOutput (void)

virtual void Output (OutputHandler &OH, const VectorHandler &X, const VectorHandler &XP) const

virtual flag fToBeOutput (void) const

virtual bool bToBeOutput (void) const

virtual void SetOutputFlag (flag f=flag(1))

- Public Member Functions inherited from RigidBodyKinematics
virtual ~RigidBodyKinematics (void)

virtual void Update (void)

- Public Member Functions inherited from RelFrameDummyStructNode
 RelFrameDummyStructNode (unsigned int uL, const DofOwner *pDO, const StructNode *pNode, const StructNode *pNodeRef, const Vec3 &fh, const Mat3x3 &Rh, OrientationDescription ood, flag fOut)

virtual ~RelFrameDummyStructNode (void)

- Public Member Functions inherited from DummyStructNode
 DummyStructNode (unsigned int uL, const DofOwner *pDO, const StructNode *pNode, OrientationDescription ood, flag fOut)

virtual ~DummyStructNode (void)

virtual StructDispNode::Type GetStructDispNodeType (void) const

virtual unsigned int iGetNumDof (void) const

virtual const doublerealdGetDofValue (int iDof, int iOrder=0) const

virtual const doublerealdGetDofValuePrev (int iDof, int iOrder=0) const

virtual void SetDofValue (const doublereal &dValue, unsigned int iDof, unsigned int iOrder=0)

virtual StructNode::Type GetStructNodeType (void) const

virtual unsigned int iGetInitialNumDof (void) const

virtual integer iGetFirstPositionIndex (void) const

virtual integer iGetFirstMomentumIndex (void) const

virtual void DerivativesUpdate (const VectorHandler &X, const VectorHandler &XP)

virtual void InitialUpdate (const VectorHandler &X)

virtual void SetInitialValue (VectorHandler &X)

virtual void SetValue (DataManager *pDM, VectorHandler &X, VectorHandler &XP, SimulationEntity::Hints *ph=0)

virtual void BeforePredict (VectorHandler &X, VectorHandler &XP, VectorHandler &XPrev, VectorHandler &XPPrev) const

virtual void AfterPredict (VectorHandler &X, VectorHandler &XP)

- Public Member Functions inherited from StructNode
 StructNode (unsigned int uL, const DofOwner *pDO, const Vec3 &X0, const Mat3x3 &R0, const Vec3 &V0, const Vec3 &W0, const StructNode *pRN, const RigidBodyKinematics *pRBK, doublereal dPosStiff, doublereal dVelStiff, bool bOmRot, OrientationDescription ood, flag fOut)

virtual ~StructNode (void)

const Mat3x3GetR (void) const

const Vec3GetW (void) const

const Vec3GetWP (void) const

virtual std::ostream & Restart (std::ostream &out) const

virtual std::ostream & DescribeDof (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void DescribeDof (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual std::ostream & DescribeEq (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void DescribeEq (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual const Vec3GetgRef (void) const

virtual const Vec3GetgCurr (void) const

virtual const Vec3GetgPRef (void) const

virtual const Vec3GetgPCurr (void) const

virtual const Mat3x3GetRPrev (void) const

virtual const Mat3x3GetRRef (void) const

virtual const Mat3x3GetRCurr (void) const

virtual const Vec3GetWPrev (void) const

virtual const Vec3GetWRef (void) const

virtual const Vec3GetWCurr (void) const

virtual const Vec3GetWPCurr (void) const

virtual const Vec3GetWPPrev (void) const

virtual bool bOmegaRotates (void) const

virtual void OutputPrepare (OutputHandler &OH)

virtual void Output (OutputHandler &OH) const

void Update (const VectorHandler &X, InverseDynamics::Order iOrder)

virtual void AfterConvergence (const VectorHandler &X, const VectorHandler &XP, const VectorHandler &XPP)

virtual unsigned int iGetNumPrivData (void) const

virtual unsigned int iGetPrivDataIdx (const char *s) const

virtual doublereal dGetPrivData (unsigned int i) const


Protected Member Functions

void Update_int (void)


Protected Attributes

const StructNodepNodeRef2

const Mat3x3 Rh2

const Vec3 fh2

- Protected Attributes inherited from StructDispNode
Vec3 XPrev

Vec3 XCurr

Vec3 VPrev

Vec3 VCurr

Vec3 XPPCurr

Vec3 XPPPrev

const StructNodepRefNode

OrientationDescription od

doublereal dPositionStiffness

doublereal dVelocityStiffness

const RigidBodyKinematicspRefRBK

bool bOutputAccels

- Protected Attributes inherited from WithLabel
unsigned int uLabel

std::string sName

- Protected Attributes inherited from ToBeOutput
flag fOutput

- Protected Attributes inherited from RelFrameDummyStructNode
const StructNodepNodeRef

const Mat3x3 RhT

const Vec3 fhT

- Protected Attributes inherited from DummyStructNode
const StructNodepNode

- Protected Attributes inherited from StructNode
Mat3x3 RPrev

Mat3x3 RRef

Mat3x3 RCurr

Vec3 gRef

Vec3 gCurr

Vec3 gPRef

Vec3 gPCurr

Vec3 WPrev

Vec3 WRef

Vec3 WCurr

Vec3 WPCurr

Vec3 WPPrev

bool bOmegaRot


Additional Inherited Members

- Public Types inherited from StructDispNode
enum  Type { UNKNOWN = -1, DYNAMIC = 0, STATIC, LASTSTRUCTDISPNODETYPE }

enum  Output { OUTPUT_ACCELERATIONS = (ToBeOutput::OUTPUT_PRIVATE << 0), OUTPUT_INERTIA = (ToBeOutput::OUTPUT_PRIVATE << 1) }

- Public Types inherited from Node
enum  Type {
  UNKNOWN = -1, ABSTRACT = 0, STRUCTURAL, ELECTRIC,
  THERMAL, PARAMETER, HYDRAULIC, LASTNODETYPE
}

- Public Types inherited from SimulationEntity
typedef std::vector< Hint * > Hints

- Public Types inherited from ToBeOutput
enum  { OUTPUT = 0x1U, OUTPUT_MASK = 0xFU, OUTPUT_PRIVATE = 0x10U, OUTPUT_PRIVATE_MASK = ~OUTPUT_MASK }

- Public Types inherited from DummyStructNode
enum  Type {
  UNKNOWN = -1, OFFSET = 0, RELATIVEFRAME, PIVOTRELATIVEFRAME,
  LASTTYPE
}

- Public Types inherited from StructNode
enum  Type {
  UNKNOWN = -1, DYNAMIC = 0, STATIC, MODAL,
  DUMMY, LASTSTRUCTNODETYPE
}


Detailed Description

Definition at line 1864 of file strnode.h.

Constructor & Destructor Documentation

PivotRelFrameDummyStructNode::PivotRelFrameDummyStructNode ( unsigned int  uL,
const DofOwner pDO,
const StructNode pNode,
const StructNode pNodeRef,
const Vec3 fh,
const Mat3x3 Rh,
const StructNode pNodeRef2,
const Vec3 fh2,
const Mat3x3 Rh2,
OrientationDescription  ood,
flag  fOut
)

Definition at line 3846 of file strnode.cc.

References ASSERT, StructDispNode::bOutputAccelerations(), StructDispNode::bOutputAccels, DummyStructNode::pNode, RelFrameDummyStructNode::pNodeRef, pNodeRef2, and Update_int().

3857 :
3858 StructDispNode(uL, pDO, ::Zero3, ::Zero3, 0, 0, 0., 0., ood, fOut),
3859 RelFrameDummyStructNode(uL, pDO, pN, pNR, fh, Rh, ood, fOut),
3860 pNodeRef2(pNR2), Rh2(Rh2), fh2(fh2)
3861 {
3862  ASSERT(pNodeRef2 != NULL);
3863
3864  /*
3865  * Note: Rh is transposed from the beginning because it is
3866  * never used directly;
3867  * fh is premultiplied by Rh.Transpose() for the same reason
3868  *
3869  * Formulas:
3870  *
3871  * R = RhT * RrT * Rn
3872  * X = RhT * RrT * (Xn - Xr)
3873  * W = RhT * RrT * (Wn - Wr)
3874  * V = RhT * RrT * (Vn - Vr - Wr x (Xn - Xr))
3875  *
3876  * by defining
3877  *
3878  * Rn = Rr * Rh * R
3879  * Xn = Xr + Rr * (fh + Rh * X)
3880  *
3881  * and differentiating with respect to time
3882  */
3883
3884  if (pNode->bOutputAccelerations()
3885  && pNodeRef->bOutputAccelerations()
3886  && pNodeRef2->bOutputAccelerations())
3887  {
3888  bOutputAccels = true;
3889
3890  } else {
3891  bOutputAccels = false;
3892  }
3893
3894  /* forzo la ricostruzione del nodo strutturale sottostante */
3895  Update_int();
3896 }
const Vec3 Zero3(0., 0., 0.)
const StructNode * pNodeRef2
Definition: strnode.h:1866
virtual bool bOutputAccelerations(void) const
Definition: strnode.h:439
bool bOutputAccels
Definition: strnode.h:122
#define ASSERT(expression)
Definition: colamd.c:977
StructDispNode(unsigned int uL, const DofOwner *pDO, const Vec3 &X0, const Vec3 &V0, const StructNode *pRN, const RigidBodyKinematics *pRBK, doublereal dPosStiff, doublereal dVelStiff, OrientationDescription od, flag fOut)
Definition: strnode.cc:102
RelFrameDummyStructNode(unsigned int uL, const DofOwner *pDO, const StructNode *pNode, const StructNode *pNodeRef, const Vec3 &fh, const Mat3x3 &Rh, OrientationDescription ood, flag fOut)
Definition: strnode.cc:3724

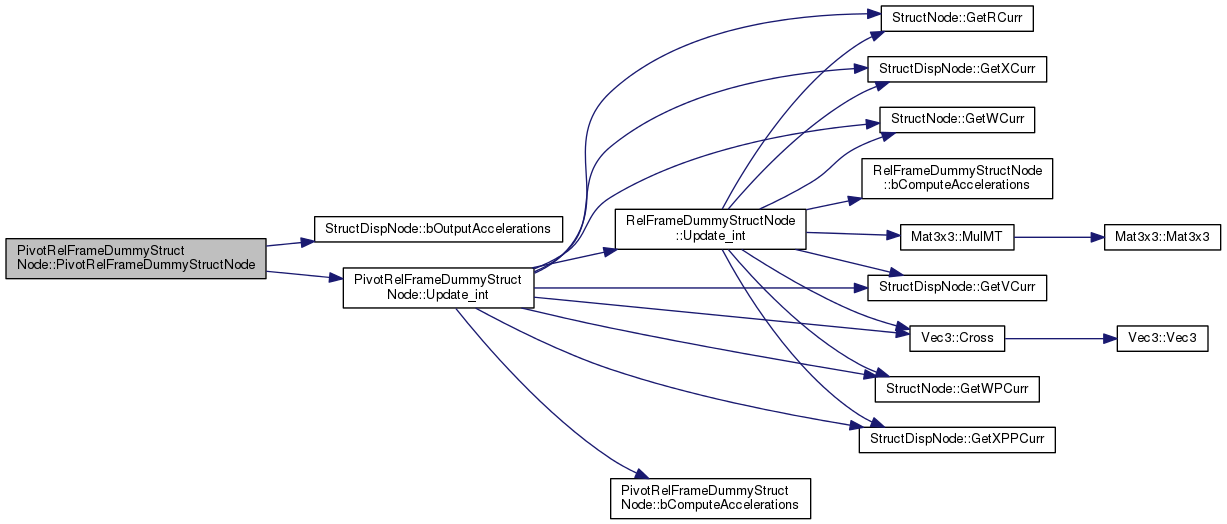

Here is the call graph for this function:

PivotRelFrameDummyStructNode::~PivotRelFrameDummyStructNode ( void  )
virtual

Definition at line 3900 of file strnode.cc.

References NO_OP.

3901 {
3902  NO_OP;
3903 }
#define NO_OP
Definition: myassert.h:74

Member Function Documentation

bool PivotRelFrameDummyStructNode::bComputeAccelerations ( void  ) const
inlinevirtual

Reimplemented from StructDispNode.

Definition at line 1901 of file strnode.h.

Referenced by Update_int().

1902 {
1903  return pNode->bComputeAccelerations()
1906 }
const StructNode * pNodeRef2
Definition: strnode.h:1866
const StructNode * pNode
Definition: strnode.h:1660
const StructNode * pNodeRef
Definition: strnode.h:1823
virtual bool bComputeAccelerations(void) const
Definition: strnode.h:433
bool PivotRelFrameDummyStructNode::ComputeAccelerations ( bool  b)
virtual

Reimplemented from StructDispNode.

Definition at line 3953 of file strnode.cc.

References DummyStructNode::pNode, RelFrameDummyStructNode::pNodeRef, and pNodeRef2.

3954 {
3955  bool ok = true;
3956
3957  if (!const_cast<StructNode *>(pNode)->ComputeAccelerations(b)) {
3958  ok = false;
3959  }
3960
3961  if (!const_cast<StructNode *>(pNodeRef)->ComputeAccelerations(b)) {
3962  ok = false;
3963  }
3964
3965  if (!const_cast<StructNode *>(pNodeRef2)->ComputeAccelerations(b)) {
3966  ok = false;
3967  }
3968
3969  return ok;
3970 }
virtual bool ComputeAccelerations(bool b)
Definition: strnode.cc:3953
const StructNode * pNodeRef2
Definition: strnode.h:1866
const StructNode * pNode
Definition: strnode.h:1660
const StructNode * pNodeRef
Definition: strnode.h:1823
DummyStructNode::Type PivotRelFrameDummyStructNode::GetDummyType ( void  ) const
virtual

Reimplemented from RelFrameDummyStructNode.

Definition at line 3938 of file strnode.cc.

References DummyStructNode::PIVOTRELATIVEFRAME.

void PivotRelFrameDummyStructNode::Update ( const VectorHandler X,
const VectorHandler XP
)
virtual

Reimplemented from StructDispNode.

Definition at line 3946 of file strnode.cc.

References Update_int().

3948 {
3949  Update_int();
3950 }

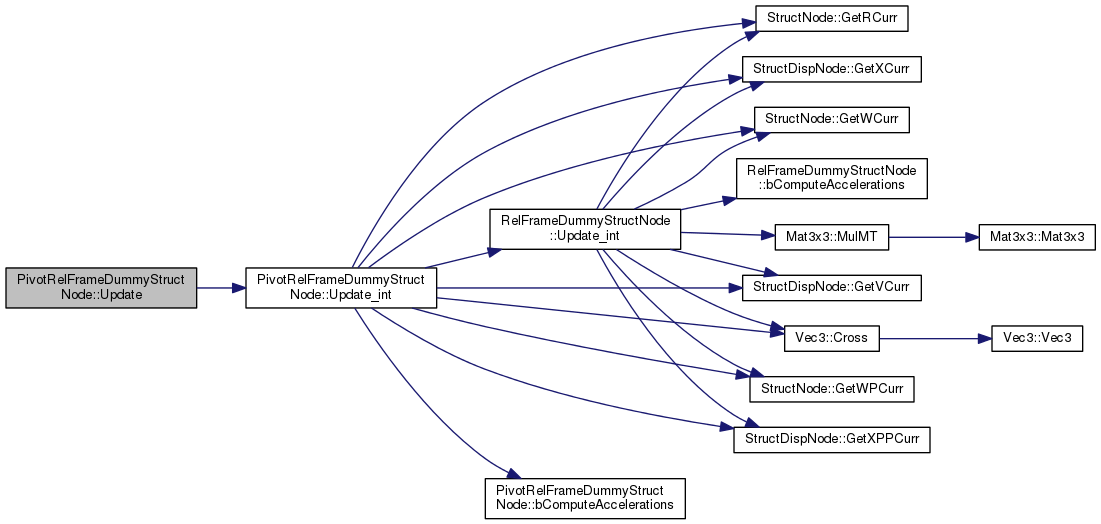

Here is the call graph for this function:

void PivotRelFrameDummyStructNode::Update_int ( void  )
protectedvirtual

Reimplemented from RelFrameDummyStructNode.

Definition at line 3908 of file strnode.cc.

References bComputeAccelerations(), Vec3::Cross(), fh2, StructNode::GetRCurr(), StructDispNode::GetVCurr(), StructNode::GetWCurr(), StructNode::GetWPCurr(), StructDispNode::GetXCurr(), StructDispNode::GetXPPCurr(), pNodeRef2, StructNode::RCurr, Rh2, RelFrameDummyStructNode::Update_int(), StructDispNode::VCurr, StructNode::WCurr, StructNode::WPCurr, StructDispNode::XCurr, and StructDispNode::XPPCurr.

Referenced by PivotRelFrameDummyStructNode(), and Update().

3909 {
3911
3912  Mat3x3 R2(pNodeRef2->GetRCurr()*Rh2);
3913
3914  XCurr = pNodeRef2->GetRCurr()*(Rh2*XCurr + fh2);
3915
3916  if (bComputeAccelerations()) {
3918  + pNodeRef2->GetWCurr().Cross(R2*WCurr)
3919  + R2*WPCurr;
3921  + pNodeRef2->GetWPCurr().Cross(XCurr)
3923  + (pNodeRef2->GetWCurr()*2.).Cross(R2*VCurr)
3924  + R2*XPPCurr;
3925  }
3926
3927  WCurr = pNodeRef2->GetWCurr() + R2*WCurr;
3928  VCurr = pNodeRef2->GetVCurr()
3929  + pNodeRef2->GetWCurr().Cross(XCurr)
3930  + R2*VCurr;
3931  RCurr = R2*RCurr;
3932  XCurr += pNodeRef2->GetXCurr();
3933 }
Vec3 Cross(const Vec3 &v) const
Definition: matvec3.h:218
virtual const Mat3x3 & GetRCurr(void) const
Definition: strnode.h:1012
Vec3 WPCurr
Definition: strnode.h:749
Vec3 XPPCurr
Definition: strnode.h:95
Mat3x3 RCurr
Definition: strnode.h:730
virtual bool bComputeAccelerations(void) const
Definition: strnode.h:1901
const StructNode * pNodeRef2
Definition: strnode.h:1866
Vec3 WCurr
Definition: strnode.h:747
virtual const Vec3 & GetWCurr(void) const
Definition: strnode.h:1030
virtual const Vec3 & GetWPCurr(void) const
Definition: strnode.h:1042
virtual const Vec3 & GetXCurr(void) const
Definition: strnode.h:310
Vec3 VCurr
Definition: strnode.h:93
Vec3 XCurr
Definition: strnode.h:90
virtual const Vec3 & GetVCurr(void) const
Definition: strnode.h:322
virtual const Vec3 & GetXPPCurr(void) const
Definition: strnode.h:334

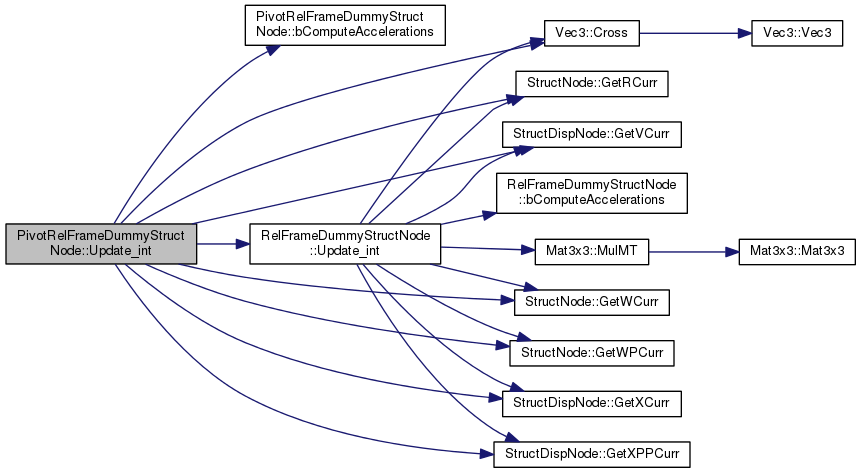

Here is the call graph for this function:

Member Data Documentation

const Vec3 PivotRelFrameDummyStructNode::fh2
protected

Definition at line 1868 of file strnode.h.

Referenced by Update_int().

const StructNode* PivotRelFrameDummyStructNode::pNodeRef2
protected

Definition at line 1866 of file strnode.h.

Referenced by ComputeAccelerations(), PivotRelFrameDummyStructNode(), and Update_int().

const Mat3x3 PivotRelFrameDummyStructNode::Rh2
protected

Definition at line 1867 of file strnode.h.

Referenced by Update_int().


The documentation for this class was generated from the following files:
