ModuleMDS Class Reference

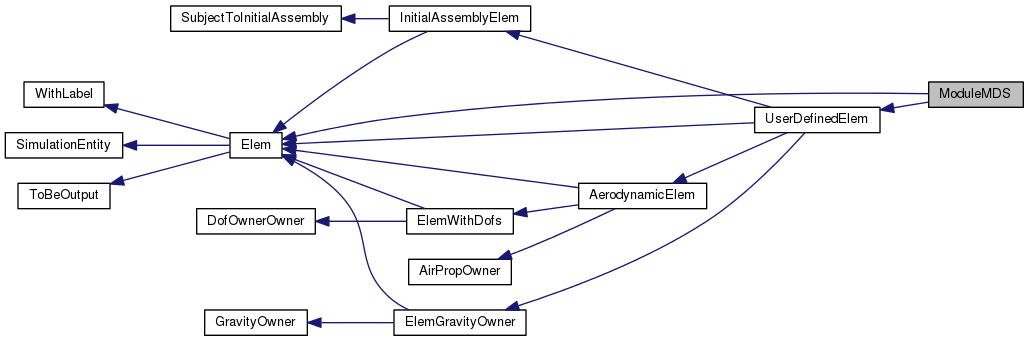

Inheritance diagram for ModuleMDS:

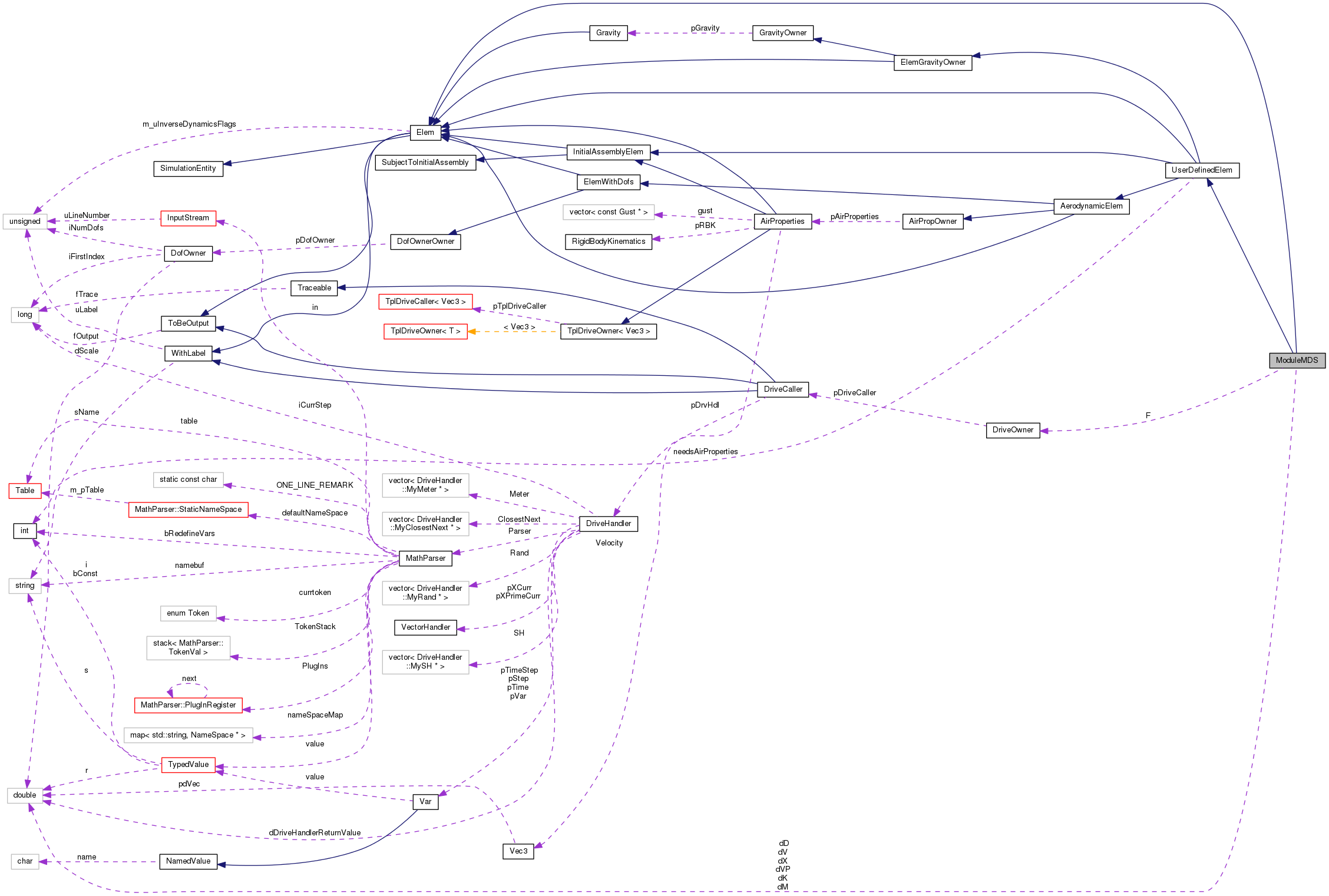

Collaboration diagram for ModuleMDS:

Public Member Functions
	ModuleMDS (unsigned uLabel, const DofOwner *pDO, DataManager *pDM, MBDynParser &HP)
virtual	~ModuleMDS (void)
virtual void	Output (OutputHandler &OH) const
virtual void	WorkSpaceDim (integer *piNumRows, integer *piNumCols) const
VariableSubMatrixHandler &	AssJac (VariableSubMatrixHandler &WorkMat, doublereal dCoef, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)
SubVectorHandler &	AssRes (SubVectorHandler &WorkVec, doublereal dCoef, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)
unsigned int	iGetNumPrivData (void) const
int	iGetNumConnectedNodes (void) const
void	GetConnectedNodes (std::vector< const Node * > &connectedNodes) const
void	SetValue (DataManager *pDM, VectorHandler &X, VectorHandler &XP, SimulationEntity::Hints *ph)
virtual unsigned int	iGetNumDof (void) const
virtual DofOrder::Order	GetDofType (unsigned int i) const
virtual DofOrder::Order	GetEqType (unsigned int i) const
std::ostream &	Restart (std::ostream &out) const
virtual unsigned int	iGetInitialNumDof (void) const
virtual void	InitialWorkSpaceDim (integer *piNumRows, integer *piNumCols) const
VariableSubMatrixHandler &	InitialAssJac (VariableSubMatrixHandler &WorkMat, const VectorHandler &XCurr)
SubVectorHandler &	InitialAssRes (SubVectorHandler &WorkVec, const VectorHandler &XCurr)
Public Member Functions inherited from Elem
	Elem (unsigned int uL, flag fOut)
virtual	~Elem (void)
virtual std::ostream &	DescribeDof (std::ostream &out, const char *prefix="", bool bInitial=false) const
virtual void	DescribeDof (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const
virtual std::ostream &	DescribeEq (std::ostream &out, const char *prefix="", bool bInitial=false) const
virtual void	DescribeEq (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const
virtual void	AssMats (VariableSubMatrixHandler &WorkMatA, VariableSubMatrixHandler &WorkMatB, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)
virtual bool	bInverseDynamics (void) const
void	SetInverseDynamicsFlags (unsigned uIDF)
unsigned	GetInverseDynamicsFlags (void) const
bool	bIsErgonomy (void) const
bool	bIsRightHandSide (void) const
virtual VariableSubMatrixHandler &	AssJac (VariableSubMatrixHandler &WorkMat, const VectorHandler &XCurr)
virtual SubVectorHandler &	AssRes (SubVectorHandler &WorkVec, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr, const VectorHandler &XPrimePrimeCurr, InverseDynamics::Order iOrder=InverseDynamics::INVERSE_DYNAMICS)
virtual int	GetNumConnectedNodes (void) const
Public Member Functions inherited from WithLabel
	WithLabel (unsigned int uL=0, const std::string &sN="")
virtual	~WithLabel (void)
void	PutLabel (unsigned int uL)
void	PutName (const std::string &sN)
unsigned int	GetLabel (void) const
const std::string &	GetName (void) const
Public Member Functions inherited from SimulationEntity
	SimulationEntity (void)
virtual	~SimulationEntity (void)
virtual bool	bIsValidIndex (unsigned int i) const
virtual Hint *	ParseHint (DataManager *pDM, const char *s) const
virtual void	BeforePredict (VectorHandler &, VectorHandler &, VectorHandler &, VectorHandler &) const
virtual void	AfterPredict (VectorHandler &X, VectorHandler &XP)
virtual void	Update (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)
virtual void	DerivativesUpdate (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)
virtual void	Update (const VectorHandler &XCurr, InverseDynamics::Order iOrder)
virtual void	AfterConvergence (const VectorHandler &X, const VectorHandler &XP)
virtual void	AfterConvergence (const VectorHandler &X, const VectorHandler &XP, const VectorHandler &XPP)
virtual unsigned int	iGetPrivDataIdx (const char *s) const
virtual doublereal	dGetPrivData (unsigned int i) const
virtual std::ostream &	OutputAppend (std::ostream &out) const
virtual void	ReadInitialState (MBDynParser &HP)
Public Member Functions inherited from ToBeOutput
	ToBeOutput (flag fOut=fDefaultOut)
virtual	~ToBeOutput (void)
virtual void	OutputPrepare (OutputHandler &OH)
virtual void	Output (OutputHandler &OH, const VectorHandler &X, const VectorHandler &XP) const
virtual flag	fToBeOutput (void) const
virtual bool	bToBeOutput (void) const
virtual void	SetOutputFlag (flag f=flag(1))
Public Member Functions inherited from UserDefinedElem
	UserDefinedElem (unsigned uLabel, const DofOwner *pDO)
virtual	~UserDefinedElem (void)
bool	NeedsAirProperties (void) const
void	NeedsAirProperties (bool yesno)
virtual Elem::Type	GetElemType (void) const
virtual AerodynamicElem::Type	GetAerodynamicElemType (void) const
Public Member Functions inherited from InitialAssemblyElem
	InitialAssemblyElem (unsigned int uL, flag fOut)
virtual	~InitialAssemblyElem (void)
Public Member Functions inherited from SubjectToInitialAssembly
	SubjectToInitialAssembly (void)
virtual	~SubjectToInitialAssembly (void)
Public Member Functions inherited from AerodynamicElem
	AerodynamicElem (unsigned int uL, const DofOwner *pDO, flag fOut)
virtual	~AerodynamicElem (void)
virtual const InducedVelocity *	pGetInducedVelocity (void) const
Public Member Functions inherited from ElemWithDofs
	ElemWithDofs (unsigned int uL, const DofOwner *pDO, flag fOut)
virtual	~ElemWithDofs (void)
Public Member Functions inherited from DofOwnerOwner
	DofOwnerOwner (const DofOwner *pDO)
virtual	~DofOwnerOwner ()
virtual const DofOwner *	pGetDofOwner (void) const
virtual integer	iGetFirstIndex (void) const
virtual void	SetInitialValue (VectorHandler &X)
Public Member Functions inherited from AirPropOwner
	AirPropOwner (void)
virtual	~AirPropOwner (void)
virtual void	PutAirProperties (const AirProperties *pAP)
virtual flag	fGetAirVelocity (Vec3 &Velocity, const Vec3 &X) const
virtual doublereal	dGetAirDensity (const Vec3 &X) const
virtual doublereal	dGetAirPressure (const Vec3 &X) const
virtual doublereal	dGetAirTemperature (const Vec3 &X) const
virtual doublereal	dGetSoundSpeed (const Vec3 &X) const
virtual bool	GetAirProps (const Vec3 &X, doublereal &rho, doublereal &c, doublereal &p, doublereal &T) const
Public Member Functions inherited from ElemGravityOwner
	ElemGravityOwner (unsigned int uL, flag fOut)
virtual	~ElemGravityOwner (void)
virtual doublereal	dGetM (void) const
Vec3	GetS (void) const
Mat3x3	GetJ (void) const
Vec3	GetB (void) const
Vec3	GetG (void) const
Public Member Functions inherited from GravityOwner
	GravityOwner (void)
virtual	~GravityOwner (void)
void	PutGravity (const Gravity *pG)
virtual bool	bGetGravity (const Vec3 &X, Vec3 &Acc) const

Private Attributes
doublereal	dM
doublereal	dD
doublereal	dK
doublereal	dX
doublereal	dV
doublereal	dVP
DriveOwner	F

Additional Inherited Members
Public Types inherited from Elem
enum	Type {   UNKNOWN = -1, AIRPROPERTIES = 0, INDUCEDVELOCITY, AUTOMATICSTRUCTURAL,   GRAVITY, BODY, JOINT, JOINT_REGULARIZATION,   BEAM, PLATE, FORCE, INERTIA,   ELECTRICBULK, ELECTRIC, THERMAL, HYDRAULIC,   BULK, LOADABLE, DRIVEN, EXTERNAL,   AEROMODAL, AERODYNAMIC, GENEL, SOCKETSTREAM_OUTPUT,   RTAI_OUTPUT = SOCKETSTREAM_OUTPUT, LASTELEMTYPE }
Public Types inherited from SimulationEntity
typedef std::vector< Hint * >	Hints
Public Types inherited from ToBeOutput
enum	{ OUTPUT = 0x1U, OUTPUT_MASK = 0xFU, OUTPUT_PRIVATE = 0x10U, OUTPUT_PRIVATE_MASK = ~OUTPUT_MASK }
Public Types inherited from AerodynamicElem
enum	Type {   UNKNOWN = -1, INDUCEDVELOCITY = 0, AEROMODAL, AERODYNAMICBODY,   AERODYNAMICBEAM, AERODYNAMICEXTERNAL, AERODYNAMICEXTERNALMODAL, AERODYNAMICLOADABLE,   AIRCRAFTINSTRUMENTS, GENERICFORCE, LASTAEROTYPE }
Protected Member Functions inherited from ElemGravityOwner
virtual Vec3	GetS_int (void) const
virtual Mat3x3	GetJ_int (void) const
virtual Vec3	GetB_int (void) const
virtual Vec3	GetG_int (void) const
Protected Attributes inherited from WithLabel
unsigned int	uLabel
std::string	sName
Protected Attributes inherited from ToBeOutput
flag	fOutput
Protected Attributes inherited from UserDefinedElem
bool	needsAirProperties
Protected Attributes inherited from AirPropOwner
const AirProperties *	pAirProperties
Protected Attributes inherited from GravityOwner
Gravity *	pGravity

Detailed Description

Definition at line 39 of file module-mds.cc.

Constructor & Destructor Documentation

ModuleMDS::ModuleMDS	(	unsigned	uLabel,
		const DofOwner *	pDO,
		DataManager *	pDM,
		MBDynParser &	HP
	)

Definition at line 83 of file module-mds.cc.

References dD, dK, dM, F, DataManager::fReadOutput(), MBDynParser::GetDriveCaller(), HighParser::GetReal(), HighParser::IsArg(), HighParser::IsKeyWord(), Elem::LOADABLE, MBDYN_EXCEPT_ARGS, DriveOwner::Set(), and ToBeOutput::SetOutputFlag().

: Elem(uLabel, flag(0)),
UserDefinedElem(uLabel, pDO)
{
        // help
        if (HP.IsKeyWord("help")) {
                silent_cout(
"                                                                       \n"
"Module:        msd                                                     \n"
"Author:        Pierangelo Masarati <masarati@aero.polimi.it>           \n"
"Organization:  Dipartimento di Ingegneria Aerospaziale                 \n"
"               Politecnico di Milano                                   \n"
"               http://www.aero.polimi.it/                              \n"
"                                                                       \n"
"       All rights reserved                                             \n"
                        << std::endl);

                if (!HP.IsArg()) {
                        /*
                         * Exit quietly if nothing else is provided
                         */
                        throw NoErr(MBDYN_EXCEPT_ARGS);
                }
        }

        dM = HP.GetReal();
        dD = HP.GetReal();
        dK = HP.GetReal();

        F.Set(HP.GetDriveCaller());

        SetOutputFlag(pDM->fReadOutput(HP, Elem::LOADABLE));
}

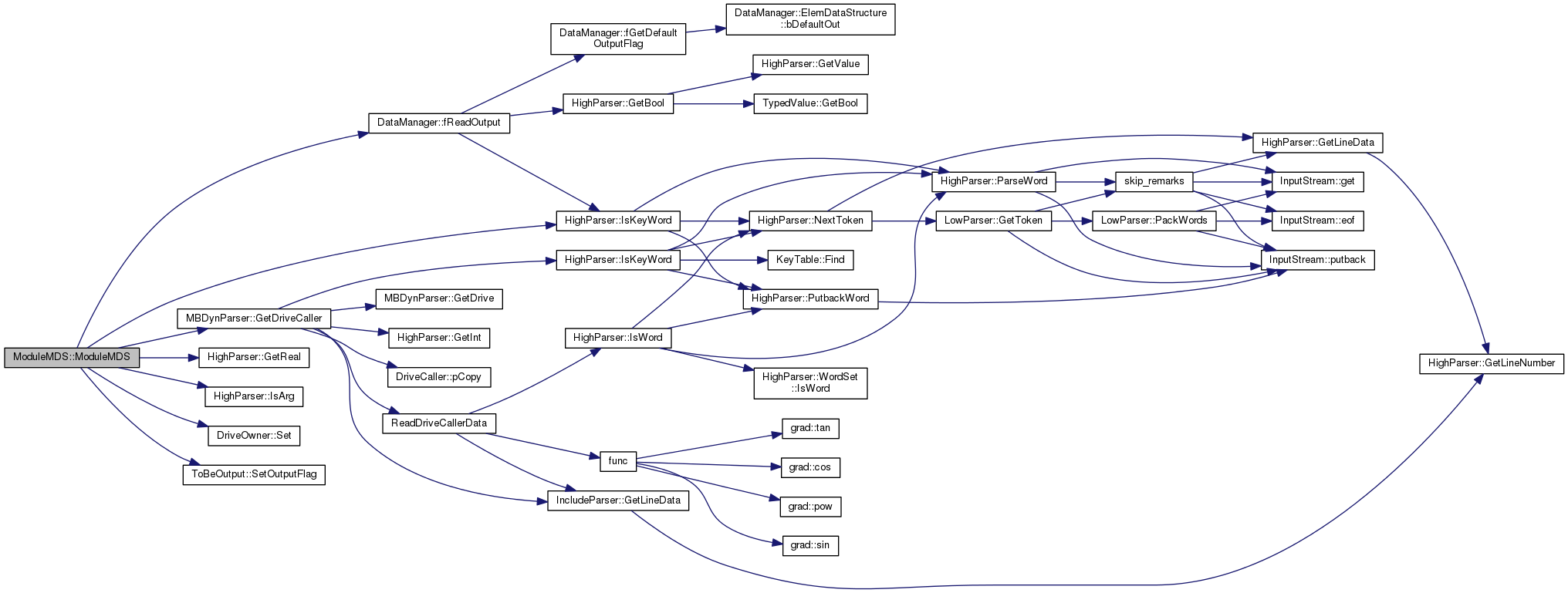

Here is the call graph for this function:

ModuleMDS::~ModuleMDS ( void  )

virtual

Definition at line 119 of file module-mds.cc.

References NO_OP.

{
        // destroy private data
        NO_OP;
}

Member Function Documentation

VariableSubMatrixHandler & ModuleMDS::AssJac ( VariableSubMatrixHandler &  WorkMat, doublereal  dCoef, const VectorHandler &  XCurr, const VectorHandler &  XPrimeCurr  )

virtual

Implements Elem.

Definition at line 147 of file module-mds.cc.

References dD, dK, dM, DofOwnerOwner::iGetFirstIndex(), FullSubMatrixHandler::PutCoef(), FullSubMatrixHandler::PutColIndex(), FullSubMatrixHandler::PutRowIndex(), FullSubMatrixHandler::Resize(), and VariableSubMatrixHandler::SetFull().

{
        // should do something useful
        FullSubMatrixHandler& WM = WorkMat.SetFull();

        WM.Resize(2, 2);

        integer iFirstIndex = iGetFirstIndex();

        WM.PutRowIndex(1, iFirstIndex + 1);
        WM.PutColIndex(1, iFirstIndex + 1);
        WM.PutRowIndex(2, iFirstIndex + 2);
        WM.PutColIndex(2, iFirstIndex + 2);

        /*
         *              [ -m   0 ]
         *      r_/y' = [        ]
         *              [  0  -1 ]
         *
         *             [ -d  -k ]
         *      r_/y = [        ]
         *             [  1   0 ]
         *
         *                                  [ (m + dCoef*d) dCoef*k ]
         *      J = -(r_/y' + dCoef*r_/y) = [                       ]
         *                                  [    -dCoef        1.   ]
         */

#if 1
        // old style
        WM.PutCoef(1, 1, dM + dCoef*dD);
        WM.PutCoef(1, 2, dCoef*dK);
        WM.PutCoef(2, 1, -dCoef);
        WM.PutCoef(2, 2, 1.);
#endif

#if 0
        // cleaner (less efficient?)
        WM(1, 1) = dM + dCoef*dD;
        WM(1, 2) = dCoef*dK;
        WM(2, 1) = -dCoef;
        WM(2, 2) = 1.;
#endif

        return WorkMat;
}

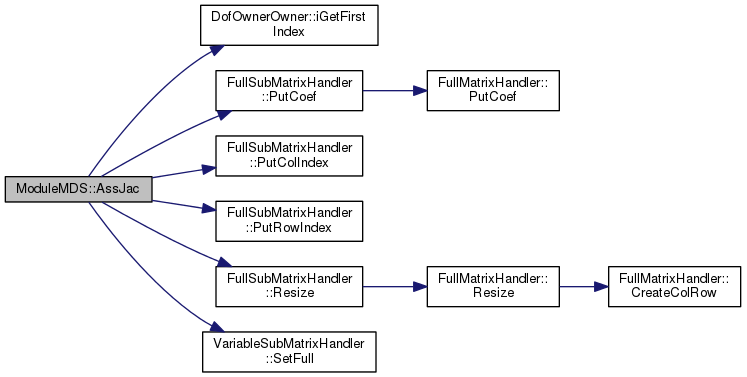

Here is the call graph for this function:

SubVectorHandler & ModuleMDS::AssRes ( SubVectorHandler &  WorkVec, doublereal  dCoef, const VectorHandler &  XCurr, const VectorHandler &  XPrimeCurr  )

virtual

Implements Elem.

Definition at line 198 of file module-mds.cc.

References dD, DriveOwner::dGet(), dK, dM, dV, dVP, dX, F, DofOwnerOwner::iGetFirstIndex(), VectorHandler::PutCoef(), SubVectorHandler::PutRowIndex(), and VectorHandler::ResizeReset().

{
        // should do something useful
        WorkVec.ResizeReset(2);

        integer iFirstIndex = iGetFirstIndex();

        WorkVec.PutRowIndex(1, iFirstIndex + 1);
        WorkVec.PutRowIndex(2, iFirstIndex + 2);

        dVP = XPrimeCurr(iFirstIndex + 1);
        doublereal dXP = XPrimeCurr(iFirstIndex + 2);
        dV = XCurr(iFirstIndex + 1);
        dX = XCurr(iFirstIndex + 2);

        /*
         *          { f(t) - m*v' - d*v - d*k }
         *      r = {                         }
         *          {         v - x'          }
         */

#if 0
        WorkVec.PutCoef(1, F.dGet() - dM*dVP - dD*dV - dK*dX);
        WorkVec.PutCoef(2, dV - dXP);
#endif

        WorkVec(1) = F.dGet() - dM*dVP - dD*dV - dK*dX;
        WorkVec(2) = dV - dXP;

        return WorkVec;
}

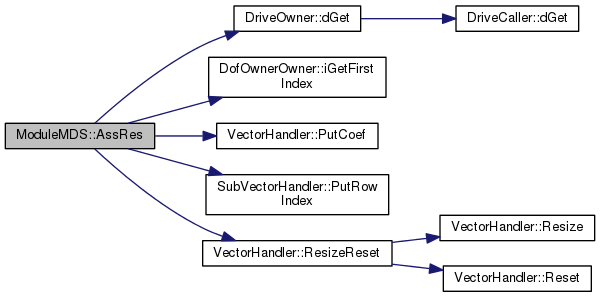

Here is the call graph for this function:

void ModuleMDS::GetConnectedNodes ( std::vector< const Node * > &  connectedNodes ) const

virtual

Reimplemented from Elem.

Definition at line 246 of file module-mds.cc.

{
        connectedNodes.resize(0);
}

DofOrder::Order ModuleMDS::GetDofType ( unsigned int  i ) const

virtual

Reimplemented from Elem.

Definition at line 266 of file module-mds.cc.

References DofOrder::DIFFERENTIAL.

{
        return DofOrder::DIFFERENTIAL;
}

DofOrder::Order ModuleMDS::GetEqType ( unsigned int  i ) const

virtual

Reimplemented from SimulationEntity.

Definition at line 272 of file module-mds.cc.

References DofOrder::DIFFERENTIAL.

{
        return DofOrder::DIFFERENTIAL;
}

unsigned int ModuleMDS::iGetInitialNumDof ( void  ) const

virtual

Implements SubjectToInitialAssembly.

Definition at line 284 of file module-mds.cc.

{
        return 0;
}

int ModuleMDS::iGetNumConnectedNodes

(

void

)

const

Definition at line 240 of file module-mds.cc.

{
        return 0;
}

unsigned int ModuleMDS::iGetNumDof ( void  ) const

virtual

Reimplemented from Elem.

Definition at line 260 of file module-mds.cc.

{
        return 2;
}

unsigned int ModuleMDS::iGetNumPrivData ( void  ) const

virtual

Reimplemented from SimulationEntity.

Definition at line 234 of file module-mds.cc.

{
        return 0;
}

VariableSubMatrixHandler & ModuleMDS::InitialAssJac ( VariableSubMatrixHandler &  WorkMat, const VectorHandler &  XCurr  )

virtual

Implements SubjectToInitialAssembly.

Definition at line 299 of file module-mds.cc.

References ASSERT, and VariableSubMatrixHandler::SetNullMatrix().

{
        // should not be called, since initial workspace is empty
        ASSERT(0);

        WorkMat.SetNullMatrix();

        return WorkMat;
}

Here is the call graph for this function:

SubVectorHandler & ModuleMDS::InitialAssRes ( SubVectorHandler &  WorkVec, const VectorHandler &  XCurr  )

virtual

Implements SubjectToInitialAssembly.

Definition at line 312 of file module-mds.cc.

References ASSERT, and VectorHandler::ResizeReset().

{
        // should not be called, since initial workspace is empty
        ASSERT(0);

        WorkVec.ResizeReset(0);

        return WorkVec;
}

Here is the call graph for this function:

void ModuleMDS::InitialWorkSpaceDim ( integer *  piNumRows, integer *  piNumCols  ) const

virtual

Implements SubjectToInitialAssembly.

Definition at line 290 of file module-mds.cc.

{
        *piNumRows = 0;
        *piNumCols = 0;
}

void ModuleMDS::Output ( OutputHandler &  OH ) const

virtual

Reimplemented from ToBeOutput.

Definition at line 126 of file module-mds.cc.

References ToBeOutput::bToBeOutput(), dV, dVP, dX, WithLabel::GetLabel(), and OutputHandler::Loadable().

{
        if (bToBeOutput()) {
                std::ostream& out = OH.Loadable();

                out << std::setw(8) << GetLabel()       // 1:   label
                        << " " << dX                    //
                        << " " << dV                    //
                        << " " << dVP                   //
                        << std::endl;
        }
}

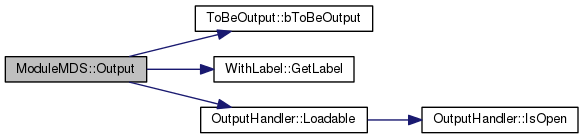

Here is the call graph for this function:

std::ostream & ModuleMDS::Restart ( std::ostream &  out ) const

virtual

Implements Elem.

Definition at line 278 of file module-mds.cc.

{
        return out << "# ModuleMDS: not implemented" << std::endl;
}

void ModuleMDS::SetValue ( DataManager *  pDM, VectorHandler &  X, VectorHandler &  XP, SimulationEntity::Hints *  ph  )

virtual

Reimplemented from SimulationEntity.

Definition at line 252 of file module-mds.cc.

References NO_OP.

{
        NO_OP;
}

void ModuleMDS::WorkSpaceDim ( integer *  piNumRows, integer *  piNumCols  ) const

virtual

Implements Elem.

Definition at line 140 of file module-mds.cc.

{
        *piNumRows = 2;
        *piNumCols = 2;
}

Member Data Documentation

doublereal ModuleMDS::dD

private

Definition at line 43 of file module-mds.cc.

Referenced by AssJac(), AssRes(), and ModuleMDS().

doublereal ModuleMDS::dK

private

Definition at line 43 of file module-mds.cc.

Referenced by AssJac(), AssRes(), and ModuleMDS().

doublereal ModuleMDS::dM

private

Definition at line 43 of file module-mds.cc.

Referenced by AssJac(), AssRes(), and ModuleMDS().

doublereal ModuleMDS::dV

private

Definition at line 44 of file module-mds.cc.

Referenced by AssRes(), and Output().

doublereal ModuleMDS::dVP

private

Definition at line 44 of file module-mds.cc.

Referenced by AssRes(), and Output().

doublereal ModuleMDS::dX

private

Definition at line 44 of file module-mds.cc.

Referenced by AssRes(), and Output().

DriveOwner ModuleMDS::F

private

Definition at line 45 of file module-mds.cc.

Referenced by AssRes(), and ModuleMDS().

---

The documentation for this class was generated from the following file:

• module-mds.cc
