body.h File Reference
#include "elem.h"
#include "strnode.h"
#include "gravity.h"
Include dependency graph for body.h:

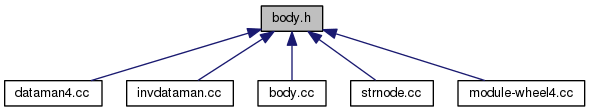

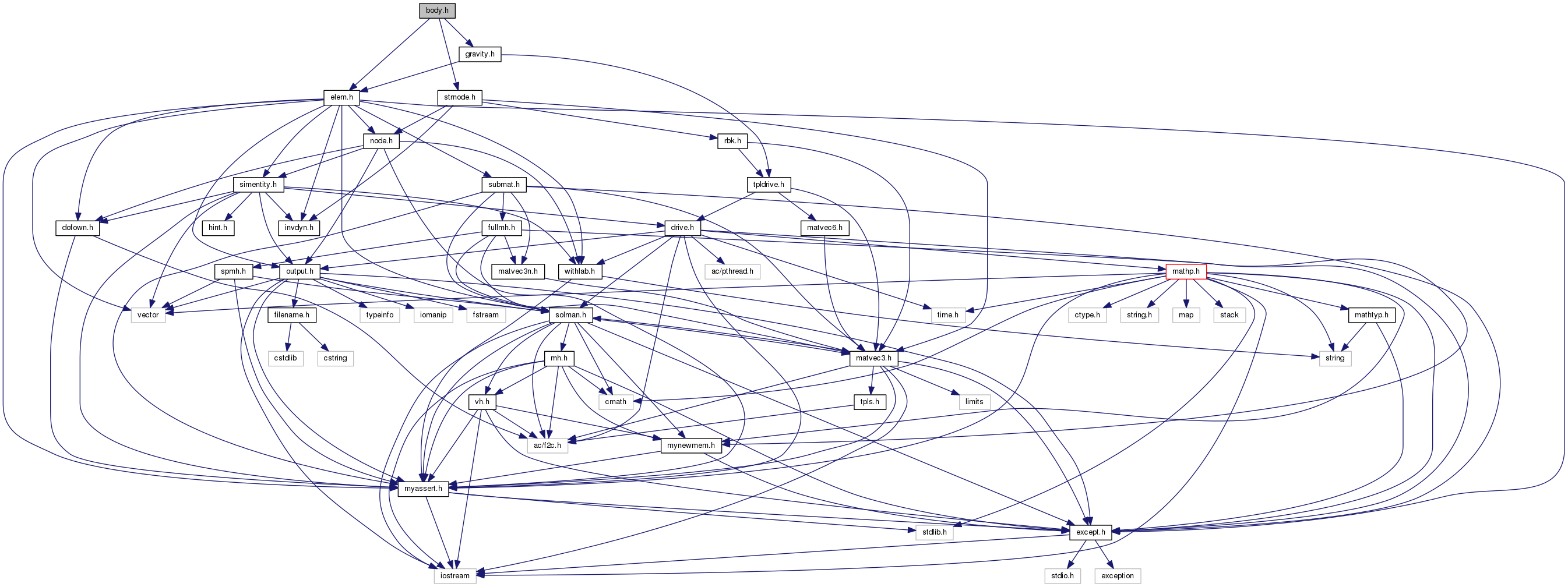

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

class  Mass

class  DynamicMass

class  StaticMass

class  Body

class  DynamicBody

class  ModalBody

class  StaticBody


Functions

Elem * ReadBody (DataManager *pDM, MBDynParser &HP, unsigned int uLabel)


Function Documentation

Elem* ReadBody ( DataManager *  pDM,
MBDynParser &  HP,
unsigned int  uLabel
)

Definition at line 1937 of file body.cc.

References DataManager::bIsInverseDynamics(), DataManager::bIsStaticModel(), Elem::BODY, DEBUGCOUTFNAME, DEBUGLCOUT, StructDispNode::DYNAMIC, InverseDynamics::ERGONOMY, DataManager::fReadOutput(), HighParser::GetInt(), WithLabel::GetLabel(), IncludeParser::GetLineData(), DataManager::GetLogFile(), MBDynParser::GetMatRel(), MBDynParser::GetPosRel(), HighParser::GetReal(), MBDynParser::GetRotRel(), DynamicStructDispNode::GetStructDispNodeType(), StaticStructDispNode::GetStructDispNodeType(), HighParser::GetYesNoOrBool(), HighParser::IsArg(), HighParser::IsKeyWord(), LASTKEYWORD, MatCrossCross, MBDYN_EXCEPT_ARGS, Mat3x3::MulMT(), MYDEBUG_INPUT, NO_OP, StructDispNode::pGetRBK(), DataManager::ReadNode(), ReadVariableBody(), InverseDynamics::RIGHT_HAND_SIDE, SAFENEWWITHCONSTRUCTOR, Elem::SetInverseDynamicsFlags(), StructDispNode::STATIC, Node::STRUCTURAL, Zero3, and Zero3x3.

Referenced by DataManager::ReadOneElem().

1938 {
1939  DEBUGCOUTFNAME("ReadBody");
1940
1941  const char* sKeyWords[] = {
1942  NULL
1943  };
1944
1945  /* enum delle parole chiave */
1946  enum KeyWords {
1947  UNKNOWN = -1,
1948  LASTKEYWORD = 0
1949  };
1950
1951  /* tabella delle parole chiave */
1952  KeyTable K(HP, sKeyWords);
1953
1954  /* nodo collegato */
1955  const StructDispNode *pStrDispNode = pDM->ReadNode<const StructDispNode, Node::STRUCTURAL>(HP);
1956  const StructNode *pStrNode = dynamic_cast<const StructNode *>(pStrDispNode);
1957
1958  /* may be determined by a special DataManager parameter... */
1959  bool bStaticModel = pDM->bIsStaticModel();
1960  bool bInverseDynamics = pDM->bIsInverseDynamics();
1961
1962  if (HP.IsKeyWord("variable" "mass")) {
1963  return ReadVariableBody(pDM, HP, uLabel, pStrNode);
1964  }
1965
1966  integer iNumMasses = 1;
1967  if (HP.IsKeyWord("condense")) {
1968  iNumMasses = HP.GetInt();
1969  if (iNumMasses < 1) {
1970  silent_cerr("Body(" << uLabel << "): "
1971  "at least one mass is required in \"condense\" "
1972  "at line " << HP.GetLineData() << std::endl);
1973  throw DataManager::ErrGeneric(MBDYN_EXCEPT_ARGS);
1974  }
1975  DEBUGLCOUT(MYDEBUG_INPUT,
1976  iNumMasses << " masses will be condensed" << std::endl);
1977
1978  /* The inertia is calculated as follows:
1979  *
1980  * dm = Sum(dm_i)
1981  *
1982  * Xgc = Sum(Xgc_i*dm_i)/Sum(dm_i)
1983  *
1984  * J = Sum(J_i)-Sum(dm_i*(Xgc_i-Xgc)/\(Xgc_i-Xgc)/\)
1985  *
1986  * and it can be accomplished by accumulating:
1987  *
1988  * dm = Sum(dm_i)
1989  *
1990  * ~S = Sum(Xgc_i*dm_i)
1991  *
1992  * ~J = Sum(J_i)-Sum(dm_i*Xgc_i/\*Xgc_i/\)
1993  *
1994  * then calculating
1995  *
1996  * Xgc = S/dm
1997  *
1998  * and finally:
1999  *
2000  * J = ~J-Xgc/\(dm*Xgc/\-2*~S)
2001  *
2002  */
2003  }
2004
2005  doublereal dm = 0.;
2006  ReferenceFrame RF(pStrDispNode);
2007  Vec3 Xgc(::Zero3);
2008  Vec3 STmp(::Zero3);
2009  Mat3x3 J(::Zero3x3);
2010  bool bNegative(false);
2011
2012  if (HP.IsKeyWord("allow" "negative" "mass")) {
2013  bNegative = true;
2014  }
2015
2016  for (int iCnt = 1; iCnt <= iNumMasses; iCnt++) {
2017  /* massa */
2018  doublereal dMTmp = HP.GetReal();
2019  if (!bNegative && dMTmp < 0.) {
2020  silent_cerr("Body(" << uLabel << "): "
2021  "negative mass is not allowed at line "
2022  << HP.GetLineData() << std::endl);
2023  throw DataManager::ErrGeneric(MBDYN_EXCEPT_ARGS);
2024  }
2025
2026  DEBUGLCOUT(MYDEBUG_INPUT, "Mass(" << iCnt << ") = " << dMTmp << std::endl);
2027  dm += dMTmp;
2028
2029  if (pStrNode) {
2030  /* posiz. c.g. */
2031  Vec3 XgcTmp(HP.GetPosRel(RF));
2032  if (iNumMasses == 1) {
2033  Xgc = XgcTmp;
2034
2035  } else {
2036  STmp += XgcTmp*dMTmp;
2037  }
2038
2039  DEBUGLCOUT(MYDEBUG_INPUT, "position of mass(" << iCnt
2040  << ") center of gravity = " << XgcTmp << std::endl);
2041
2042  /*
2043  * matrice del mom. d'inerzia
2044  *
2045  * Usa la funzione che legge una matrice qualsiasi con parole chiave
2046  * per forme abbreviate:
2047  * - null: matrice vuota
2048  * - eye: matrice identita'
2049  * - diag: matrice diagonale, seguita da 3 reali
2050  * - sym: matrice simmetrica, seguita da 6 reali,
2051  * letta come triangolare superiore ordinata per righe:
2052  * m11, m12, m13, m22, m23, m33
2053  * - matrice generica, costituita da 9 reali, letta per righe:
2054  * m11, m12, m13, m21, m22, m23, m31, m32, m33
2055  *
2056  * Si assume inoltre che la matrice dei momenti di inerzia
2057  * sia espressa nel centro di massa del corpo, quindi viene
2058  * corretta per l'eventuale offset rispetto al nodo
2059  */
2060  Mat3x3 JTmp(HP.GetMatRel(RF));
2061  DEBUGLCOUT(MYDEBUG_INPUT, "Inertia matrix of mass(" << iCnt
2062  << ") =" << std::endl << JTmp << std::endl);
2063  if (!JTmp.IsSymmetric()) {
2064  silent_cerr("Body(" << uLabel << "): "
2065  "warning, non-symmetric inertia tensor at line " << HP.GetLineData() << std::endl);
2066  }
2067
2068  if (HP.IsKeyWord("inertial")) {
2069  DEBUGLCOUT(MYDEBUG_INPUT,
2070  "supplied in inertial reference frame" << std::endl);
2071  if (HP.IsKeyWord("node")) {
2072  NO_OP;
2073  } else {
2074  Mat3x3 RTmp(HP.GetRotRel(RF));
2075  JTmp = RTmp*JTmp.MulMT(RTmp);
2076  }
2077  DEBUGLCOUT(MYDEBUG_INPUT,
2078  "Inertia matrix of mass(" << iCnt << ") "
2079  "in current frame =" << JTmp << std::endl);
2080  }
2081
2082  J += JTmp - Mat3x3(MatCrossCross, XgcTmp, XgcTmp*dMTmp);
2083  }
2084  }
2085
2086  if (!bNegative && dm < 0.) {
2087  silent_cerr("Body(" << uLabel << "): "
2088  "negative mass is not allowed at line "
2089  << HP.GetLineData() << std::endl);
2090  throw DataManager::ErrGeneric(MBDYN_EXCEPT_ARGS);
2091  }
2092
2093  if (iNumMasses > 1 && pStrNode) {
2094  if (dm < std::numeric_limits<doublereal>::epsilon()) {
2095  silent_cerr("Body(" << uLabel << "): "
2096  "mass value " << dm << " is too small at line "
2097  << HP.GetLineData() << std::endl);
2098  throw DataManager::ErrGeneric(MBDYN_EXCEPT_ARGS);
2099  }
2100
2101  Xgc = STmp/dm;
2102  }
2103
2104  DEBUGLCOUT(MYDEBUG_INPUT, "Total mass: " << dm << std::endl
2105  << "Center of mass: " << Xgc << std::endl
2106  << "Inertia matrix:" << std::endl << J << std::endl);
2107
2108  const DynamicStructDispNode* pDynamicDispNode = 0;
2109  const StaticStructDispNode* pStaticDispNode = 0;
2110  const char *sElemName;
2111  const char *sNodeName;
2112  if (pStrNode) {
2113  sElemName = "Body";
2114  sNodeName = "StructNode";
2115  } else {
2116  sElemName = "Mass";
2117  sNodeName = "StructDispNode";
2118  }
2119
2120  if (bStaticModel || bInverseDynamics) {
2121  /* static */
2122  pStaticDispNode = dynamic_cast<const StaticStructDispNode *>(pStrDispNode);
2123  if (pStaticDispNode == 0 || pStaticDispNode->GetStructDispNodeType() != StructDispNode::STATIC) {
2124  silent_cerr(sElemName << "(" << uLabel << "): "
2125  "illegal structural node type "
2126  "for " << sNodeName << "(" << pStrDispNode->GetLabel() << ") "
2127  "in " << (bStaticModel ? "static model" : "inverse dynamics") << " analysis "
2128  "at line " << HP.GetLineData() << std::endl);
2129  throw DataManager::ErrGeneric(MBDYN_EXCEPT_ARGS);
2130  }
2131
2132  } else {
2133  pDynamicDispNode = dynamic_cast<const DynamicStructDispNode*>(pStrDispNode);
2134  if (pDynamicDispNode == 0 || pDynamicDispNode->GetStructDispNodeType() != StructDispNode::DYNAMIC) {
2135  silent_cerr(sElemName << "(" << uLabel << "): "
2136  "illegal structural node type "
2137  "for " << sNodeName << "(" << pStrDispNode->GetLabel() << ") "
2138  "at line " << HP.GetLineData() << std::endl);
2139  throw DataManager::ErrGeneric(MBDYN_EXCEPT_ARGS);
2140  }
2141  }
2142
2143  flag fOut = pDM->fReadOutput(HP, Elem::BODY);
2144
2145  /* Allocazione e costruzione */
2146  Elem* pEl = NULL;
2147  if (bStaticModel || bInverseDynamics) {
2148  StaticBody *pSB = 0;
2149  StaticMass *pSM = 0;
2150
2151  /* static */
2152  if (pStrNode) {
2153  SAFENEWWITHCONSTRUCTOR(pSB, StaticBody,
2154  StaticBody(uLabel, dynamic_cast<const StaticStructNode *>(pStaticDispNode),
2155  dm, Xgc, J, fOut));
2156  pEl = pSB;
2157
2158  } else {
2159  SAFENEWWITHCONSTRUCTOR(pSM, StaticMass,
2160  StaticMass(uLabel, pStaticDispNode,
2161  dm, fOut));
2162  pEl = pSM;
2163  }
2164
2165  if (bInverseDynamics) {
2166  bool bIsRightHandSide(true);
2167  bool bIsErgonomy(true);
2168
2169  if (HP.IsKeyWord("inverse" "dynamics")) {
2170  bIsRightHandSide = false;
2171  if (HP.IsKeyWord("right" "hand" "side")) {
2172  bIsRightHandSide = HP.GetYesNoOrBool(bIsRightHandSide);
2173  }
2174
2175  bIsErgonomy = false;
2176  if (HP.IsKeyWord("ergonomy")) {
2177  bIsErgonomy = HP.GetYesNoOrBool(bIsErgonomy);
2178  }
2179  }
2180
2181  unsigned flags = 0;
2182
2183  if (bIsRightHandSide) {
2184  flags |= InverseDynamics::RIGHT_HAND_SIDE;
2185  }
2186
2187  if (bIsErgonomy) {
2188  flags |= InverseDynamics::ERGONOMY;
2189  }
2190
2191  if (pSB) {
2192  pSB->SetInverseDynamicsFlags(flags);
2193
2194  } else {
2195  pSM->SetInverseDynamicsFlags(flags);
2196  }
2197  }
2198
2199  } else {
2200  if (pStrNode) {
2201  const DynamicStructNode* pDynamicStructNode = dynamic_cast<const DynamicStructNode*>(pDynamicDispNode);
2202  const ModalNode* pModalNode = dynamic_cast<const ModalNode*>(pDynamicDispNode);
2203  const RigidBodyKinematics* pRBK = pDynamicStructNode->pGetRBK();
2204
2205  if (pModalNode && pRBK) {
2206  silent_cerr("Body(" << uLabel << ") "
2207  "is connected to ModalNode(" << pModalNode->GetLabel() << ") "
2208  "which uses rigid body kinematics "
2209  "at line " << HP.GetLineData() << std::endl);
2210  throw ErrNotImplementedYet(MBDYN_EXCEPT_ARGS);
2211  }
2212
2213  if (pModalNode) {
2214  SAFENEWWITHCONSTRUCTOR(pEl, ModalBody,
2215  ModalBody(uLabel, pModalNode, dm, Xgc, J, fOut));
2216
2217  } else {
2218  SAFENEWWITHCONSTRUCTOR(pEl, DynamicBody,
2219  DynamicBody(uLabel, pDynamicStructNode, dm, Xgc, J, fOut));
2220  }
2221  } else {
2222  SAFENEWWITHCONSTRUCTOR(pEl, DynamicMass,
2223  DynamicMass(uLabel, pDynamicDispNode,
2224  dm, fOut));
2225  }
2226  }
2227
2228  pDM->GetLogFile()
2229  << "body: " << uLabel
2230  << ' ' << pStrDispNode->GetLabel()
2231  << ' ' << dm
2232  << ' ' << Xgc
2233  << ' ' << J
2234  << std::endl;
2235
2236  /* Se non c'e' il punto e virgola finale */
2237  if (HP.IsArg()) {
2238  silent_cerr("semicolon expected "
2239  "at line " << HP.GetLineData() << std::endl);
2240  throw DataManager::ErrGeneric(MBDYN_EXCEPT_ARGS);
2241  }
2242
2243  return pEl;
2244 } /* End of ReadBody() */
DataManager::fReadOutput
flag fReadOutput(MBDynParser &HP, const T &t) const
Definition: dataman.h:1064
MBDynParser::GetRotRel
Mat3x3 GetRotRel(const ReferenceFrame &rf)
Definition: mbpar.cc:1795
DynamicStructDispNode::GetStructDispNodeType
virtual StructDispNode::Type GetStructDispNodeType(void) const
Definition: strnode.cc:1101
Zero3
const Vec3 Zero3(0., 0., 0.)
flag
long int flag
Definition: mbdyn.h:43
MBDYN_EXCEPT_ARGS
#define MBDYN_EXCEPT_ARGS
Definition: except.h:63
Vec3
Definition: matvec3.h:98
DEBUGCOUTFNAME
#define DEBUGCOUTFNAME(fname)
Definition: myassert.h:256
HighParser::GetInt
virtual integer GetInt(integer iDefval=0)
Definition: parser.cc:1050
NO_OP
#define NO_OP
Definition: myassert.h:74
StaticStructDispNode::GetStructDispNodeType
virtual StructDispNode::Type GetStructDispNodeType(void) const
Definition: strnode.cc:1429
DataManager::bIsStaticModel
bool bIsStaticModel(void) const
Definition: dataman.h:482
Elem::SetInverseDynamicsFlags
void SetInverseDynamicsFlags(unsigned uIDF)
Definition: elem.cc:71
HighParser::GetYesNoOrBool
virtual bool GetYesNoOrBool(bool bDefval=false)
Definition: parser.cc:1038
Zero3x3
const Mat3x3 Zero3x3(0., 0., 0., 0., 0., 0., 0., 0., 0.)
MBDynParser::GetPosRel
Vec3 GetPosRel(const ReferenceFrame &rf)
Definition: mbpar.cc:1331
HighParser::IsKeyWord
virtual bool IsKeyWord(const char *sKeyWord)
Definition: parser.cc:910
MBDynParser::GetMatRel
Mat3x3 GetMatRel(const ReferenceFrame &rf)
Definition: mbpar.cc:1737
StructDispNode::pGetRBK
const RigidBodyKinematics * pGetRBK(void) const
Definition: strnode.cc:152
KeyWords
KeyWords
Definition: dataman4.cc:94
SAFENEWWITHCONSTRUCTOR
#define SAFENEWWITHCONSTRUCTOR(pnt, item, constructor)
Definition: mynewmem.h:698
MatCrossCross
const MatCrossCross_Manip MatCrossCross
Definition: matvec3.cc:640
HighParser::IsArg
virtual bool IsArg(void)
Definition: parser.cc:807
Elem
Definition: elem.h:75
DataManager::GetLogFile
std::ostream & GetLogFile(void) const
Definition: dataman.h:326
ReadVariableBody
Elem * ReadVariableBody(DataManager *pDM, MBDynParser &HP, unsigned int uLabel, const StructNode *pStrNode)
Definition: body_vm.cc:1022
Mat3x3::MulMT
Mat3x3 MulMT(const Mat3x3 &m) const
Definition: matvec3.cc:444
doublereal
double doublereal
Definition: colamd.c:52
integer
long int integer
Definition: colamd.c:51
IncludeParser::GetLineData
virtual HighParser::ErrOut GetLineData(void) const
Definition: parsinc.cc:697
WithLabel::GetLabel
unsigned int GetLabel(void) const
Definition: withlab.cc:62
DataManager::ReadNode
Node * ReadNode(MBDynParser &HP, Node::Type type) const
Definition: dataman3.cc:2309
DEBUGLCOUT
#define DEBUGLCOUT(level, msg)
Definition: myassert.h:244
DataManager::bIsInverseDynamics
bool bIsInverseDynamics(void) const
Definition: dataman.h:493
HighParser::GetReal
virtual doublereal GetReal(const doublereal &dDefval=0.0)
Definition: parser.cc:1056

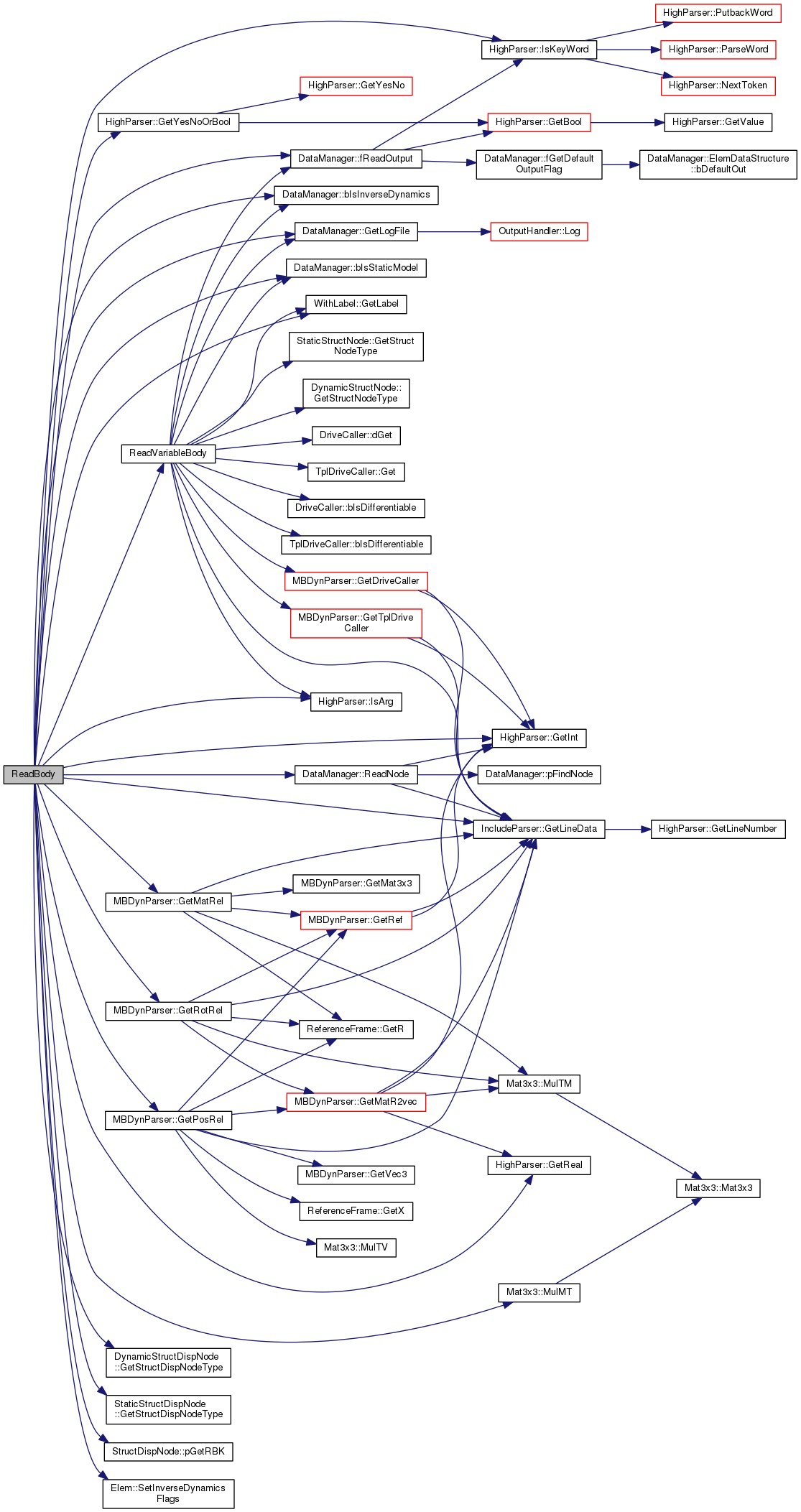

Here is the call graph for this function:
