mbdynFMI.cc File Reference

#include "mbconfig.h"
#include "mbdynFMI.h"
#include "stepsol.h"
#include <sstream>
#include <iostream>
#include <fmilib.h>
#include <FMI2/fmi2_import.h>
#include <FMI/fmi_version.h>
#include <FMI2/fmi2_types.h>
#include <FMI2/fmi2_functions.h>
#include <FMI2/fmi2_enums.h>
#include <FMI/fmi_util.h>
#include "fmi2_import_impl.h"
#include <FMI1/fmi1_import.h>
#include <FMI1/fmi1_types.h>
#include <FMI1/fmi1_functions.h>
#include <FMI1/fmi1_enums.h>
#include "fmi1_import_impl.h"

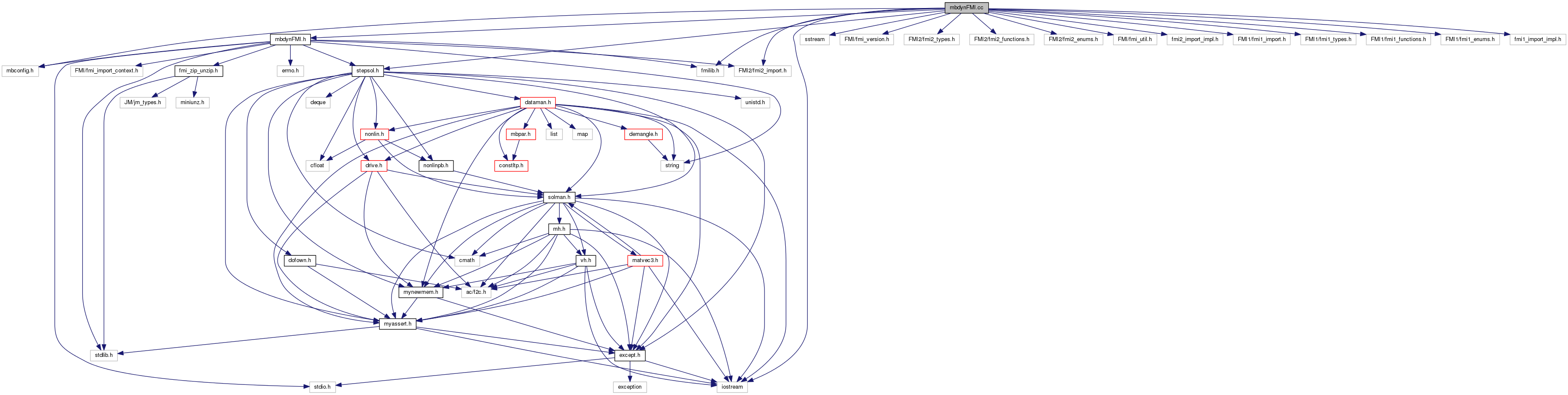

Include dependency graph for mbdynFMI.cc:

Go to the source code of this file.

Macros
#define	STATUSCHECK(a)

Functions
void	do_event_iteration (fmi2_import_t *fmu, fmi2_event_info_t *eventInfo)
static void	stepFinished (fmi2_component_environment_t env, fmi2_status_t status)
int	annotation_start_handle (void *context, const char *parentName, void *parent, const char *elm, const char **attr)
int	annotation_data_handle (void *context, const char *s, int len)
int	annotation_end_handle (void *context, const char *elm)

Variables
fmi2_xml_callbacks_t	annotation_callbacks

Macro Definition Documentation

#define STATUSCHECK

(

a

)

Value:

if (a!=0) {\
                printf("Error in %s, %d\n", __func__, __LINE__); \
                throw ErrGeneric(MBDYN_EXCEPT_ARGS); \
        }

Definition at line 78 of file mbdynFMI.cc.

Referenced by fmu1::CheckInterrupts(), fmu2::CheckInterrupts(), fmu1::CSPropogate(), fmu2::CSPropogate(), fmu2::GetDirectionalDerivatives(), fmu1::GetStateDerivatives(), fmu2::GetStateDerivatives(), fmu1::GetStateFromRefValue(), fmu2::GetStateFromRefValue(), fmu2::GetStates(), fmu1::ImportCreateDLL(), fmu2::ImportCreateDLL(), fmu1::Initialize(), fmu2::Initialize(), fmu1::InitializeAsSlave(), fmu2::InitializeAsSlave(), fmu1::SetStates(), fmu2::SetStates(), fmu1::SetTime(), fmu2::SetTime(), fmu1::SetValuesByVariable(), fmu2::SetValuesByVariable(), fmu1::~fmu1(), and fmu2::~fmu2().

Function Documentation

int annotation_data_handle	(	void *	context,
		const char *	s,
		int	len
	)

Definition at line 110 of file mbdynFMI.cc.

                                                                  {
        int i;
        for(i = 0; i < len; i++){
                printf("%c", s[i]);
        }
        return 0;
}

int annotation_end_handle	(	void *	context,
		const char *	elm
	)

Definition at line 118 of file mbdynFMI.cc.

                                                          {
        printf("\nAnnotation element %s end\n", elm);
        return 0;
}

int annotation_start_handle	(	void *	context,
		const char *	parentName,
		void *	parent,
		const char *	elm,
		const char **	attr
	)

Definition at line 98 of file mbdynFMI.cc.

                                                                                                                     {
        int i = 0;
        printf("Annotation element %s start (tool: %s, parent:%s)\n", elm, parentName,
                parent?fmi2_import_get_variable_name((fmi2_import_variable_t*)parent):"model");
        while(attr[i]) {
                printf("Attribute %s = %s\n", attr[i], attr[i+1]);
                i+=2;
        }
        printf("Annotation data:\n");
        return 0;
}

void do_event_iteration	(	fmi2_import_t *	fmu,
		fmi2_event_info_t *	eventInfo
	)

Definition at line 84 of file mbdynFMI.cc.

Referenced by fmu2::CheckInterrupts(), and fmu2::Initialize().

{
    eventInfo->newDiscreteStatesNeeded = fmi2_true;
    eventInfo->terminateSimulation     = fmi2_false;
    while (eventInfo->newDiscreteStatesNeeded && !eventInfo->terminateSimulation) {
        fmi2_import_new_discrete_states(fmu, eventInfo);
    }
}

static void stepFinished ( fmi2_component_environment_t  env, fmi2_status_t  status  )

static

Definition at line 93 of file mbdynFMI.cc.

Referenced by fmu2::setCallBackFunction().

                                                                                 {
        silent_cout("stepFinished is called with fmiStatus = "<< fmi2_status_to_string(status)<<std::endl);
}

Variable Documentation

fmi2_xml_callbacks_t annotation_callbacks

Initial value:

= {
        annotation_start_handle,
        annotation_data_handle,
        annotation_end_handle,  ((void*)0) }

Definition at line 124 of file mbdynFMI.cc.

Referenced by fmu2::parseXML().
