MBDyn-1.7.3
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Macros Groups
Public Types | Public Member Functions | Static Public Attributes | Private Types | Private Attributes | List of all members
grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr > Class Template Reference

#include <matvec.h>

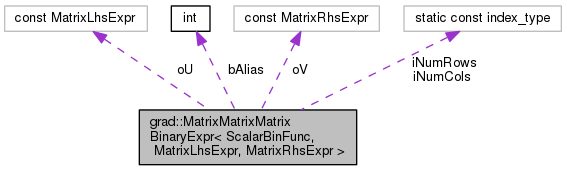

Collaboration diagram for grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >:
Collaboration graph
[legend]

Public Types

typedef ScalarBinFunc::ScalarType ScalarType

typedef
ScalarBinFunc::ExpressionType 		ExpressionType

typedef VectorExpression
< RowVectorExpr
< MatrixMatrixMatrixBinaryExpr >
, iNumCols > 		RowVectorType

typedef VectorExpression
< ColumnVectorExpr
< MatrixMatrixMatrixBinaryExpr >
, iNumRows > 		ColumnVectorType


Public Member Functions

 MatrixMatrixMatrixBinaryExpr (const MatrixLhsExpr &u, const MatrixRhsExpr &v)

ExpressionType operator() (index_type i, index_type j) const

index_type iGetNumRows () const

index_type iGetNumCols () const

RowVectorType GetRow (index_type iRow) const

ColumnVectorType GetCol (index_type iCol) const

template<typename ScalarType2 >
bool bHaveReferenceTo (const ScalarType2 *pFirst, const ScalarType2 *pLast) const


Static Public Attributes

static const bool bAlias = MatrixLhsExpr::bAlias || MatrixRhsExpr::bAlias

static const index_type iNumRows = MatrixLhsExpr::iNumRows

static const index_type iNumCols = MatrixLhsExpr::iNumCols


Private Types

typedef IndexCheck
< MatrixLhsExpr::iNumRows-MatrixRhsExpr::iNumRows >
::CheckType 		check_iNumRows

typedef IndexCheck
< MatrixLhsExpr::iNumCols-MatrixRhsExpr::iNumCols >
::CheckType 		check_iNumCols


Private Attributes

const MatrixLhsExpr oU

const MatrixRhsExpr oV


Detailed Description

template<typename ScalarBinFunc, typename MatrixLhsExpr, typename MatrixRhsExpr>
class grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >

Definition at line 1226 of file matvec.h.

Member Typedef Documentation

template<typename ScalarBinFunc , typename MatrixLhsExpr , typename MatrixRhsExpr >
typedef IndexCheck<MatrixLhsExpr::iNumCols - MatrixRhsExpr::iNumCols>::CheckType grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::check_iNumCols
private

Definition at line 1284 of file matvec.h.

template<typename ScalarBinFunc , typename MatrixLhsExpr , typename MatrixRhsExpr >
typedef IndexCheck<MatrixLhsExpr::iNumRows - MatrixRhsExpr::iNumRows>::CheckType grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::check_iNumRows
private

Definition at line 1283 of file matvec.h.

template<typename ScalarBinFunc , typename MatrixLhsExpr , typename MatrixRhsExpr >
typedef VectorExpression<ColumnVectorExpr<MatrixMatrixMatrixBinaryExpr>, iNumRows> grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::ColumnVectorType

Definition at line 1234 of file matvec.h.

template<typename ScalarBinFunc , typename MatrixLhsExpr , typename MatrixRhsExpr >
typedef ScalarBinFunc::ExpressionType grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::ExpressionType

Definition at line 1232 of file matvec.h.

template<typename ScalarBinFunc , typename MatrixLhsExpr , typename MatrixRhsExpr >
typedef VectorExpression<RowVectorExpr<MatrixMatrixMatrixBinaryExpr>, iNumCols> grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::RowVectorType

Definition at line 1233 of file matvec.h.

template<typename ScalarBinFunc , typename MatrixLhsExpr , typename MatrixRhsExpr >
typedef ScalarBinFunc::ScalarType grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::ScalarType

Definition at line 1231 of file matvec.h.

Constructor & Destructor Documentation

template<typename ScalarBinFunc , typename MatrixLhsExpr , typename MatrixRhsExpr >
grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::MatrixMatrixMatrixBinaryExpr ( const MatrixLhsExpr &  u,
const MatrixRhsExpr &  v
)
inline

Definition at line 1236 of file matvec.h.

References grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::iNumCols, grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::iNumRows, MATVEC_ASSERT, grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::oU, and grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::oV.

1237  :oU(u), oV(v) {
1238
1239  MATVEC_ASSERT(iNumRows == oU.iGetNumRows());
1240  MATVEC_ASSERT(iNumCols == oU.iGetNumCols());
1241  MATVEC_ASSERT(iNumRows == oV.iGetNumRows());
1242  MATVEC_ASSERT(iNumCols == oV.iGetNumCols());
1243  }
MATVEC_ASSERT
#define MATVEC_ASSERT(expr)
Definition: matvec.h:64
grad::MatrixMatrixMatrixBinaryExpr::oV
const MatrixRhsExpr oV
Definition: matvec.h:1280
grad::MatrixMatrixMatrixBinaryExpr::iNumCols
static const index_type iNumCols
Definition: matvec.h:1230
grad::MatrixMatrixMatrixBinaryExpr::oU
const MatrixLhsExpr oU
Definition: matvec.h:1279
grad::MatrixMatrixMatrixBinaryExpr::iNumRows
static const index_type iNumRows
Definition: matvec.h:1229

Member Function Documentation

template<typename ScalarBinFunc , typename MatrixLhsExpr , typename MatrixRhsExpr >
template<typename ScalarType2 >
bool grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::bHaveReferenceTo ( const ScalarType2 *  pFirst,
const ScalarType2 *  pLast
) const
inline

Definition at line 1274 of file matvec.h.

References grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::oU, and grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::oV.

1274  {
1275  return oU.bHaveReferenceTo(pFirst, pLast) || oV.bHaveReferenceTo(pFirst, pLast);
1276  }
grad::MatrixMatrixMatrixBinaryExpr::oV
const MatrixRhsExpr oV
Definition: matvec.h:1280
grad::MatrixMatrixMatrixBinaryExpr::oU
const MatrixLhsExpr oU
Definition: matvec.h:1279
template<typename ScalarBinFunc , typename MatrixLhsExpr , typename MatrixRhsExpr >
ColumnVectorType grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::GetCol ( index_type  iCol) const
inline

Definition at line 1269 of file matvec.h.

1269  {
1270  return ColumnVectorType(*this, iCol);
1271  }
grad::MatrixMatrixMatrixBinaryExpr::ColumnVectorType
VectorExpression< ColumnVectorExpr< MatrixMatrixMatrixBinaryExpr >, iNumRows > ColumnVectorType
Definition: matvec.h:1234
template<typename ScalarBinFunc , typename MatrixLhsExpr , typename MatrixRhsExpr >
RowVectorType grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::GetRow ( index_type  iRow) const
inline

Definition at line 1265 of file matvec.h.

1265  {
1266  return RowVectorType(*this, iRow);
1267  }
grad::MatrixMatrixMatrixBinaryExpr::RowVectorType
VectorExpression< RowVectorExpr< MatrixMatrixMatrixBinaryExpr >, iNumCols > RowVectorType
Definition: matvec.h:1233
template<typename ScalarBinFunc , typename MatrixLhsExpr , typename MatrixRhsExpr >
index_type grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::iGetNumCols ( void  ) const
inline

Definition at line 1259 of file matvec.h.

References grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::iNumCols, MATVEC_ASSERT, grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::oU, and grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::oV.

Referenced by grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::operator()().

1259  {
1260  MATVEC_ASSERT(oU.iGetNumCols() == oV.iGetNumCols());
1261  MATVEC_ASSERT(iNumCols == oU.iGetNumCols());
1262  return oU.iGetNumCols();
1263  }
MATVEC_ASSERT
#define MATVEC_ASSERT(expr)
Definition: matvec.h:64
grad::MatrixMatrixMatrixBinaryExpr::oV
const MatrixRhsExpr oV
Definition: matvec.h:1280
grad::MatrixMatrixMatrixBinaryExpr::iNumCols
static const index_type iNumCols
Definition: matvec.h:1230
grad::MatrixMatrixMatrixBinaryExpr::oU
const MatrixLhsExpr oU
Definition: matvec.h:1279
template<typename ScalarBinFunc , typename MatrixLhsExpr , typename MatrixRhsExpr >
index_type grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::iGetNumRows ( void  ) const
inline

Definition at line 1253 of file matvec.h.

References grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::iNumRows, MATVEC_ASSERT, grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::oU, and grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::oV.

Referenced by grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::operator()().

1253  {
1254  MATVEC_ASSERT(oU.iGetNumRows() == oV.iGetNumRows());
1255  MATVEC_ASSERT(iNumRows == oU.iGetNumRows());
1256  return oU.iGetNumRows();
1257  }
MATVEC_ASSERT
#define MATVEC_ASSERT(expr)
Definition: matvec.h:64
grad::MatrixMatrixMatrixBinaryExpr::oV
const MatrixRhsExpr oV
Definition: matvec.h:1280
grad::MatrixMatrixMatrixBinaryExpr::oU
const MatrixLhsExpr oU
Definition: matvec.h:1279
grad::MatrixMatrixMatrixBinaryExpr::iNumRows
static const index_type iNumRows
Definition: matvec.h:1229
template<typename ScalarBinFunc , typename MatrixLhsExpr , typename MatrixRhsExpr >
ExpressionType grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::operator() ( index_type  i,
index_type  j
) const
inline

Definition at line 1245 of file matvec.h.

References grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::iGetNumCols(), grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::iGetNumRows(), MATVEC_ASSERT, grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::oU, and grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::oV.

1245  {
1246  MATVEC_ASSERT(i >= 1);
1247  MATVEC_ASSERT(i <= iGetNumRows());
1248  MATVEC_ASSERT(j >= 1);
1249  MATVEC_ASSERT(j <= iGetNumCols());
1250  return ScalarBinFunc::f(oU(i, j), oV(i, j));
1251  }
MATVEC_ASSERT
#define MATVEC_ASSERT(expr)
Definition: matvec.h:64
grad::MatrixMatrixMatrixBinaryExpr::iGetNumRows
index_type iGetNumRows() const
Definition: matvec.h:1253
grad::MatrixMatrixMatrixBinaryExpr::oV
const MatrixRhsExpr oV
Definition: matvec.h:1280
grad::MatrixMatrixMatrixBinaryExpr::iGetNumCols
index_type iGetNumCols() const
Definition: matvec.h:1259
grad::MatrixMatrixMatrixBinaryExpr::oU
const MatrixLhsExpr oU
Definition: matvec.h:1279

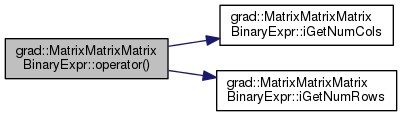

Here is the call graph for this function:

Member Data Documentation

template<typename ScalarBinFunc , typename MatrixLhsExpr , typename MatrixRhsExpr >
const bool grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::bAlias = MatrixLhsExpr::bAlias || MatrixRhsExpr::bAlias
static

Definition at line 1228 of file matvec.h.

template<typename ScalarBinFunc , typename MatrixLhsExpr , typename MatrixRhsExpr >
const index_type grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::iNumCols = MatrixLhsExpr::iNumCols
static

Definition at line 1230 of file matvec.h.

Referenced by grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::iGetNumCols(), and grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::MatrixMatrixMatrixBinaryExpr().

template<typename ScalarBinFunc , typename MatrixLhsExpr , typename MatrixRhsExpr >
const index_type grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::iNumRows = MatrixLhsExpr::iNumRows
static

Definition at line 1229 of file matvec.h.

Referenced by grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::iGetNumRows(), and grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::MatrixMatrixMatrixBinaryExpr().

template<typename ScalarBinFunc , typename MatrixLhsExpr , typename MatrixRhsExpr >
const MatrixLhsExpr grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::oU
private

Definition at line 1279 of file matvec.h.

Referenced by grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::bHaveReferenceTo(), grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::iGetNumCols(), grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::iGetNumRows(), grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::MatrixMatrixMatrixBinaryExpr(), and grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::operator()().

template<typename ScalarBinFunc , typename MatrixLhsExpr , typename MatrixRhsExpr >
const MatrixRhsExpr grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::oV
private

Definition at line 1280 of file matvec.h.

Referenced by grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::bHaveReferenceTo(), grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::iGetNumCols(), grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::iGetNumRows(), grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::MatrixMatrixMatrixBinaryExpr(), and grad::MatrixMatrixMatrixBinaryExpr< ScalarBinFunc, MatrixLhsExpr, MatrixRhsExpr >::operator()().

The documentation for this class was generated from the following file:
