#include <hfluid_.h>

Inheritance diagram for LinearCompressibleTHydraulicFluid:

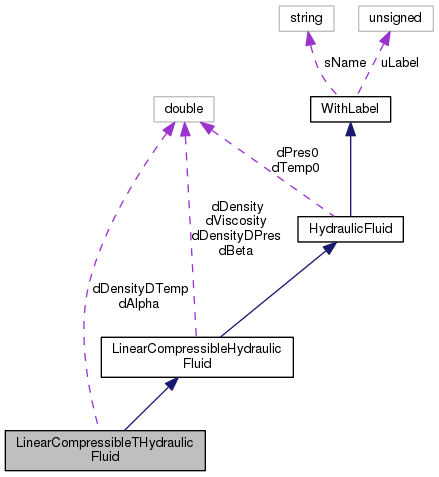

Collaboration diagram for LinearCompressibleTHydraulicFluid:

Public Member Functions
	LinearCompressibleTHydraulicFluid (unsigned int Label, const doublereal &dDensity, const doublereal &dBeta, const doublereal &dPres0, const doublereal &dAlpha, const doublereal &dTemp0, const doublereal &dViscosity=0.)

	LinearCompressibleTHydraulicFluid (const LinearCompressibleTHydraulicFluid &HF)

	~LinearCompressibleTHydraulicFluid ()

HydraulicFluid *	pCopy (void) const

doublereal	dGetDensity (const doublereal &dPres, const doublereal &dTemp) const

doublereal	dGetDensityDTemp (void) const

doublereal	dGetDensityDTemp (const doublereal &) const

doublereal	dGetDensityDTemp (const doublereal &, const doublereal &) const

Public Member Functions inherited from LinearCompressibleHydraulicFluid
	LinearCompressibleHydraulicFluid (unsigned int Label, const doublereal &dDens, const doublereal &dB, const doublereal &dPr0, const doublereal &dVisc=0., const doublereal dTp0=-1.)

	LinearCompressibleHydraulicFluid (const LinearCompressibleHydraulicFluid &HF)

virtual	~LinearCompressibleHydraulicFluid ()

virtual doublereal	dGetDensity (void) const

virtual doublereal	dGetDensity (const doublereal &dPres) const

virtual doublereal	dGetDensityDPres (void) const

virtual doublereal	dGetDensityDPres (const doublereal &) const

virtual doublereal	dGetDensityDPres (const doublereal &, const doublereal &) const

doublereal	dGetViscosity (void) const

doublereal	dGetViscosity (const doublereal &) const

doublereal	dGetViscosity (const doublereal &, const doublereal &) const

Public Member Functions inherited from HydraulicFluid
	HydraulicFluid (unsigned int Label, const doublereal dPres0=-1., const doublereal dTemp0=-1.)

	HydraulicFluid (const HydraulicFluid &HF)

virtual	~HydraulicFluid ()

virtual doublereal	dGetRe (Re which)

virtual doublereal	dGetPres0 (void) const

virtual doublereal	dGetTemp0 (void) const

Public Member Functions inherited from WithLabel
	WithLabel (unsigned int uL=0, const std::string &sN="")

virtual	~WithLabel (void)

void	PutLabel (unsigned int uL)

void	PutName (const std::string &sN)

unsigned int	GetLabel (void) const

const std::string &	GetName (void) const

Protected Attributes
const doublereal	dAlpha

const doublereal	dDensityDTemp

Protected Attributes inherited from LinearCompressibleHydraulicFluid
const doublereal	dDensity

const doublereal	dBeta

const doublereal	dDensityDPres

const doublereal	dViscosity

Protected Attributes inherited from HydraulicFluid
const doublereal	dPres0

const doublereal	dTemp0

Protected Attributes inherited from WithLabel
unsigned int	uLabel

std::string	sName

Additional Inherited Members
Public Types inherited from HydraulicFluid
enum	Re { UPPER, LOWER }

Detailed Description

Definition at line 227 of file hfluid_.h.

Constructor & Destructor Documentation

LinearCompressibleTHydraulicFluid::LinearCompressibleTHydraulicFluid	(	unsigned int	Label,
		const doublereal &	dDensity,
		const doublereal &	dBeta,
		const doublereal &	dPres0,
		const doublereal &	dAlpha,
		const doublereal &	dTemp0,
		const doublereal &	dViscosity = `0.`
	)

inline

Definition at line 234 of file hfluid_.h.

References dDensityDTemp.

Referenced by pCopy().

      : LinearCompressibleHydraulicFluid(Label, dDensity, dBeta, dPres0, dViscosity, dTemp0),
    dAlpha(dAlpha),
    dDensityDTemp(0.) {
       (doublereal&)dDensityDTemp = -dDensity*dAlpha;
    };

LinearCompressibleTHydraulicFluid::LinearCompressibleTHydraulicFluid ( const LinearCompressibleTHydraulicFluid & HF )

inline

Definition at line 247 of file hfluid_.h.

References dAlpha, LinearCompressibleHydraulicFluid::dDensity, and dDensityDTemp.

      : LinearCompressibleHydraulicFluid(HF),
    dAlpha(HF.dAlpha),
       dDensityDTemp(0.) {
       (doublereal&)dDensityDTemp = -dDensity*dAlpha;
    };

LinearCompressibleTHydraulicFluid::~LinearCompressibleTHydraulicFluid ( )

inline

Definition at line 254 of file hfluid_.h.

References NO_OP.

                                         {
       NO_OP;
    };

Member Function Documentation

doublereal LinearCompressibleTHydraulicFluid::dGetDensity	(	const doublereal &	dPres,
		const doublereal &	dTemp
	)		const

inlinevirtual

Reimplemented from LinearCompressibleHydraulicFluid.

Definition at line 268 of file hfluid_.h.

References dDensityDTemp, LinearCompressibleHydraulicFluid::dGetDensity(), and HydraulicFluid::dTemp0.

                                                                                   {
       return LinearCompressibleHydraulicFluid::dGetDensity(dPres)+(dTemp-dTemp0)*dDensityDTemp;
    };

Here is the call graph for this function:

doublereal LinearCompressibleTHydraulicFluid::dGetDensityDTemp ( void ) const

inlinevirtual

Reimplemented from LinearCompressibleHydraulicFluid.

Definition at line 273 of file hfluid_.h.

References dDensityDTemp.

                                            {
       return dDensityDTemp;
    };

doublereal LinearCompressibleTHydraulicFluid::dGetDensityDTemp ( const doublereal & ) const

inlinevirtual

Reimplemented from LinearCompressibleHydraulicFluid.

Definition at line 276 of file hfluid_.h.

References dDensityDTemp.

                                                            {
       return dDensityDTemp;
    };

doublereal LinearCompressibleTHydraulicFluid::dGetDensityDTemp	(	const doublereal &	,
		const doublereal &
	)		const

inlinevirtual

Reimplemented from LinearCompressibleHydraulicFluid.

Definition at line 279 of file hfluid_.h.

References dDensityDTemp.

                                                                                  {
       return dDensityDTemp;
    };

HydraulicFluid* LinearCompressibleTHydraulicFluid::pCopy ( void ) const

inlinevirtual

Reimplemented from LinearCompressibleHydraulicFluid.

Definition at line 259 of file hfluid_.h.

References LinearCompressibleTHydraulicFluid(), and SAFENEWWITHCONSTRUCTOR.

                                      {
       HydraulicFluid* pHF = NULL;
       SAFENEWWITHCONSTRUCTOR(pHF,
                              LinearCompressibleTHydraulicFluid,
                              LinearCompressibleTHydraulicFluid(*this));
       return pHF;
    };
