IncompressibleHydraulicFluid Class Reference

#include <hfluid_.h>

Inheritance diagram for IncompressibleHydraulicFluid:

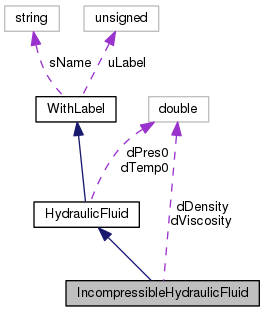

Collaboration diagram for IncompressibleHydraulicFluid:

Public Member Functions
	IncompressibleHydraulicFluid (unsigned int Label, const doublereal &dDensity, const doublereal &dViscosity=0., const doublereal &dPres0=-1., const doublereal &dTemp0=-1.)
	IncompressibleHydraulicFluid (const IncompressibleHydraulicFluid &HF)
	~IncompressibleHydraulicFluid ()
HydraulicFluid *	pCopy (void) const
doublereal	dGetDensity (void) const
doublereal	dGetDensity (const doublereal &) const
doublereal	dGetDensity (const doublereal &, const doublereal &) const
doublereal	dGetDensityDPres (void) const
doublereal	dGetDensityDPres (const doublereal &) const
doublereal	dGetDensityDPres (const doublereal &, const doublereal &) const
doublereal	dGetDensityDTemp (void) const
doublereal	dGetDensityDTemp (const doublereal &) const
doublereal	dGetDensityDTemp (const doublereal &, const doublereal &) const
doublereal	dGetViscosity (void) const
doublereal	dGetViscosity (const doublereal &) const
doublereal	dGetViscosity (const doublereal &, const doublereal &) const
Public Member Functions inherited from HydraulicFluid
	HydraulicFluid (unsigned int Label, const doublereal dPres0=-1., const doublereal dTemp0=-1.)
	HydraulicFluid (const HydraulicFluid &HF)
virtual	~HydraulicFluid ()
virtual doublereal	dGetRe (Re which)
virtual doublereal	dGetPres0 (void) const
virtual doublereal	dGetTemp0 (void) const
Public Member Functions inherited from WithLabel
	WithLabel (unsigned int uL=0, const std::string &sN="")
virtual	~WithLabel (void)
void	PutLabel (unsigned int uL)
void	PutName (const std::string &sN)
unsigned int	GetLabel (void) const
const std::string &	GetName (void) const

Protected Attributes
const doublereal	dDensity
const doublereal	dViscosity
Protected Attributes inherited from HydraulicFluid
const doublereal	dPres0
const doublereal	dTemp0
Protected Attributes inherited from WithLabel
unsigned int	uLabel
std::string	sName

Additional Inherited Members
Public Types inherited from HydraulicFluid
enum	Re { UPPER, LOWER }

Detailed Description

Definition at line 44 of file hfluid_.h.

Constructor & Destructor Documentation

IncompressibleHydraulicFluid::IncompressibleHydraulicFluid ( unsigned int  Label, const doublereal &  dDensity, const doublereal &  dViscosity = 0., const doublereal &  dPres0 = -1., const doublereal &  dTemp0 = -1.  )

inline

Definition at line 50 of file hfluid_.h.

References NO_OP.

Referenced by pCopy().

     : HydraulicFluid(Label, dPres0, dTemp0),
     dDensity(dDensity), dViscosity(dViscosity) {
        NO_OP;
     };

IncompressibleHydraulicFluid::IncompressibleHydraulicFluid ( const IncompressibleHydraulicFluid &  HF )

inline

Definition at line 59 of file hfluid_.h.

References NO_OP.

     : HydraulicFluid(HF),
     dDensity(HF.dDensity), dViscosity(HF.dViscosity) {
        NO_OP;
     };

IncompressibleHydraulicFluid::~IncompressibleHydraulicFluid ( )

inline

Definition at line 65 of file hfluid_.h.

References NO_OP.

                                   {
      NO_OP;
   };

Member Function Documentation

doublereal IncompressibleHydraulicFluid::dGetDensity ( void  ) const

inlinevirtual

Implements HydraulicFluid.

Definition at line 78 of file hfluid_.h.

References dDensity.

                                      {
      return dDensity;
   };

doublereal IncompressibleHydraulicFluid::dGetDensity ( const doublereal &  ) const

inlinevirtual

Implements HydraulicFluid.

Definition at line 81 of file hfluid_.h.

References dDensity.

                                                      {
      return dDensity;
   };

doublereal IncompressibleHydraulicFluid::dGetDensity ( const doublereal &  , const doublereal &    ) const

inlinevirtual

Implements HydraulicFluid.

Definition at line 84 of file hfluid_.h.

References dDensity.

                                                                            {
      return dDensity;
   };

doublereal IncompressibleHydraulicFluid::dGetDensityDPres ( void  ) const

inlinevirtual

Implements HydraulicFluid.

Definition at line 88 of file hfluid_.h.

                                           {
      return 0.;
   };

doublereal IncompressibleHydraulicFluid::dGetDensityDPres ( const doublereal &  ) const

inlinevirtual

Implements HydraulicFluid.

Definition at line 91 of file hfluid_.h.

                                                           {
      return 0.;
   };

doublereal IncompressibleHydraulicFluid::dGetDensityDPres ( const doublereal &  , const doublereal &    ) const

inlinevirtual

Implements HydraulicFluid.

Definition at line 94 of file hfluid_.h.

                                                                                 {
      return 0.;
   };

doublereal IncompressibleHydraulicFluid::dGetDensityDTemp ( void  ) const

inlinevirtual

Implements HydraulicFluid.

Definition at line 98 of file hfluid_.h.

                                           {
      return 0.;
   };

doublereal IncompressibleHydraulicFluid::dGetDensityDTemp ( const doublereal &  ) const

inlinevirtual

Implements HydraulicFluid.

Definition at line 101 of file hfluid_.h.

                                                           {
      return 0.;
   };

doublereal IncompressibleHydraulicFluid::dGetDensityDTemp ( const doublereal &  , const doublereal &    ) const

inlinevirtual

Implements HydraulicFluid.

Definition at line 104 of file hfluid_.h.

                                                                                 {
      return 0.;
   };

doublereal IncompressibleHydraulicFluid::dGetViscosity ( void  ) const

inlinevirtual

Implements HydraulicFluid.

Definition at line 108 of file hfluid_.h.

References dViscosity.

                                        {
      return dViscosity;
   };

doublereal IncompressibleHydraulicFluid::dGetViscosity ( const doublereal &  ) const

inlinevirtual

Implements HydraulicFluid.

Definition at line 112 of file hfluid_.h.

References dViscosity.

                                                        {
      return dViscosity;
   };

doublereal IncompressibleHydraulicFluid::dGetViscosity ( const doublereal &  , const doublereal &    ) const

inlinevirtual

Implements HydraulicFluid.

Definition at line 116 of file hfluid_.h.

References dViscosity.

                                                                              {
      return dViscosity;
   };

HydraulicFluid* IncompressibleHydraulicFluid::pCopy ( void  ) const

inlinevirtual

Implements HydraulicFluid.

Definition at line 70 of file hfluid_.h.

References IncompressibleHydraulicFluid(), and SAFENEWWITHCONSTRUCTOR.

                                     {
      HydraulicFluid* pHF = NULL;
      SAFENEWWITHCONSTRUCTOR(pHF,
                             IncompressibleHydraulicFluid,
                             IncompressibleHydraulicFluid(*this));
      return pHF;
   };

Here is the call graph for this function:

Member Data Documentation

const doublereal IncompressibleHydraulicFluid::dDensity

protected

Definition at line 46 of file hfluid_.h.

Referenced by dGetDensity().

const doublereal IncompressibleHydraulicFluid::dViscosity

protected

Definition at line 47 of file hfluid_.h.

Referenced by dGetViscosity().

---

The documentation for this class was generated from the following file:

• hfluid_.h
