matvec6.h File Reference
#include "matvec3.h"

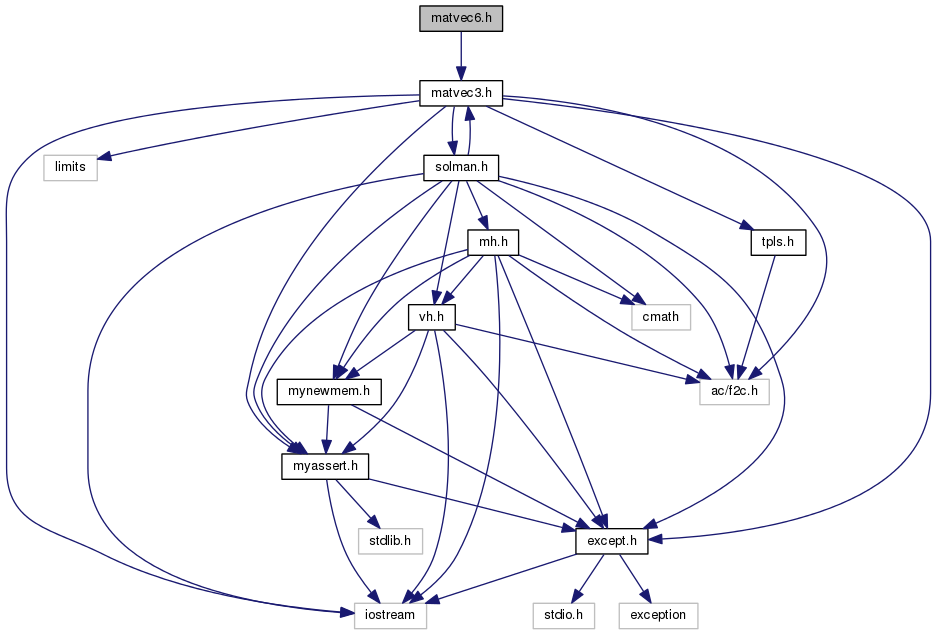

Include dependency graph for matvec6.h:

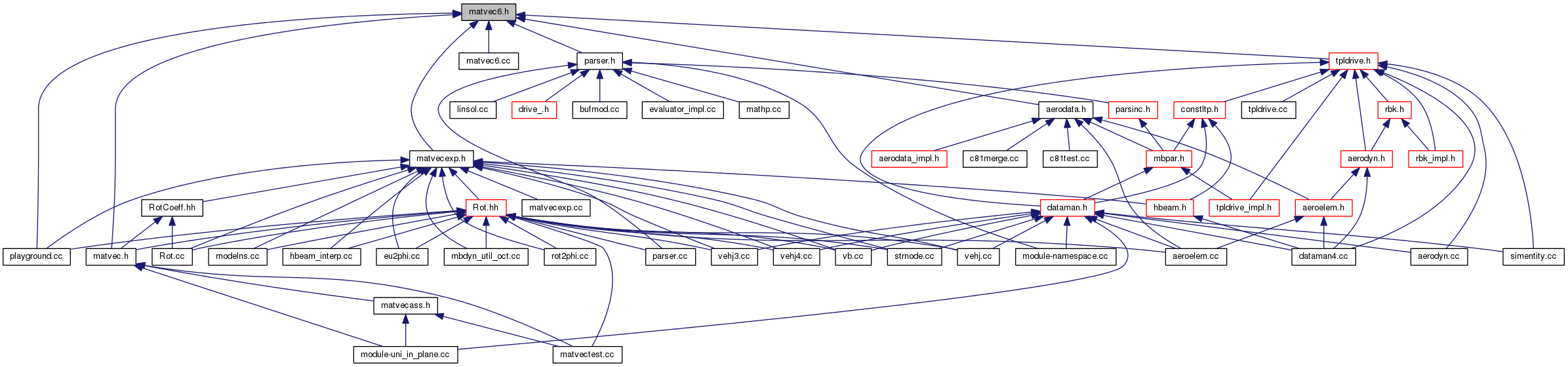

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

class  Vec6

class  Mat6x6


Functions

Vec6 operator+ (const Vec6 &v)

Vec6 operator- (const Vec6 &v)

std::ostream & operator<< (std::ostream &out, const Vec6 &m)

std::ostream & Write (std::ostream &out, const Vec6 &v, const char *sFill=" ")

std::ostream & operator<< (std::ostream &out, const Mat6x6 &m)

std::ostream & Write (std::ostream &out, const Mat6x6 &m, const char *sFill=" ", const char *sFill2=NULL)

Vec6 MultRV (const Vec6 &v, const Mat3x3 &R)

Mat6x6 MultRM (const Mat6x6 &m, const Mat3x3 &R)

Mat6x6 MultMRt (const Mat6x6 &m, const Mat3x3 &R)

Mat6x6 MultRMRt (const Mat6x6 &m, const Mat3x3 &R)

Mat6x6 MultRMRt (const Mat6x6 &m, const Mat3x3 &R, const doublereal &c)

Mat6x6 MultVCrossMat (const Mat6x6 &m, const Vec3 &v)

Mat6x6 MultVCrossTMat (const Mat6x6 &m, const Vec3 &v)

Mat6x6 MultMatVCross (const Mat6x6 &m, const Vec3 &v)

Mat6x6 MultMatVCrossT (const Mat6x6 &m, const Vec3 &v)

template<>
const Vec6mb_zero< Vec6 > (void)

template<>
const Mat6x6mb_zero< Mat6x6 > (void)

template<>
Mat6x6 mb_deye< Mat6x6 > (const doublereal d)

template<>
Mat6x6mb_deye< Mat6x6 > (Mat6x6 &out, const doublereal d)


Variables

const Vec6 Zero6

const Mat6x6 Zero6x6

const Mat6x6 Eye6


Function Documentation

template<>
Mat6x6 mb_deye< Mat6x6 > ( const doublereal  d)
inline

Definition at line 643 of file matvec6.h.

References mb_deye< Mat3x3 >(), and Zero3x3.

644 {
645  // TODO: optimize
647 }
Mat3x3 mb_deye< Mat3x3 >(const doublereal d)
Definition: matvec3.h:1584
const Mat3x3 Zero3x3(0., 0., 0., 0., 0., 0., 0., 0., 0.)

Here is the call graph for this function:

template<>
Mat6x6& mb_deye< Mat6x6 > ( Mat6x6 out,
const doublereal  d
)
inline

Definition at line 650 of file matvec6.h.

References mb_deye< Mat3x3 >(), Mat6x6::PutMat11(), and Zero3x3.

651 {
652  out.PutMat11(mb_deye<Mat3x3>(d));
653  out.PutMat12(Zero3x3);
654  out.PutMat21(Zero3x3);
655  out.PutMat22(mb_deye<Mat3x3>(d));
656
657  return out;
658 }
Mat3x3 mb_deye< Mat3x3 >(const doublereal d)
Definition: matvec3.h:1584
void PutMat22(const Mat3x3 &x)
Definition: matvec6.h:376
const Mat3x3 Zero3x3(0., 0., 0., 0., 0., 0., 0., 0., 0.)
void PutMat11(const Mat3x3 &x)
Definition: matvec6.h:364
void PutMat12(const Mat3x3 &x)
Definition: matvec6.h:372
void PutMat21(const Mat3x3 &x)
Definition: matvec6.h:368

Here is the call graph for this function:

template<>
const Mat6x6& mb_zero< Mat6x6 > ( void  )
inline

Definition at line 637 of file matvec6.h.

References Zero6x6.

638 {
639  return Zero6x6;
640 }
const Mat6x6 Zero6x6
template<>
const Vec6& mb_zero< Vec6 > ( void  )
inline

Definition at line 631 of file matvec6.h.

References Zero6.

632 {
633  return Zero6;
634 }
const Vec6 Zero6

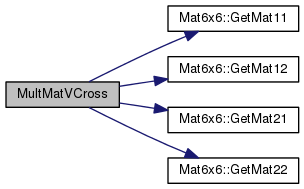

Mat6x6 MultMatVCross ( const Mat6x6 m,
const Vec3 v
)

Definition at line 254 of file matvec6.cc.

References Mat6x6::GetMat11(), Mat6x6::GetMat12(), Mat6x6::GetMat21(), Mat6x6::GetMat22(), and MatCross.

255 {
256  Mat3x3 vCross(MatCross, v);
257
258  return Mat6x6(m.GetMat11(),
259  m.GetMat21(),
260  m.GetMat11()*vCross + m.GetMat12(),
261  m.GetMat21()*vCross + m.GetMat22());
262 }
Mat3x3 GetMat12(void)
Definition: matvec6.h:328
const MatCross_Manip MatCross
Definition: matvec3.cc:639
Mat3x3 GetMat21(void)
Definition: matvec6.h:324
Mat3x3 GetMat22(void)
Definition: matvec6.h:332
Mat3x3 GetMat11(void)
Definition: matvec6.h:320

Here is the call graph for this function:

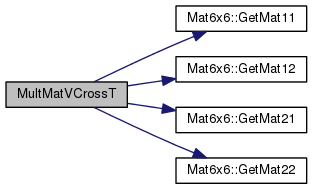

Mat6x6 MultMatVCrossT ( const Mat6x6 m,
const Vec3 v
)

Definition at line 269 of file matvec6.cc.

References Mat6x6::GetMat11(), Mat6x6::GetMat12(), Mat6x6::GetMat21(), Mat6x6::GetMat22(), and MatCross.

270 {
271  Mat3x3 vCross(MatCross, v);
272
273  return Mat6x6(m.GetMat11() + m.GetMat12()*vCross,
274  m.GetMat21() + m.GetMat22()*vCross,
275  m.GetMat12(),
276  m.GetMat22());
277 }
Mat3x3 GetMat12(void)
Definition: matvec6.h:328
const MatCross_Manip MatCross
Definition: matvec3.cc:639
Mat3x3 GetMat21(void)
Definition: matvec6.h:324
Mat3x3 GetMat22(void)
Definition: matvec6.h:332
Mat3x3 GetMat11(void)
Definition: matvec6.h:320

Here is the call graph for this function:

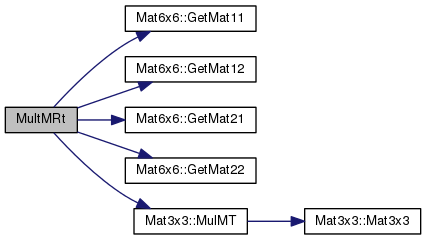

Mat6x6 MultMRt ( const Mat6x6 m,
const Mat3x3 R
)

Definition at line 203 of file matvec6.cc.

References Mat6x6::GetMat11(), Mat6x6::GetMat12(), Mat6x6::GetMat21(), Mat6x6::GetMat22(), and Mat3x3::MulMT().

204 {
205  return Mat6x6(m.GetMat11().MulMT(R), m.GetMat21().MulMT(R),
206  m.GetMat12().MulMT(R), m.GetMat22().MulMT(R));
207 }
Mat3x3 GetMat12(void)
Definition: matvec6.h:328
Mat3x3 GetMat21(void)
Definition: matvec6.h:324
Mat3x3 GetMat22(void)
Definition: matvec6.h:332
Mat3x3 GetMat11(void)
Definition: matvec6.h:320
Mat3x3 MulMT(const Mat3x3 &m) const
Definition: matvec3.cc:444

Here is the call graph for this function:

Mat6x6 MultRM ( const Mat6x6 m,
const Mat3x3 R
)

Definition at line 196 of file matvec6.cc.

References Mat6x6::GetMat11(), Mat6x6::GetMat12(), Mat6x6::GetMat21(), and Mat6x6::GetMat22().

197 {
198  return Mat6x6(R*m.GetMat11(), R*m.GetMat21(),
199  R*m.GetMat12(), R*m.GetMat22());
200 }
Mat3x3 GetMat12(void)
Definition: matvec6.h:328
Mat3x3 GetMat21(void)
Definition: matvec6.h:324
Mat3x3 GetMat22(void)
Definition: matvec6.h:332
Mat3x3 GetMat11(void)
Definition: matvec6.h:320

Here is the call graph for this function:

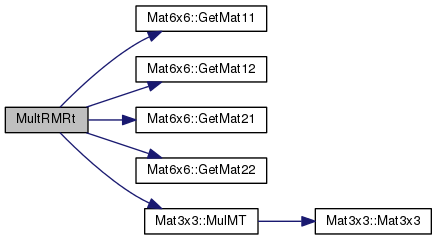

Mat6x6 MultRMRt ( const Mat6x6 m,
const Mat3x3 R
)

Definition at line 210 of file matvec6.cc.

References Mat6x6::GetMat11(), Mat6x6::GetMat12(), Mat6x6::GetMat21(), Mat6x6::GetMat22(), and Mat3x3::MulMT().

211 {
212  return Mat6x6(R*m.GetMat11().MulMT(R), R*m.GetMat21().MulMT(R),
213  R*m.GetMat12().MulMT(R), R*m.GetMat22().MulMT(R));
214 }
Mat3x3 GetMat12(void)
Definition: matvec6.h:328
Mat3x3 GetMat21(void)
Definition: matvec6.h:324
Mat3x3 GetMat22(void)
Definition: matvec6.h:332
Mat3x3 GetMat11(void)
Definition: matvec6.h:320
Mat3x3 MulMT(const Mat3x3 &m) const
Definition: matvec3.cc:444

Here is the call graph for this function:

Mat6x6 MultRMRt ( const Mat6x6 m,
const Mat3x3 R,
const doublereal c
)

Definition at line 216 of file matvec6.cc.

References Mat6x6::GetMat11(), Mat6x6::GetMat12(), Mat6x6::GetMat21(), Mat6x6::GetMat22(), and Mat3x3::MulMT().

217 {
218  Mat3x3 Rc(R*c);
219  return Mat6x6(R*m.GetMat11().MulMT(Rc), R*m.GetMat21().MulMT(Rc),
220  R*m.GetMat12().MulMT(Rc), R*m.GetMat22().MulMT(Rc));
221 }
Mat3x3 GetMat12(void)
Definition: matvec6.h:328
Mat3x3 GetMat21(void)
Definition: matvec6.h:324
Mat3x3 GetMat22(void)
Definition: matvec6.h:332
Mat3x3 GetMat11(void)
Definition: matvec6.h:320
static std::stack< cleanup * > c
Definition: cleanup.cc:59
Mat3x3 MulMT(const Mat3x3 &m) const
Definition: matvec3.cc:444

Here is the call graph for this function:

Vec6 MultRV ( const Vec6 v,
const Mat3x3 R
)

Definition at line 190 of file matvec6.cc.

References Vec6::GetVec1(), and Vec6::GetVec2().

191 {
192  return Vec6(R*v.GetVec1(), R*v.GetVec2());
193 }
const Vec3 & GetVec2(void) const
Definition: matvec6.h:76
Definition: matvec6.h:37
const Vec3 & GetVec1(void) const
Definition: matvec6.h:72

Here is the call graph for this function:

Mat6x6 MultVCrossMat ( const Mat6x6 m,
const Vec3 v
)

Definition at line 228 of file matvec6.cc.

References Vec3::Cross(), Mat6x6::GetMat11(), Mat6x6::GetMat12(), Mat6x6::GetMat21(), and Mat6x6::GetMat22().

229 {
230  return Mat6x6(m.GetMat11(),
231  v.Cross(m.GetMat11())+m.GetMat21(),
232  m.GetMat12(),
233  v.Cross(m.GetMat12())+m.GetMat22());
234 }
Vec3 Cross(const Vec3 &v) const
Definition: matvec3.h:218
Mat3x3 GetMat12(void)
Definition: matvec6.h:328
Mat3x3 GetMat21(void)
Definition: matvec6.h:324
Mat3x3 GetMat22(void)
Definition: matvec6.h:332
Mat3x3 GetMat11(void)
Definition: matvec6.h:320

Here is the call graph for this function:

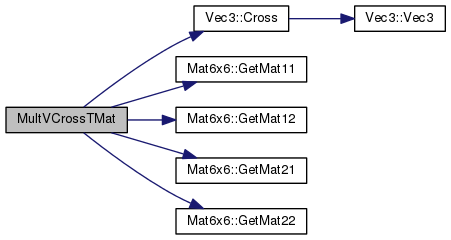

Mat6x6 MultVCrossTMat ( const Mat6x6 m,
const Vec3 v
)

Definition at line 241 of file matvec6.cc.

References Vec3::Cross(), Mat6x6::GetMat11(), Mat6x6::GetMat12(), Mat6x6::GetMat21(), and Mat6x6::GetMat22().

242 {
243  return Mat6x6(m.GetMat11()+v.Cross(m.GetMat21()),
244  m.GetMat21(),
245  m.GetMat12()+v.Cross(m.GetMat22()),
246  m.GetMat22());
247 }
Vec3 Cross(const Vec3 &v) const
Definition: matvec3.h:218
Mat3x3 GetMat12(void)
Definition: matvec6.h:328
Mat3x3 GetMat21(void)
Definition: matvec6.h:324
Mat3x3 GetMat22(void)
Definition: matvec6.h:332
Mat3x3 GetMat11(void)
Definition: matvec6.h:320

Here is the call graph for this function:

Vec6 operator+ ( const Vec6 v)

Definition at line 81 of file matvec6.cc.

82 {
83  return v;
84 }
Vec6 operator- ( const Vec6 v)

Definition at line 87 of file matvec6.cc.

References Vec6::GetVec1(), and Vec6::GetVec2().

88 {
89  return Vec6(-v.GetVec1(), -v.GetVec2());
90 }
const Vec3 & GetVec2(void) const
Definition: matvec6.h:76
Definition: matvec6.h:37
const Vec3 & GetVec1(void) const
Definition: matvec6.h:72

Here is the call graph for this function:

std::ostream& operator<< ( std::ostream &  out,
const Vec6 m
)

Definition at line 94 of file matvec6.cc.

References Vec3::dGet(), Vec6::GetVec1(), and Vec6::GetVec2().

95 {
96  const Vec3& v1 = v.GetVec1();
97  const Vec3& v2 = v.GetVec2();
98  return out
99  << v1.dGet(1) << " " << v1.dGet(2) << " " << v1.dGet(3) << " "
100  << v2.dGet(1) << " " << v2.dGet(2) << " " << v2.dGet(3);
101 }
Definition: matvec3.h:98
const doublereal & dGet(unsigned short int iRow) const
Definition: matvec3.h:285

Here is the call graph for this function:

std::ostream& operator<< ( std::ostream &  out,
const Mat6x6 m
)

Definition at line 160 of file matvec6.cc.

References Mat3x3::dGet(), Mat6x6::GetMat11(), Mat6x6::GetMat12(), Mat6x6::GetMat21(), and Mat6x6::GetMat22().

161 {
162  const Mat3x3& m11 = m.GetMat11();
163  const Mat3x3& m12 = m.GetMat12();
164  const Mat3x3& m21 = m.GetMat21();
165  const Mat3x3& m22 = m.GetMat22();
166  return out
167  << m11.dGet(1, 1) << " " << m11.dGet(1, 2) << " " << m11.dGet(1,3) << " "
168  << m12.dGet(1, 1) << " " << m12.dGet(1, 2) << " " << m12.dGet(1,3) << std::endl
169  << m11.dGet(2, 1) << " " << m11.dGet(2, 2) << " " << m11.dGet(2,3) << " "
170  << m12.dGet(2, 1) << " " << m12.dGet(2, 2) << " " << m12.dGet(2,3) << std::endl
171  << m11.dGet(3, 1) << " " << m11.dGet(3, 2) << " " << m11.dGet(3,3) << " "
172  << m12.dGet(3, 1) << " " << m12.dGet(3, 2) << " " << m12.dGet(3,3) << std::endl
173  << m21.dGet(1, 1) << " " << m21.dGet(1, 2) << " " << m21.dGet(1,3) << " "
174  << m22.dGet(1, 1) << " " << m22.dGet(1, 2) << " " << m22.dGet(1,3) << std::endl
175  << m21.dGet(2, 1) << " " << m21.dGet(2, 2) << " " << m21.dGet(2,3) << " "
176  << m22.dGet(2, 1) << " " << m22.dGet(2, 2) << " " << m22.dGet(2,3) << std::endl
177  << m21.dGet(3, 1) << " " << m21.dGet(3, 2) << " " << m21.dGet(3,3) << " "
178  << m22.dGet(3, 1) << " " << m22.dGet(3, 2) << " " << m22.dGet(3,3);
179 }
const doublereal & dGet(unsigned short int iRow, unsigned short int iCol) const
Definition: matvec3.h:770
Mat3x3 GetMat12(void)
Definition: matvec6.h:328
Mat3x3 GetMat21(void)
Definition: matvec6.h:324
Mat3x3 GetMat22(void)
Definition: matvec6.h:332
Mat3x3 GetMat11(void)
Definition: matvec6.h:320

Here is the call graph for this function:

std::ostream& Write ( std::ostream &  out,
const Vec6 v,
const char *  sFill = " "
)

Definition at line 105 of file matvec6.cc.

References Vec6::Write().

106 {
107  return v.Write(out, sFill);
108 }
std::ostream & Write(std::ostream &out, const char *sFill=" ") const
Definition: matvec6.cc:54

Here is the call graph for this function:

std::ostream& Write ( std::ostream &  out,
const Mat6x6 m,
const char *  sFill = " ",
const char *  sFill2 = NULL
)

Definition at line 183 of file matvec6.cc.

References Mat6x6::Write().

185 {
186  return m.Write(out, sFill, sFill2);
187 }
std::ostream & Write(std::ostream &out, const char *sFill=" ", const char *sFill2=NULL) const
Definition: matvec6.cc:112

Here is the call graph for this function:

Variable Documentation

const Mat6x6 Eye6

Referenced by MBDynParser::GetMat6x6().

const Mat6x6 Zero6x6
