#include "userelem.h"

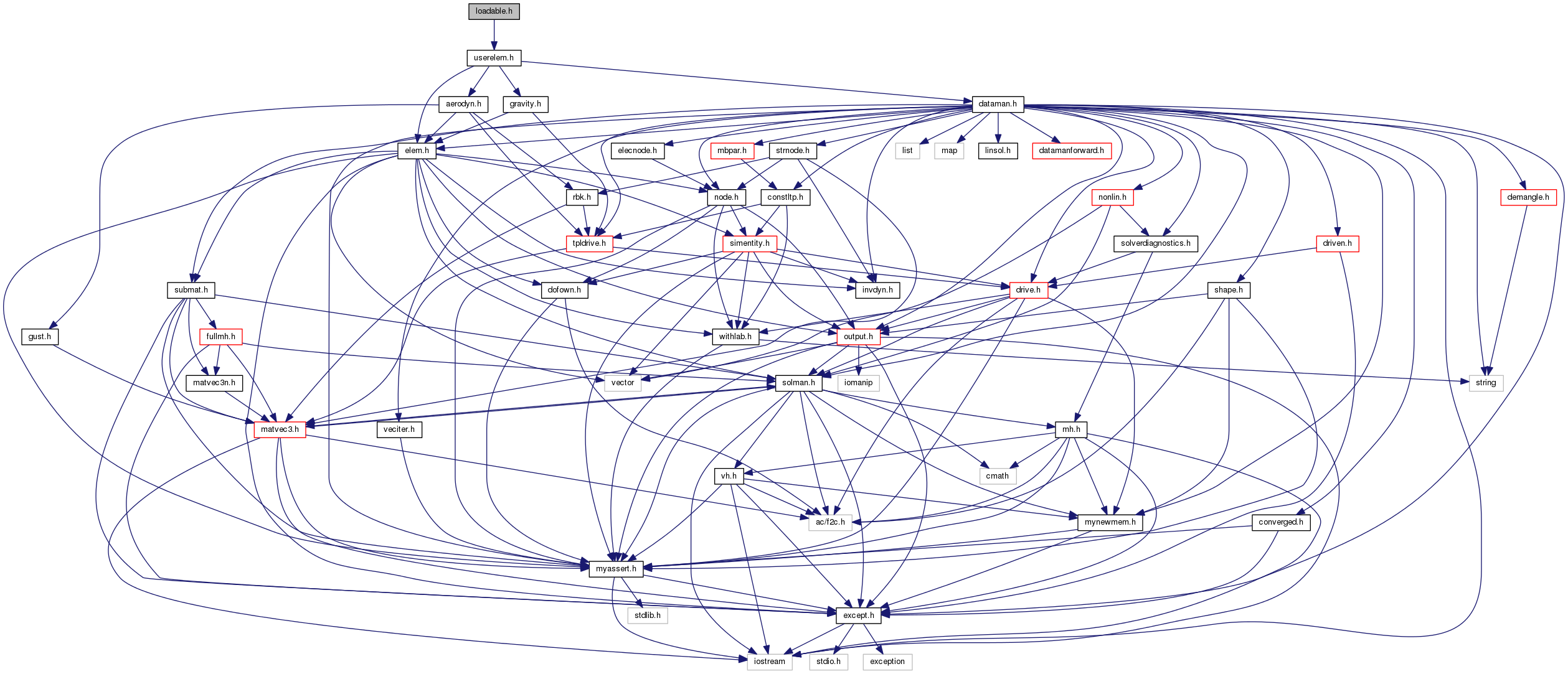

Include dependency graph for loadable.h:

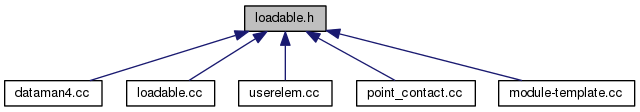

This graph shows which files directly or indirectly include this file:

Classes
struct	LoadableCalls

class	LoadableElem

struct	LoadableElemRead

Macros
#define	LOADABLE_VERSION_SET(maj, min, fix) (((maj) << 24) \| ((min) << 16) \| (fix))

#define	LOADABLE_VERSION LOADABLE_VERSION_SET(1, 5, 0)

#define	LOADABLE_VERSION_OUT(v) ((v & 0xFF000000U) >> 24) << '.' << ((v & 0x00FF0000U) >> 16) << '.' << (v & 0x0000FFFFU)

Typedefs
typedef void (	p_read )(LoadableElem , DataManager , MBDynParser &)

typedef unsigned int(*	p_i_get_num_dof )(const LoadableElem *)

typedef DofOrder::Order(*	p_set_dof )(const LoadableElem *, unsigned int)

typedef void(*	p_output )(const LoadableElem *, OutputHandler &)

typedef std::ostream &(*	p_restart )(const LoadableElem *, std::ostream &)

typedef void(*	p_work_space_dim )(const LoadableElem , integer , integer *)

typedef VariableSubMatrixHandler &(*	p_ass_jac )(LoadableElem *, VariableSubMatrixHandler &, doublereal, const VectorHandler &, const VectorHandler &)

typedef void(*	p_ass_mats )(LoadableElem *, VariableSubMatrixHandler &, VariableSubMatrixHandler &, const VectorHandler &, const VectorHandler &)

typedef SubVectorHandler &(*	p_ass_res )(LoadableElem *, SubVectorHandler &, doublereal, const VectorHandler &, const VectorHandler &)

typedef void(*	p_before_predict )(const LoadableElem *pEl, VectorHandler &X, VectorHandler &XP, VectorHandler &XPrev, VectorHandler &XPPrev)

typedef void(*	p_after_predict )(const LoadableElem *pEl, VectorHandler &X, VectorHandler &XP)

typedef void(*	p_update )(LoadableElem *pEl, const VectorHandler &X, const VectorHandler &XP)

typedef void(*	p_after_convergence )(const LoadableElem *pEl, const VectorHandler &X, const VectorHandler &XP)

typedef unsigned int(*	p_i_get_initial_num_dof )(const LoadableElem *)

typedef void(*	p_initial_work_space_dim )(const LoadableElem , integer , integer *)

typedef VariableSubMatrixHandler &(*	p_initial_ass_jac )(LoadableElem *, VariableSubMatrixHandler &, const VectorHandler &)

typedef SubVectorHandler &(*	p_initial_ass_res )(LoadableElem *, SubVectorHandler &, const VectorHandler &)

typedef void(*	p_set_value )(const LoadableElem , DataManager pDM, VectorHandler &, VectorHandler &, SimulationEntity::Hints *ph)

typedef void(*	p_set_initial_value )(const LoadableElem *, VectorHandler &)

typedef unsigned int(*	p_i_get_num_priv_data )(const LoadableElem *pEl)

typedef unsigned int(*	p_i_get_priv_data_idx )(const LoadableElem pEl, const char )

typedef doublereal(*	p_d_get_priv_data )(const LoadableElem *pEl, unsigned int i)

typedef int(*	p_i_get_num_connected_nodes )(const LoadableElem *)

typedef void(*	p_get_connected_nodes )(const LoadableElem , std::vector< const Node > &connectedNodes)

typedef void(*	p_destroy )(LoadableElem *)

Functions
Elem *	ReadLoadable (DataManager pDM, MBDynParser &HP, const DofOwner pDO, unsigned int uLabel)

Macro Definition Documentation

#define LOADABLE_VERSION LOADABLE_VERSION_SET(1, 5, 0)

Definition at line 47 of file loadable.h.

Referenced by LoadableElem::BindCalls().

#define LOADABLE_VERSION_OUT ( v ) ((v & 0xFF000000U) >> 24) << '.' << ((v & 0x00FF0000U) >> 16) << '.' << (v & 0x0000FFFFU)

Definition at line 48 of file loadable.h.

Referenced by LoadableElem::BindCalls().

#define LOADABLE_VERSION_SET	(	maj,
		min,
		fix
	)	(((maj) << 24) \| ((min) << 16) \| (fix))

Definition at line 45 of file loadable.h.

Typedef Documentation

typedef void(* p_after_convergence)(const LoadableElem *pEl, const VectorHandler &X, const VectorHandler &XP)

Definition at line 135 of file loadable.h.

typedef void(* p_after_predict)(const LoadableElem *pEl, VectorHandler &X, VectorHandler &XP)

Definition at line 129 of file loadable.h.

typedef VariableSubMatrixHandler&(* p_ass_jac)(LoadableElem *, VariableSubMatrixHandler &, doublereal, const VectorHandler &, const VectorHandler &)

Definition at line 115 of file loadable.h.

typedef void(* p_ass_mats)(LoadableElem *, VariableSubMatrixHandler &, VariableSubMatrixHandler &, const VectorHandler &, const VectorHandler &)

Definition at line 118 of file loadable.h.

typedef SubVectorHandler&(* p_ass_res)(LoadableElem *, SubVectorHandler &, doublereal, const VectorHandler &, const VectorHandler &)

Definition at line 122 of file loadable.h.

typedef void(* p_before_predict)(const LoadableElem *pEl, VectorHandler &X, VectorHandler &XP, VectorHandler &XPrev, VectorHandler &XPPrev)

Definition at line 125 of file loadable.h.

typedef doublereal(* p_d_get_priv_data)(const LoadableElem *pEl, unsigned int i)

Definition at line 154 of file loadable.h.

typedef void(* p_destroy)(LoadableElem *)

Definition at line 159 of file loadable.h.

typedef void(* p_get_connected_nodes)(const LoadableElem *, std::vector< const Node * > &connectedNodes)

Definition at line 157 of file loadable.h.

typedef unsigned int(* p_i_get_initial_num_dof)(const LoadableElem *)

Definition at line 137 of file loadable.h.

typedef int(* p_i_get_num_connected_nodes)(const LoadableElem *)

Definition at line 155 of file loadable.h.

typedef unsigned int(* p_i_get_num_dof)(const LoadableElem *)

Definition at line 109 of file loadable.h.

typedef unsigned int(* p_i_get_num_priv_data)(const LoadableElem *pEl)

Definition at line 150 of file loadable.h.

typedef unsigned int(* p_i_get_priv_data_idx)(const LoadableElem *pEl, const char *)

Definition at line 152 of file loadable.h.

typedef VariableSubMatrixHandler&(* p_initial_ass_jac)(LoadableElem *, VariableSubMatrixHandler &, const VectorHandler &)

Definition at line 141 of file loadable.h.

typedef SubVectorHandler&(* p_initial_ass_res)(LoadableElem *, SubVectorHandler &, const VectorHandler &)

Definition at line 144 of file loadable.h.

typedef void(* p_initial_work_space_dim)(const LoadableElem *, integer *, integer *)

Definition at line 139 of file loadable.h.

typedef void(* p_output)(const LoadableElem *, OutputHandler &)

Definition at line 111 of file loadable.h.

typedef void*(* p_read)(LoadableElem *, DataManager *, MBDynParser &)

Definition at line 108 of file loadable.h.

typedef std::ostream&(* p_restart)(const LoadableElem *, std::ostream &)

Definition at line 112 of file loadable.h.

typedef DofOrder::Order(* p_set_dof)(const LoadableElem *, unsigned int)

Definition at line 110 of file loadable.h.

typedef void(* p_set_initial_value)(const LoadableElem *, VectorHandler &)

Definition at line 149 of file loadable.h.

typedef void(* p_set_value)(const LoadableElem *, DataManager *pDM, VectorHandler &, VectorHandler &, SimulationEntity::Hints *ph)

Definition at line 146 of file loadable.h.

typedef void(* p_update)(LoadableElem *pEl, const VectorHandler &X, const VectorHandler &XP)

Definition at line 132 of file loadable.h.

typedef void(* p_work_space_dim)(const LoadableElem *, integer *, integer *)

Definition at line 113 of file loadable.h.

Function Documentation

Elem* ReadLoadable	(	DataManager *	pDM,
		MBDynParser &	HP,
		const DofOwner *	pDO,
		unsigned int	uLabel
	)

Definition at line 87 of file userelem.cc.

References ASSERT, and UDEMap.

Referenced by DataManager::ReadOneElem().

 {
         UDEMapType::iterator i = UDEMap.find("loadable");
         ASSERT(i != UDEMap.end());

         return i->second->Read(uLabel, pDO, pDM, HP);
 }
