HydrodynamicPlainBearing Class Reference

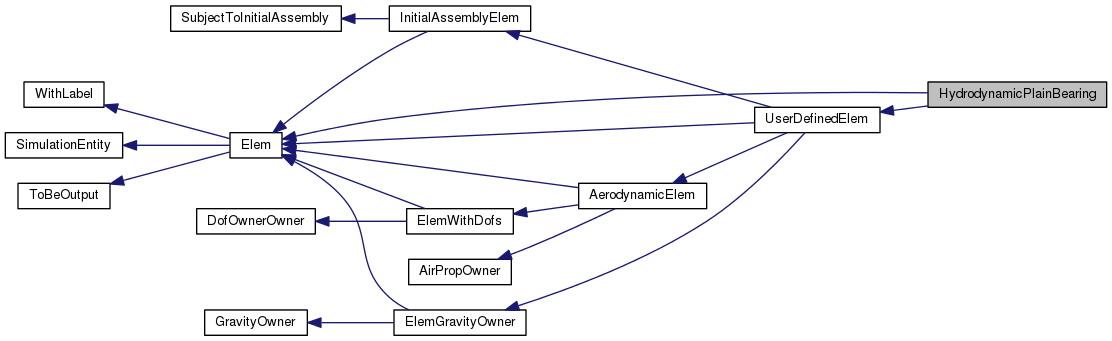

Inheritance diagram for HydrodynamicPlainBearing:
Inheritance graph
[legend]

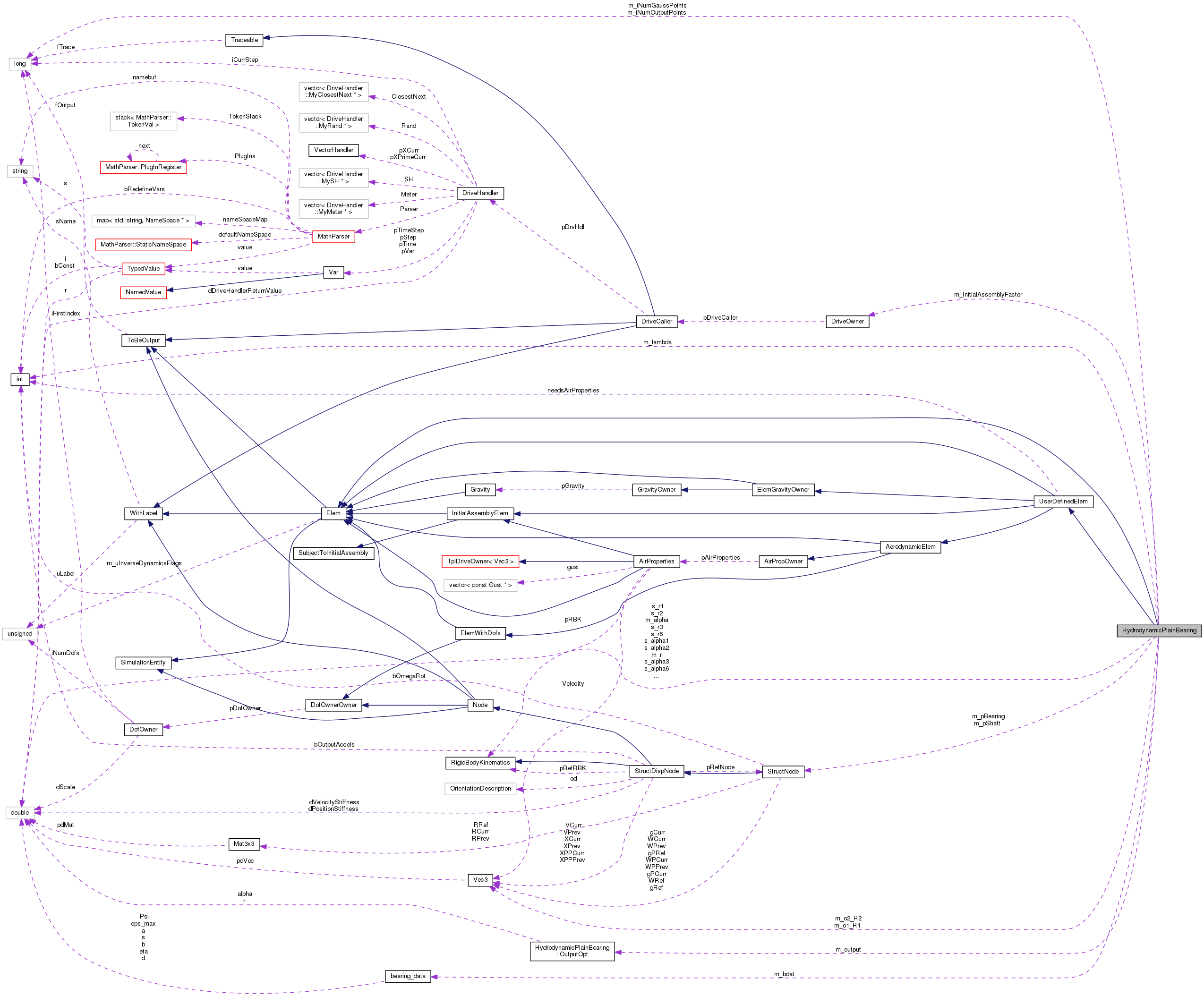

Collaboration diagram for HydrodynamicPlainBearing:
Collaboration graph
[legend]

Classes

struct  OutputOpt


Public Member Functions

 HydrodynamicPlainBearing (unsigned uLabel, const DofOwner *pDO, DataManager *pDM, MBDynParser &HP)

virtual ~HydrodynamicPlainBearing (void)

virtual void Output (OutputHandler &OH) const

virtual void WorkSpaceDim (integer *piNumRows, integer *piNumCols) const

VariableSubMatrixHandler & AssJac (VariableSubMatrixHandler &WorkMat, doublereal dCoef, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

void ComputeResidual (Vec3 &e_R2, Vec3 &e_dot_R2, doublereal omega_proj[2], Vec3 &F2_R2, Vec3 &M2_R2, Vec3 &F2_I, Vec3 &M2_I, Vec3 &F1_I, Vec3 &M1_I, doublereal &eps, doublereal &eps_dot, doublereal &delta, doublereal &SoD, doublereal &SoV, doublereal &my, doublereal &beta, doublereal r, doublereal alpha) const

SubVectorHandler & AssRes (SubVectorHandler &WorkVec, doublereal dCoef, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

unsigned int iGetNumPrivData (void) const

int iGetNumConnectedNodes (void) const

void GetConnectedNodes (std::vector< const Node * > &connectedNodes) const

void SetValue (DataManager *pDM, VectorHandler &X, VectorHandler &XP, SimulationEntity::Hints *ph)

std::ostream & Restart (std::ostream &out) const

virtual unsigned int iGetInitialNumDof (void) const

virtual void InitialWorkSpaceDim (integer *piNumRows, integer *piNumCols) const

VariableSubMatrixHandler & InitialAssJac (VariableSubMatrixHandler &WorkMat, const VectorHandler &XCurr)

SubVectorHandler & InitialAssRes (SubVectorHandler &WorkVec, const VectorHandler &XCurr)

- Public Member Functions inherited from Elem
 Elem (unsigned int uL, flag fOut)

virtual ~Elem (void)

virtual unsigned int iGetNumDof (void) const

virtual std::ostream & DescribeDof (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void DescribeDof (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual std::ostream & DescribeEq (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void DescribeEq (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual DofOrder::Order GetDofType (unsigned int) const

virtual void AssMats (VariableSubMatrixHandler &WorkMatA, VariableSubMatrixHandler &WorkMatB, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual bool bInverseDynamics (void) const

void SetInverseDynamicsFlags (unsigned uIDF)

unsigned GetInverseDynamicsFlags (void) const

bool bIsErgonomy (void) const

bool bIsRightHandSide (void) const

virtual VariableSubMatrixHandler & AssJac (VariableSubMatrixHandler &WorkMat, const VectorHandler &XCurr)

virtual SubVectorHandler & AssRes (SubVectorHandler &WorkVec, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr, const VectorHandler &XPrimePrimeCurr, InverseDynamics::Order iOrder=InverseDynamics::INVERSE_DYNAMICS)

virtual int GetNumConnectedNodes (void) const

- Public Member Functions inherited from WithLabel
 WithLabel (unsigned int uL=0, const std::string &sN="")

virtual ~WithLabel (void)

void PutLabel (unsigned int uL)

void PutName (const std::string &sN)

unsigned int GetLabel (void) const

const std::string & GetName (void) const

- Public Member Functions inherited from SimulationEntity
 SimulationEntity (void)

virtual ~SimulationEntity (void)

virtual bool bIsValidIndex (unsigned int i) const

virtual DofOrder::Order GetEqType (unsigned int i) const

virtual Hint * ParseHint (DataManager *pDM, const char *s) const

virtual void BeforePredict (VectorHandler &, VectorHandler &, VectorHandler &, VectorHandler &) const

virtual void AfterPredict (VectorHandler &X, VectorHandler &XP)

virtual void Update (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void DerivativesUpdate (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void Update (const VectorHandler &XCurr, InverseDynamics::Order iOrder)

virtual void AfterConvergence (const VectorHandler &X, const VectorHandler &XP)

virtual void AfterConvergence (const VectorHandler &X, const VectorHandler &XP, const VectorHandler &XPP)

virtual unsigned int iGetPrivDataIdx (const char *s) const

virtual doublereal dGetPrivData (unsigned int i) const

virtual std::ostream & OutputAppend (std::ostream &out) const

virtual void ReadInitialState (MBDynParser &HP)

- Public Member Functions inherited from ToBeOutput
 ToBeOutput (flag fOut=fDefaultOut)

virtual ~ToBeOutput (void)

virtual void OutputPrepare (OutputHandler &OH)

virtual void Output (OutputHandler &OH, const VectorHandler &X, const VectorHandler &XP) const

virtual flag fToBeOutput (void) const

virtual bool bToBeOutput (void) const

virtual void SetOutputFlag (flag f=flag(1))

- Public Member Functions inherited from UserDefinedElem
 UserDefinedElem (unsigned uLabel, const DofOwner *pDO)

virtual ~UserDefinedElem (void)

bool NeedsAirProperties (void) const

void NeedsAirProperties (bool yesno)

virtual Elem::Type GetElemType (void) const

virtual AerodynamicElem::Type GetAerodynamicElemType (void) const

- Public Member Functions inherited from InitialAssemblyElem
 InitialAssemblyElem (unsigned int uL, flag fOut)

virtual ~InitialAssemblyElem (void)

- Public Member Functions inherited from SubjectToInitialAssembly
 SubjectToInitialAssembly (void)

virtual ~SubjectToInitialAssembly (void)

- Public Member Functions inherited from AerodynamicElem
 AerodynamicElem (unsigned int uL, const DofOwner *pDO, flag fOut)

virtual ~AerodynamicElem (void)

virtual const InducedVelocity * pGetInducedVelocity (void) const

- Public Member Functions inherited from ElemWithDofs
 ElemWithDofs (unsigned int uL, const DofOwner *pDO, flag fOut)

virtual ~ElemWithDofs (void)

- Public Member Functions inherited from DofOwnerOwner
 DofOwnerOwner (const DofOwner *pDO)

virtual ~DofOwnerOwner ()

virtual const DofOwner * pGetDofOwner (void) const

virtual integer iGetFirstIndex (void) const

virtual void SetInitialValue (VectorHandler &X)

- Public Member Functions inherited from AirPropOwner
 AirPropOwner (void)

virtual ~AirPropOwner (void)

virtual void PutAirProperties (const AirProperties *pAP)

virtual flag fGetAirVelocity (Vec3 &Velocity, const Vec3 &X) const

virtual doublereal dGetAirDensity (const Vec3 &X) const

virtual doublereal dGetAirPressure (const Vec3 &X) const

virtual doublereal dGetAirTemperature (const Vec3 &X) const

virtual doublereal dGetSoundSpeed (const Vec3 &X) const

virtual bool GetAirProps (const Vec3 &X, doublereal &rho, doublereal &c, doublereal &p, doublereal &T) const

- Public Member Functions inherited from ElemGravityOwner
 ElemGravityOwner (unsigned int uL, flag fOut)

virtual ~ElemGravityOwner (void)

virtual doublereal dGetM (void) const

Vec3 GetS (void) const

Mat3x3 GetJ (void) const

Vec3 GetB (void) const

Vec3 GetG (void) const

- Public Member Functions inherited from GravityOwner
 GravityOwner (void)

virtual ~GravityOwner (void)

void PutGravity (const Gravity *pG)

virtual bool bGetGravity (const Vec3 &X, Vec3 &Acc) const


Private Attributes

const StructNode * m_pShaft

const StructNode * m_pBearing

Vec3 m_o1_R1

Vec3 m_o2_R2

bearing_data m_bdat

DriveOwner m_InitialAssemblyFactor

integer m_iNumGaussPoints

const doublereal * m_r

const doublereal * m_alpha

struct
HydrodynamicPlainBearing::OutputOpt 		m_output [6]

integer m_iNumOutputPoints

bool m_lambda


Static Private Attributes

static const doublereal s_r1 [1] = {0.5 * 0.}

static const doublereal s_alpha1 [1] = {0.5 * 2}

static const doublereal s_r2 [2]

static const doublereal s_alpha2 [2]

static const doublereal s_r3 [3]

static const doublereal s_alpha3 [3]

static const doublereal s_r6 [6]

static const doublereal s_alpha6 [6]


Additional Inherited Members

- Public Types inherited from Elem
enum  Type {
  UNKNOWN = -1, AIRPROPERTIES = 0, INDUCEDVELOCITY, AUTOMATICSTRUCTURAL,
  GRAVITY, BODY, JOINT, JOINT_REGULARIZATION,
  BEAM, PLATE, FORCE, INERTIA,
  ELECTRICBULK, ELECTRIC, THERMAL, HYDRAULIC,
  BULK, LOADABLE, DRIVEN, EXTERNAL,
  AEROMODAL, AERODYNAMIC, GENEL, SOCKETSTREAM_OUTPUT,
  RTAI_OUTPUT = SOCKETSTREAM_OUTPUT, LASTELEMTYPE
}

- Public Types inherited from SimulationEntity
typedef std::vector< Hint * > Hints

- Public Types inherited from ToBeOutput
enum  { OUTPUT = 0x1U, OUTPUT_MASK = 0xFU, OUTPUT_PRIVATE = 0x10U, OUTPUT_PRIVATE_MASK = ~OUTPUT_MASK }

- Public Types inherited from AerodynamicElem
enum  Type {
  UNKNOWN = -1, INDUCEDVELOCITY = 0, AEROMODAL, AERODYNAMICBODY,
  AERODYNAMICBEAM, AERODYNAMICEXTERNAL, AERODYNAMICEXTERNALMODAL, AERODYNAMICLOADABLE,
  AIRCRAFTINSTRUMENTS, GENERICFORCE, LASTAEROTYPE
}

- Protected Member Functions inherited from ElemGravityOwner
virtual Vec3 GetS_int (void) const

virtual Mat3x3 GetJ_int (void) const

virtual Vec3 GetB_int (void) const

virtual Vec3 GetG_int (void) const

- Protected Attributes inherited from WithLabel
unsigned int uLabel

std::string sName

- Protected Attributes inherited from ToBeOutput
flag fOutput

- Protected Attributes inherited from UserDefinedElem
bool needsAirProperties

- Protected Attributes inherited from AirPropOwner
const AirProperties * pAirProperties

- Protected Attributes inherited from GravityOwner
Gravity * pGravity


Detailed Description

Definition at line 59 of file module-hydrodynamic_plain_bearing.cc.

Constructor & Destructor Documentation

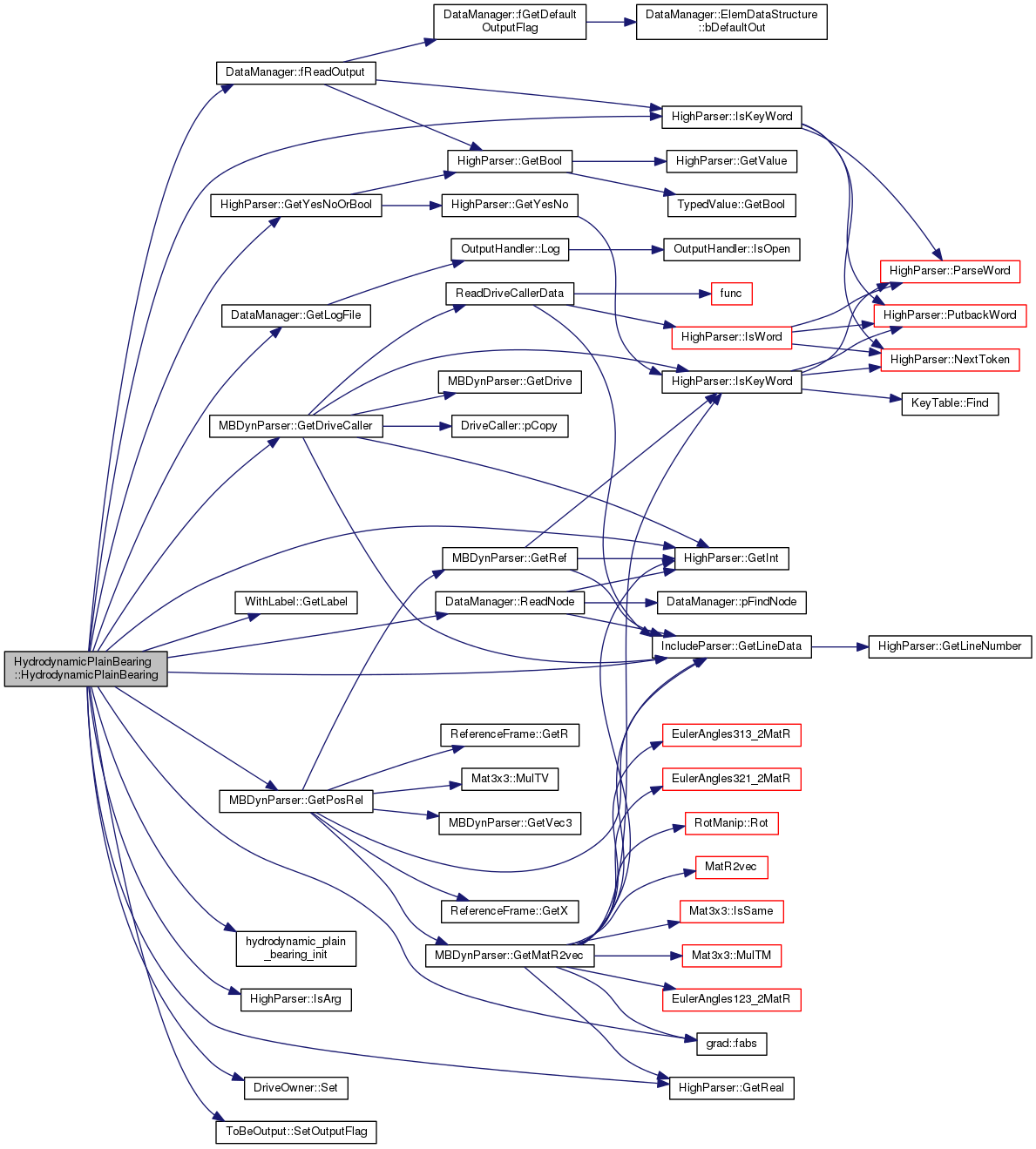

HydrodynamicPlainBearing::HydrodynamicPlainBearing ( unsigned  uLabel,
const DofOwner *  pDO,
DataManager *  pDM,
MBDynParser &  HP
)

Definition at line 163 of file module-hydrodynamic_plain_bearing.cc.

References HydrodynamicPlainBearing::OutputOpt::alpha, ASSERT, bearing_data::b, CASE_GAUSS_POINT_NUM_, bearing_data::d, bearing_data::eps_max, bearing_data::eta, grad::fabs(), DataManager::fReadOutput(), MBDynParser::GetDriveCaller(), HighParser::GetInt(), WithLabel::GetLabel(), IncludeParser::GetLineData(), DataManager::GetLogFile(), MBDynParser::GetPosRel(), HighParser::GetReal(), HighParser::GetYesNoOrBool(), hydrodynamic_plain_bearing_init(), HighParser::IsArg(), HighParser::IsKeyWord(), Elem::LOADABLE, m_alpha, m_bdat, m_InitialAssemblyFactor, m_iNumGaussPoints, m_iNumOutputPoints, m_lambda, m_o1_R1, m_o2_R2, m_output, m_pBearing, m_pShaft, m_r, MBDYN_EXCEPT_ARGS, bearing_data::Psi, HydrodynamicPlainBearing::OutputOpt::r, DataManager::ReadNode(), DriveOwner::Set(), ToBeOutput::SetOutputFlag(), and Node::STRUCTURAL.

166 : Elem(uLabel, flag(0)),
167  UserDefinedElem(uLabel, pDO),
168  m_pShaft(0),
169  m_pBearing(0),
170  m_o1_R1(0.,0.,0.),
171  m_o2_R2(0.,0.,0.),
172  m_InitialAssemblyFactor(0),
173  m_iNumGaussPoints(0),
174  m_r(0),
175  m_alpha(0),
176  m_iNumOutputPoints(0),
177  m_lambda(true)
178 {
179  std::memset(&m_bdat, 0, sizeof(m_bdat));
180  std::memset(&m_output, 0, sizeof(m_output));
181
182  // help
183  if (HP.IsKeyWord("help"))
184  {
185  silent_cout(
186  "\n"
187  "Module: hydrodynamic_plain_bearing_with_offset\n"
188  "\n"
189  " This module implements a hydrodynamic plain bearing according to\n"
190  "\n"
191  " Hans Juergen Butenschoen 1976\n"
192  " Das hydrodynamische zylindrische Gleitlager\n"
193  " endlicher Breite unter instationaerer Belastung\n"
194  "\n"
195  " hydrodynamic_plain_bearing_with_offset,\n"
196  " shaft, (label) <shaft node>,\n"
197  " [offset, (Vec3) <o1>,]\n"
198  " bearing, (label) <bearing node>,\n"
199  " [offset, (Vec3) <o2>,]\n"
200  " bearing_width, (real) <b>,\n"
201  " {shaft diameter, (real) <d> | bearing_diameter, (real) <D>,}\n"
202  " relative_clearance, (real) <Psi>,\n"
203  " oil_viscosity, (real) <eta>,\n"
204  " initial_assembly_factor, (DriveCaller),\n"
205  " [number of gauss points, <num_gauss_points>]\n"
206  " [output points, (integer) <num_output_points> [, {gauss point, (integer) <index_1> | custom, r, (real) <r_1>, alpha, (real) <alpha_1>}]]\n"
207  " [extend shaft to bearing center, {yes | no | (bool) <extend>}]\n"
208  "\n"
209  " b ... bearing width [m]\n"
210  " d ... bearing diameter [m]\n"
211  " Psi ... relative clearance Psi = ( D - d ) / D [m/m]\n"
212  " eta ... dynamic oil viscosity [Pa*s]\n"
213  "\n"
214  << std::endl);
215
216  if (!HP.IsArg())
217  {
218  /*
219  * Exit quietly if nothing else is provided
220  */
221  throw NoErr(MBDYN_EXCEPT_ARGS);
222  }
223  }
224
225  if (!HP.IsKeyWord("shaft"))
226  {
227  silent_cerr("hydrodynamic_plain_bearing_with_offset(" << GetLabel() << "): keyword \"shaft\" expected at line " << HP.GetLineData() << std::endl);
228  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
229  }
230
231  m_pShaft = pDM->ReadNode<const StructNode, Node::STRUCTURAL>(HP);
232
233  if (!m_pShaft) {
234  silent_cerr("hydrodynamic_plain_bearing_with_offset(" << GetLabel() << "): structural node expected at line " << HP.GetLineData() << std::endl);
235  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
236  }
237
238  if ( HP.IsKeyWord("offset") )
239  m_o1_R1 = HP.GetPosRel(ReferenceFrame(m_pShaft));
240
241  if ( !HP.IsKeyWord("bearing"))
242  {
243  silent_cerr("hydrodynamic_plain_bearing_with_offset(" << GetLabel() << "): keyword \"bearing\" expected at line " << HP.GetLineData() << std::endl);
244  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
245  }
246
247  m_pBearing = pDM->ReadNode<const StructNode, Node::STRUCTURAL>(HP);
248
249  if (!m_pBearing) {
250  silent_cerr("hydrodynamic_plain_bearing_with_offset(" << GetLabel() << "): structural node expected at line " << HP.GetLineData() << std::endl);
251  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
252  }
253
254  if ( HP.IsKeyWord("offset") )
255  m_o2_R2 = HP.GetPosRel(ReferenceFrame(m_pBearing));
256
257  if ( !( HP.IsKeyWord("bearing_width") || HP.IsKeyWord("bearing" "width") ) )
258  {
259  silent_cerr("hydrodynamic_plain_bearing_with_offset(" << GetLabel() << "): keyword \"bearing width\" expected at line " << HP.GetLineData() << std::endl);
260  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
261  }
262
263  m_bdat.b = HP.GetReal();
264
265  bool bHaveD = false;
266
267  if (HP.IsKeyWord("shaft" "diameter"))
268  {
269  m_bdat.d = HP.GetReal();
270  }
271  else
272  {
273  if ( !( HP.IsKeyWord("bearing_diameter") || HP.IsKeyWord("bearing" "diameter") ) )
274  {
275  silent_cerr("hydrodynamic_plain_bearing_with_offset(" << GetLabel() << "): keyword \"bearing diameter\" expected at line " << HP.GetLineData() << std::endl);
276  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
277  }
278
279  m_bdat.d = HP.GetReal();
280  bHaveD = true;
281  }
282
283  if ( !( HP.IsKeyWord("relative_clearance") || HP.IsKeyWord("relative" "clearance") ) )
284  {
285  silent_cerr("hydrodynamic_plain_bearing_with_offset(" << GetLabel() << "): keyword \"relative clearance\" expected at line " << HP.GetLineData() << std::endl);
286  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
287  }
288
289  m_bdat.Psi = HP.GetReal();
290
291  if (bHaveD)
292  {
293  m_bdat.d *= (1 - m_bdat.Psi);
294  }
295
296  if ( !( HP.IsKeyWord("oil_viscosity") || HP.IsKeyWord("oil" "viscosity") ) )
297  {
298  silent_cerr("hydrodynamic_plain_bearing_with_offset(" << GetLabel() << "): keyword \"oil viscosity\" expected at line " << HP.GetLineData() << std::endl);
299  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
300  }
301
302  m_bdat.eta = HP.GetReal();
303
304  m_InitialAssemblyFactor.Set(( HP.IsKeyWord("initial_assembly_factor") || HP.IsKeyWord("initial" "assembly" "factor") ) ? HP.GetDriveCaller() : new OneDriveCaller());
305
306  m_iNumGaussPoints = HP.IsKeyWord("number" "of" "gauss" "points") ? HP.GetInt() : 1;
307
308 #define CASE_GAUSS_POINT_NUM_(num) \
309  case num: \
310  assert(m_iNumGaussPoints == sizeof(s_r##num)/sizeof(s_r##num[0])); \
311  assert(m_iNumGaussPoints == sizeof(s_alpha##num)/sizeof(s_alpha##num[0])); \
312  m_r = s_r##num; \
313  m_alpha = s_alpha##num; \
314  break
315
316  switch (m_iNumGaussPoints)
317  {
318  CASE_GAUSS_POINT_NUM_(1);
319  CASE_GAUSS_POINT_NUM_(2);
320  CASE_GAUSS_POINT_NUM_(3);
321  CASE_GAUSS_POINT_NUM_(6);
322  default:
323  silent_cerr("hydrodynamic_plain_bearing_with_offset(" << GetLabel()
324  << "): integration rule with " << m_iNumGaussPoints
325  << " gauss points not supported at line "
326  << HP.GetLineData() << std::endl);
327  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
328  }
329
330  hydrodynamic_plain_bearing_init(m_bdat);
331
332 #undef CASE_GAUSS_POINT_NUM_
333
334  ASSERT(m_iNumGaussPoints <= sizeof(m_output) / sizeof(m_output[0]));
335
336  if (HP.IsKeyWord("output" "points")) {
337  m_iNumOutputPoints = HP.GetInt();
338
339  if (m_iNumOutputPoints < 0 || m_iNumOutputPoints > m_iNumGaussPoints) {
340  silent_cerr("hydrodynamic_plain_bearing_with_offset(" << GetLabel()
341  << "): number of points for output is not in range [0:" << m_iNumGaussPoints
342  << "] at line " << HP.GetLineData() << std::endl);
343  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
344  }
345
346  for (integer i = 0; i < m_iNumOutputPoints; ++i) {
347  if (HP.IsKeyWord("gauss" "point")) {
348  integer iGaussPoint = HP.GetInt();
349
350  if (iGaussPoint < 1 || iGaussPoint > m_iNumGaussPoints) {
351  silent_cerr("hydrodynamic_plain_bearing_with_offset(" << GetLabel()
352  << "): Gauss point index " << iGaussPoint
353  << " is not in range [1:" << m_iNumGaussPoints << "] at line "
354  << HP.GetLineData() << std::endl);
355  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
356  }
357
358  m_output[i].r = m_r[iGaussPoint - 1];
359  m_output[i].alpha = m_alpha[iGaussPoint - 1];
360  } else if (HP.IsKeyWord("custom")) {
361  if (!HP.IsKeyWord("r")) {
362  silent_cerr("hydrodynamic_plain_bearing_with_offset(" << GetLabel()
363  << "): keyword \"r\" expected at line "
364  << HP.GetLineData() << std::endl);
365  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
366  }
367
368  m_output[i].r = HP.GetReal();
369
370  if (fabs(m_output[i].r) > 0.5) {
371  silent_cerr("hydrodynamic_plain_bearing_with_offset(" << GetLabel()
372  << "): abs(r) = " << fabs(m_output[i].r)
373  << " > 0.5 is outside the bearing width at line "
374  << HP.GetLineData() << std::endl);
375  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
376  }
377
378  if (!HP.IsKeyWord("alpha")) {
379  silent_cerr("hydrodynamic_plain_bearing_with_offset(" << GetLabel()
380  << "): keyword \"alpha\" expected at line "
381  << HP.GetLineData() << std::endl);
382  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
383  }
384
385  m_output[i].alpha = HP.GetReal();
386
387  if (m_output[i].alpha < 0 || m_output[i].alpha > 1) {
388  silent_cerr("hydrodynamic_plain_bearing_with_offset(" << GetLabel()
389  << "): alpha = " << m_output[i].alpha << " is not in range [0:1] at line "
390  << HP.GetLineData() << std::endl);
391  throw ErrGeneric(MBDYN_EXCEPT_ARGS);
392  }
393  }
394  }
395  } else {
396  m_iNumOutputPoints = m_iNumGaussPoints;
397
398  for (integer i = 0; i < m_iNumOutputPoints; ++i) {
399  m_output[i].r = m_r[i];
400  m_output[i].alpha = m_alpha[i];
401  }
402  }
403
404  if (HP.IsKeyWord("extend" "shaft" "to" "bearing" "center")) {
405  m_lambda = HP.GetYesNoOrBool();
406  }
407
408  if (HP.IsKeyWord("epsilon" "max")) {
409  m_bdat.eps_max = HP.GetReal();
410  } else {
411  m_bdat.eps_max = 0.999; // According to Butenschoen this model is valid until epsilon = 0.999
412  }
413
414  SetOutputFlag(pDM->fReadOutput(HP, Elem::LOADABLE));
415
416  std::ostream& out = pDM->GetLogFile();
417
418  out << "hydrodynamic_plain_bearing_with_offset: "
419  << uLabel << " "
420  << m_pShaft->GetLabel() << " "
421  << m_o1_R1 << " "
422  << m_pBearing->GetLabel() << " "
423  << m_o2_R2 << " "
424  << m_bdat.b << " "
425  << m_bdat.d << " "
426  << m_bdat.Psi << " "
427  << m_bdat.eta << " ";
428
429  out << m_iNumGaussPoints << " ";
430
431  for (integer i = 0; i < m_iNumGaussPoints; ++i)
432  {
433  out << m_r[i] << " " << m_alpha[i] << " ";
434  }
435
436  out << m_iNumOutputPoints << " ";
437
438  for (integer i = 0; i < m_iNumOutputPoints; ++i)
439  {
440  out << m_output[i].r << " " << m_output[i].alpha << " ";
441  }
442
443  out << std::endl;
444 }
DataManager::fReadOutput
flag fReadOutput(MBDynParser &HP, const T &t) const
Definition: dataman.h:1064
CASE_GAUSS_POINT_NUM_
#define CASE_GAUSS_POINT_NUM_(num)
flag
long int flag
Definition: mbdyn.h:43
MBDYN_EXCEPT_ARGS
#define MBDYN_EXCEPT_ARGS
Definition: except.h:63
HighParser::GetInt
virtual integer GetInt(integer iDefval=0)
Definition: parser.cc:1050
hydrodynamic_plain_bearing_init
void hydrodynamic_plain_bearing_init(bearing_data &bdat)
grad::fabs
GradientExpression< UnaryExpr< FuncFabs, Expr > > fabs(const GradientExpression< Expr > &u)
Definition: gradient.h:2973
bearing_data::eps_max
doublereal eps_max
Definition: hydrodynamic_plain_bearing_force.h:15
HighParser::GetYesNoOrBool
virtual bool GetYesNoOrBool(bool bDefval=false)
Definition: parser.cc:1038
HydrodynamicPlainBearing::m_output
struct HydrodynamicPlainBearing::OutputOpt m_output[6]
bearing_data::d
doublereal d
Definition: hydrodynamic_plain_bearing_force.h:15
MBDynParser::GetPosRel
Vec3 GetPosRel(const ReferenceFrame &rf)
Definition: mbpar.cc:1331
HighParser::IsKeyWord
virtual bool IsKeyWord(const char *sKeyWord)
Definition: parser.cc:910
WithLabel::uLabel
unsigned int uLabel
Definition: withlab.h:44
ASSERT
#define ASSERT(expression)
Definition: colamd.c:977
NoErr
Definition: except.h:79
HighParser::IsArg
virtual bool IsArg(void)
Definition: parser.cc:807
DataManager::GetLogFile
std::ostream & GetLogFile(void) const
Definition: dataman.h:326
DriveOwner::Set
void Set(const DriveCaller *pDC)
Definition: drive.cc:647
UserDefinedElem::UserDefinedElem
UserDefinedElem(unsigned uLabel, const DofOwner *pDO)
Definition: userelem.cc:152
bearing_data::Psi
doublereal Psi
Definition: hydrodynamic_plain_bearing_force.h:15
MBDynParser::GetDriveCaller
DriveCaller * GetDriveCaller(bool bDeferred=false)
Definition: mbpar.cc:2033
bearing_data::b
doublereal b
Definition: hydrodynamic_plain_bearing_force.h:15
bearing_data::eta
doublereal eta
Definition: hydrodynamic_plain_bearing_force.h:15
ToBeOutput::SetOutputFlag
virtual void SetOutputFlag(flag f=flag(1))
Definition: output.cc:896
Elem::Elem
Elem(unsigned int uL, flag fOut)
Definition: elem.cc:41
integer
long int integer
Definition: colamd.c:51
IncludeParser::GetLineData
virtual HighParser::ErrOut GetLineData(void) const
Definition: parsinc.cc:697
WithLabel::GetLabel
unsigned int GetLabel(void) const
Definition: withlab.cc:62
DataManager::ReadNode
Node * ReadNode(MBDynParser &HP, Node::Type type) const
Definition: dataman3.cc:2309
HighParser::GetReal
virtual doublereal GetReal(const doublereal &dDefval=0.0)
Definition: parser.cc:1056

Here is the call graph for this function:

HydrodynamicPlainBearing::~HydrodynamicPlainBearing ( void  )
virtual

Definition at line 446 of file module-hydrodynamic_plain_bearing.cc.

447 {
448  // destroy private dataman
449 }

Member Function Documentation

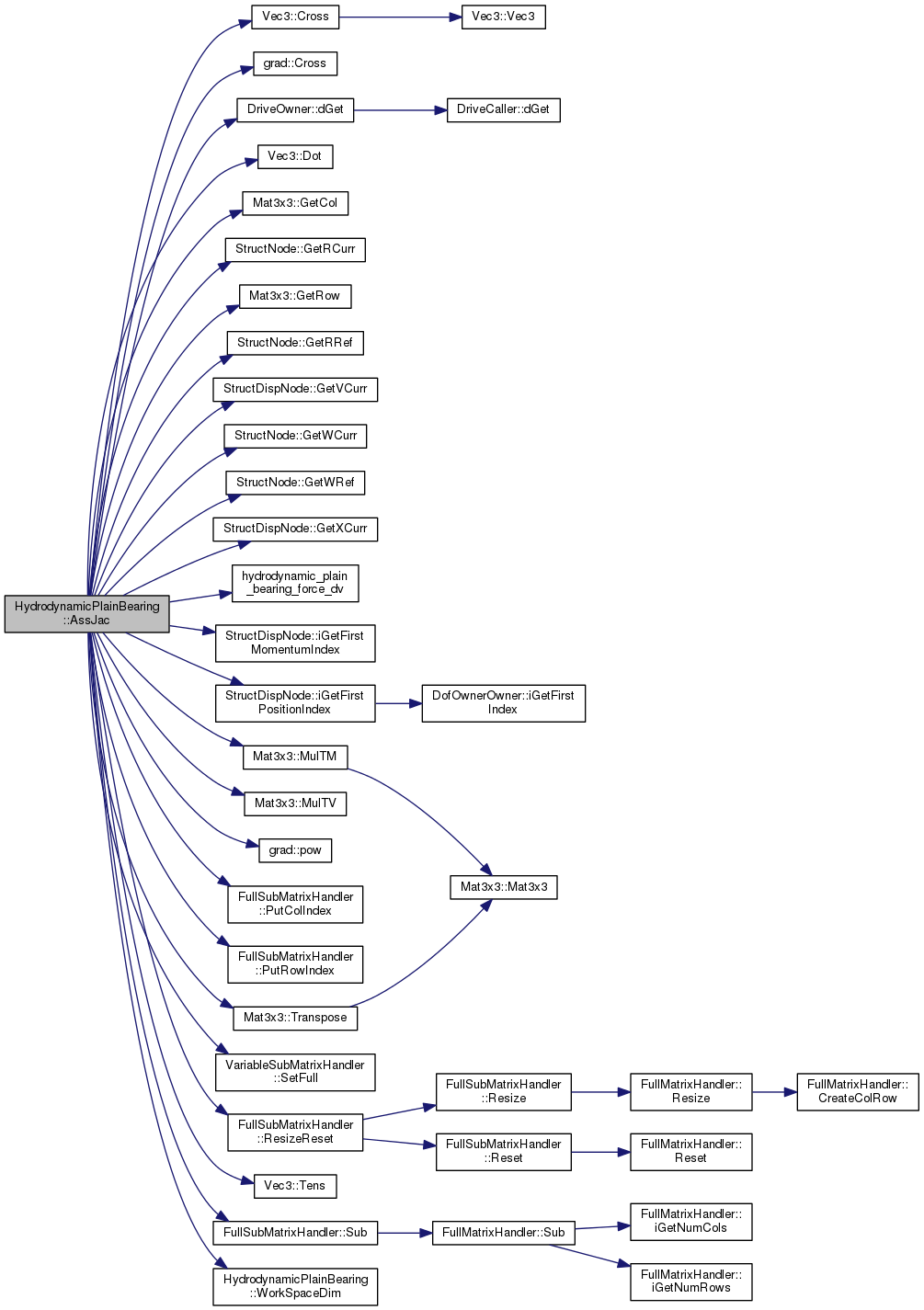

VariableSubMatrixHandler & HydrodynamicPlainBearing::AssJac ( VariableSubMatrixHandler &  WorkMat,
doublereal  dCoef,
const VectorHandler &  XCurr,
const VectorHandler &  XPrimeCurr
)
virtual

Implements Elem.

Definition at line 525 of file module-hydrodynamic_plain_bearing.cc.

References bearing_data::b, Vec3::Cross(), grad::Cross(), bearing_data::d, DriveOwner::dGet(), Vec3::Dot(), Eye3, Mat3x3::GetCol(), StructNode::GetRCurr(), Mat3x3::GetRow(), StructNode::GetRRef(), StructDispNode::GetVCurr(), StructNode::GetWCurr(), StructNode::GetWRef(), StructDispNode::GetXCurr(), hydrodynamic_plain_bearing_force_dv(), StructDispNode::iGetFirstMomentumIndex(), StructDispNode::iGetFirstPositionIndex(), m_alpha, m_bdat, m_InitialAssemblyFactor, m_iNumGaussPoints, m_lambda, m_o1_R1, m_o2_R2, m_pBearing, m_pShaft, m_r, MatCross, Mat3x3::MulTM(), Mat3x3::MulTV(), NBDIRSMAX, grad::pow(), bearing_data::Psi, FullSubMatrixHandler::PutColIndex(), FullSubMatrixHandler::PutRowIndex(), FullSubMatrixHandler::ResizeReset(), VariableSubMatrixHandler::SetFull(), FullSubMatrixHandler::Sub(), Vec3::Tens(), Mat3x3::Transpose(), WorkSpaceDim(), and Zero3.

529 {
530  integer iNumRows = 0;
531  integer iNumCols = 0;
532
533  WorkSpaceDim(&iNumRows, &iNumCols);
534
535  FullSubMatrixHandler& WorkMat = WorkMatV.SetFull();
536
537  WorkMat.ResizeReset(iNumRows, iNumCols);
538
539  integer intShaftPositionIndex = m_pShaft->iGetFirstPositionIndex();
540  integer intShaftMomentumIndex = m_pShaft->iGetFirstMomentumIndex();
541  integer intBearingPositionIndex = m_pBearing->iGetFirstPositionIndex();
542  integer intBearingMomentumIndex = m_pBearing->iGetFirstMomentumIndex();
543
544  for (int iCnt = 1; iCnt <= 6; iCnt++)
545  {
546  WorkMat.PutRowIndex(iCnt, intShaftMomentumIndex + iCnt);
547  WorkMat.PutColIndex(iCnt, intShaftPositionIndex + iCnt);
548  WorkMat.PutRowIndex(iCnt+6,intBearingMomentumIndex + iCnt);
549  WorkMat.PutColIndex(iCnt+6,intBearingPositionIndex + iCnt);
550  }
551
552  const Vec3& X1 = m_pShaft->GetXCurr();
553  const Vec3& X2 = m_pBearing->GetXCurr();
554  const Vec3& X1_dot = m_pShaft->GetVCurr();
555  const Vec3& X2_dot = m_pBearing->GetVCurr();
556  const Mat3x3& R1 = m_pShaft->GetRCurr();
557  const Mat3x3& R1_0 = m_pShaft->GetRRef();
558  const Mat3x3& R2 = m_pBearing->GetRCurr();
559  const Mat3x3& R2_0 = m_pBearing->GetRRef();
560  const Vec3& omega1 = m_pShaft->GetWCurr();
561  const Vec3& omega1_ref = m_pShaft->GetWRef();
562  const Vec3& omega2 = m_pBearing->GetWCurr();
563  const Vec3& omega2_ref = m_pBearing->GetWRef();
564
565  for (integer i = 0; i < m_iNumGaussPoints; ++i)
566  {
567  Vec3 o1_R1 = m_o1_R1;
568  o1_R1(3) += m_r[i] * m_bdat.b;
569  Vec3 o2_R2 = m_o2_R2;
570  o2_R2(3) += m_r[i] * m_bdat.b;
571  const Vec3 v_R2 = R2.MulTV( X1 - X2 + R1 * o1_R1 ) - o2_R2;
572  const Vec3 d1_R2 = R2.MulTV(R1.GetCol(3));
573
574  const doublereal lambda = m_lambda ? -v_R2(3) / d1_R2(3) : 0.;
575
576  Vec3 e_R2 = v_R2 + d1_R2 * lambda;
577
578  // FIXME: nan values if e_R2(1) == 0 && e_R2(2) == 0
579  if ( e_R2(1) == 0.0 && e_R2(2) == 0.0 )
580  e_R2(1) = std::numeric_limits<doublereal>::epsilon() * m_bdat.d * m_bdat.Psi / 2.;
581
582  const Vec3 v_dot_R2 = R2.MulTV( X1_dot - X2_dot + omega2.Cross(X2 - X1) + ( omega1 - omega2 ).Cross( R1 * o1_R1 ) );
583  const Vec3 d1_dot_R2 = R2.MulTV( ( omega1 - omega2 ).Cross( R1.GetCol(3) ) );
584  const doublereal lambda_dot = m_lambda ? -v_dot_R2(3) / d1_R2(3) + v_R2(3) / std::pow(d1_R2(3),2) * d1_dot_R2(3) : 0.;
585
586  Vec3 e_dot_R2 = R2.MulTV( X1_dot - X2_dot + omega1.Cross( R1 * o1_R1 ) - omega2.Cross( R2 * o2_R2 )
587  + R1.GetCol(3) * lambda_dot + omega1.Cross(R1.GetCol(3)) * lambda);
588
589  // FIXME: nan values if e_dot_R2(1) == 0 && e_dot_R2(2) == 0
590  if ( e_dot_R2(1) == 0.0 && e_dot_R2(2) == 0.0 )
591  e_dot_R2(1) = std::numeric_limits<doublereal>::epsilon() * m_bdat.d * m_bdat.Psi / 2.;
592
593  const Vec3 lambda_d1_R1 = Vec3(0.,0.,lambda);
594  const Vec3 l1_R1 = o1_R1 + lambda_d1_R1;
595  const Vec3 l1_I = R1 * l1_R1;
596  const Vec3 l2_R2 = o2_R2 + e_R2;
597  const doublereal omega_proj[2] = { R2.GetCol(3).Dot(omega1),
598  R2.GetCol(3).Dot(omega2) };
599
600  const doublereal e_[2] = { e_R2(1), e_R2(2) }, e_dot_[2] = { e_dot_R2(1), e_dot_R2(2) };
601
602  // | 0 1 2 3 4 5 |
603  static const doublereal ed[2][NBDIRSMAX] = { { 1., 0., 0., 0., 0., 0. }, // 0 | inner derivative of the eccentricity of the shaft in direction 1 of the reference frame of the bearing (R2)
604  { 0., 1., 0., 0., 0., 0. } }; // 1 | inner derivative of the eccentricity of the shaft in direction 2 of the reference frame of the bearing (R2)
605  static const doublereal e_dotd[2][NBDIRSMAX] = { { 0., 0., 1., 0., 0., 0. }, // 0 | inner derivative of relative velocity of the shaft in direction 1 of the reference frame of the bearing (R2)
606  { 0., 0., 0., 1., 0., 0. } }; // 1 | inner derivative of relative velocity of the shaft in direction 2 of the reference frame of the bearing (R2)
607  static const doublereal omega_projd[2][NBDIRSMAX] = { { 0., 0., 0., 0., 1., 0. }, // 0 | inner derivative of the angular velocity of the shaft in direction 3 of the reference frame of the bearing (R2)
608  { 0., 0., 0., 0., 0., 1. } }; // 1 | inner derivative of the angular velocity of the bearing in direction 3 of the reference frame of the bearing (R2)
609
610  doublereal k[3]; // force vector at the bearing (not used for the evaluation of the jacobian matrix)
611  doublereal kd[3][NBDIRSMAX]; // variation of the force vector at the bearing with respect to the eccentricity of the shaft e and the relative velocity of the shaft
612
613  // kd = { { diff(k[0],e[0]), diff(k[0],e[1]), diff(k[0],e_dot[0]), diff(k[0],e_dot[1]), diff(k[0],omega_proj[0]), diff(k[0],omega_proj[1]) },
614  // { diff(k[1],e[0]), diff(k[1],e[1]), diff(k[1],e_dot[0]), diff(k[1],e_dot[1]), diff(k[1],omega_proj[0]), diff(k[1],omega_proj[1]) },
615  // { diff(k[2],e[0]), diff(k[2],e[1]), diff(k[2],e_dot[0]), diff(k[2],e_dot[1]), diff(k[2],omega_proj[0]), diff(k[2],omega_proj[1]) } };
616
617  doublereal eps, eps_dot, delta, SoD, SoV, my, beta;
618
619  hydrodynamic_plain_bearing_force_dv(m_bdat, omega_proj, omega_projd, e_, ed, e_dot_, e_dotd, k, kd, eps, eps_dot, delta, SoD, SoV, my, beta, NBDIRSMAX);
620
621  Vec3 F2_R2; // F2^(R2) = f(e^(R2), diff(e^(R2),t), omega1_proj, omega2_proj)
622
623  F2_R2(1) = k[0];
624  F2_R2(2) = k[1];
625  F2_R2(3) = 0.;
626
627  Mat3x3 dF2_R2_de_R2; // diff(F2^(R2), e^(R2))
628
629  dF2_R2_de_R2(1,1) = kd[0][0]; dF2_R2_de_R2(1,2) = kd[0][1]; dF2_R2_de_R2(1,3) = 0.;
630  dF2_R2_de_R2(2,1) = kd[1][0]; dF2_R2_de_R2(2,2) = kd[1][1]; dF2_R2_de_R2(2,3) = 0.;
631  dF2_R2_de_R2(3,1) = 0.; dF2_R2_de_R2(3,2) = 0.; dF2_R2_de_R2(3,3) = 0.;
632
633  Mat3x3 dF2_R2_de_dot_R2; // diff(F2^(R2), diff(e^(R2),t))
634
635  dF2_R2_de_dot_R2(1,1) = kd[0][2]; dF2_R2_de_dot_R2(1,2) = kd[0][3]; dF2_R2_de_dot_R2(1,3) = 0.;
636  dF2_R2_de_dot_R2(2,1) = kd[1][2]; dF2_R2_de_dot_R2(2,2) = kd[1][3]; dF2_R2_de_dot_R2(2,3) = 0.;
637  dF2_R2_de_dot_R2(3,1) = 0.; dF2_R2_de_dot_R2(3,2) = 0; dF2_R2_de_dot_R2(3,3) = 0.;
638
639  Vec3 dF2_R2_domega1_proj; // diff(F2^(R2), omega1_proj)
640
641  dF2_R2_domega1_proj(1) = kd[0][4];
642  dF2_R2_domega1_proj(2) = kd[1][4];
643  dF2_R2_domega1_proj(3) = 0.;
644
645  Vec3 dF2_R2_domega2_proj; // diff(F2^(R2), omega2_proj)
646
647  dF2_R2_domega2_proj(1) = kd[0][5];
648  dF2_R2_domega2_proj(2) = kd[1][5];
649  dF2_R2_domega2_proj(3) = 0.;
650
651  Vec3 M2_R2; // M2^(R2) = f(e^(R2), diff(e^(R2),t), omega1_proj, omega2_proj)
652
653  M2_R2(1) = 0.;
654  M2_R2(2) = 0.;
655  M2_R2(3) = k[2];
656
657  Mat3x3 dM2_R2_de_R2; // diff(M2^(R2), e^(R2)
658
659  dM2_R2_de_R2(1,1) = 0.; dM2_R2_de_R2(1,2) = 0.; dM2_R2_de_R2(1,3) = 0.;
660  dM2_R2_de_R2(2,1) = 0.; dM2_R2_de_R2(2,2) = 0.; dM2_R2_de_R2(2,3) = 0.;
661  dM2_R2_de_R2(3,1) = kd[2][0]; dM2_R2_de_R2(3,2) = kd[2][1]; dM2_R2_de_R2(3,3) = 0.;
662
663  Mat3x3 dM2_R2_de_dot_R2; // diff(M2^(R2), diff(e^(R2),t)
664
665  dM2_R2_de_dot_R2(1,1) = 0.; dM2_R2_de_dot_R2(1,2) = 0.; dM2_R2_de_dot_R2(1,3) = 0.;
666  dM2_R2_de_dot_R2(2,1) = 0.; dM2_R2_de_dot_R2(2,2) = 0.; dM2_R2_de_dot_R2(2,3) = 0.;
667  dM2_R2_de_dot_R2(3,1) = kd[2][2]; dM2_R2_de_dot_R2(3,2) = kd[2][3]; dM2_R2_de_dot_R2(3,3) = 0.;
668
669  Vec3 dM2_R2_domega1_proj; // diff(M2^(R2), omega1_proj)
670
671  dM2_R2_domega1_proj(1) = 0.;
672  dM2_R2_domega1_proj(2) = 0.;
673  dM2_R2_domega1_proj(3) = kd[2][4];
674
675  Vec3 dM2_R2_domega2_proj; // diff(M2^(R2), omega2_proj)
676
677  dM2_R2_domega2_proj(1) = 0.;
678  dM2_R2_domega2_proj(2) = 0.;
679  dM2_R2_domega2_proj(3) = kd[2][5];
680
681  const doublereal alpha = m_alpha[i] * m_InitialAssemblyFactor.dGet();
682
683  F2_R2 *= alpha;
684  dF2_R2_de_R2 *= alpha;
685  dF2_R2_de_dot_R2 *= alpha;
686  dF2_R2_domega1_proj *= alpha;
687  dF2_R2_domega2_proj *= alpha;
688
689  M2_R2 *= alpha;
690  dM2_R2_de_R2 *= alpha;
691  dM2_R2_de_dot_R2 *= alpha;
692  dM2_R2_domega1_proj *= alpha;
693  dM2_R2_domega2_proj *= alpha;
694
695  const Mat3x3 R2_T = R2.Transpose();
696
697  const Vec3 F2_I = R2 * F2_R2;
698  const Vec3 M2_I = R2 * ( l2_R2.Cross( F2_R2 ) + M2_R2 );
699  const Vec3 F1_I = -F2_I;
700  const Vec3 M1_I = -l1_I.Cross( F2_I ) - R2 * M2_R2;
701
702  const Mat3x3 dv_dot_R2_dX1 = -R2.MulTM(Mat3x3(MatCross, omega2)); // diff(diff(v^(R2),t),X1)
703  const Mat3x3& dv_R2_dX1 = R2_T; // diff(v^(R2),X1)
704  const Vec3 dlambda_dot_dX1 = m_lambda ? -dv_dot_R2_dX1.GetRow(3) / d1_R2(3) + dv_R2_dX1.GetRow(3) / std::pow(d1_R2(3),2) * d1_dot_R2(3) : Zero3; // diff(diff(lambda,t),X1)
705
706  const Vec3 dlambda_dX1 = m_lambda ? -dv_R2_dX1.GetRow(3) / d1_R2(3) : Zero3;
707
708  const Mat3x3 de_dot_R2_dX1 = R2.MulTM( R1.GetCol(3).Tens(dlambda_dot_dX1) + omega1.Cross( R1.GetCol(3) ).Tens(dlambda_dX1) );
709
710  const Mat3x3 dv_dot_R2_domega1 = -R2.MulTM(Mat3x3(MatCross, R1 * o1_R1));
711  const Mat3x3 domega1_dg1 = -Mat3x3(MatCross, omega1_ref);
712  const Mat3x3 dv_R2_dg1 = -R2.MulTM( Mat3x3(MatCross, R1_0 * o1_R1) );
713  const Mat3x3 dv_dot_R2_dg1 = dv_dot_R2_domega1 * domega1_dg1 - R2.MulTM( ( omega1 - omega2 ).Cross(Mat3x3(MatCross, R1_0 * o1_R1)) );
714  const Mat3x3 dd1_R2_dg1 = -R2.MulTM(Mat3x3(MatCross, R1_0.GetCol(3)));
715  const Mat3x3 dd1_dot_R2_dg1 = R2.MulTM( R1.GetCol(3).Cross(Mat3x3(MatCross, omega1_ref)) - ( omega1 - omega2 ).Cross(Mat3x3(MatCross, R1_0.GetCol(3))) );
716  const Vec3 dlambda_dot_dg1 = m_lambda ? -dv_dot_R2_dg1.GetRow(3) / d1_R2(3)
717  + dd1_R2_dg1.GetRow(3) * (v_dot_R2(3) / std::pow(d1_R2(3), 2))
718  + dv_R2_dg1.GetRow(3) / std::pow(d1_R2(3), 2) * d1_dot_R2(3)
719  - dd1_R2_dg1.GetRow(3) * (2. * v_R2(3) / std::pow(d1_R2(3), 3) * d1_dot_R2(3))
720  + dd1_dot_R2_dg1.GetRow(3) * (v_R2(3) / std::pow(d1_R2(3), 2)) : Zero3;
721  const Vec3 dlambda_dg1 = m_lambda ? -dv_R2_dg1.GetRow(3) / d1_R2(3) + dd1_R2_dg1.GetRow(3) * (v_R2(3) / std::pow( d1_R2(3), 2 )) : Zero3;
722
723  const Mat3x3 de_dot_R2_dg1 = R2.MulTM( -omega1.Cross(Mat3x3( MatCross, R1_0 * o1_R1 )) + ( R1 * o1_R1 ).Cross(Mat3x3(MatCross, omega1_ref))
724  + R1.GetCol(3).Tens(dlambda_dot_dg1) - Mat3x3( MatCross, R1_0.GetCol(3) ) * lambda_dot
725  + omega1.Cross( R1.GetCol(3) ).Tens(dlambda_dg1) + R1.GetCol(3).Cross(Mat3x3(MatCross, omega1_ref)) * lambda
726  - omega1.Cross(Mat3x3( MatCross, R1_0.GetCol(3) )) * lambda );
727  const Mat3x3 dv_dot_R2_dX2 = R2.MulTM(Mat3x3(MatCross, omega2));
728  const Mat3x3 dv_R2_dX2 = -R2_T;
729  const Vec3 dlambda_dot_dX2 = m_lambda ? -dv_dot_R2_dX2.GetRow(3) / d1_R2(3) + dv_R2_dX2.GetRow(3) / std::pow(d1_R2(3),2) * d1_dot_R2(3) : Zero3;
730
731  const Vec3 dlambda_dX2 = m_lambda ? -dv_R2_dX2.GetRow(3) / d1_R2(3) : Zero3;
732  const Mat3x3 de_dot_R2_dX2 = R2.MulTM( R1.GetCol(3).Tens(dlambda_dot_dX2) + omega1.Cross( R1.GetCol(3) ).Tens(dlambda_dX2) );
733  const Mat3x3 dv_R2_dg2 = R2_0.MulTM( Mat3x3( MatCross, X1 - X2 + R1 * o1_R1 ) );
734  const Mat3x3 dd1_R2_dg2 = R2_0.MulTM( Mat3x3( MatCross, R1 * o1_R1 ) );
735  const Mat3x3 dv_dot_R2_dg2 = R2_0.MulTM( Mat3x3( MatCross, X1_dot - X2_dot + omega2.Cross( X2 - X1 ) + ( omega1 - omega2 ).Cross( R1 * o1_R1 ) ) )
736  + R2.MulTM( ( X2 - X1 - R1 * o1_R1 ).Cross(Mat3x3(MatCross, omega2_ref)) );
737  const Vec3 dlambda_dg2 = m_lambda ? -dv_R2_dg2.GetRow(3) / d1_R2(3) + dd1_R2_dg2.GetRow(3) * (v_R2(3) / std::pow(d1_R2(3),2)) : Zero3;
738
739  const Mat3x3 dd1_dot_R2_dg2 = R2_0.MulTM( Mat3x3( MatCross, ( omega1 - omega2 ).Cross( R1.GetCol(3) ) ) )
740  - R2.MulTM( Mat3x3( MatCross, R1.GetCol(3) ) * Mat3x3(MatCross, omega2_ref) );
741  const Vec3 dlambda_dot_dg2 = m_lambda ? -dv_dot_R2_dg2.GetRow(3) / d1_R2(3) + dd1_R2_dg2.GetRow(3) * (v_dot_R2(3) / std::pow(d1_R2(3), 2))
742  + dv_R2_dg2.GetRow(3) / std::pow(d1_R2(3),2) * d1_dot_R2(3)
743  - dd1_R2_dg2.GetRow(3) * (2. * v_R2(3) / std::pow( d1_R2(3), 3) * d1_dot_R2(3))
744  + dd1_dot_R2_dg2.GetRow(3) * (v_R2(3) / std::pow(d1_R2(3),2)) : Zero3;
745
746  const Mat3x3 de_dot_R2_dg2 = R2_0.MulTM( Mat3x3( MatCross, X1_dot - X2_dot + omega1.Cross(R1 * o1_R1) - omega2.Cross( R2 * o2_R2 )
747  + R1.GetCol(3) * lambda_dot + omega1.Cross(R1.GetCol(3)) * lambda))
748  + R2.MulTM( -( R2 * o2_R2 ).Cross(Mat3x3(MatCross, omega2_ref)) + omega2.Cross(Mat3x3( MatCross, R2_0 * o2_R2 ))
749  + R1.GetCol(3).Tens(dlambda_dot_dg2) + omega1.Cross(R1.GetCol(3)).Tens(dlambda_dg2));
750  const Mat3x3& dv_dot_R2_dX1_dot = R2_T;
751  const Vec3 dlambda_dot_dX1_dot = m_lambda ? -dv_dot_R2_dX1_dot.GetRow(3) / d1_R2(3) : Zero3;
752
753  const Mat3x3 de_dot_R2_dX1_dot = R2.MulTM( Eye3 + R1.GetCol(3).Tens(dlambda_dot_dX1_dot));
754
755  const Mat3x3 dv_dot_R2_dg1_dot = -R2.MulTM( Mat3x3( MatCross, R1 * o1_R1 ) );
756  const Mat3x3 dd1_dot_R2_dg1_dot = -R2.MulTM( Mat3x3( MatCross, R1.GetCol(3) ) );
757  const Vec3 dlambda_dot_dg1_dot = m_lambda ? -dv_dot_R2_dg1_dot.GetRow(3) / d1_R2(3) + dd1_dot_R2_dg1_dot.GetRow(3) * (v_R2(3) / std::pow(d1_R2(3),2)) : Zero3;
758
759  const Mat3x3 de_dot_R2_dg1_dot = R2.MulTM( -Mat3x3( MatCross, R1 * o1_R1 ) + R1.GetCol(3).Tens(dlambda_dot_dg1_dot) - Mat3x3(MatCross, R1.GetCol(3) * lambda) );
760
761  const Mat3x3 dv_dot_dX2_dot = -R2_T;
762  const Vec3 dlambda_dot_dX2_dot = m_lambda ? -dv_dot_dX2_dot.GetRow(3) / d1_R2(3) : Zero3;
763
764  const Mat3x3 de_dot_R2_dX2_dot = R2.MulTM( -Eye3 + R1.GetCol(3).Tens(dlambda_dot_dX2_dot));
765
766  const Mat3x3 dv_dot_R2_dg2_dot = R2.MulTM( Mat3x3( MatCross, R1 * o1_R1 + X1 - X2 ));
767  const Mat3x3 dd1_dot_R2_dg2_dot = R2.MulTM(Mat3x3(MatCross, R1.GetCol(3)));
768  const Vec3 dlambda_dot_dg2_dot = m_lambda ? -dv_dot_R2_dg2_dot.GetRow(3) / d1_R2(3) + dd1_dot_R2_dg2_dot.GetRow(3) * (v_R2(3) / std::pow(d1_R2(3),2)) : Zero3;
769
770  const Mat3x3 de_dot_R2_dg2_dot = R2.MulTM( Mat3x3( MatCross, R2 * o2_R2 ) + R1.GetCol(3).Tens( dlambda_dot_dg2_dot) );
771
772  const Mat3x3 de_R2_dX1 = dv_R2_dX1 + d1_R2.Tens( dlambda_dX1 );
773
774  const Mat3x3 de_R2_dg1 = dv_R2_dg1 + d1_R2.Tens(dlambda_dg1) + dd1_R2_dg1 * lambda;
775
776  const Mat3x3 de_R2_dX2 = dv_R2_dX2 + d1_R2.Tens(dlambda_dX2);
777
778  const Mat3x3 de_R2_dg2 = dv_R2_dg2 + d1_R2.Tens( dlambda_dg2 ) + dd1_R2_dg2 * lambda;
779
780  const Vec3 domega1_proj_dg1 = omega1_ref.Cross( R2.GetCol(3) );
781  const Vec3 domega1_proj_dg1_dot = R2.GetCol(3);
782  const Vec3 domega1_proj_dg2 = -omega1.Cross( R2_0.GetCol(3) );
783  const Vec3 domega2_proj_dg2 = -omega2.Cross(R2_0.GetCol(3)) + omega2_ref.Cross(R2.GetCol(3));
784  const Vec3 domega2_proj_dg2_dot = R2.GetCol(3);
785
786  const Mat3x3 dF2_R2_dX1 = dF2_R2_de_R2 * de_R2_dX1 + dF2_R2_de_dot_R2 * de_dot_R2_dX1;
787
788  const Mat3x3 dF2_R2_dg1 = dF2_R2_de_R2 * de_R2_dg1 + dF2_R2_de_dot_R2 * de_dot_R2_dg1
789  + dF2_R2_domega1_proj.Tens(domega1_proj_dg1);
790  const Mat3x3 dF2_R2_dX2 = dF2_R2_de_R2 * de_R2_dX2 + dF2_R2_de_dot_R2 * de_dot_R2_dX2;
791  const Mat3x3 dF2_R2_dg2 = dF2_R2_de_R2 * de_R2_dg2 + dF2_R2_de_dot_R2 * de_dot_R2_dg2
792  + dF2_R2_domega1_proj.Tens(domega1_proj_dg2) + dF2_R2_domega2_proj.Tens(domega2_proj_dg2);
793
794  const Mat3x3 dF2_I_dX1 = R2 * dF2_R2_dX1;
795  const Mat3x3 dF2_I_dg1 = R2 * dF2_R2_dg1;
796  const Mat3x3 dF2_I_dX2 = R2 * dF2_R2_dX2;
797  const Mat3x3 dF2_I_dg2 = -Mat3x3( MatCross, R2_0 * F2_R2 ) + R2 * dF2_R2_dg2;
798
799  const Mat3x3 dF1_I_dX1 = -dF2_I_dX1;
800  const Mat3x3 dF1_I_dg1 = -dF2_I_dg1;
801  const Mat3x3 dF1_I_dX2 = -dF2_I_dX2;
802  const Mat3x3 dF1_I_dg2 = -dF2_I_dg2;
803
804  const Mat3x3 dM2_R2_dX1 = dM2_R2_de_R2 * de_R2_dX1 + dM2_R2_de_dot_R2 * de_dot_R2_dX1;
805  const Mat3x3 dM2_I_dX1 = R2 * ( -F2_R2.Cross(de_R2_dX1) + l2_R2.Cross(dF2_R2_dX1) + dM2_R2_dX1 );
806
807  const Mat3x3 dM2_R2_dg1 = dM2_R2_de_R2 * de_R2_dg1 + dM2_R2_de_dot_R2 * de_dot_R2_dg1 + dM2_R2_domega1_proj.Tens(domega1_proj_dg1);
808  const Mat3x3 dM2_I_dg1 = R2 * ( -F2_R2.Cross(de_R2_dg1) + l2_R2.Cross(dF2_R2_dg1) + dM2_R2_dg1 );
809
810  const Mat3x3 dM2_R2_dX2 = dM2_R2_de_R2 * de_R2_dX2 + dM2_R2_de_dot_R2 * de_dot_R2_dX2;
811  const Mat3x3 dM2_I_dX2 = R2 * ( -F2_R2.Cross( de_R2_dX2 ) + l2_R2.Cross(dF2_R2_dX2) + dM2_R2_dX2 );
812
813  const Mat3x3 dM2_R2_dg2 = dM2_R2_de_R2 * de_R2_dg2 + dM2_R2_de_dot_R2 * de_dot_R2_dg2
814  + dM2_R2_domega1_proj.Tens(domega1_proj_dg2) + dM2_R2_domega2_proj.Tens(domega2_proj_dg2);
815  const Mat3x3 dM2_I_dg2 = -Mat3x3( MatCross, R2_0 * ( l2_R2.Cross(F2_R2) + M2_R2 ) )
816  + R2 * ( -F2_R2.Cross(de_R2_dg2) + l2_R2.Cross(dF2_R2_dg2) + dM2_R2_dg2 );
817
818  const Mat3x3 dM1_I_dX1 = ( R2 * F2_R2 ).Cross( R1.GetCol(3) ).Tens( dlambda_dX1 )
819  - l1_I.Cross( R2 * dF2_R2_dX1 ) - R2 * dM2_R2_dX1;
820
821  const Mat3x3 dM1_I_dg1 = ( R2 * F2_R2 ).Cross( R1.GetCol(3).Tens(dlambda_dg1) - Mat3x3( MatCross, R1_0 * l1_R1 ) )
822  - l1_I.Cross( R2 * dF2_R2_dg1 ) - R2 * dM2_R2_dg1;
823
824  const Mat3x3 dM1_I_dX2 = ( R2 * F2_R2 ).Cross( R1.GetCol(3).Tens(dlambda_dX2) )
825  - l1_I.Cross( R2 * dF2_R2_dX2 ) - R2 * dM2_R2_dX2;
826
827  const Mat3x3 dM1_I_dg2 = ( R2 * F2_R2 ).Cross( R1.GetCol(3).Tens(dlambda_dg2) )
828  + l1_I.Cross( Mat3x3( MatCross, R2_0 * F2_R2 ) - R2 * dF2_R2_dg2 )
829  + Mat3x3( MatCross, R2_0 * M2_R2 ) - R2 * dM2_R2_dg2;
830
831  const Mat3x3 dF2_R2_dX1_dot = dF2_R2_de_dot_R2 * de_dot_R2_dX1_dot;
832  const Mat3x3 dF2_I_dX1_dot = R2 * dF2_R2_dX1_dot;
833
834  const Mat3x3 dF2_R2_dg1_dot = dF2_R2_de_dot_R2 * de_dot_R2_dg1_dot + dF2_R2_domega1_proj.Tens( domega1_proj_dg1_dot );
835  const Mat3x3 dF2_I_dg1_dot = R2 * dF2_R2_dg1_dot;
836
837  const Mat3x3 dF2_R2_dX2_dot = dF2_R2_de_dot_R2 * de_dot_R2_dX2_dot;
838  const Mat3x3 dF2_I_dX2_dot = R2 * dF2_R2_dX2_dot;
839
840  const Mat3x3 dF2_R2_dg2_dot = dF2_R2_de_dot_R2 * de_dot_R2_dg2_dot + dF2_R2_domega2_proj.Tens( domega2_proj_dg2_dot );
841  const Mat3x3 dF2_I_dg2_dot = R2 * dF2_R2_dg2_dot;
842
843  const Mat3x3 dF1_I_dX1_dot = -dF2_I_dX1_dot;
844  const Mat3x3 dF1_I_dg1_dot = -dF2_I_dg1_dot;
845  const Mat3x3 dF1_I_dX2_dot = -dF2_I_dX2_dot;
846  const Mat3x3 dF1_I_dg2_dot = -dF2_I_dg2_dot;
847
848  const Mat3x3 dM2_R2_dX1_dot = dM2_R2_de_dot_R2 * de_dot_R2_dX1_dot;
849  const Mat3x3 dM2_I_dX1_dot = R2 * ( l2_R2.Cross( dF2_R2_dX1_dot) + dM2_R2_dX1_dot );
850
851  const Mat3x3 dM2_R2_dg1_dot = dM2_R2_de_dot_R2 * de_dot_R2_dg1_dot + dM2_R2_domega1_proj.Tens( domega1_proj_dg1_dot );
852  const Mat3x3 dM2_I_dg1_dot = R2 * ( l2_R2.Cross( dF2_R2_dg1_dot ) + dM2_R2_dg1_dot );
853
854  const Mat3x3 dM2_R2_dX2_dot = dM2_R2_de_dot_R2 * de_dot_R2_dX2_dot;
855  const Mat3x3 dM2_I_dX2_dot = R2 * ( l2_R2.Cross(dF2_R2_dX2_dot) + dM2_R2_dX2_dot );
856
857  const Mat3x3 dM2_R2_dg2_dot = dM2_R2_de_dot_R2 * de_dot_R2_dg2_dot + dM2_R2_domega2_proj.Tens(domega2_proj_dg2_dot);
858  const Mat3x3 dM2_I_dg2_dot = R2 * ( l2_R2.Cross( dF2_R2_dg2_dot ) + dM2_R2_dg2_dot );
859
860  const Mat3x3 dM1_I_dX1_dot = -l1_I.Cross( R2 * dF2_R2_dX1_dot ) - R2 * dM2_R2_dX1_dot;
861  const Mat3x3 dM1_I_dg1_dot = -l1_I.Cross( R2 * dF2_R2_dg1_dot ) - R2 * dM2_R2_dg1_dot;
862  const Mat3x3 dM1_I_dX2_dot = -l1_I.Cross( R2 * dF2_R2_dX2_dot ) - R2 * dM2_R2_dX2_dot;
863  const Mat3x3 dM1_I_dg2_dot = -l1_I.Cross( R2 * dF2_R2_dg2_dot ) - R2 * dM2_R2_dg2_dot;
864
865  /*
866  * 1, 4, 7, 10 1, 4, 7, 10
867  * | dF1/dX1_dot, dF1/dg1_dot, dF1/dX2_dot, dF1/dg2_dot | | dF1/dX1, dF1/dg1, dF1/dX2, dF1/dg2 | 1
868  * | dM1/dX1_dot, dM1/dg1_dot, dM1/dX2_dot, dM1/dg2_dot | | dM1/dX1, dM1/dg1, dM1/dX2, dM1/dg2 | 4
869  * Jac = -| | -dCoef * | |
870  * | dF2/dX1_dot, dF2/dg1_dot, dF2/dX2_dot, dF2/dg2_dot | | dF2/dX1, dF2/dg1, dF2/dX2, dF2/dg2 | 7
871  * | dM2/dX1_dot, dM2/dg1_dot, dM2/dX2_dot, dM2/dg2_dot | | dM2/dX1, dM2/dg1, dM2/dX2, dM2/dg2 | 10
872  */
873  WorkMat.Sub( 1, 1, dF1_I_dX1_dot + dF1_I_dX1 * dCoef );
874  WorkMat.Sub( 1, 4, dF1_I_dg1_dot + dF1_I_dg1 * dCoef );
875  WorkMat.Sub( 1, 7, dF1_I_dX2_dot + dF1_I_dX2 * dCoef );
876  WorkMat.Sub( 1, 10, dF1_I_dg2_dot + dF1_I_dg2 * dCoef );
877
878  WorkMat.Sub( 4, 1, dM1_I_dX1_dot + dM1_I_dX1 * dCoef );
879  WorkMat.Sub( 4, 4, dM1_I_dg1_dot + dM1_I_dg1 * dCoef );
880  WorkMat.Sub( 4, 7, dM1_I_dX2_dot + dM1_I_dX2 * dCoef );
881  WorkMat.Sub( 4, 10, dM1_I_dg2_dot + dM1_I_dg2 * dCoef );
882
883  WorkMat.Sub( 7, 1, dF2_I_dX1_dot + dF2_I_dX1 * dCoef );
884  WorkMat.Sub( 7, 4, dF2_I_dg1_dot + dF2_I_dg1 * dCoef );
885  WorkMat.Sub( 7, 7, dF2_I_dX2_dot + dF2_I_dX2 * dCoef );
886  WorkMat.Sub( 7, 10, dF2_I_dg2_dot + dF2_I_dg2 * dCoef );
887
888  WorkMat.Sub( 10, 1, dM2_I_dX1_dot + dM2_I_dX1 * dCoef );
889  WorkMat.Sub( 10, 4, dM2_I_dg1_dot + dM2_I_dg1 * dCoef );
890  WorkMat.Sub( 10, 7, dM2_I_dX2_dot + dM2_I_dX2 * dCoef );
891  WorkMat.Sub( 10, 10, dM2_I_dg2_dot + dM2_I_dg2 * dCoef );
892  }
893 #ifdef DEBUG
894  std::cerr << __FILE__ << ":" << __LINE__ << ":" << __FUNCTION__ << ":" << "Jac=" << std::endl << WorkMat << std::endl;
895 #endif
896  return WorkMatV;
897 }
FullSubMatrixHandler::PutColIndex
void PutColIndex(integer iSubCol, integer iCol)
Definition: submat.h:325
Zero3
const Vec3 Zero3(0., 0., 0.)
Vec3::Cross
Vec3 Cross(const Vec3 &v) const
Definition: matvec3.h:218
StructNode::GetRRef
virtual const Mat3x3 & GetRRef(void) const
Definition: strnode.h:1006
grad::pow
GradientExpression< BinaryExpr< FuncPow, LhsExpr, RhsExpr > > pow(const GradientExpression< LhsExpr > &u, const GradientExpression< RhsExpr > &v)
Definition: gradient.h:2961
Vec3
Definition: matvec3.h:98
MatCross
const MatCross_Manip MatCross
Definition: matvec3.cc:639
VariableSubMatrixHandler::SetFull
FullSubMatrixHandler & SetFull(void)
Definition: submat.h:1168
StructNode::GetRCurr
virtual const Mat3x3 & GetRCurr(void) const
Definition: strnode.h:1012
Vec3::Dot
doublereal Dot(const Vec3 &v) const
Definition: matvec3.h:243
HydrodynamicPlainBearing::WorkSpaceDim
virtual void WorkSpaceDim(integer *piNumRows, integer *piNumCols) const
Definition: module-hydrodynamic_plain_bearing.cc:518
Eye3
const Mat3x3 Eye3(1., 0., 0., 0., 1., 0., 0., 0., 1.)
Mat3x3::GetCol
Vec3 GetCol(unsigned short int i) const
Definition: matvec3.h:903
StructNode::GetWRef
virtual const Vec3 & GetWRef(void) const
Definition: strnode.h:1024
NBDIRSMAX
static const int NBDIRSMAX
Definition: hydrodynamic_plain_bearing_force.h:11
Mat3x3::MulTV
Vec3 MulTV(const Vec3 &v) const
Definition: matvec3.cc:482
bearing_data::d
doublereal d
Definition: hydrodynamic_plain_bearing_force.h:15
Mat3x3::GetRow
Vec3 GetRow(unsigned short int i) const
Definition: matvec3.h:912
StructDispNode::iGetFirstMomentumIndex
virtual integer iGetFirstMomentumIndex(void) const =0
StructDispNode::iGetFirstPositionIndex
virtual integer iGetFirstPositionIndex(void) const
Definition: strnode.h:452
StructNode::GetWCurr
virtual const Vec3 & GetWCurr(void) const
Definition: strnode.h:1030
Vec3::Tens
Mat3x3 Tens(const Vec3 &v) const
Definition: matvec3.cc:53
Mat3x3::MulTM
Mat3x3 MulTM(const Mat3x3 &m) const
Definition: matvec3.cc:500
grad::Cross
VectorExpression< VectorCrossExpr< VectorLhsExpr, VectorRhsExpr >, 3 > Cross(const VectorExpression< VectorLhsExpr, 3 > &u, const VectorExpression< VectorRhsExpr, 3 > &v)
Definition: matvec.h:3248
StructDispNode::GetXCurr
virtual const Vec3 & GetXCurr(void) const
Definition: strnode.h:310
FullSubMatrixHandler::ResizeReset
virtual void ResizeReset(integer, integer)
Definition: submat.cc:182
Mat3x3::Transpose
Mat3x3 Transpose(void) const
Definition: matvec3.h:816
FullSubMatrixHandler::PutRowIndex
void PutRowIndex(integer iSubRow, integer iRow)
Definition: submat.h:311
DriveOwner::dGet
doublereal dGet(const doublereal &dVar) const
Definition: drive.cc:664
bearing_data::Psi
doublereal Psi
Definition: hydrodynamic_plain_bearing_force.h:15
hydrodynamic_plain_bearing_force_dv
void hydrodynamic_plain_bearing_force_dv(const bearing_data &bdat, const doublereal omega[2], const doublereal omegad[2][NBDIRSMAX], const doublereal e[2], const doublereal ed[2][NBDIRSMAX], const doublereal e_dot[2], const doublereal e_dotd[2][NBDIRSMAX], doublereal k[3], doublereal kd[3][NBDIRSMAX], doublereal &eps, doublereal &eps_dot, doublereal &delta, doublereal &SoD, doublereal &SoV, doublereal &my, doublereal &beta, const int &nbdirs)
StructDispNode::GetVCurr
virtual const Vec3 & GetVCurr(void) const
Definition: strnode.h:322
FullSubMatrixHandler::Sub
void Sub(integer iRow, integer iCol, const Vec3 &v)
Definition: submat.cc:215
bearing_data::b
doublereal b
Definition: hydrodynamic_plain_bearing_force.h:15
doublereal
double doublereal
Definition: colamd.c:52
integer
long int integer
Definition: colamd.c:51

Here is the call graph for this function:

SubVectorHandler & HydrodynamicPlainBearing::AssRes ( SubVectorHandler &  WorkVec,
doublereal  dCoef,
const VectorHandler &  XCurr,
const VectorHandler &  XPrimeCurr
)
virtual

Implements Elem.

Definition at line 900 of file module-hydrodynamic_plain_bearing.cc.

References VectorHandler::Add(), ComputeResidual(), StructDispNode::iGetFirstMomentumIndex(), m_alpha, m_iNumGaussPoints, m_pBearing, m_pShaft, m_r, SubVectorHandler::PutRowIndex(), VectorHandler::ResizeReset(), and WorkSpaceDim().

904 {
905  // resize residual
906  integer iNumRows = 0;
907  integer iNumCols = 0;
908
909  WorkSpaceDim(&iNumRows, &iNumCols);
910
911  WorkVec.ResizeReset(iNumRows);
912
913  const integer intShaftMomentumIndex = m_pShaft->iGetFirstMomentumIndex();
914  const integer intBearingMomentumIndex = m_pBearing->iGetFirstMomentumIndex();
915
916  // equations indexes
917  for ( int iCnt = 1; iCnt <= 6; ++iCnt)
918  {
919  WorkVec.PutRowIndex(iCnt, intShaftMomentumIndex + iCnt);
920  WorkVec.PutRowIndex(iCnt+6,intBearingMomentumIndex + iCnt);
921  }
922
923  for (integer i = 0; i < m_iNumGaussPoints; ++i)
924  {
925  doublereal eps, eps_dot, delta, SoD, SoV, my, beta;
926
927  Vec3 e_R2, e_dot_R2;
928  doublereal omega_proj[2];
929  Vec3 F2_R2, M2_R2;
930  Vec3 F2_I, M2_I, F1_I, M1_I;
931
932  ComputeResidual(e_R2, e_dot_R2, omega_proj, F2_R2, M2_R2, F2_I, M2_I, F1_I, M1_I, eps, eps_dot, delta, SoD, SoV, my, beta, m_r[i], m_alpha[i]);
933  // 1 2 3 4 5 6 7 8 9 10 11 12
934  // F1(1) F1(2) F1(3) M1(1) M1(2) M1(3) F2(1) F2(2) F2(3) M2(1) M2(2) M2(3)
935  WorkVec.Add(1, F1_I);
936  WorkVec.Add(4, M1_I);
937  WorkVec.Add(7, F2_I);
938  WorkVec.Add(10, M2_I);
939  }
940
941 #ifdef DEBUG
942  std::cerr << __FILE__ << ":" << __LINE__ << ":" << __PRETTY_FUNCTION__ << ": Res=" << std::endl;
943  std::cerr << WorkVec << std::endl;
944 #endif
945  return WorkVec;
946 }
Vec3
Definition: matvec3.h:98
VectorHandler::ResizeReset
virtual void ResizeReset(integer)
Definition: vh.cc:55
HydrodynamicPlainBearing::WorkSpaceDim
virtual void WorkSpaceDim(integer *piNumRows, integer *piNumCols) const
Definition: module-hydrodynamic_plain_bearing.cc:518
SubVectorHandler::PutRowIndex
virtual void PutRowIndex(integer iSubRow, integer iRow)=0
StructDispNode::iGetFirstMomentumIndex
virtual integer iGetFirstMomentumIndex(void) const =0
VectorHandler::Add
virtual void Add(integer iRow, const Vec3 &v)
Definition: vh.cc:63
doublereal
double doublereal
Definition: colamd.c:52
integer
long int integer
Definition: colamd.c:51
HydrodynamicPlainBearing::ComputeResidual
void ComputeResidual(Vec3 &e_R2, Vec3 &e_dot_R2, doublereal omega_proj[2], Vec3 &F2_R2, Vec3 &M2_R2, Vec3 &F2_I, Vec3 &M2_I, Vec3 &F1_I, Vec3 &M1_I, doublereal &eps, doublereal &eps_dot, doublereal &delta, doublereal &SoD, doublereal &SoV, doublereal &my, doublereal &beta, doublereal r, doublereal alpha) const
Definition: module-hydrodynamic_plain_bearing.cc:948

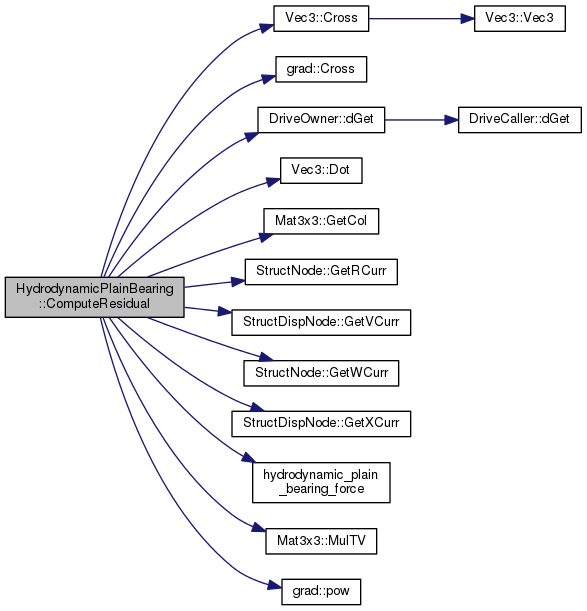

Here is the call graph for this function:

void HydrodynamicPlainBearing::ComputeResidual ( Vec3 &  e_R2,
Vec3 &  e_dot_R2,
doublereal  omega_proj[2],
Vec3 &  F2_R2,
Vec3 &  M2_R2,
Vec3 &  F2_I,
Vec3 &  M2_I,
Vec3 &  F1_I,
Vec3 &  M1_I,
doublereal &  eps,
doublereal &  eps_dot,
doublereal &  delta,
doublereal &  SoD,
doublereal &  SoV,
doublereal &  my,
doublereal &  beta,
doublereal  r,
doublereal  alpha
) const
inline

Definition at line 948 of file module-hydrodynamic_plain_bearing.cc.

References bearing_data::b, Vec3::Cross(), grad::Cross(), DriveOwner::dGet(), Vec3::Dot(), Mat3x3::GetCol(), StructNode::GetRCurr(), StructDispNode::GetVCurr(), StructNode::GetWCurr(), StructDispNode::GetXCurr(), hydrodynamic_plain_bearing_force(), m_bdat, m_InitialAssemblyFactor, m_lambda, m_o1_R1, m_o2_R2, m_pBearing, m_pShaft, Mat3x3::MulTV(), and grad::pow().

Referenced by AssRes(), and Output().

949 {
950  const Vec3& X1 = m_pShaft->GetXCurr();
951  const Vec3& X2 = m_pBearing->GetXCurr();
952  const Vec3& X1_dot = m_pShaft->GetVCurr();
953  const Vec3& X2_dot = m_pBearing->GetVCurr();
954  const Mat3x3& R1 = m_pShaft->GetRCurr();
955  const Mat3x3& R2 = m_pBearing->GetRCurr();
956  const Vec3& omega1 = m_pShaft->GetWCurr();
957  const Vec3& omega2 = m_pBearing->GetWCurr();
958
959  Vec3 o1_R1 = m_o1_R1;
960  o1_R1(3) += r * m_bdat.b;
961  Vec3 o2_R2 = m_o2_R2;
962  o2_R2(3) += r * m_bdat.b;
963
964  const Vec3 v_R2 = R2.MulTV( X1 - X2 + R1 * o1_R1 ) - o2_R2;
965  const Vec3 d1_R2 = R2.MulTV(R1.GetCol(3));
966
967  const doublereal lambda = m_lambda ? -v_R2(3) / d1_R2(3) : 0.;
968
969  e_R2 = v_R2 + d1_R2 * lambda;
970  const Vec3 v_dot_R2 = R2.MulTV( X1_dot - X2_dot + omega2.Cross(X2 - X1) + ( omega1 - omega2 ).Cross( R1 * o1_R1 ) );
971  const Vec3 d1_dot_R2 = R2.MulTV( ( omega1 - omega2 ).Cross( R1.GetCol(3) ) );
972  const doublereal lambda_dot = m_lambda ? -v_dot_R2(3) / d1_R2(3) + v_R2(3) / std::pow(d1_R2(3), 2) * d1_dot_R2(3) : 0.;
973
974  // e_dot_R2 = R2^T * e_dot_I
975  e_dot_R2 = R2.MulTV( X1_dot - X2_dot + omega1.Cross( R1 * o1_R1 ) - omega2.Cross( R2 * o2_R2 )
976  + R1.GetCol(3) * lambda_dot + omega1.Cross(R1.GetCol(3)) * lambda);
977  const Vec3 l2_R2 = o2_R2 + e_R2;
978  const Vec3 lambda_d1_R1 = Vec3(0.,0.,lambda);
979  const Vec3 l1_I = R1 * ( o1_R1 + lambda_d1_R1 );
980
981  omega_proj[0] = R2.GetCol(3).Dot(omega1);
982  omega_proj[1] = R2.GetCol(3).Dot(omega2);
983
984  const doublereal e_[2] = { e_R2(1), e_R2(2) }, e_dot_[2] = { e_dot_R2(1), e_dot_R2(2) };
985
986  doublereal k[3];
987
988  hydrodynamic_plain_bearing_force(m_bdat, omega_proj, e_, e_dot_, k, eps, eps_dot, delta, SoD, SoV, my, beta);
989
990  F2_R2(1) = k[0];
991  F2_R2(2) = k[1];
992  F2_R2(3) = 0.;
993
994  M2_R2(1) = 0.;
995  M2_R2(2) = 0.;
996  M2_R2(3) = k[2];
997
998  alpha *= m_InitialAssemblyFactor.dGet();
999
1000  F2_R2 *= alpha;
1001  M2_R2 *= alpha;
1002
1003  F2_I = R2 * F2_R2;
1004  M2_I = R2 * ( l2_R2.Cross( F2_R2 ) + M2_R2 );
1005  F1_I = -F2_I;
1006  M1_I = -l1_I.Cross( F2_I ) - R2 * M2_R2;
1007 }
Vec3::Cross
Vec3 Cross(const Vec3 &v) const
Definition: matvec3.h:218
grad::pow
GradientExpression< BinaryExpr< FuncPow, LhsExpr, RhsExpr > > pow(const GradientExpression< LhsExpr > &u, const GradientExpression< RhsExpr > &v)
Definition: gradient.h:2961
Vec3
Definition: matvec3.h:98
StructNode::GetRCurr
virtual const Mat3x3 & GetRCurr(void) const
Definition: strnode.h:1012
Vec3::Dot
doublereal Dot(const Vec3 &v) const
Definition: matvec3.h:243
hydrodynamic_plain_bearing_force
void hydrodynamic_plain_bearing_force(const bearing_data &bdat, const doublereal omega[2], const doublereal e[2], const doublereal e_dot[2], doublereal k[3], doublereal &eps, doublereal &eps_dot, doublereal &delta, doublereal &SoD, doublereal &SoV, doublereal &my, doublereal &beta)
Mat3x3::GetCol
Vec3 GetCol(unsigned short int i) const
Definition: matvec3.h:903
Mat3x3::MulTV
Vec3 MulTV(const Vec3 &v) const
Definition: matvec3.cc:482
StructNode::GetWCurr
virtual const Vec3 & GetWCurr(void) const
Definition: strnode.h:1030
grad::Cross
VectorExpression< VectorCrossExpr< VectorLhsExpr, VectorRhsExpr >, 3 > Cross(const VectorExpression< VectorLhsExpr, 3 > &u, const VectorExpression< VectorRhsExpr, 3 > &v)
Definition: matvec.h:3248
StructDispNode::GetXCurr
virtual const Vec3 & GetXCurr(void) const
Definition: strnode.h:310
DriveOwner::dGet
doublereal dGet(const doublereal &dVar) const
Definition: drive.cc:664
StructDispNode::GetVCurr
virtual const Vec3 & GetVCurr(void) const
Definition: strnode.h:322
bearing_data::b
doublereal b
Definition: hydrodynamic_plain_bearing_force.h:15
doublereal
double doublereal
Definition: colamd.c:52

Here is the call graph for this function:

void HydrodynamicPlainBearing::GetConnectedNodes ( std::vector< const Node * > &  connectedNodes) const
virtual

Reimplemented from Elem.

Definition at line 1023 of file module-hydrodynamic_plain_bearing.cc.

References iGetNumConnectedNodes(), m_pBearing, and m_pShaft.

1024 {
1025  connectedNodes.resize(iGetNumConnectedNodes());
1026  connectedNodes[0] = m_pShaft;
1027  connectedNodes[1] = m_pBearing;
1028 }

Here is the call graph for this function:

unsigned int HydrodynamicPlainBearing::iGetInitialNumDof ( void  ) const
virtual

Implements SubjectToInitialAssembly.

Definition at line 1060 of file module-hydrodynamic_plain_bearing.cc.

1061 {
1062  return 0;
1063 }
int HydrodynamicPlainBearing::iGetNumConnectedNodes ( void  ) const

Definition at line 1017 of file module-hydrodynamic_plain_bearing.cc.

Referenced by GetConnectedNodes().

1018 {
1019  return 2; // 1x shaft + 1x bearing
1020 }
unsigned int HydrodynamicPlainBearing::iGetNumPrivData ( void  ) const
virtual

Reimplemented from SimulationEntity.

Definition at line 1011 of file module-hydrodynamic_plain_bearing.cc.

1012 {
1013  return 0;
1014 }
VariableSubMatrixHandler & HydrodynamicPlainBearing::InitialAssJac ( VariableSubMatrixHandler &  WorkMat,
const VectorHandler &  XCurr
)
virtual

Implements SubjectToInitialAssembly.

Definition at line 1075 of file module-hydrodynamic_plain_bearing.cc.

References VariableSubMatrixHandler::SetNullMatrix().

1078 {
1079  WorkMat.SetNullMatrix();
1080
1081  return WorkMat;
1082 }
VariableSubMatrixHandler::SetNullMatrix
void SetNullMatrix(void)
Definition: submat.h:1159

Here is the call graph for this function:

SubVectorHandler & HydrodynamicPlainBearing::InitialAssRes ( SubVectorHandler &  WorkVec,
const VectorHandler &  XCurr
)
virtual

Implements SubjectToInitialAssembly.

Definition at line 1085 of file module-hydrodynamic_plain_bearing.cc.

References VectorHandler::ResizeReset().

1088 {
1089  WorkVec.ResizeReset(0);
1090
1091  return WorkVec;
1092 }
VectorHandler::ResizeReset
virtual void ResizeReset(integer)
Definition: vh.cc:55

Here is the call graph for this function:

void HydrodynamicPlainBearing::InitialWorkSpaceDim ( integer *  piNumRows,
integer *  piNumCols
) const
virtual

Implements SubjectToInitialAssembly.

Definition at line 1066 of file module-hydrodynamic_plain_bearing.cc.

1069 {
1070  *piNumRows = 0;
1071  *piNumCols = 0;
1072 }
void HydrodynamicPlainBearing::Output ( OutputHandler &  OH) const
virtual

Reimplemented from ToBeOutput.

Definition at line 452 of file module-hydrodynamic_plain_bearing.cc.

References ToBeOutput::bToBeOutput(), ComputeResidual(), WithLabel::GetLabel(), OutputHandler::LOADABLE, OutputHandler::Loadable(), m_iNumOutputPoints, m_output, and OutputHandler::UseText().

453 {
454  if ( bToBeOutput() && OH.UseText(OutputHandler::LOADABLE) )
455  {
456  std::ostream& os = OH.Loadable();
457
458  os << std::setw(8) << GetLabel() << ' '; // 0
459
460  for (integer i = 0; i < m_iNumOutputPoints; ++i)
461  {
462  doublereal eps, eps_dot, delta, SoD, SoV, my, beta;
463
464  Vec3 e_R2, e_dot_R2;
465  doublereal omega_proj[2];
466  Vec3 F2_R2, M2_R2;
467  Vec3 F2_I, M2_I, F1_I, M1_I;
468
469  ComputeResidual(e_R2, e_dot_R2, omega_proj, F2_R2, M2_R2, F2_I, M2_I, F1_I, M1_I, eps, eps_dot, delta, SoD, SoV, my, beta, m_output[i].r, m_output[i].alpha);
470
471  // output the current state: the column layout is as follows
472  // (all quantities are refered to the reference frame of the bearing node)
473
474  // 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
475  // e(1) e(2) e_dot(1) e_dot(2) omega(1) omega(2) eps eps_dot delta Fx Fy Mz SoD SoV my beta
476
477  // 0 label of the element
478  // 1 absolute eccentricity in of the shaft in x direction
479  // 2 absolute eccentricity in of the shaft in y direction
480  // 3 difference of the absolute velocity between the shaft and the bearing in x direction
481  // 4 difference of the absolute velocity between the shaft and the bearing in y direction
482  // 5 absolute angular velocity of the shaft around the z axis
483  // 6 absolute angular velocity of the bearing around the z axis
484  // 7 relative eccentricity of the shaft
485  // 8 time derivative of the relative eccentricity
486  // 9 angle of minimum clearance
487  // 10 force at the bearing in x direction
488  // 11 force at the bearing in y direction
489  // 12 torque at the bearing around the z axis
490  // 13 Sommerfeld number for rotation
491  // 14 Sommerfeld number for displacement
492  // 15 friction coefficient
493  // 16 angle between minimum clearance and force of rotation
494
495  os << e_R2(1) << ' ' // 1
496  << e_R2(2) << ' ' // 2
497  << e_dot_R2(1) << ' ' // 3
498  << e_dot_R2(2) << ' ' // 4
499  << omega_proj[0] << ' ' // 5
500  << omega_proj[1] << ' ' // 6
501  << eps << ' ' // 7
502  << eps_dot << ' ' // 8
503  << delta << ' ' // 9
504  << F2_R2(1) << ' ' // 10
505  << F2_R2(2) << ' ' // 11
506  << M2_R2(3) << ' ' // 12
507  << SoD << ' ' // 13
508  << SoV << ' ' // 14
509  << my << ' ' // 15
510  << beta << ' '; // 16
511  }
512
513  os << std::endl;
514  }
515 }
ToBeOutput::bToBeOutput
virtual bool bToBeOutput(void) const
Definition: output.cc:890
Vec3
Definition: matvec3.h:98
HydrodynamicPlainBearing::m_output
struct HydrodynamicPlainBearing::OutputOpt m_output[6]
OutputHandler::Loadable
std::ostream & Loadable(void) const
Definition: output.h:506
doublereal
double doublereal
Definition: colamd.c:52
integer
long int integer
Definition: colamd.c:51
WithLabel::GetLabel
unsigned int GetLabel(void) const
Definition: withlab.cc:62
HydrodynamicPlainBearing::ComputeResidual
void ComputeResidual(Vec3 &e_R2, Vec3 &e_dot_R2, doublereal omega_proj[2], Vec3 &F2_R2, Vec3 &M2_R2, Vec3 &F2_I, Vec3 &M2_I, Vec3 &F1_I, Vec3 &M1_I, doublereal &eps, doublereal &eps_dot, doublereal &delta, doublereal &SoD, doublereal &SoV, doublereal &my, doublereal &beta, doublereal r, doublereal alpha) const
Definition: module-hydrodynamic_plain_bearing.cc:948
OutputHandler::UseText
bool UseText(int out) const
Definition: output.cc:446

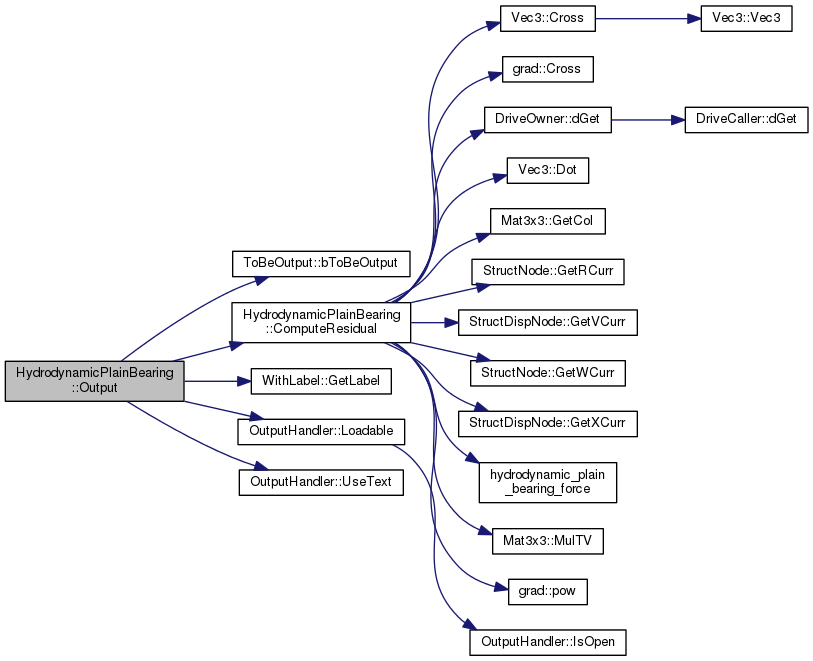

Here is the call graph for this function:

std::ostream & HydrodynamicPlainBearing::Restart ( std::ostream &  out) const
virtual

Implements Elem.

Definition at line 1039 of file module-hydrodynamic_plain_bearing.cc.

References bearing_data::b, bearing_data::d, bearing_data::eta, WithLabel::GetLabel(), m_bdat, m_InitialAssemblyFactor, m_o1_R1, m_o2_R2, m_pBearing, m_pShaft, DriveOwner::pGetDriveCaller(), bearing_data::Psi, and DriveCaller::Restart().

1040 {
1041  out << "hydrodynamic_plain_bearing_with_offset,\n"
1042  " shaft," << m_pShaft->GetLabel() << ",\n"
1043  " offset," << m_o1_R1 << ",\n"
1044  " bearing," << m_pBearing->GetLabel() << ",\n"
1045  " offset," << m_o2_R2 << "\n"
1046  " bearing width," << m_bdat.b << ",\n"
1047  " bearing diameter," << m_bdat.d << ",\n"
1048  " relative clearance," << m_bdat.Psi << ",\n"
1049  " oil viscosity," << m_bdat.eta << ",\n"
1050  " initial assembly factor,";
1051
1052  m_InitialAssemblyFactor.pGetDriveCaller()->Restart(out);
1053
1054  out << ";\n";
1055
1056  return out;
1057 }
DriveCaller::Restart
virtual std::ostream & Restart(std::ostream &out) const =0
bearing_data::d
doublereal d
Definition: hydrodynamic_plain_bearing_force.h:15
DriveOwner::pGetDriveCaller
DriveCaller * pGetDriveCaller(void) const
Definition: drive.cc:658
bearing_data::Psi
doublereal Psi
Definition: hydrodynamic_plain_bearing_force.h:15
bearing_data::b
doublereal b
Definition: hydrodynamic_plain_bearing_force.h:15
bearing_data::eta
doublereal eta
Definition: hydrodynamic_plain_bearing_force.h:15
WithLabel::GetLabel
unsigned int GetLabel(void) const
Definition: withlab.cc:62

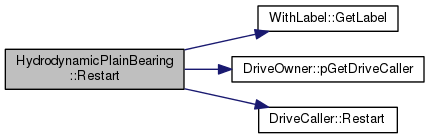

Here is the call graph for this function:

void HydrodynamicPlainBearing::SetValue ( DataManager *  pDM,
VectorHandler &  X,
VectorHandler &  XP,
SimulationEntity::Hints *  ph
)
virtual

Reimplemented from SimulationEntity.

Definition at line 1031 of file module-hydrodynamic_plain_bearing.cc.

1034 {
1035
1036 }
void HydrodynamicPlainBearing::WorkSpaceDim ( integer *  piNumRows,
integer *  piNumCols
) const
virtual

Implements Elem.

Definition at line 518 of file module-hydrodynamic_plain_bearing.cc.

Referenced by AssJac(), and AssRes().

519 {
520  *piNumRows = 12;
521  *piNumCols = 12;
522 }

Member Data Documentation

const doublereal* HydrodynamicPlainBearing::m_alpha
private

Definition at line 119 of file module-hydrodynamic_plain_bearing.cc.

Referenced by AssJac(), AssRes(), and HydrodynamicPlainBearing().

bearing_data HydrodynamicPlainBearing::m_bdat
private

Definition at line 115 of file module-hydrodynamic_plain_bearing.cc.

Referenced by AssJac(), ComputeResidual(), HydrodynamicPlainBearing(), and Restart().

DriveOwner HydrodynamicPlainBearing::m_InitialAssemblyFactor
private

Definition at line 116 of file module-hydrodynamic_plain_bearing.cc.

Referenced by AssJac(), ComputeResidual(), HydrodynamicPlainBearing(), and Restart().

integer HydrodynamicPlainBearing::m_iNumGaussPoints
private

Definition at line 117 of file module-hydrodynamic_plain_bearing.cc.

Referenced by AssJac(), AssRes(), and HydrodynamicPlainBearing().

integer HydrodynamicPlainBearing::m_iNumOutputPoints
private

Definition at line 124 of file module-hydrodynamic_plain_bearing.cc.

Referenced by HydrodynamicPlainBearing(), and Output().

bool HydrodynamicPlainBearing::m_lambda
private

Definition at line 125 of file module-hydrodynamic_plain_bearing.cc.

Referenced by AssJac(), ComputeResidual(), and HydrodynamicPlainBearing().

Vec3 HydrodynamicPlainBearing::m_o1_R1
private

Definition at line 113 of file module-hydrodynamic_plain_bearing.cc.

Referenced by AssJac(), ComputeResidual(), HydrodynamicPlainBearing(), and Restart().

Vec3 HydrodynamicPlainBearing::m_o2_R2
private

Definition at line 114 of file module-hydrodynamic_plain_bearing.cc.

Referenced by AssJac(), ComputeResidual(), HydrodynamicPlainBearing(), and Restart().

struct HydrodynamicPlainBearing::OutputOpt HydrodynamicPlainBearing::m_output[6]
private

Referenced by HydrodynamicPlainBearing(), and Output().

const StructNode* HydrodynamicPlainBearing::m_pBearing
private

Definition at line 112 of file module-hydrodynamic_plain_bearing.cc.

Referenced by AssJac(), AssRes(), ComputeResidual(), GetConnectedNodes(), HydrodynamicPlainBearing(), and Restart().

const StructNode* HydrodynamicPlainBearing::m_pShaft
private

Definition at line 111 of file module-hydrodynamic_plain_bearing.cc.

Referenced by AssJac(), AssRes(), ComputeResidual(), GetConnectedNodes(), HydrodynamicPlainBearing(), and Restart().

const doublereal* HydrodynamicPlainBearing::m_r
private

Definition at line 118 of file module-hydrodynamic_plain_bearing.cc.

Referenced by AssJac(), AssRes(), and HydrodynamicPlainBearing().

const doublereal HydrodynamicPlainBearing::s_alpha1 = {0.5 * 2}
staticprivate

Definition at line 126 of file module-hydrodynamic_plain_bearing.cc.

const doublereal HydrodynamicPlainBearing::s_alpha2
staticprivate
Initial value:
= {0.5 * 1.,
0.5 * 1.}

Definition at line 127 of file module-hydrodynamic_plain_bearing.cc.

const doublereal HydrodynamicPlainBearing::s_alpha3
staticprivate
Initial value:
= {0.5 * 0.555555555555556,
0.5 * 0.888888888888889,
0.5 * 0.555555555555556}

Definition at line 128 of file module-hydrodynamic_plain_bearing.cc.

const doublereal HydrodynamicPlainBearing::s_alpha6
staticprivate
Initial value:
= {0.5 * 0.171324492379170,
0.5 * 0.360761573048139,
0.5 * 0.467913934572691,
0.5 * 0.467913934572691,
0.5 * 0.360761573048139,
0.5 * 0.171324492379170}

Definition at line 129 of file module-hydrodynamic_plain_bearing.cc.

const doublereal HydrodynamicPlainBearing::s_r1 = {0.5 * 0.}
staticprivate

Definition at line 126 of file module-hydrodynamic_plain_bearing.cc.

const doublereal HydrodynamicPlainBearing::s_r2
staticprivate
Initial value:
= {0.5 * -0.577350269189626,
0.5 * 0.577350269189626}

Definition at line 127 of file module-hydrodynamic_plain_bearing.cc.

const doublereal HydrodynamicPlainBearing::s_r3
staticprivate
Initial value:
= {0.5 * -0.774596669241483,
0.5 * 0.,
0.5 * 0.774596669241483}

Definition at line 128 of file module-hydrodynamic_plain_bearing.cc.

const doublereal HydrodynamicPlainBearing::s_r6
staticprivate
Initial value:
= {0.5 * -0.932469514203152,
0.5 * -0.661209386466265,
0.5 * -0.238619186083197,
0.5 * 0.238619186083197,
0.5 * 0.661209386466265,
0.5 * 0.932469514203152}

Definition at line 129 of file module-hydrodynamic_plain_bearing.cc.

The documentation for this class was generated from the following file:
