Accelerometer Class Reference

#include <accelerometer.h>

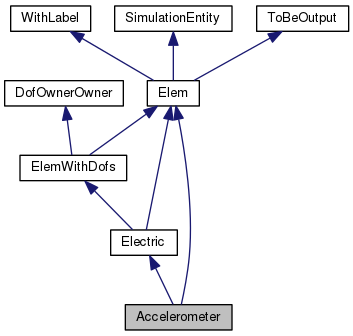

Inheritance diagram for Accelerometer:
Inheritance graph
[legend]

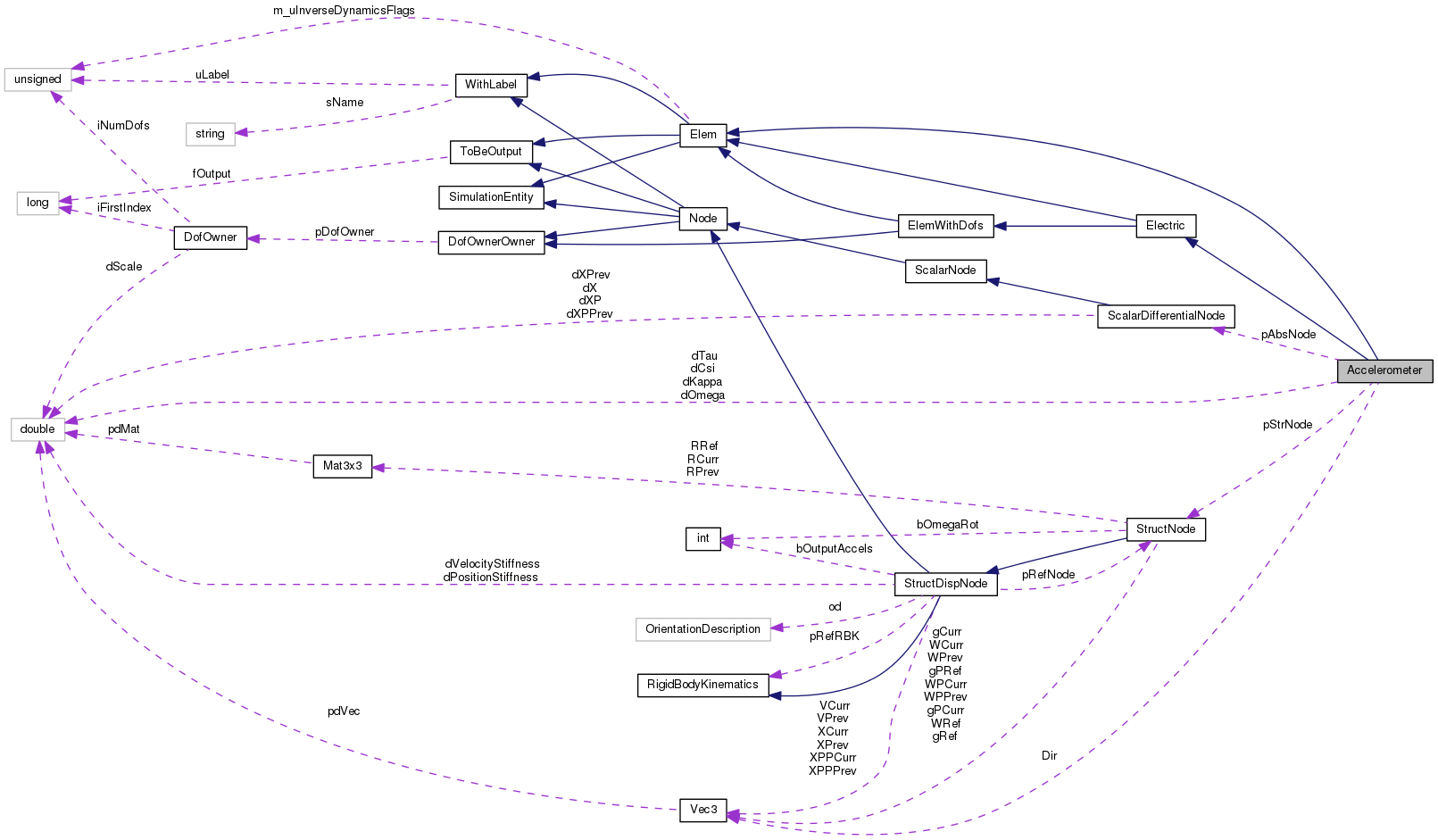

Collaboration diagram for Accelerometer:
Collaboration graph
[legend]

Public Member Functions

 Accelerometer (unsigned int uL, const DofOwner *pD, const StructNode *pS, const ScalarDifferentialNode *pA, const Vec3 &TmpDir, doublereal dO, doublereal dT, doublereal dC, doublereal dK, flag fOut)

 ~Accelerometer (void)

virtual Electric::Type GetElectricType (void) const

virtual std::ostream & Restart (std::ostream &out) const

virtual unsigned int iGetNumDof (void) const

virtual DofOrder::Order GetDofType (unsigned int i) const

virtual void WorkSpaceDim (integer *piNumRows, integer *piNumCols) const

VariableSubMatrixHandler & AssJac (VariableSubMatrixHandler &WorkMat, doublereal dCoef, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

SubVectorHandler & AssRes (SubVectorHandler &WorkVec, doublereal dCoef, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void SetInitialValue (VectorHandler &)

virtual void SetValue (DataManager *pDM, VectorHandler &X, VectorHandler &, SimulationEntity::Hints *ph=0)

virtual void GetConnectedNodes (std::vector< const Node * > &connectedNodes) const

- Public Member Functions inherited from Elem
 Elem (unsigned int uL, flag fOut)

virtual ~Elem (void)

virtual std::ostream & DescribeDof (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void DescribeDof (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual std::ostream & DescribeEq (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void DescribeEq (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual void AssMats (VariableSubMatrixHandler &WorkMatA, VariableSubMatrixHandler &WorkMatB, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual bool bInverseDynamics (void) const

void SetInverseDynamicsFlags (unsigned uIDF)

unsigned GetInverseDynamicsFlags (void) const

bool bIsErgonomy (void) const

bool bIsRightHandSide (void) const

virtual VariableSubMatrixHandler & AssJac (VariableSubMatrixHandler &WorkMat, const VectorHandler &XCurr)

virtual SubVectorHandler & AssRes (SubVectorHandler &WorkVec, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr, const VectorHandler &XPrimePrimeCurr, InverseDynamics::Order iOrder=InverseDynamics::INVERSE_DYNAMICS)

virtual int GetNumConnectedNodes (void) const

- Public Member Functions inherited from WithLabel
 WithLabel (unsigned int uL=0, const std::string &sN="")

virtual ~WithLabel (void)

void PutLabel (unsigned int uL)

void PutName (const std::string &sN)

unsigned int GetLabel (void) const

const std::string & GetName (void) const

- Public Member Functions inherited from SimulationEntity
 SimulationEntity (void)

virtual ~SimulationEntity (void)

virtual bool bIsValidIndex (unsigned int i) const

virtual DofOrder::Order GetEqType (unsigned int i) const

virtual Hint * ParseHint (DataManager *pDM, const char *s) const

virtual void BeforePredict (VectorHandler &, VectorHandler &, VectorHandler &, VectorHandler &) const

virtual void AfterPredict (VectorHandler &X, VectorHandler &XP)

virtual void Update (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void DerivativesUpdate (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void Update (const VectorHandler &XCurr, InverseDynamics::Order iOrder)

virtual void AfterConvergence (const VectorHandler &X, const VectorHandler &XP)

virtual void AfterConvergence (const VectorHandler &X, const VectorHandler &XP, const VectorHandler &XPP)

virtual unsigned int iGetNumPrivData (void) const

virtual unsigned int iGetPrivDataIdx (const char *s) const

virtual doublereal dGetPrivData (unsigned int i) const

virtual std::ostream & OutputAppend (std::ostream &out) const

virtual void ReadInitialState (MBDynParser &HP)

- Public Member Functions inherited from ToBeOutput
 ToBeOutput (flag fOut=fDefaultOut)

virtual ~ToBeOutput (void)

virtual void OutputPrepare (OutputHandler &OH)

virtual void Output (OutputHandler &OH) const

virtual void Output (OutputHandler &OH, const VectorHandler &X, const VectorHandler &XP) const

virtual flag fToBeOutput (void) const

virtual bool bToBeOutput (void) const

virtual void SetOutputFlag (flag f=flag(1))

- Public Member Functions inherited from Electric
 Electric (unsigned int uL, const DofOwner *pDO, flag fOut)

virtual ~Electric (void)

virtual Elem::Type GetElemType (void) const

- Public Member Functions inherited from ElemWithDofs
 ElemWithDofs (unsigned int uL, const DofOwner *pDO, flag fOut)

virtual ~ElemWithDofs (void)

- Public Member Functions inherited from DofOwnerOwner
 DofOwnerOwner (const DofOwner *pDO)

virtual ~DofOwnerOwner ()

virtual const DofOwner * pGetDofOwner (void) const

virtual integer iGetFirstIndex (void) const


Private Attributes

const StructNode * pStrNode

const ScalarDifferentialNode * pAbsNode

Vec3 Dir

doublereal dOmega

doublereal dTau

doublereal dCsi

doublereal dKappa


Additional Inherited Members

- Public Types inherited from Elem
enum  Type {
  UNKNOWN = -1, AIRPROPERTIES = 0, INDUCEDVELOCITY, AUTOMATICSTRUCTURAL,
  GRAVITY, BODY, JOINT, JOINT_REGULARIZATION,
  BEAM, PLATE, FORCE, INERTIA,
  ELECTRICBULK, ELECTRIC, THERMAL, HYDRAULIC,
  BULK, LOADABLE, DRIVEN, EXTERNAL,
  AEROMODAL, AERODYNAMIC, GENEL, SOCKETSTREAM_OUTPUT,
  RTAI_OUTPUT = SOCKETSTREAM_OUTPUT, LASTELEMTYPE
}

- Public Types inherited from SimulationEntity
typedef std::vector< Hint * > Hints

- Public Types inherited from ToBeOutput
enum  { OUTPUT = 0x1U, OUTPUT_MASK = 0xFU, OUTPUT_PRIVATE = 0x10U, OUTPUT_PRIVATE_MASK = ~OUTPUT_MASK }

- Public Types inherited from Electric
enum  Type {
  UNKNOWN = -1, ACCELEROMETER = 0, DISPLACEMENT, DISCRETECONTROL,
  MOTOR, LASTELECTRICTYPE
}

- Protected Attributes inherited from WithLabel
unsigned int uLabel

std::string sName

- Protected Attributes inherited from ToBeOutput
flag fOutput


Detailed Description

Definition at line 39 of file accelerometer.h.

Constructor & Destructor Documentation

Accelerometer::Accelerometer ( unsigned int  uL,
const DofOwner *  pD,
const StructNode *  pS,
const ScalarDifferentialNode *  pA,
const Vec3 &  TmpDir,
doublereal  dO,
doublereal  dT,
doublereal  dC,
doublereal  dK,
flag  fOut
)

Definition at line 43 of file accelerometer.cc.

References NO_OP.

50 : Elem(uL, fOut),
51 Electric(uL, pDO, fOut),
52 pStrNode(pS), pAbsNode(pA),
53 Dir(TmpDir), dOmega(dO), dTau(dT), dCsi(dC), dKappa(dK)
54 {
55  NO_OP;
56 }
Accelerometer::dOmega
doublereal dOmega
Definition: accelerometer.h:44
Accelerometer::dKappa
doublereal dKappa
Definition: accelerometer.h:47
Accelerometer::pStrNode
const StructNode * pStrNode
Definition: accelerometer.h:41
Accelerometer::dCsi
doublereal dCsi
Definition: accelerometer.h:46
Electric::Electric
Electric(unsigned int uL, const DofOwner *pDO, flag fOut)
Definition: elec.cc:48
NO_OP
#define NO_OP
Definition: myassert.h:74
Accelerometer::dTau
doublereal dTau
Definition: accelerometer.h:45
Accelerometer::pAbsNode
const ScalarDifferentialNode * pAbsNode
Definition: accelerometer.h:42
Elem::Elem
Elem(unsigned int uL, flag fOut)
Definition: elem.cc:41
Accelerometer::~Accelerometer ( void  )

Definition at line 59 of file accelerometer.cc.

References NO_OP.

60 {
61  NO_OP;
62 }
NO_OP
#define NO_OP
Definition: myassert.h:74

Member Function Documentation

VariableSubMatrixHandler & Accelerometer::AssJac ( VariableSubMatrixHandler &  WorkMat,
doublereal  dCoef,
const VectorHandler &  XCurr,
const VectorHandler &  XPrimeCurr
)
virtual

Implements Elem.

Definition at line 83 of file accelerometer.cc.

References Vec3::Cross(), dCsi, DEBUGCOUT, Vec3::dGet(), Dir, dKappa, dOmega, dTau, StructNode::GetRRef(), StructDispNode::GetVCurr(), DofOwnerOwner::iGetFirstIndex(), StructDispNode::iGetFirstPositionIndex(), pAbsNode, pStrNode, SparseSubMatrixHandler::PutItem(), SparseSubMatrixHandler::ResizeReset(), and VariableSubMatrixHandler::SetSparse().

87 {
88  DEBUGCOUT("Entering Accelerometer::AssJac()" << std::endl);
89
90  /* Casting di WorkMat */
91  SparseSubMatrixHandler& WM = WorkMat.SetSparse();
92  WM.ResizeReset(15, 0);
93
94  /* Indici delle equazioni */
95  integer iFirstPositionIndex = pStrNode->iGetFirstPositionIndex();
96  integer iAbstractIndex = pAbsNode->iGetFirstIndex();
97  integer iFirstIndex = iGetFirstIndex();
98
99  /*
100  * | c 0 0 0 -a^T c*xP^T*a/\ || Delta_vP |
101  * | 0 1 c*O^2/T 0 0 0 || Delta_y1P |
102  * | 0 0 1+c*(2*C*O+1/T) -c 0 0 || Delta_y2P |
103  * |-K*O^2 -c c*O*(1+2*C/T) 1 0 0 || Delta_zP | = res
104  * | Delta_xP |
105  * | Delta_gP |
106  *
107  * con: c = dCoef
108  * a = RNode*Dir
109  * xp = Velocita' del nodo
110  * O = dOmega
111  * T = dTau
112  * C = dCsi
113  * K = dKappa
114  *
115  * v e' la misura della veocita' del punto,
116  * y1 e y2 sono stati dell'acceleromtro; v, y1, y2 appartengono al DofOwner
117  * dell'elemento;
118  * z e' la variabile del nodo astratto;
119  * x e g sono posizione e parametri di rotazione del nodo strutturale
120  *
121  *
122  * Funzione di trasferimento dell'accelerometro nel dominio di Laplace:
123  *
124  * e0 T * s
125  * ----(s) = K * ---------------------------------
126  * acc. (1 + T*s)*(1 + 2*C/O*s + s^2/O^2)
127  *
128  */
129
130  /* Dinamica dell'accelerometro */
131  WM.PutItem(1, iFirstIndex + 1, iFirstIndex + 1, dCoef);
132  WM.PutItem(2, iAbstractIndex + 1, iFirstIndex + 1,
133  -dKappa*dOmega*dOmega);
134  WM.PutItem(3, iFirstIndex + 2, iFirstIndex + 2, 1.);
135  WM.PutItem(4, iAbstractIndex + 1, iFirstIndex + 2, -dCoef);
136  WM.PutItem(5, iFirstIndex + 2, iFirstIndex + 3,
137  dCoef*dOmega*dOmega/dTau);
138  WM.PutItem(6, iFirstIndex + 3, iFirstIndex + 3,
139  1. + dCoef*(2.*dCsi*dOmega + 1./dTau));
140  WM.PutItem(7, iAbstractIndex + 1, iFirstIndex + 3,
141  dCoef*dOmega*(dOmega + 2.*dCsi/dTau));
142  WM.PutItem(8, iFirstIndex + 3, iAbstractIndex + 1, -dCoef);
143  WM.PutItem(9, iAbstractIndex + 1, iAbstractIndex + 1, 1.);
144
145  /* Misura dell'accelerazione */
146  Vec3 TmpDir((pStrNode->GetRRef())*Dir);
147  for (int iCnt = 1; iCnt <= 3; iCnt++) {
148  WM.PutItem(9 + iCnt, iFirstIndex + 1,
149  iFirstPositionIndex + iCnt,
150  - TmpDir.dGet(iCnt));
151  }
152
153  Vec3 XP(pStrNode->GetVCurr());
154  TmpDir = -TmpDir.Cross(XP);
155  for (int iCnt = 1; iCnt <= 3; iCnt++) {
156  WM.PutItem(12 + iCnt, iFirstIndex + 1,
157  iFirstPositionIndex + 3 + iCnt,
158  dCoef*TmpDir.dGet(iCnt));
159  }
160
161  return WorkMat;
162 }
Accelerometer::dOmega
doublereal dOmega
Definition: accelerometer.h:44
Accelerometer::dKappa
doublereal dKappa
Definition: accelerometer.h:47
Vec3::Cross
Vec3 Cross(const Vec3 &v) const
Definition: matvec3.h:218
StructNode::GetRRef
virtual const Mat3x3 & GetRRef(void) const
Definition: strnode.h:1006
Vec3
Definition: matvec3.h:98
Accelerometer::pStrNode
const StructNode * pStrNode
Definition: accelerometer.h:41
Accelerometer::dCsi
doublereal dCsi
Definition: accelerometer.h:46
SparseSubMatrixHandler::ResizeReset
void ResizeReset(integer iNewRow, integer iNewCol)
Definition: submat.cc:1084
SparseSubMatrixHandler::PutItem
void PutItem(integer iSubIt, integer iRow, integer iCol, const doublereal &dCoef)
Definition: submat.h:997
DEBUGCOUT
#define DEBUGCOUT(msg)
Definition: myassert.h:232
StructDispNode::iGetFirstPositionIndex
virtual integer iGetFirstPositionIndex(void) const
Definition: strnode.h:452
Accelerometer::dTau
doublereal dTau
Definition: accelerometer.h:45
StructDispNode::GetVCurr
virtual const Vec3 & GetVCurr(void) const
Definition: strnode.h:322
Accelerometer::pAbsNode
const ScalarDifferentialNode * pAbsNode
Definition: accelerometer.h:42
VariableSubMatrixHandler::SetSparse
SparseSubMatrixHandler & SetSparse(void)
Definition: submat.h:1178
DofOwnerOwner::iGetFirstIndex
virtual integer iGetFirstIndex(void) const
Definition: dofown.h:127
integer
long int integer
Definition: colamd.c:51

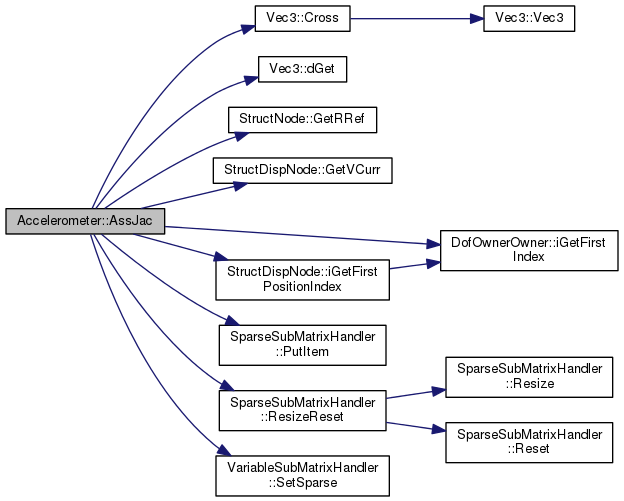

Here is the call graph for this function:

SubVectorHandler & Accelerometer::AssRes ( SubVectorHandler &  WorkVec,
doublereal  dCoef,
const VectorHandler &  XCurr,
const VectorHandler &  XPrimeCurr
)
virtual

Implements Elem.

Definition at line 166 of file accelerometer.cc.

References dCsi, DEBUGCOUT, Dir, dKappa, dOmega, grad::Dot(), dTau, StructNode::GetRCurr(), StructDispNode::GetVCurr(), DofOwnerOwner::iGetFirstIndex(), pAbsNode, pStrNode, VectorHandler::PutCoef(), SubVectorHandler::PutRowIndex(), R, VectorHandler::ResizeReset(), and WorkSpaceDim().

170 {
171  DEBUGCOUT("Entering Accelerometer::AssRes()" << std::endl);
172
173  /* Dimensiona e resetta la matrice di lavoro */
174  integer iNumRows = 0;
175  integer iNumCols = 0;
176  WorkSpaceDim(&iNumRows, &iNumCols);
177  WorkVec.ResizeReset(iNumRows);
178
179  integer iAbstractIndex = pAbsNode->iGetFirstIndex();
180  integer iFirstIndex = iGetFirstIndex();
181
182  /*
183  * | Delta_vP | | -v+a^T*xP |
184  * | Delta_y1P | | -y1P-O^2/T*y2 |
185  * jac * | Delta_y2P | = | -y2P+z-(2*C*O+1/T)*y2 |
186  * | Delta_zP | | -zP+y1-O*(O+2*C/T)*y2+K*O^2*vP |
187  * | Delta_xP |
188  * | Delta_gP |
189  *
190  * per il significato dei termini vedi AssJac
191  */
192
193  WorkVec.PutRowIndex(1, iFirstIndex + 1);
194  WorkVec.PutRowIndex(2, iFirstIndex + 2);
195  WorkVec.PutRowIndex(3, iFirstIndex + 3);
196  WorkVec.PutRowIndex(4, iAbstractIndex + 1);
197
198  Vec3 XP(pStrNode->GetVCurr());
199  Mat3x3 R(pStrNode->GetRCurr());
200  doublereal v = XCurr(iFirstIndex + 1);
201  doublereal vp = XPrimeCurr(iFirstIndex + 1);
202  doublereal y1 = XCurr(iFirstIndex + 2);
203  doublereal y1p = XPrimeCurr(iFirstIndex + 2);
204  doublereal y2 = XCurr(iFirstIndex + 3);
205  doublereal y2p = XPrimeCurr(iFirstIndex + 3);
206  doublereal z = XCurr(iAbstractIndex + 1);
207  doublereal zp = XPrimeCurr(iAbstractIndex + 1);
208
209  WorkVec.PutCoef(1, (R*Dir).Dot(XP) - v);
210  WorkVec.PutCoef(2, -y1p - dOmega*dOmega/dTau*y2);
211  WorkVec.PutCoef(3, -y2p + z - (2.*dCsi*dOmega + 1./dTau)*y2);
212  WorkVec.PutCoef(4, -zp + y1 - dOmega*(dOmega + 2.*dCsi/dTau)*y2
213  + dKappa*dOmega*dOmega*vp);
214
215  return WorkVec;
216 }
Accelerometer::dOmega
doublereal dOmega
Definition: accelerometer.h:44
Accelerometer::dKappa
doublereal dKappa
Definition: accelerometer.h:47
Vec3
Definition: matvec3.h:98
VectorHandler::ResizeReset
virtual void ResizeReset(integer)
Definition: vh.cc:55
StructNode::GetRCurr
virtual const Mat3x3 & GetRCurr(void) const
Definition: strnode.h:1012
Accelerometer::pStrNode
const StructNode * pStrNode
Definition: accelerometer.h:41
Accelerometer::dCsi
doublereal dCsi
Definition: accelerometer.h:46
SubVectorHandler::PutRowIndex
virtual void PutRowIndex(integer iSubRow, integer iRow)=0
DEBUGCOUT
#define DEBUGCOUT(msg)
Definition: myassert.h:232
Accelerometer::WorkSpaceDim
virtual void WorkSpaceDim(integer *piNumRows, integer *piNumCols) const
Definition: accelerometer.cc:232
grad::Dot
DotTraits< VectorExprLhs, VectorExprRhs, N_rows, N_rows >::ExpressionType Dot(const VectorExpression< VectorExprLhs, N_rows > &u, const VectorExpression< VectorExprRhs, N_rows > &v)
Definition: matvec.h:3133
VectorHandler::PutCoef
virtual void PutCoef(integer iRow, const doublereal &dCoef)=0
Accelerometer::dTau
doublereal dTau
Definition: accelerometer.h:45
StructDispNode::GetVCurr
virtual const Vec3 & GetVCurr(void) const
Definition: strnode.h:322
Accelerometer::pAbsNode
const ScalarDifferentialNode * pAbsNode
Definition: accelerometer.h:42
DofOwnerOwner::iGetFirstIndex
virtual integer iGetFirstIndex(void) const
Definition: dofown.h:127
doublereal
double doublereal
Definition: colamd.c:52
integer
long int integer
Definition: colamd.c:51
R
Mat3x3 R
Definition: mbdyn_util_oct.cc:74

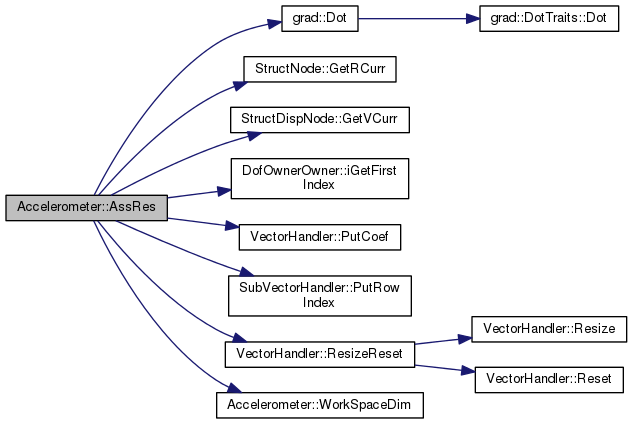

Here is the call graph for this function:

virtual void Accelerometer::GetConnectedNodes ( std::vector< const Node * > &  connectedNodes) const
inlinevirtual

Reimplemented from Elem.

Definition at line 91 of file accelerometer.h.

References pAbsNode, and pStrNode.

91  {
92  connectedNodes.resize(2);
93  connectedNodes[0] = pStrNode;
94  connectedNodes[1] = pAbsNode;
95  };
Accelerometer::pStrNode
const StructNode * pStrNode
Definition: accelerometer.h:41
Accelerometer::pAbsNode
const ScalarDifferentialNode * pAbsNode
Definition: accelerometer.h:42
DofOrder::Order Accelerometer::GetDofType ( unsigned int  i) const
virtual

Reimplemented from Elem.

Definition at line 225 of file accelerometer.cc.

References ASSERT, and DofOrder::DIFFERENTIAL.

226 {
227  ASSERT(i >= 0 && i < 3);
228  return DofOrder::DIFFERENTIAL;
229 }
ASSERT
#define ASSERT(expression)
Definition: colamd.c:977
virtual Electric::Type Accelerometer::GetElectricType ( void  ) const
inlinevirtual

Implements Electric.

Definition at line 59 of file accelerometer.h.

References Electric::ACCELEROMETER.

59  {
60  return Electric::ACCELEROMETER;
61  };
unsigned int Accelerometer::iGetNumDof ( void  ) const
virtual

Reimplemented from Elem.

Definition at line 219 of file accelerometer.cc.

220 {
221  return 3;
222 }
std::ostream & Accelerometer::Restart ( std::ostream &  out) const
virtual

Implements Elem.

Definition at line 66 of file accelerometer.cc.

References dCsi, Dir, dKappa, dOmega, dTau, WithLabel::GetLabel(), pAbsNode, pStrNode, Electric::Restart(), and Vec3::Write().

67 {
68  Electric::Restart(out) << ", accelerometer, "
69  << pStrNode->GetLabel() << ", "
70  << pAbsNode->GetLabel() << ", "
71  "reference, node, ", Dir.Write(out, ", ") << ", "
72  "node, "
73  << dOmega << ", "
74  << dTau << ", "
75  << dCsi << ", "
76  << dKappa << ';'
77  << std::endl;
78  return out;
79 }
Accelerometer::dOmega
doublereal dOmega
Definition: accelerometer.h:44
Accelerometer::dKappa
doublereal dKappa
Definition: accelerometer.h:47
Vec3::Write
std::ostream & Write(std::ostream &out, const char *sFill=" ") const
Definition: matvec3.cc:738
Accelerometer::pStrNode
const StructNode * pStrNode
Definition: accelerometer.h:41
Accelerometer::dCsi
doublereal dCsi
Definition: accelerometer.h:46
Accelerometer::dTau
doublereal dTau
Definition: accelerometer.h:45
Electric::Restart
virtual std::ostream & Restart(std::ostream &out) const
Definition: elec.cc:65
Accelerometer::pAbsNode
const ScalarDifferentialNode * pAbsNode
Definition: accelerometer.h:42
WithLabel::GetLabel
unsigned int GetLabel(void) const
Definition: withlab.cc:62

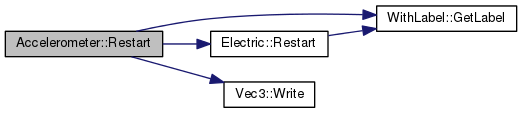

Here is the call graph for this function:

void Accelerometer::SetInitialValue ( VectorHandler &  X)
virtual

Initialize state vector used in initial assembly. May set internal states of the element. Do not rely on being always called, because initial assembly could be implicitly or explicitly skipped

Reimplemented from DofOwnerOwner.

Definition at line 239 of file accelerometer.cc.

References NO_OP.

240 {
241  NO_OP;
242 }
NO_OP
#define NO_OP
Definition: myassert.h:74
void Accelerometer::SetValue ( DataManager *  pDM,
VectorHandler &  X,
VectorHandler &  ,
SimulationEntity::Hints *  ph = 0
)
virtual

Reimplemented from SimulationEntity.

Definition at line 245 of file accelerometer.cc.

References Dir, grad::Dot(), StructNode::GetRCurr(), StructDispNode::GetVCurr(), DofOwnerOwner::iGetFirstIndex(), pStrNode, and VectorHandler::PutCoef().

248 {
249  doublereal v = (pStrNode->GetRCurr()*Dir).Dot(pStrNode->GetVCurr());
250  X.PutCoef(iGetFirstIndex() + 1, v);
251 }
StructNode::GetRCurr
virtual const Mat3x3 & GetRCurr(void) const
Definition: strnode.h:1012
Accelerometer::pStrNode
const StructNode * pStrNode
Definition: accelerometer.h:41
grad::Dot
DotTraits< VectorExprLhs, VectorExprRhs, N_rows, N_rows >::ExpressionType Dot(const VectorExpression< VectorExprLhs, N_rows > &u, const VectorExpression< VectorExprRhs, N_rows > &v)
Definition: matvec.h:3133
VectorHandler::PutCoef
virtual void PutCoef(integer iRow, const doublereal &dCoef)=0
StructDispNode::GetVCurr
virtual const Vec3 & GetVCurr(void) const
Definition: strnode.h:322
DofOwnerOwner::iGetFirstIndex
virtual integer iGetFirstIndex(void) const
Definition: dofown.h:127
doublereal
double doublereal
Definition: colamd.c:52

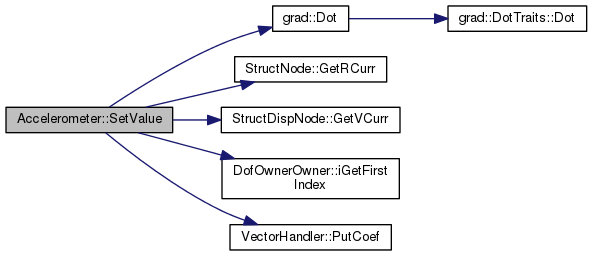

Here is the call graph for this function:

void Accelerometer::WorkSpaceDim ( integer *  piNumRows,
integer *  piNumCols
) const
virtual

Implements Elem.

Definition at line 232 of file accelerometer.cc.

Referenced by AssRes().

233 {
234  *piNumRows = 4;
235  *piNumCols = 10;
236 }

Member Data Documentation

doublereal Accelerometer::dCsi
private

Definition at line 46 of file accelerometer.h.

Referenced by AssJac(), AssRes(), and Restart().

Vec3 Accelerometer::Dir
private

Definition at line 43 of file accelerometer.h.

Referenced by AssJac(), AssRes(), Restart(), and SetValue().

doublereal Accelerometer::dKappa
private

Definition at line 47 of file accelerometer.h.

Referenced by AssJac(), AssRes(), and Restart().

doublereal Accelerometer::dOmega
private

Definition at line 44 of file accelerometer.h.

Referenced by AssJac(), AssRes(), and Restart().

doublereal Accelerometer::dTau
private

Definition at line 45 of file accelerometer.h.

Referenced by AssJac(), AssRes(), and Restart().

const ScalarDifferentialNode* Accelerometer::pAbsNode
private

Definition at line 42 of file accelerometer.h.

Referenced by AssJac(), AssRes(), GetConnectedNodes(), and Restart().

const StructNode* Accelerometer::pStrNode
private

Definition at line 41 of file accelerometer.h.

Referenced by AssJac(), AssRes(), GetConnectedNodes(), Restart(), and SetValue().

The documentation for this class was generated from the following files:
